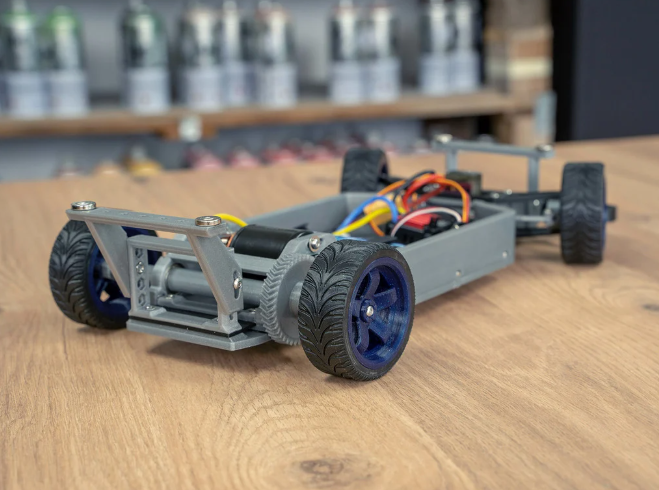

Chasis 1/10 Adaptable

"A" parts for small servo
"B" parts for big servo
03/2024
Improvements on the following parts: Body L and R, Case Holders, Gear 1 and Rear Frame R.
05/2024
improved design, ready to print plates, new parts and updated building guide
improved parts: case holders, smalls gears, nuts into the axis and horizontal split front axles.
new parts: “front-bars”

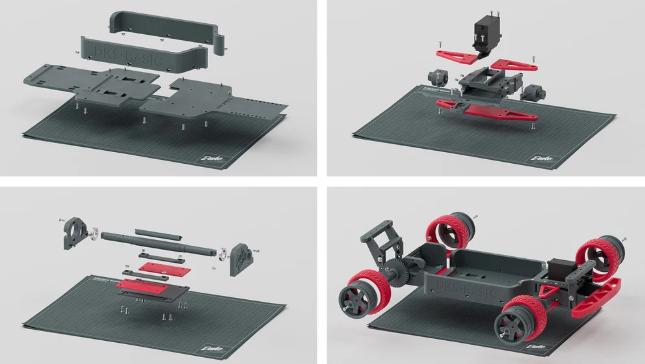

BUILD GUIDE
https://dukedoks.com/portfolio/guia-chasis-rc/

DODGE CHALLENGER
https://cults3d.com/es/modelo-3d/juegos/rc-1-10-dodge-challenger

FILAMENTS:

• Gris chasis: https://www.impresoras3d.com/tradetracker/?tt=22573_12_387969_&r=https%3A%2F%2Fwww.impresoras3d.com%2Fproducto%2Fpla-850-sakata-3d-magic-silver-175-mm%2F

• Gris chasis similar: https://www.impresoras3d.com/tradetracker/?tt=22573_12_387969_&r=https%3A%2F%2Fwww.impresoras3d.com%2Fproducto%2Fpla-extrafill-fillamentum-vertigo-grey-175-mm%2F

• Negro flexible: https://www.impresoras3d.com/tradetracker/?tt=22573_12_387969_&r=https%3A%2F%2Fwww.impresoras3d.com%2Fproducto%2Ffilamento-flexible-175-mm-smartfil-negro-true-black%2F

• Azul llantas: https://www.impresoras3d.com/tradetracker/?tt=22573_12_387969_&r=https%3A%2F%2Fwww.impresoras3d.com%2Fproducto%2Fpla-extrafill-fillamentum-vertigo-starlight-175-mm%2F

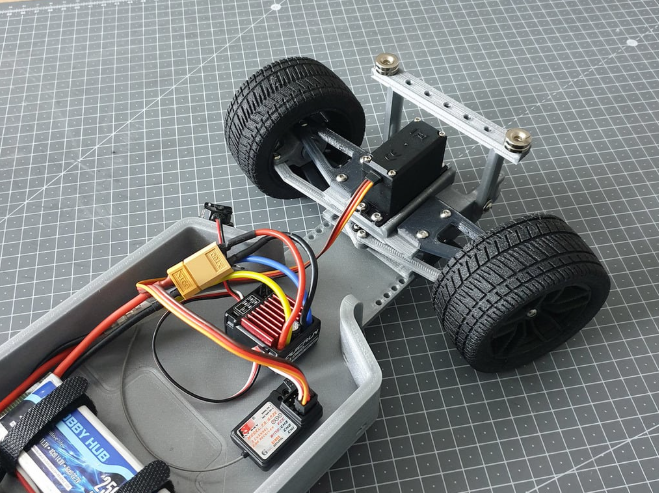

COMPONENTS:

• Metallic servo: https://bit.ly/3vPPUF0

• Big servo: https://bit.ly/3ppXplX

• Big servo 2: https://s.click.aliexpress.com/e/_9gPqwc

• Motor brushed: https://bit.ly/3hdV0Wn

• ESC brushed: https://bit.ly/35LQQiV

• Conector: https://bit.ly/3xLIJil

• Transmitter and receiver: https://bit.ly/3xMoJfG

• Battery: https://bit.ly/35JxbAn

• Adapter: https://bit.ly/3d3UdGc

• Lipo charger: https://bit.ly/2SPjjBL

• Magnets: https://bit.ly/35MPuEA

• Wheels: https://s.click.aliexpress.com/e/_As0pyc

• Case Mazda RX7: https://bit.ly/3hdWvUv

• Screws: https://bit.ly/3jaKGAP

• Front bearings: https://bit.ly/2SR0TAE

• Back bearings: https://s.click.aliexpress.com/e/_9gR8Yu

ALTERNATIVE COMPONENTS:

• Servo: https://www.banggood.com/2-or-4-or-6-pcs-VOTIK-7452-MG-D-9g-Digital-Servo-Metal-Gear-For-EPP-Airplane-RC-Aircraft-Fixed-Wing-Helicopter-p-1524394.html?rmmds=myorder&cur_warehouse=CN&ID=6300460&p=5W070829610412015110&custlinkid=1530874

• Transmitter 10 channels and receiver 6 channels: https://www.banggood.com/Flysky-i6X-FS-i6X-2_4GHz-10CH-AFHDS-2A-RC-Transmitter-With-X6B-or-IA6B-or-A8S-Receiver-for-FPV-RC-Drone-p-1090406.html??cur_warehouse=CN&ID=53081642482&p=5W070829610412015110&custlinkid=1530874

• Motor brushless and ESC: https://www.banggood.com/Surpass-Hobby-Waterproof-F540-V2-Sensorless-Brushless-Motor-with-60A-ESC-for-1-or-10-RC-Vehicles-p-1548050.html?cur_warehouse=CN&ID=519632&rmmds=search&custlinkid=1530874

PIECES

• 1x Rear Frame L

• 1x Rear Frame R

• 1x Rear Frame Lower

• 1x Rear Frame Backing

• 1x Rear Axis

• 3x Clamp

• 2x Wheel Axis Nut

• 2x Wheel Adapter

• 2x Wheel Hub

• 2x Wheel Axis

• 1x Front Frame

• 1x Front Case Holder

• 1x Front Bars Lower (TPU)

• 1x Front Bars Upper (TPU)

• 1x Steering

• 1x Gear 1

• 1x Gear 2

• 1x Case Holder

• 1x Clamp Case Holder

• 1x Chasis 1

• 1x Chasis 2

• 1x Body R

• 1x Body L

• 1x Bumper (TPU)

• 1x Rear Flex 1 (TPU)

• 1x Rear Flex 2 (TPU)

• 4x Basic Wheel 01 Nut

• 4x Basic Wheel 01 Wheel

• 4x Basic Wheel 01 Tire (TPU)

SCREWS

• 45x M3 8mm

• 4x M3 8mm countersunk head

• 14x M3 12mm

• 2x M3 washer

• 34x M3 nut

• 4x Bearings 8x12x3,5mm

• 2x Bearings 18x12x4mm
