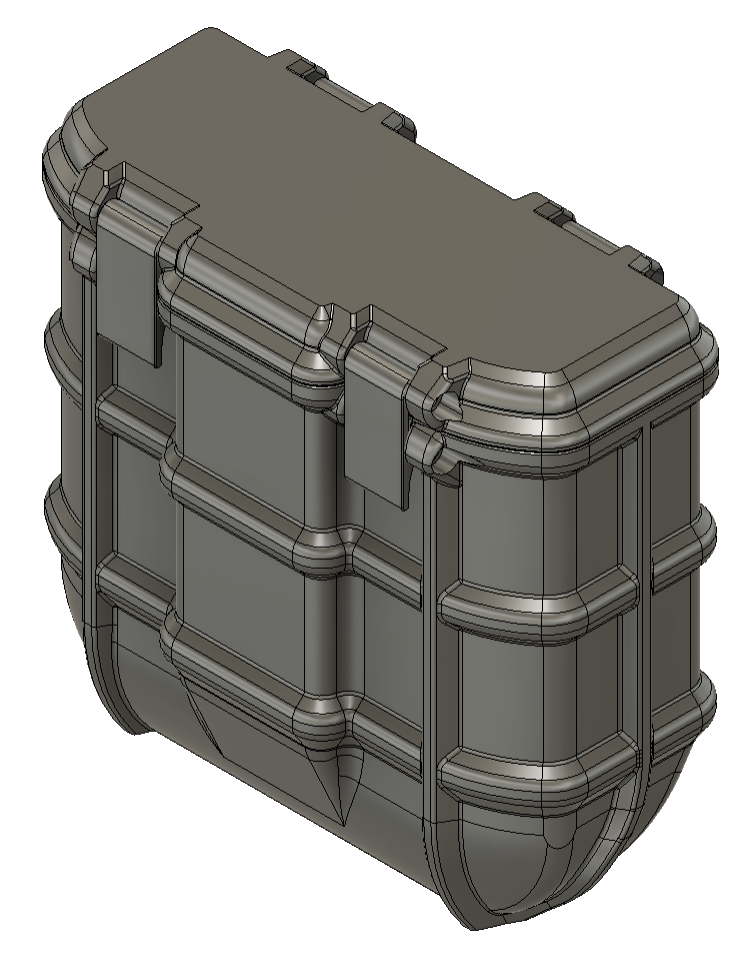

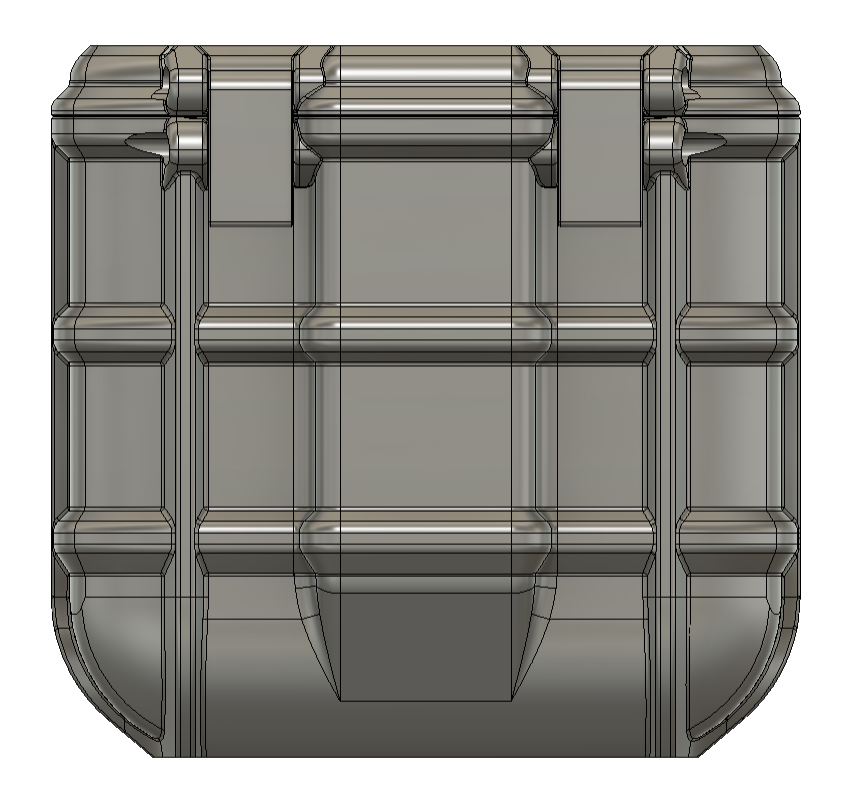

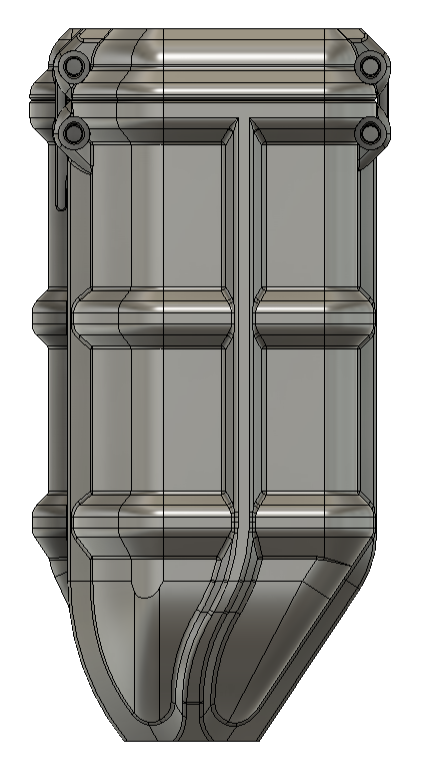

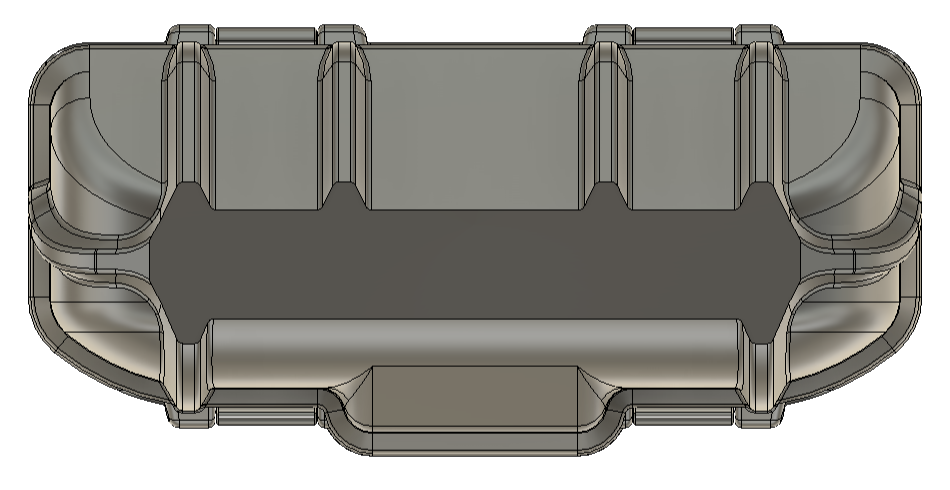

As tough as the Mobula 8 is, it won't probably survive throwing it into a backpack to take it with you.
This case allows you to do exactly that, while also protecting your whoop from some rain or mud.

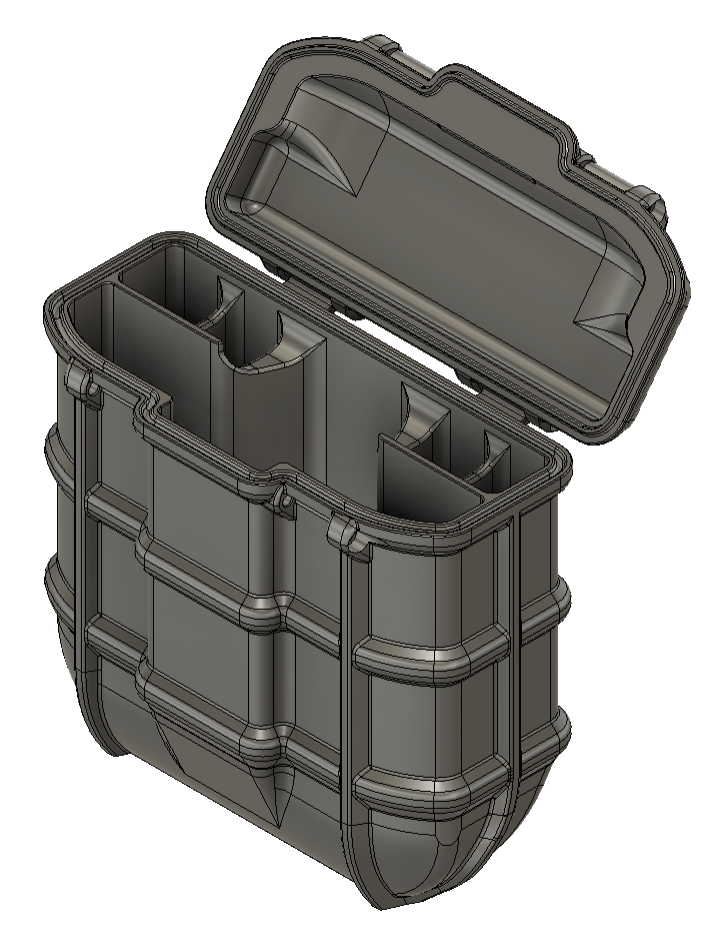

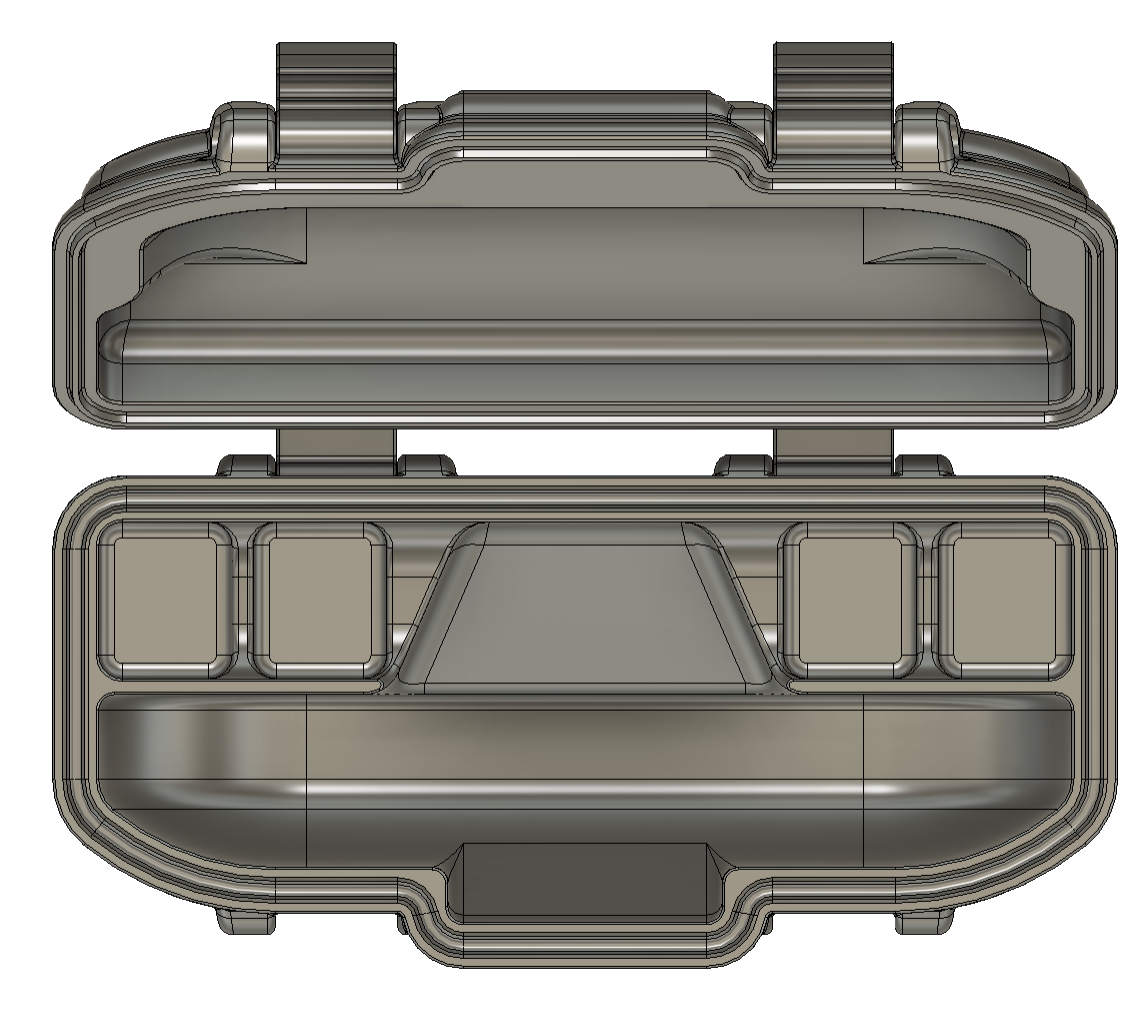

Fits analog or Walksnial 1s Mobula 8 and 5 batteries, maximum 20x17x80 mm. Other HD versions and bigger antennas were not tested. There's also a veresion for higher 2" drones.
Print it in any reasonable material, no supports are needed. Hinges require 8x M3x25 bolts. For a seal, use 340 mm long strand of 1,75 mm TPU filament, or 105x1,8 (or stretched 95x2) O-ring.
Also, check out my other RC related stuff. Fly safe and happy printing!
