mATX PC Case

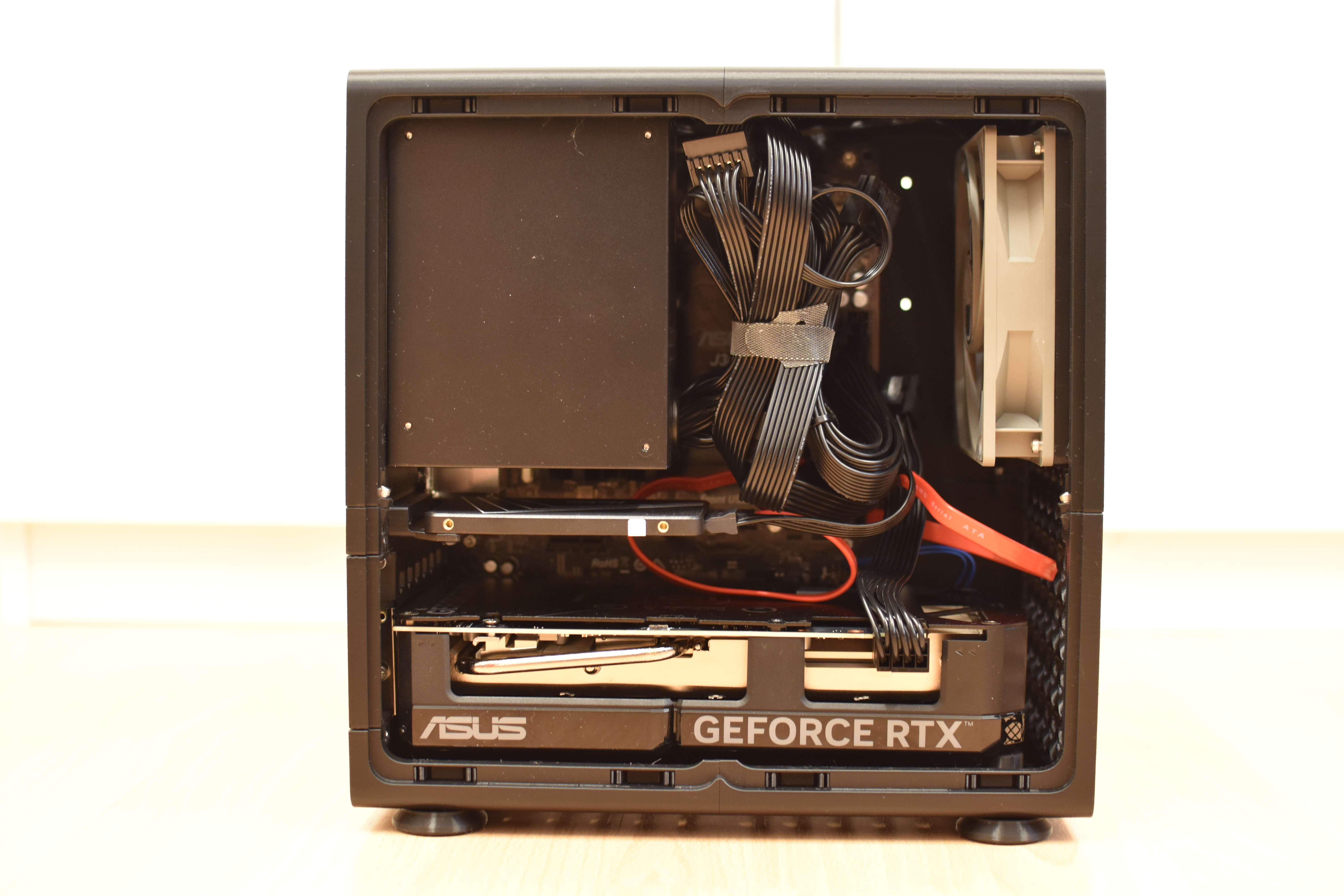

A case I designed to be fully 3d printable. Fitting a RTX4060 ti super from Asus.

Print at your own risk, there is not much space for a CPU cooler. I recommend to not print it from PLA as it can warp especially with heat from high powered components. I highly recommend you fiddle with the CAD and pre-test fitment.

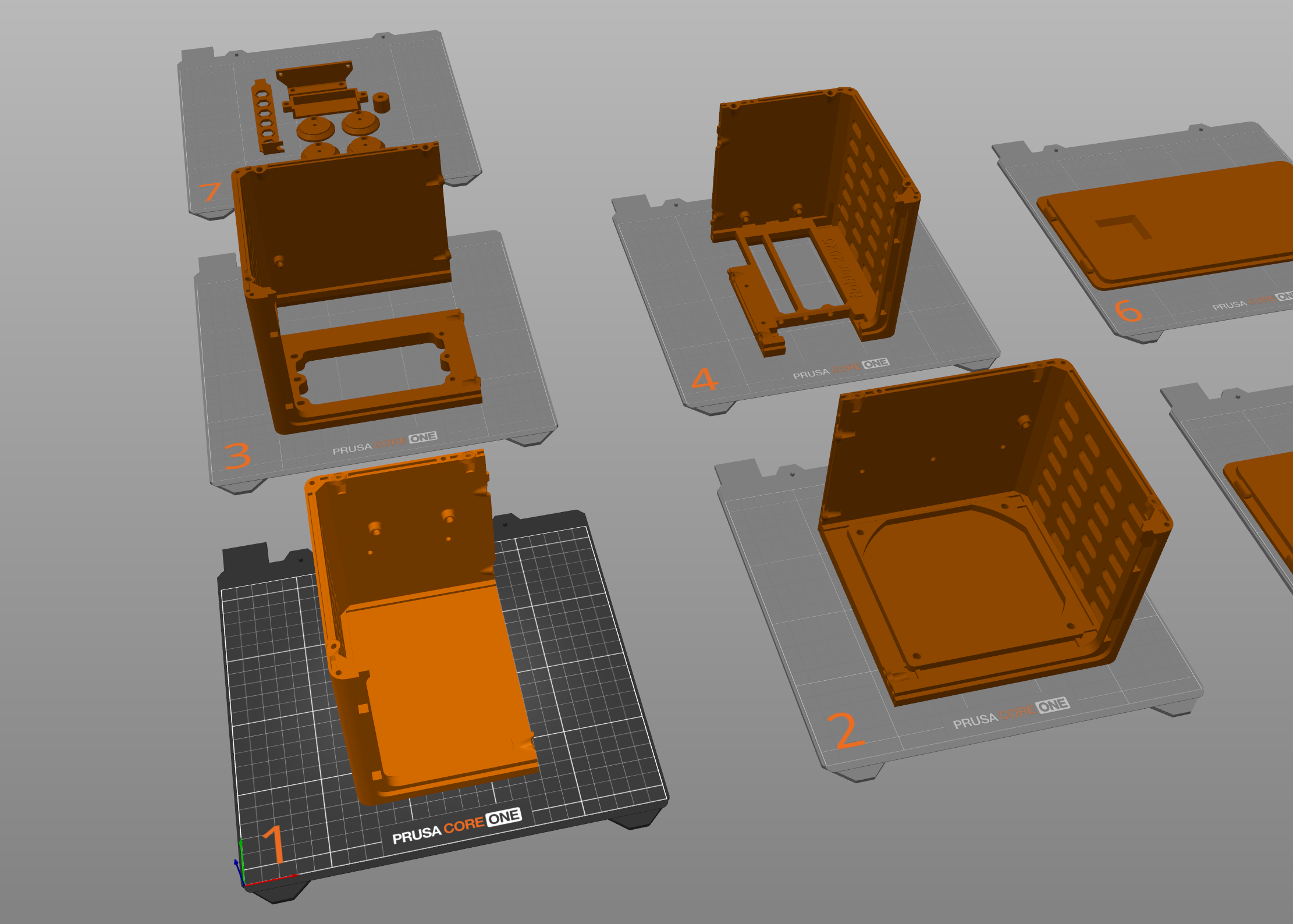

Print the 4 main parts in the orientation depicted below. This ensures any gantry skew you might have is aligned on all parts and makes them fit together. This is available as a 3mf file with all infill properties set.

The case uses:

• 3x30mm steel pins

• voron style M3 heat inserts

• M3x8, M3x12mm & M3x6 machine screws (please count from CAD)

• 27/33mm O-ring

• 710g filament

Compatible with

• SFX PSU

• mATX Motherboard (178x226mm, check your size)

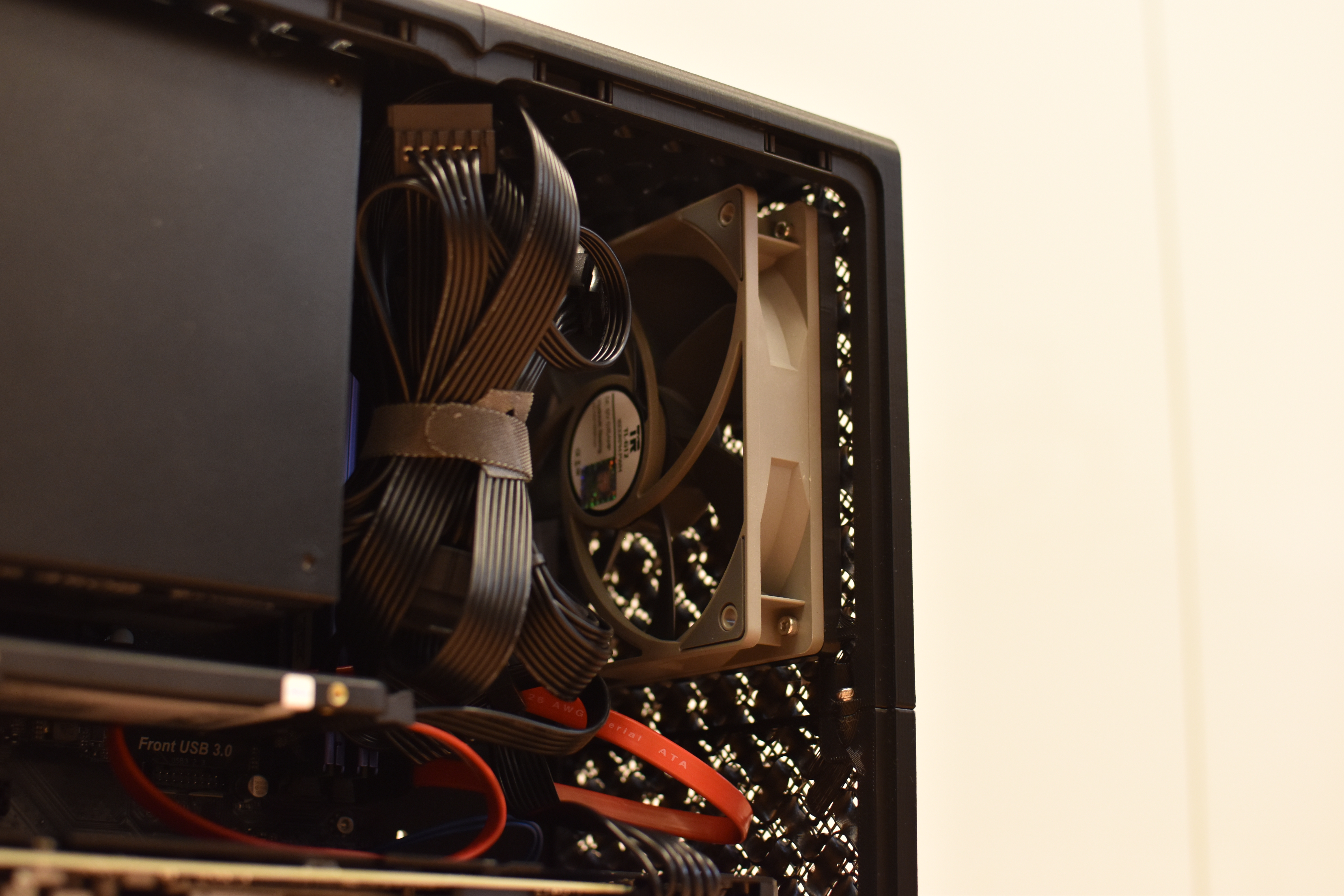

• 120mm front case fan

• RTX4060 ti super (16GB) from Asus

• 59mm max cpu cooler height, from PCB to PSU

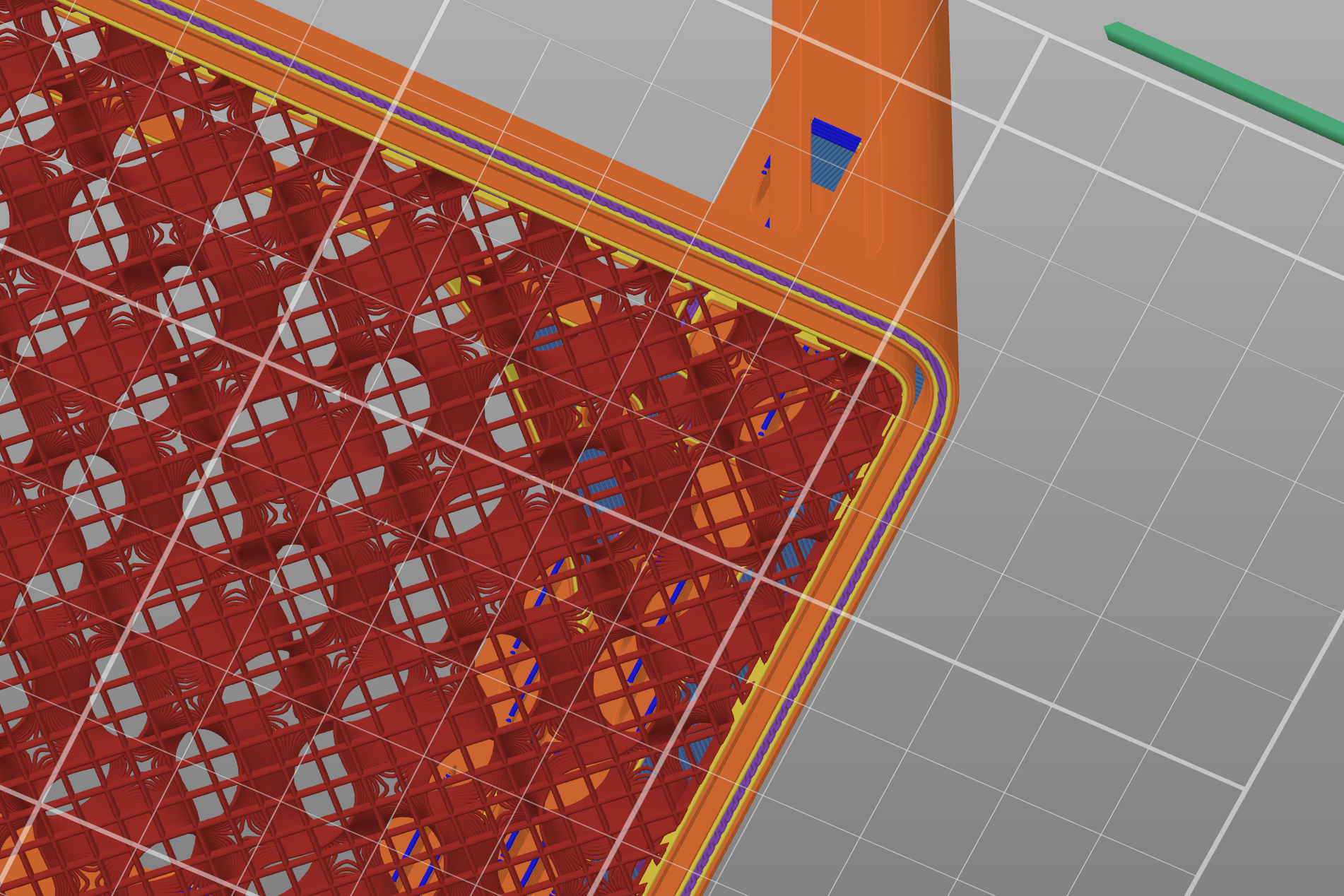

Design as i printed it is 1mm 25% grid infill and then 5% gyroid. Feel free to change.

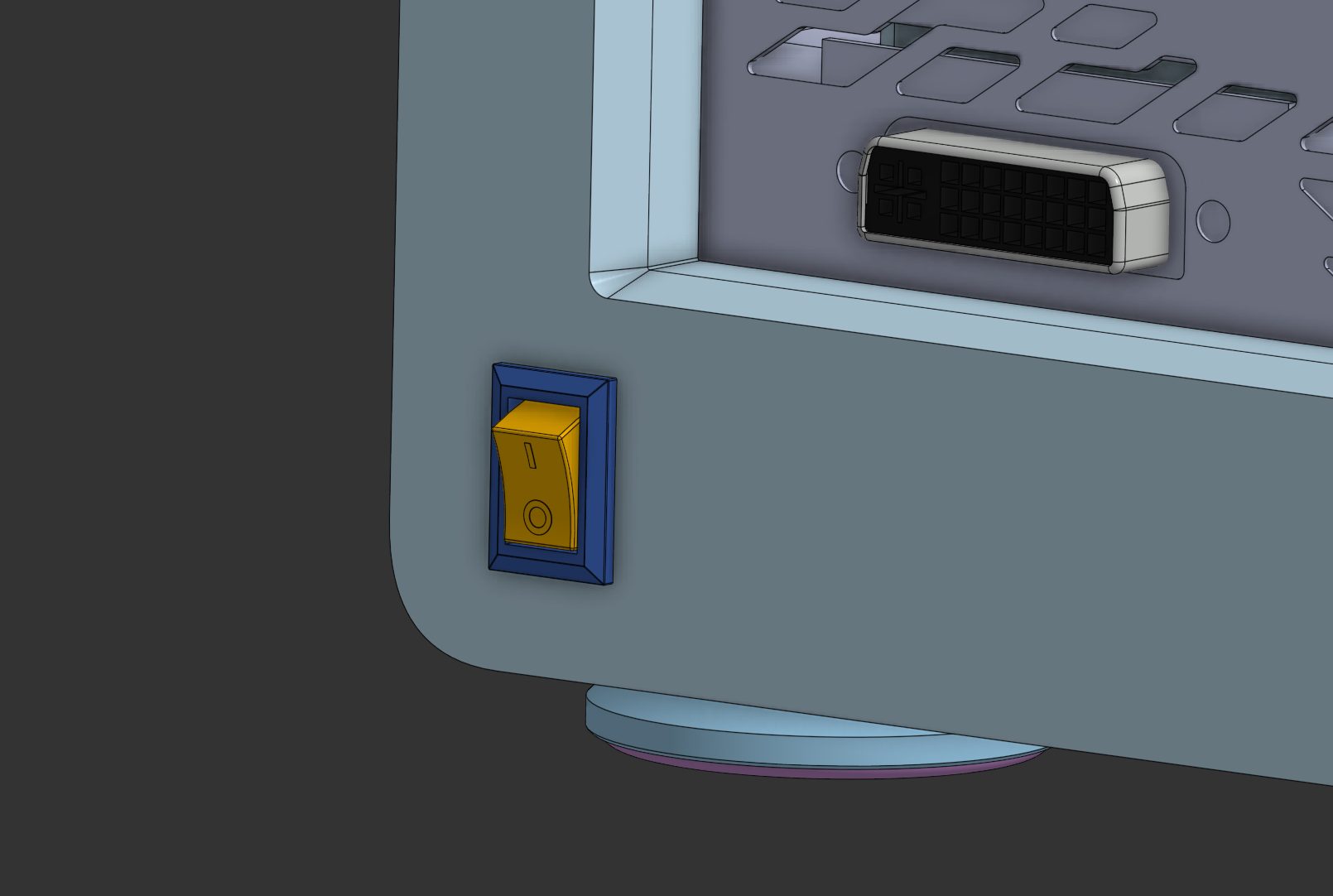

Power button is a small 9x14mm rocker switch at the rear.

During the design process, I was inspired by existing PC case designs, particularly the sloped vent holes and side panel latches. However they are inependently and uniquely implemented here. The case inner layout is primarily designed to fit my hardware and use case as well as a different aesthetic. I followed ATX specifications as close as i could find original dimensions for it.
