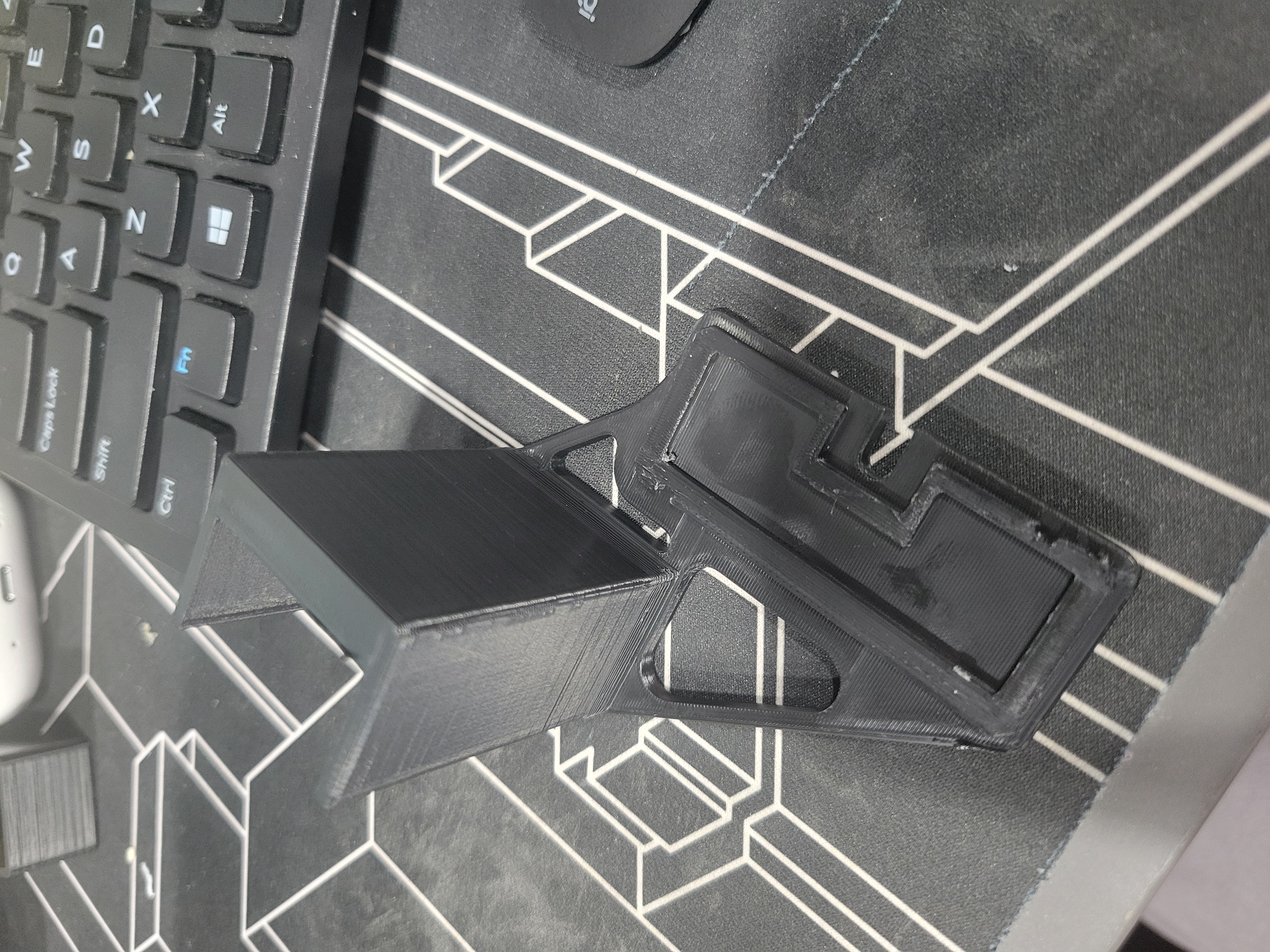

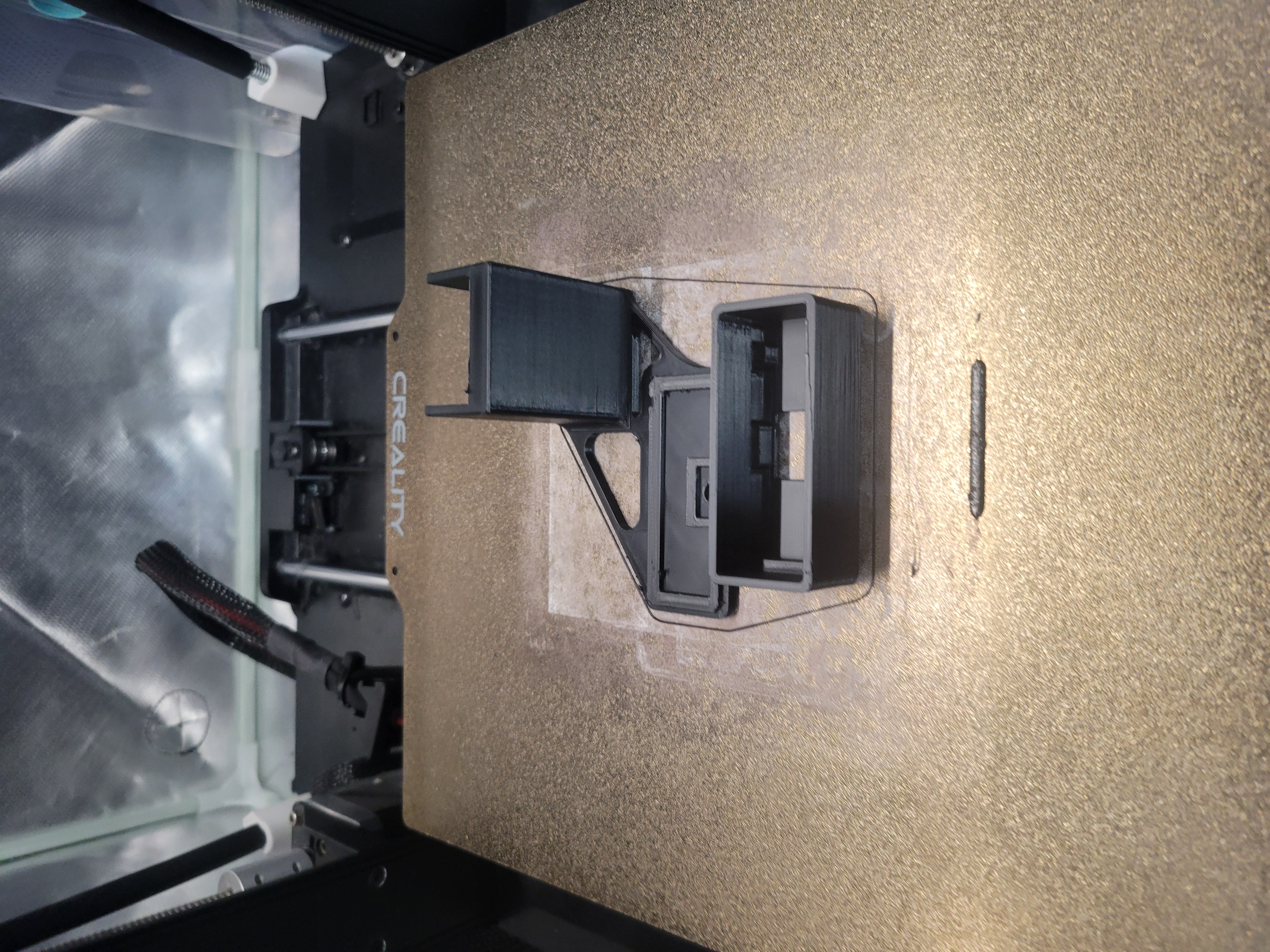

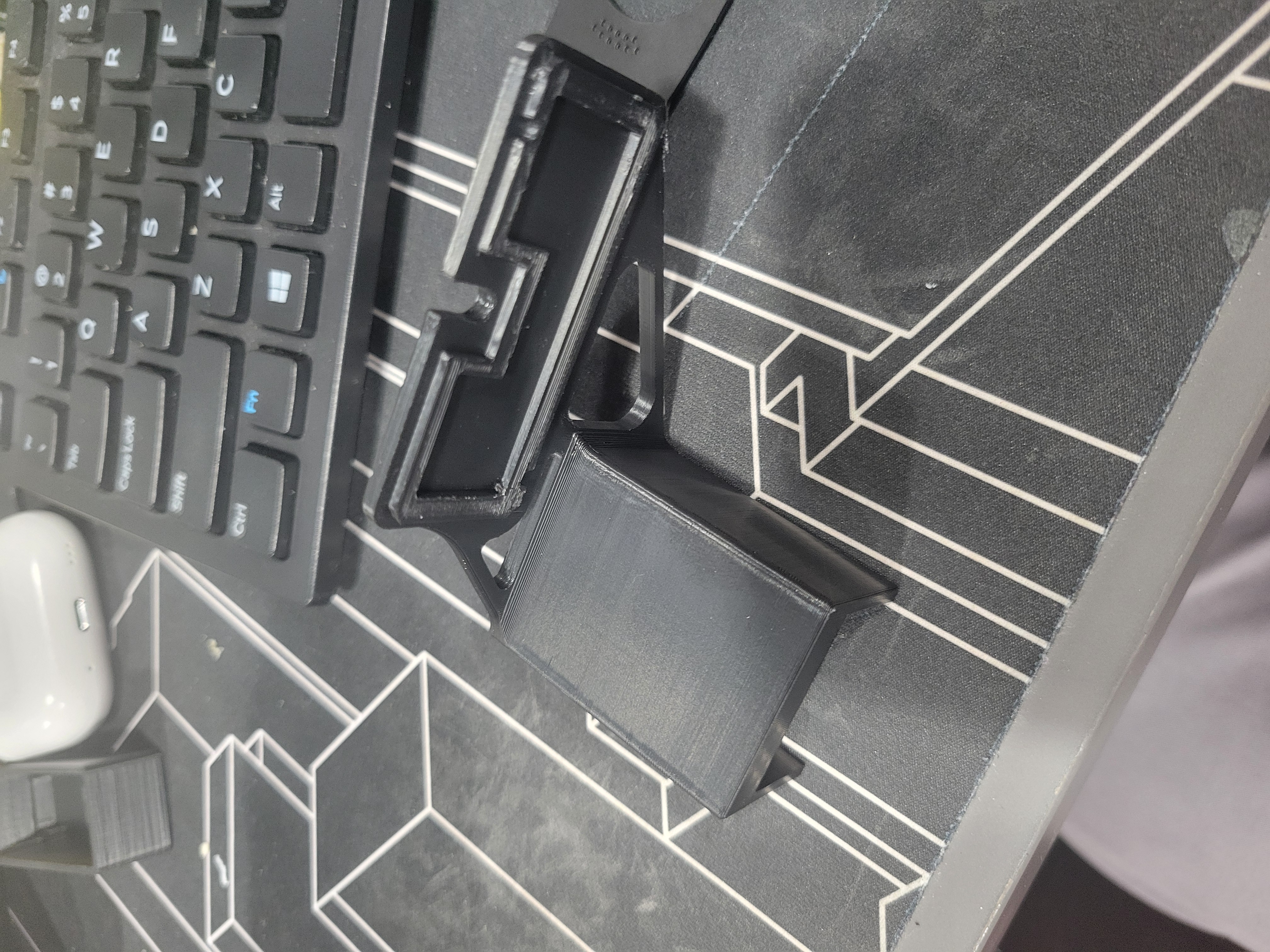

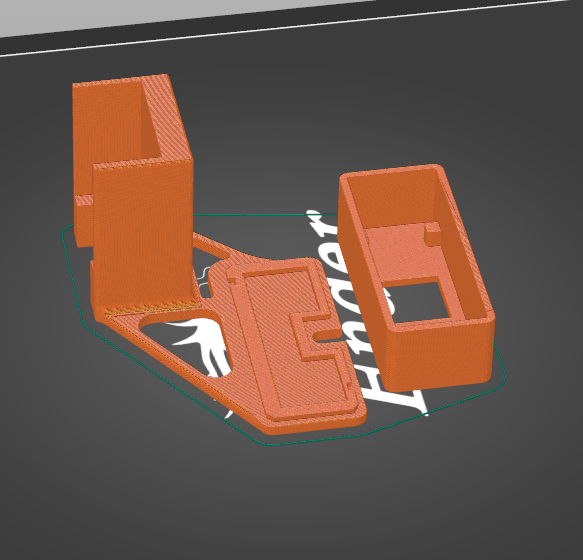

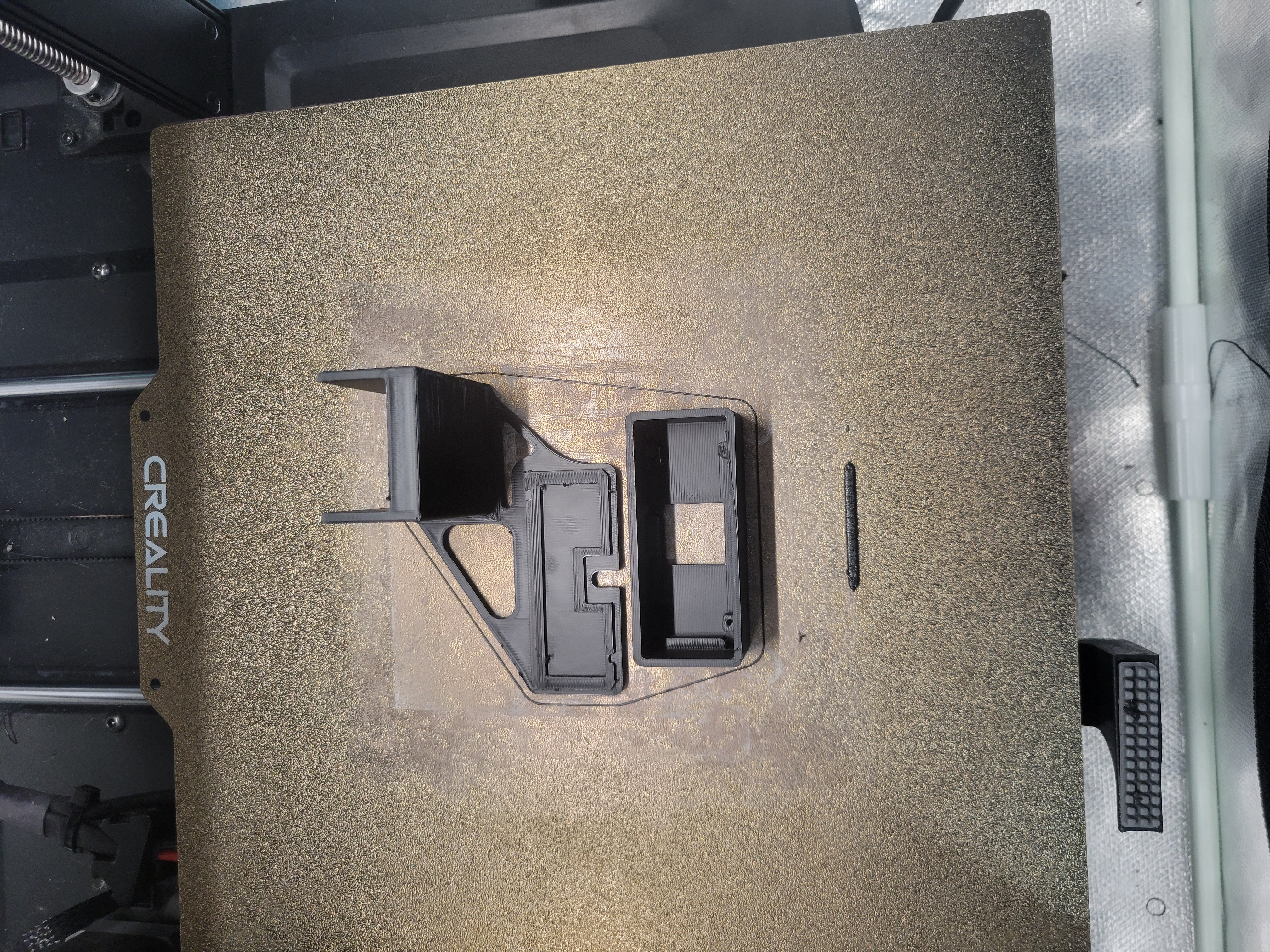

This design is based on a Raspberry Pi camera mount that I modified from Andy’s Y-axis mount for the Ender 3 V3 SE. However, once I started printing in an enclosure, the Pi camera began to overheat.

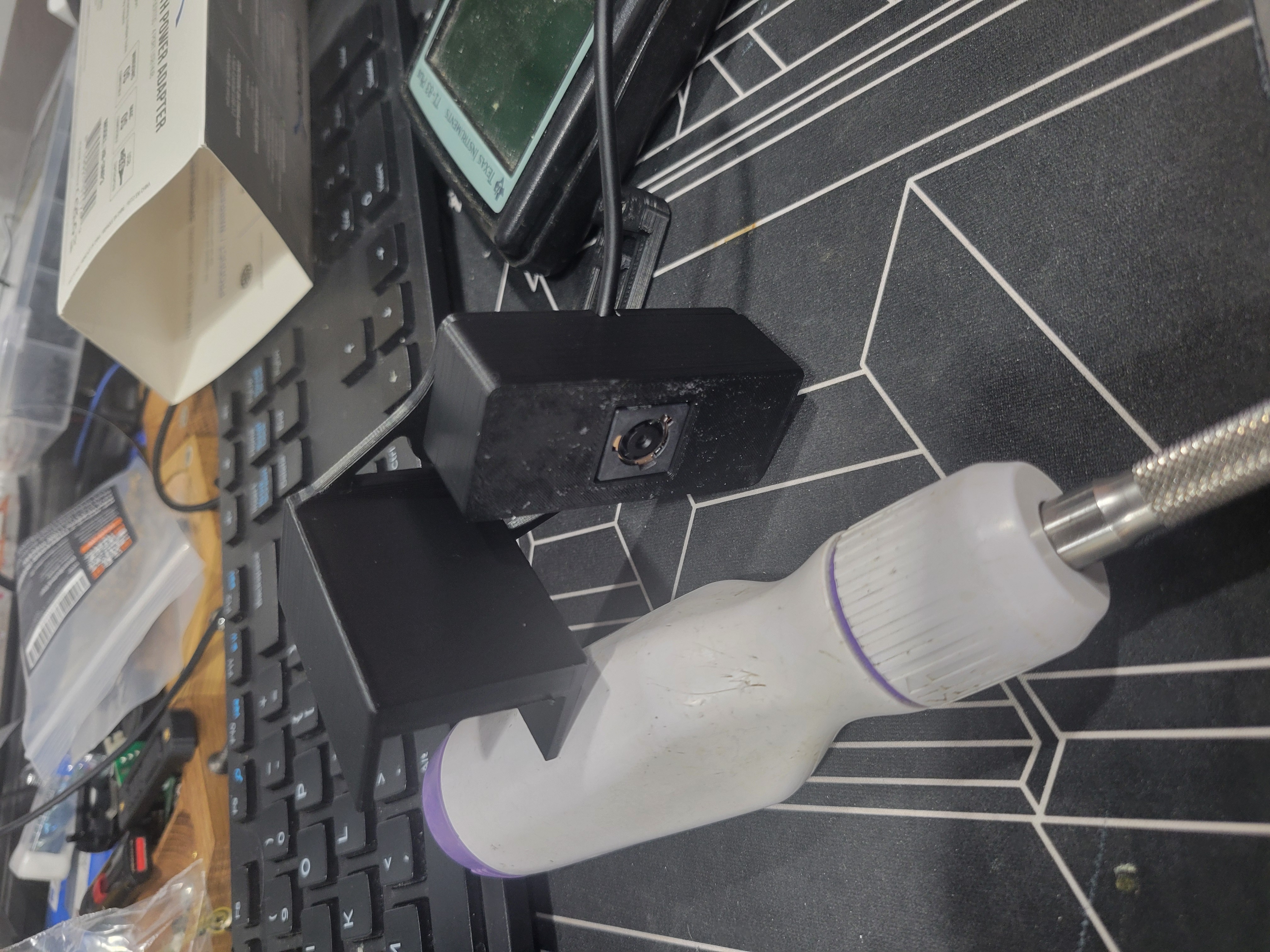

That led me to dig out an old Logitech B525 webcam I had in a box. I found E5150’s mount designed for the C270, C310, C510, and B525, and combined it with my modified mount. The result is a clean, stable setup with a great viewing angle.
For this model, I’m showing and using the E5150 B525 cover, but you can use any of their covers for the C270, C310, or C510 as well.

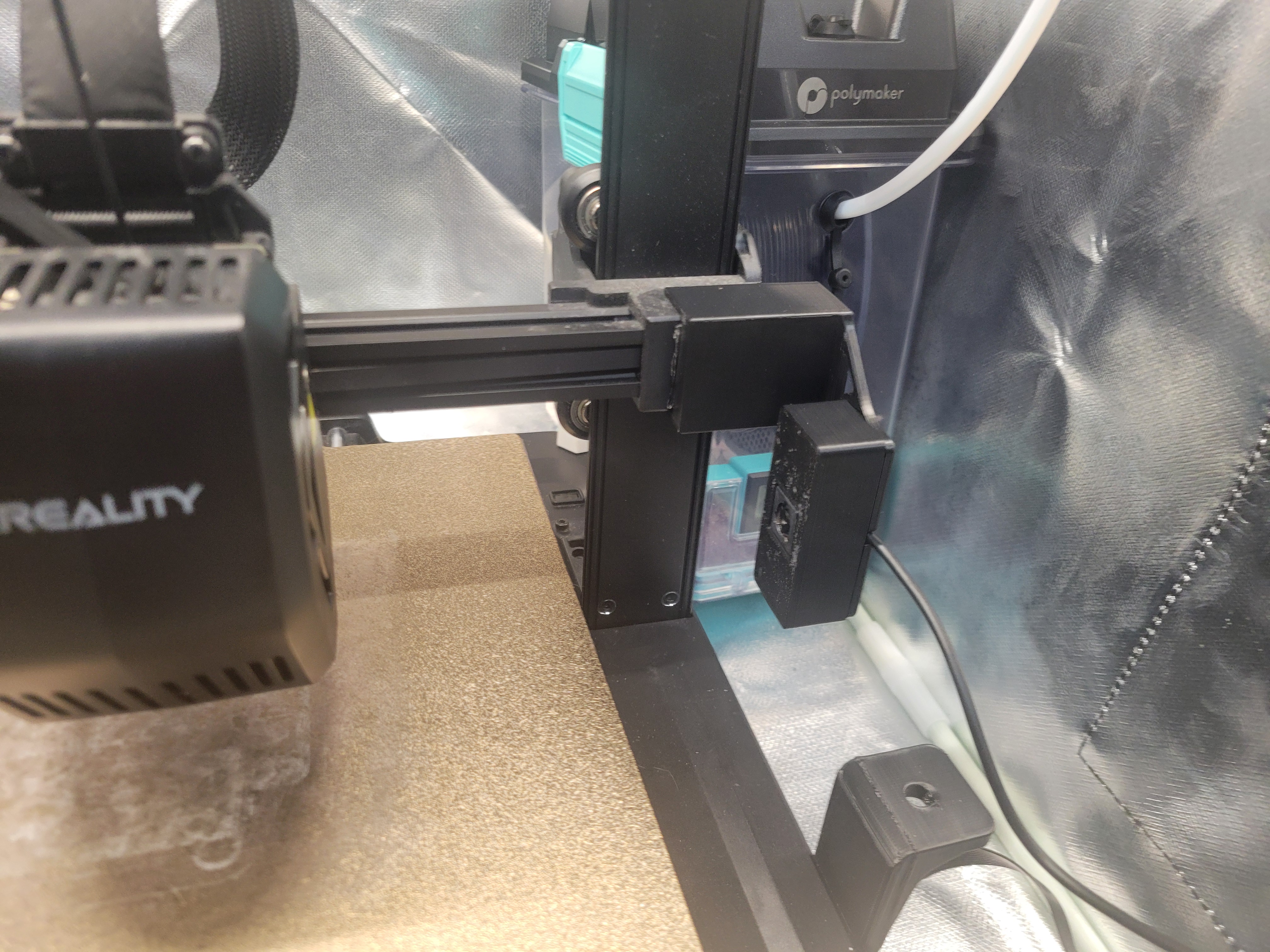

I use double-sided tape to mount it to the Y axis.

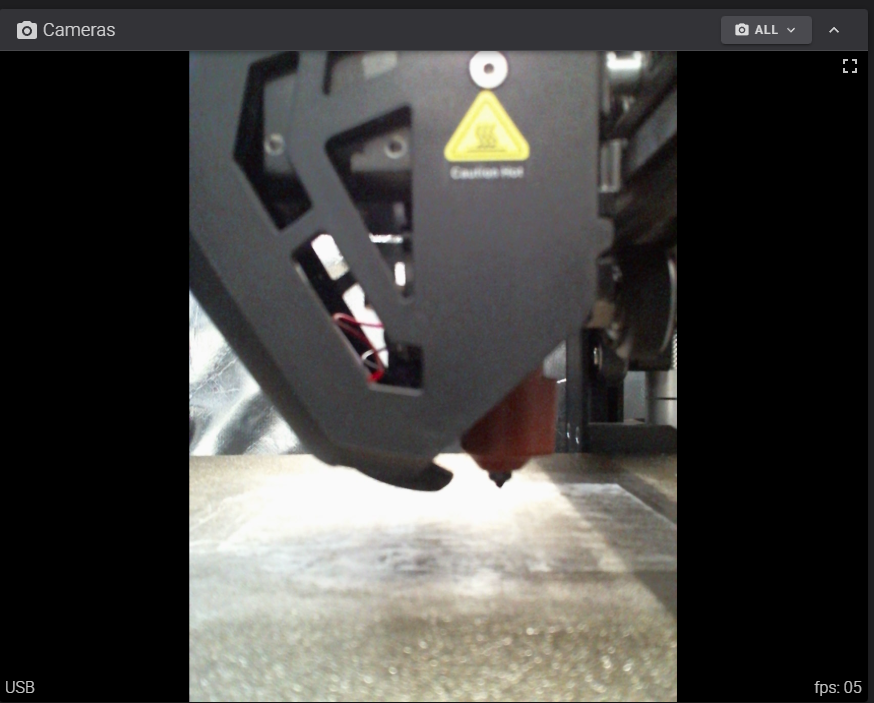

The View
Here are my Crowsnest settings
[Ender3]
mode: ustreamer
port: 8080
device: /dev/video0
resolution: 1280x960
max_fps: 10
v4l2ctl: focus_automatic_continuous=0,focus_absolute=30

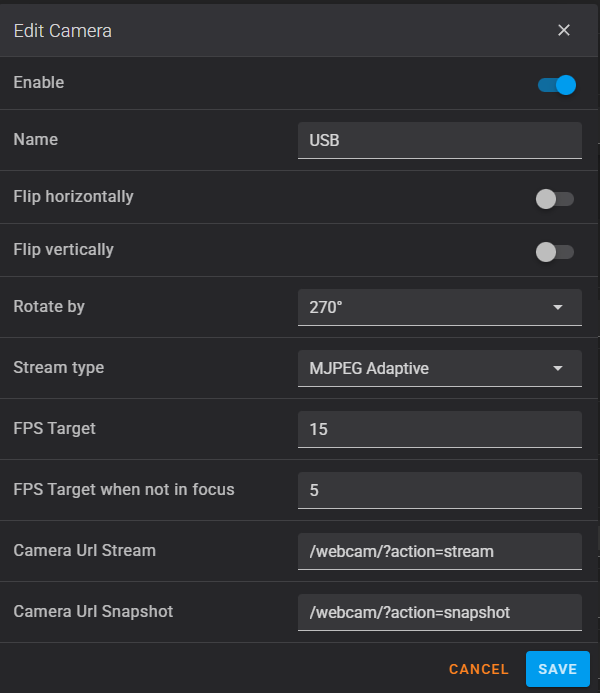

Fluidd Settings
Credits
This model is a remix of these designs:
Base Mount: Modified from Andy's Y-axis mount for the Ender 3 V3 SE.
Camera Housing: Uses E5150’s B525 cover (compatible with their C270, C310, and C510 designs).
