Update 29/01/26 - Screw together Shocks & Legs officially added! Model is 100% clip or screw together, no glue needed!
Update 28/01/26 - Big update! T-case now screws to body, hubs & axles click together. No glue needed!
Update 27/01/26 - Fixed shock mount orientation, better suites printing on side.
Update 26/01/26 - Added photo of support settings used for shocks, down below.
Update 24/01/26 - Redesigned hub to be more pointy, easier to attach wheel.
Update 23/01/26 - Body & Shocks are now clip together!
Easy assembly.
It's possible to print all on 1 bed sheet, but it's tight!
All parts sized to fit tightly together with tight margins to keep the model feeling solid, because of this, connections may require a bit of force.
Recommended assembly as follows:
Review photos if any questions or leave a comment and I'll reply as soon as I can.

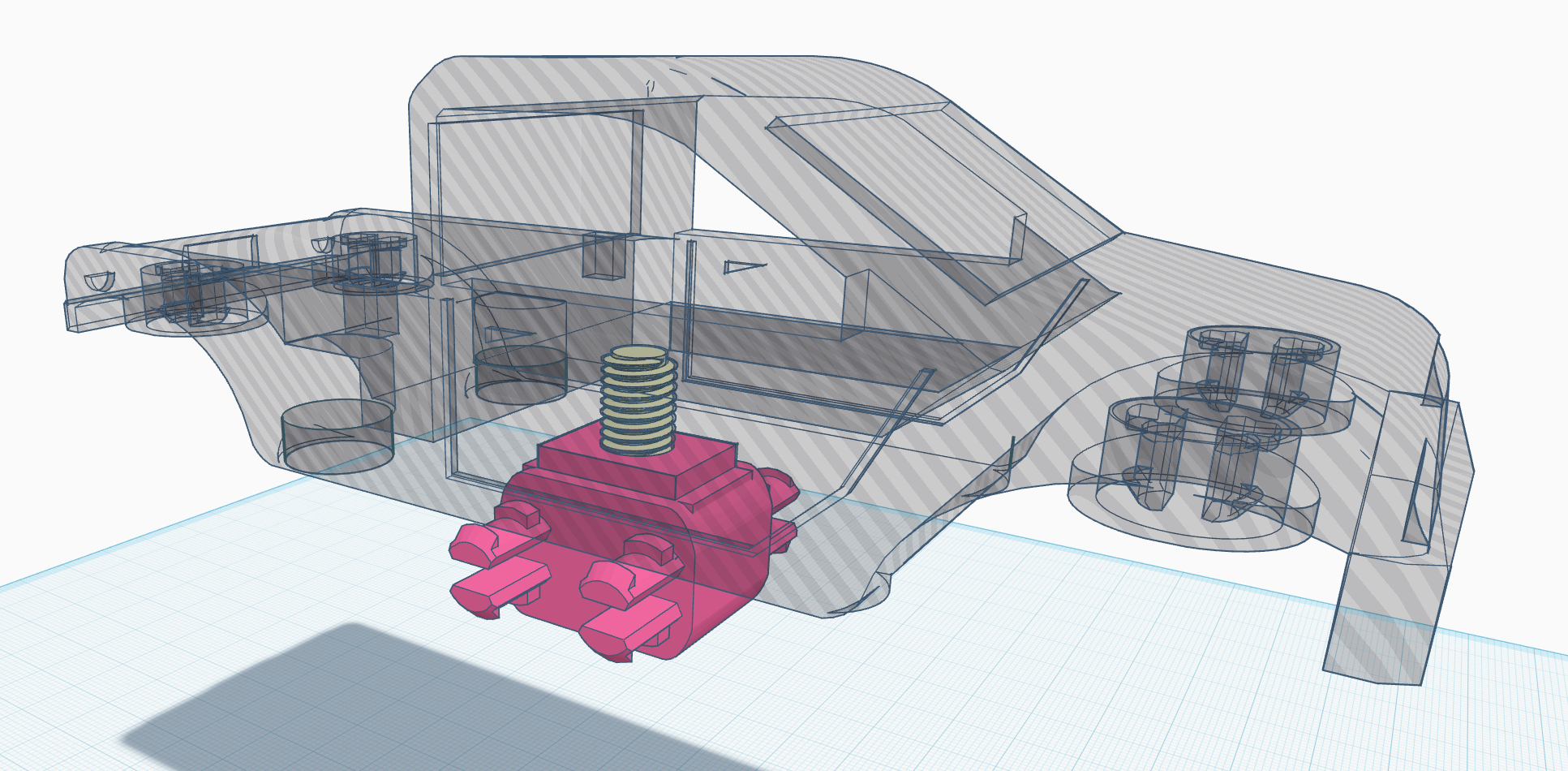

Screw T-case to Body

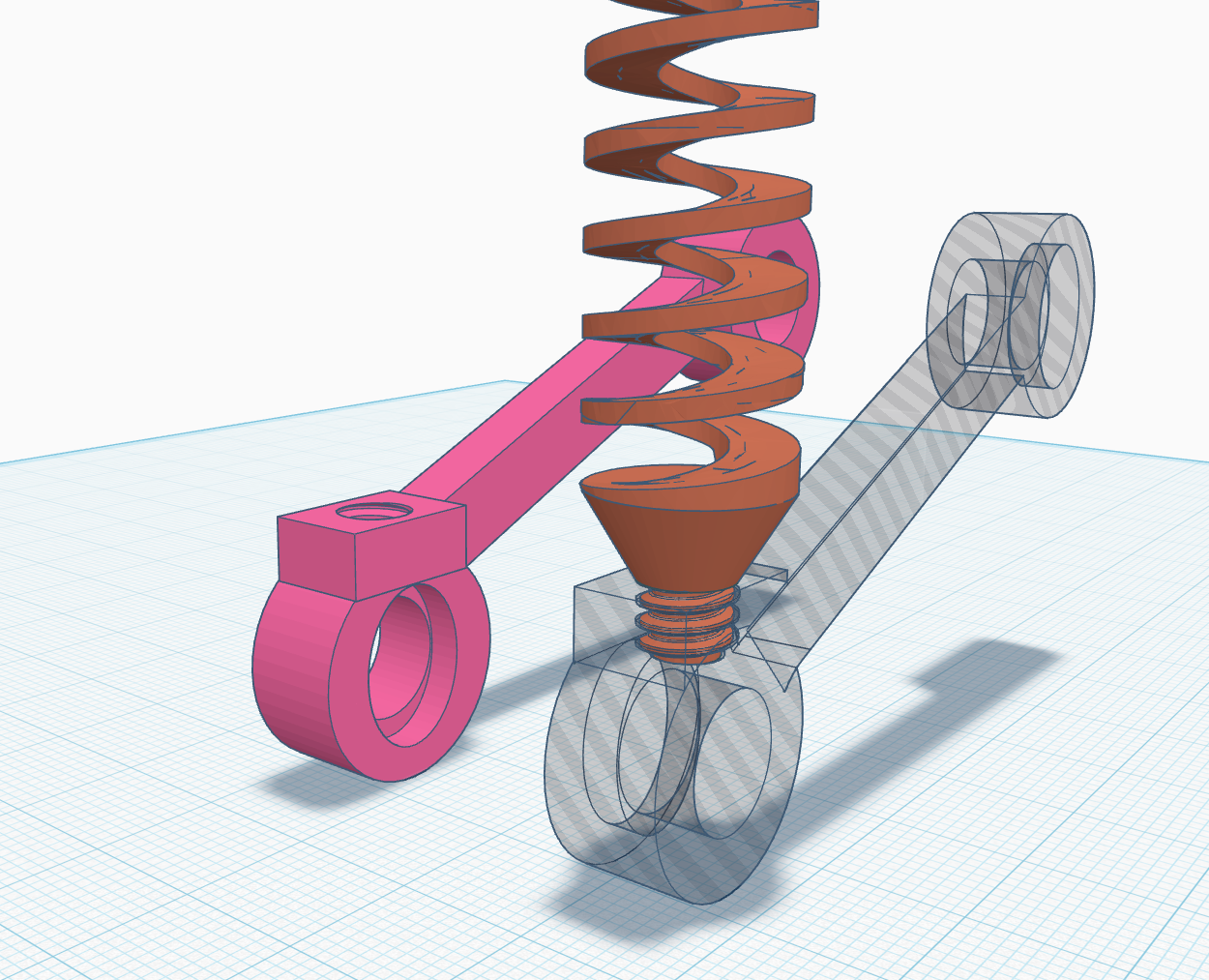

Screw Shocks to Legs, leave 1/4 - 1/2 turn unscrewed
Connect together Legs to T-case
Connect together Shocks to Body - gently compress shock until clips
Connect Hubs to Legs

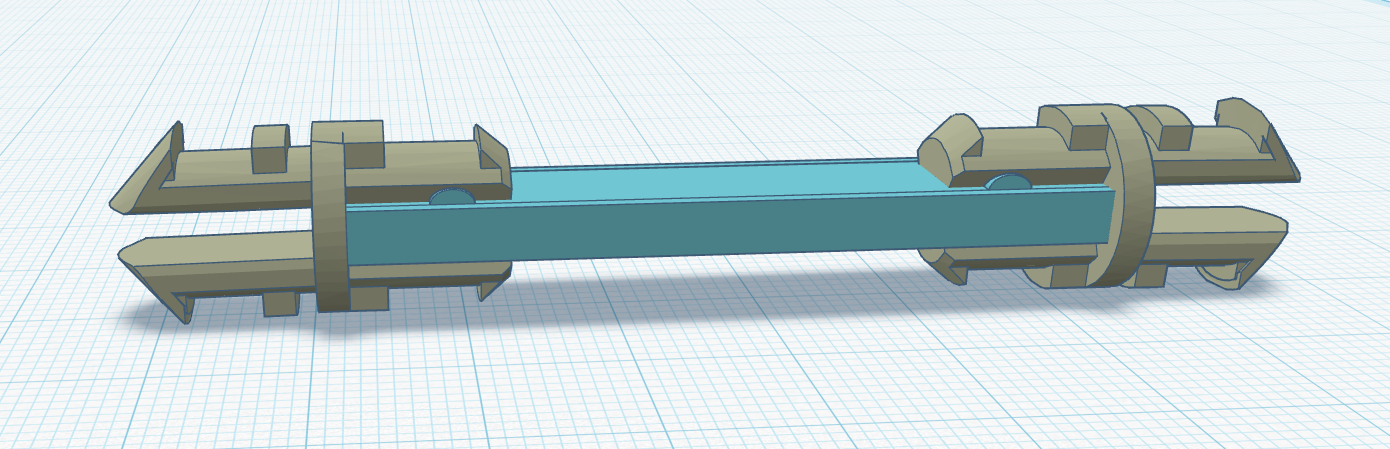

Connect Axles to Hubs
Connect Wheels to Hubs
Insert Exhaust to Body
Complete!
Support settings (for shocks):
Lots of supports needed on shocks. Shocks are tricky to print and after many trials these settings worked the best for me (Prusa Slicer). Much easier to remove and still a good quality print:
