SAKUMI | Table Lamp E14 & E26/27

SAKUMI | Table Lamp E14 & E26/27

I aimed to design a lamp in which is both the shade and the base could be printed in vase mode.

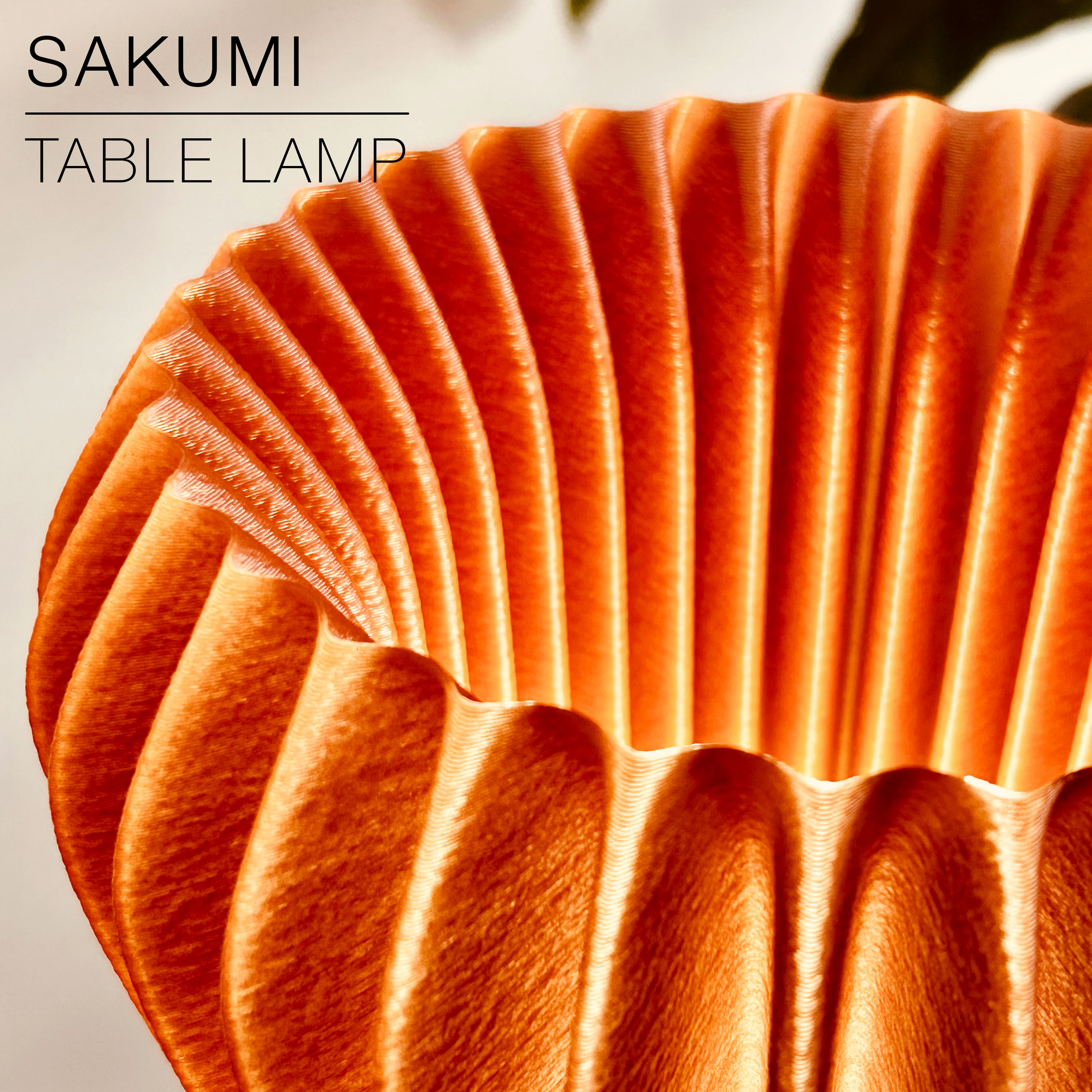

The challenge was to give the shade a sense of volume despite the constraints of vase-mode printing, creating the impression of subtle outward and inward curves, even though it is formed from a single 0.8 mm wall.

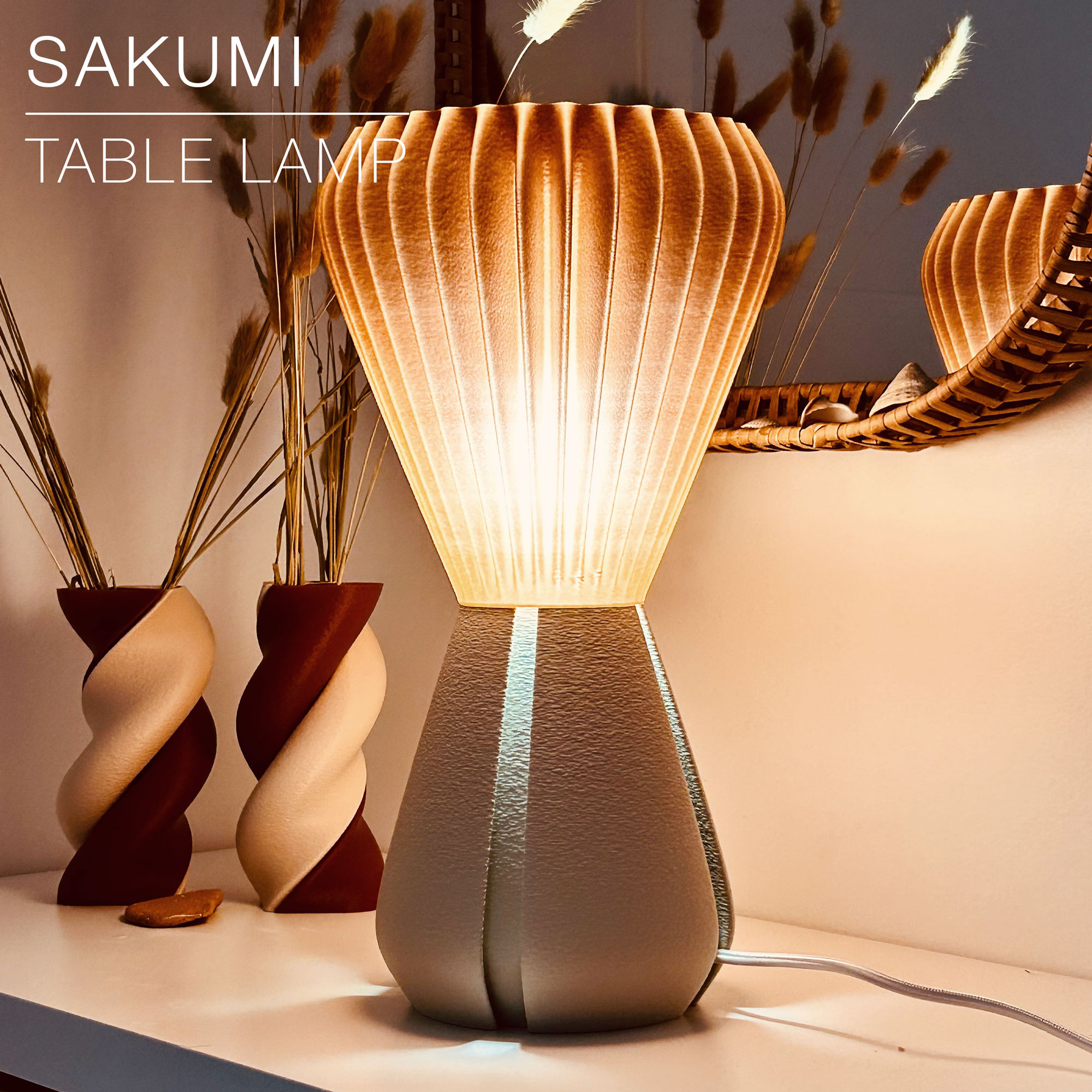

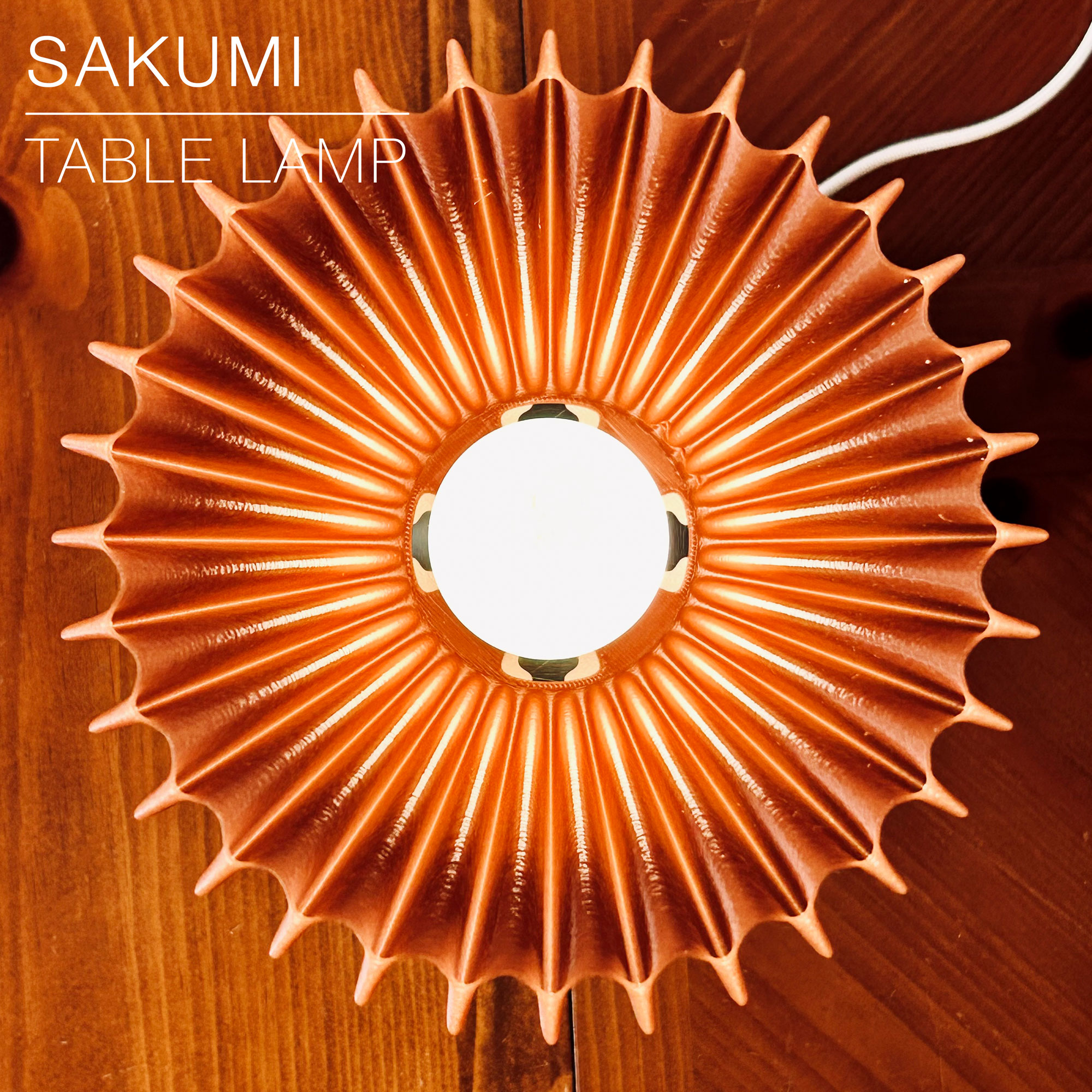

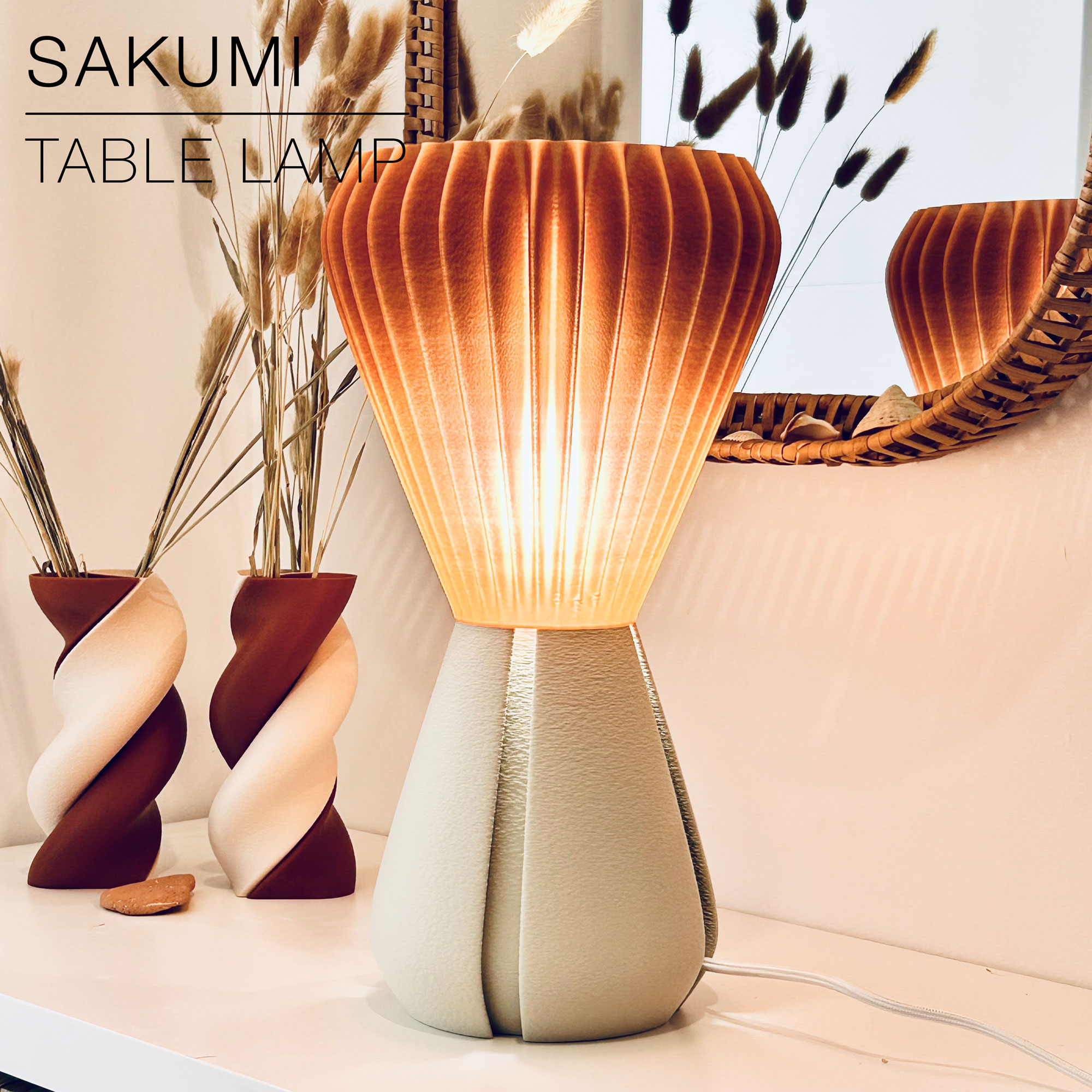

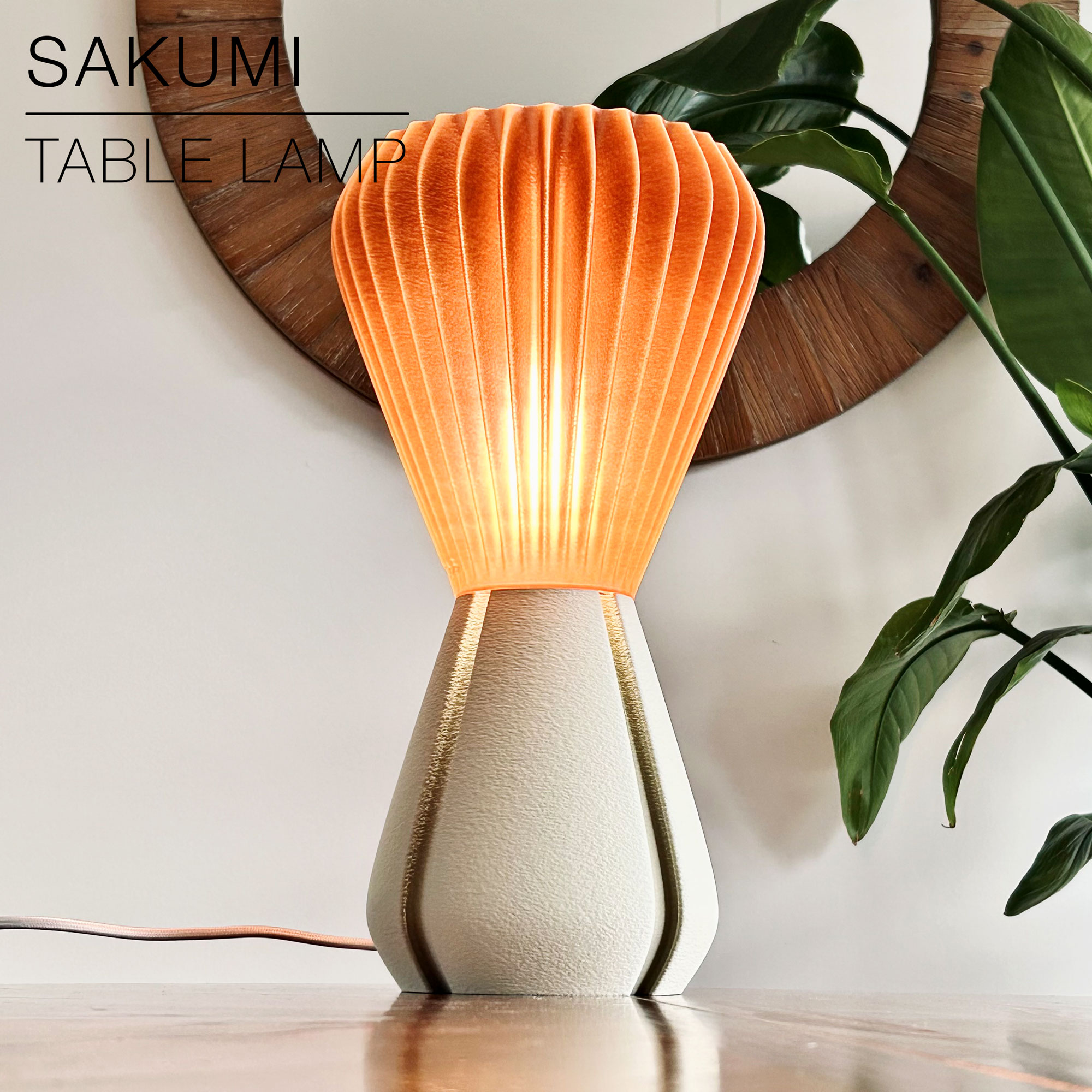

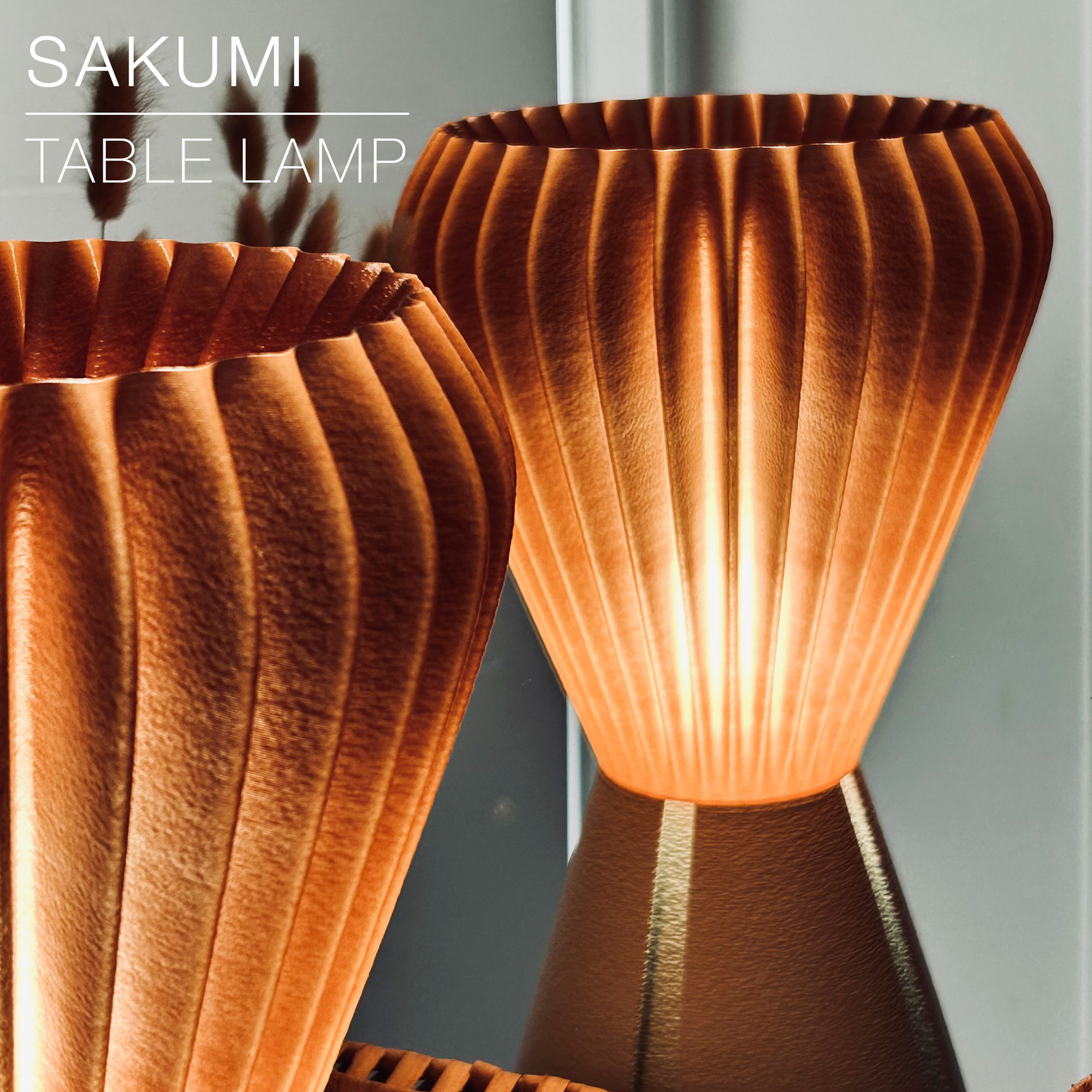

The result is the SAKUMI lamp, compatible with both E14 and E26/27 cords.
There is also a mini version, for smaller printers, called the SAKU[MINI] table lamp.

The shade was printed with the great Terre Battue PLA by Francofil, which is tennis court clay mixed with PLA, giving it this incredibly warm tone.

DIMENSIONS (Shade) | Ø209 x H209mm
DIMENSIONS (Base) | Ø160 x H179mm

You can get the power cords from Amazon here:


For Europe:
E27 cord:  https://amzn.to/3OVrZjK

E14 cord:  https://amzn.to/3TchBqs

For the US:
E26/E27 cord: https://amzn.to/434c0qZ

3D printing settings

All STL files are already oriented properly.

You need to print 2 parts, both in vase mode (see settings below):
- one shade
- one base for either E14 or E26/27 light sockets.
No supports or adhesion brim needed.

For a 0.8mm nozzle:
• activate "vase mode" (spiral vase or spiralize)
• Layer height: 0.4mm/layer
• Line width: 0.8 to 1mm
• Bottom shell layers: 4

For a 0.4mm nozzle:
• activate "vase mode" (spiral vase or spiralize)
• Layer height: 0.2mm/layer
• Line width: 0.8 to 1mm
• Bottom shell layers: 8

Happy printing!
