UNIV Laptop Charger Mount - V1.1

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Computers
Licencja
Creative Commons — Attribution — Noncommercial — Share Alike
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

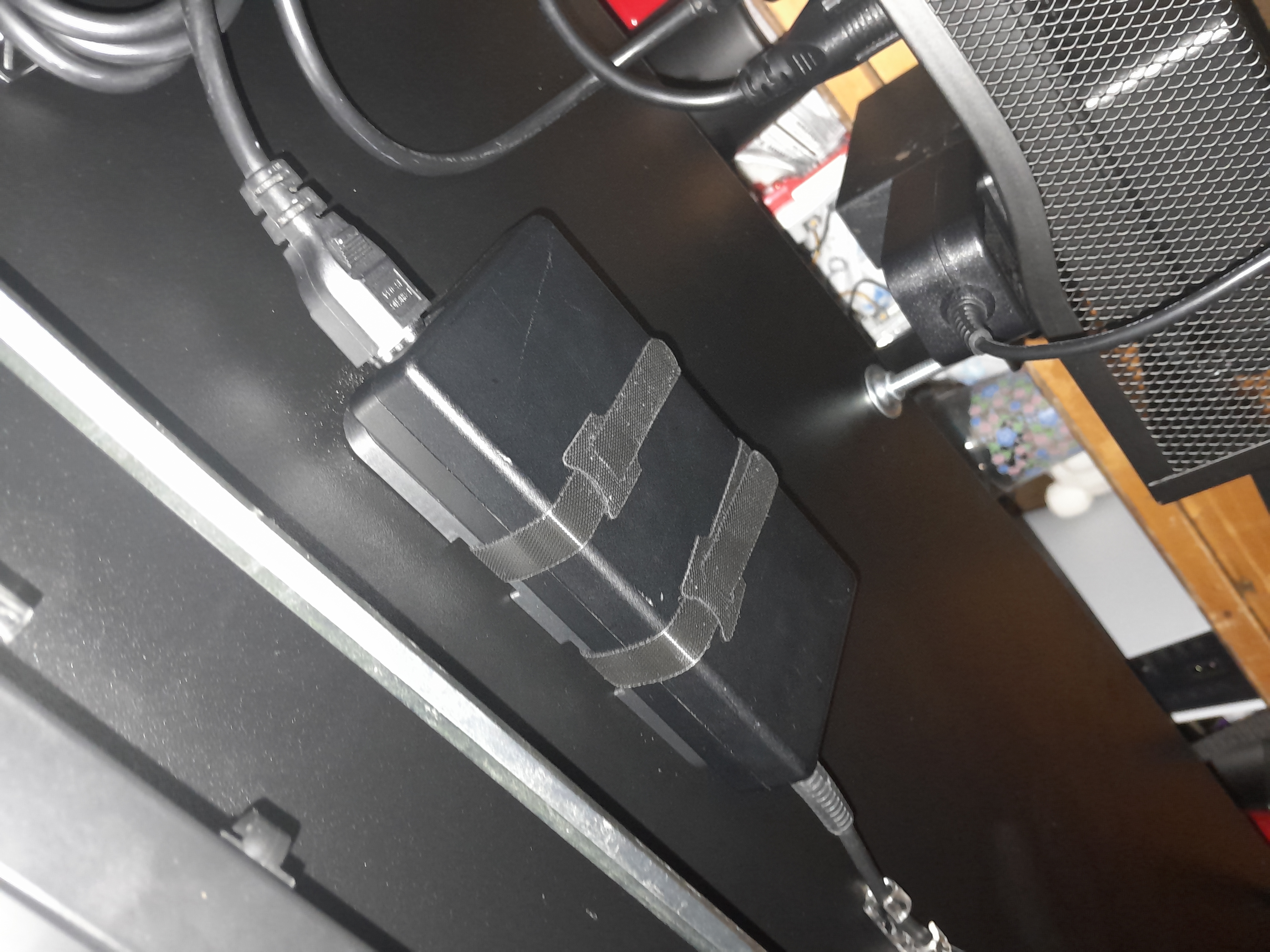

Now out of beta, the Universal Laptop Charger Mount is used for mounting underneath your desk using screws, and velcro straps to attach charger to mount.

  • PRINT SETTINGS:
    Recommended to beef up the infill near the screw holes
    15% Infill and 3 Perimeters
    Print in ABS or PETG if charger doesn't heat up much.

  • HARDWARE:
    M4 Screws (needs to be longer than 5mm)
    Velcro Straps (keep width in mind)

  • NOTES:
    Be careful when drilling in screws, otherwise the screw may go through the plastic and damage the mount.

CHANGELOG FOR V1.1:

  • Changed screw type to M4, as M3 screws were easier to strip under the load of a drill.

  • Removed the modifiers.

  • Removed mention of modifiers in description.
