Decided to make feet for my keychron q1, should work with other keychron Q -series keyboards.

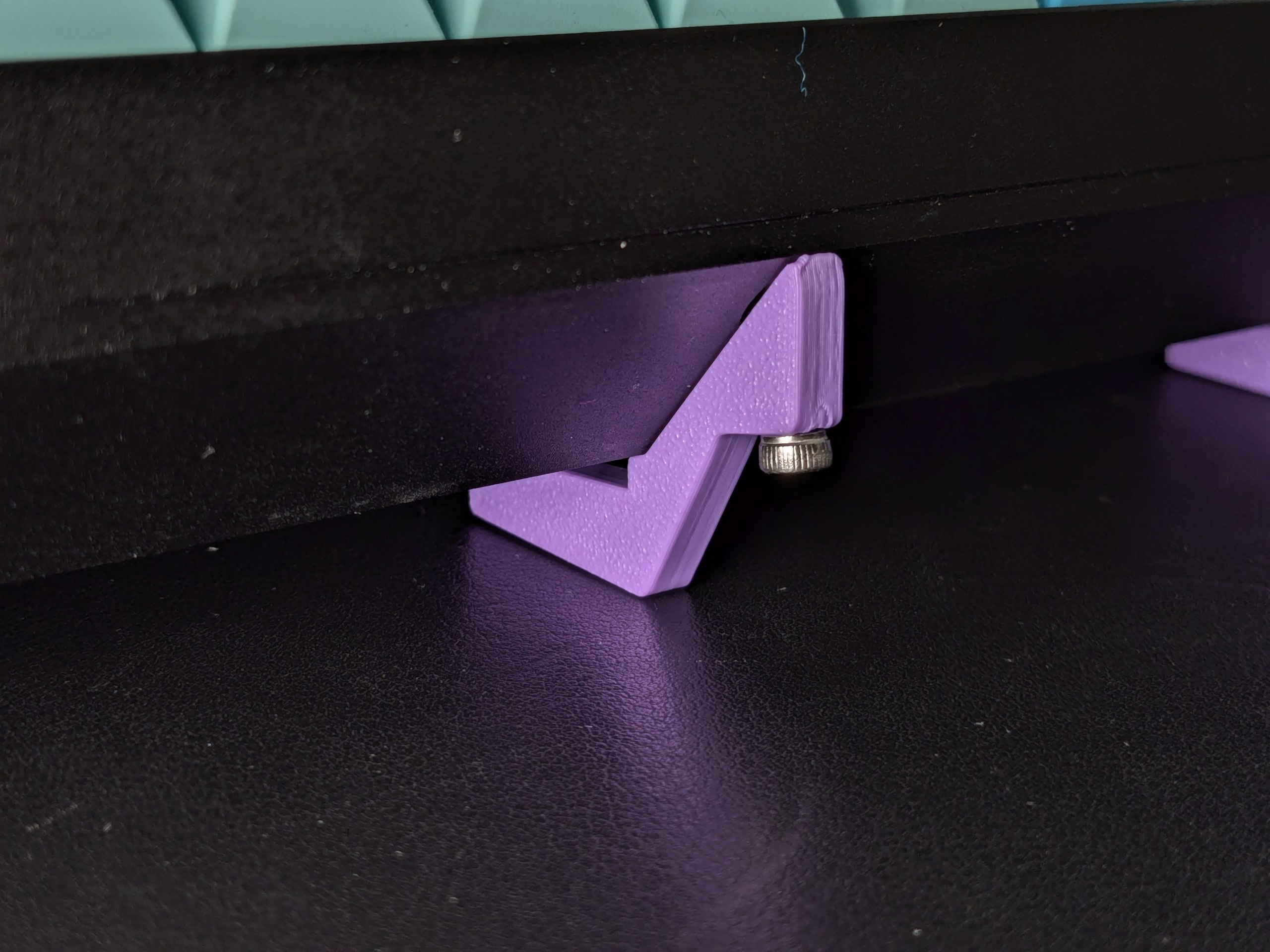

The feet are bolted onto the m3 bolt holes present on Q -series keyboards. Original m3 bolts are too short to work with the feet so you need a single M3x20mm bolt for each feet you are using. Keyboard should be stable with just 2 feet but you can also use 4.

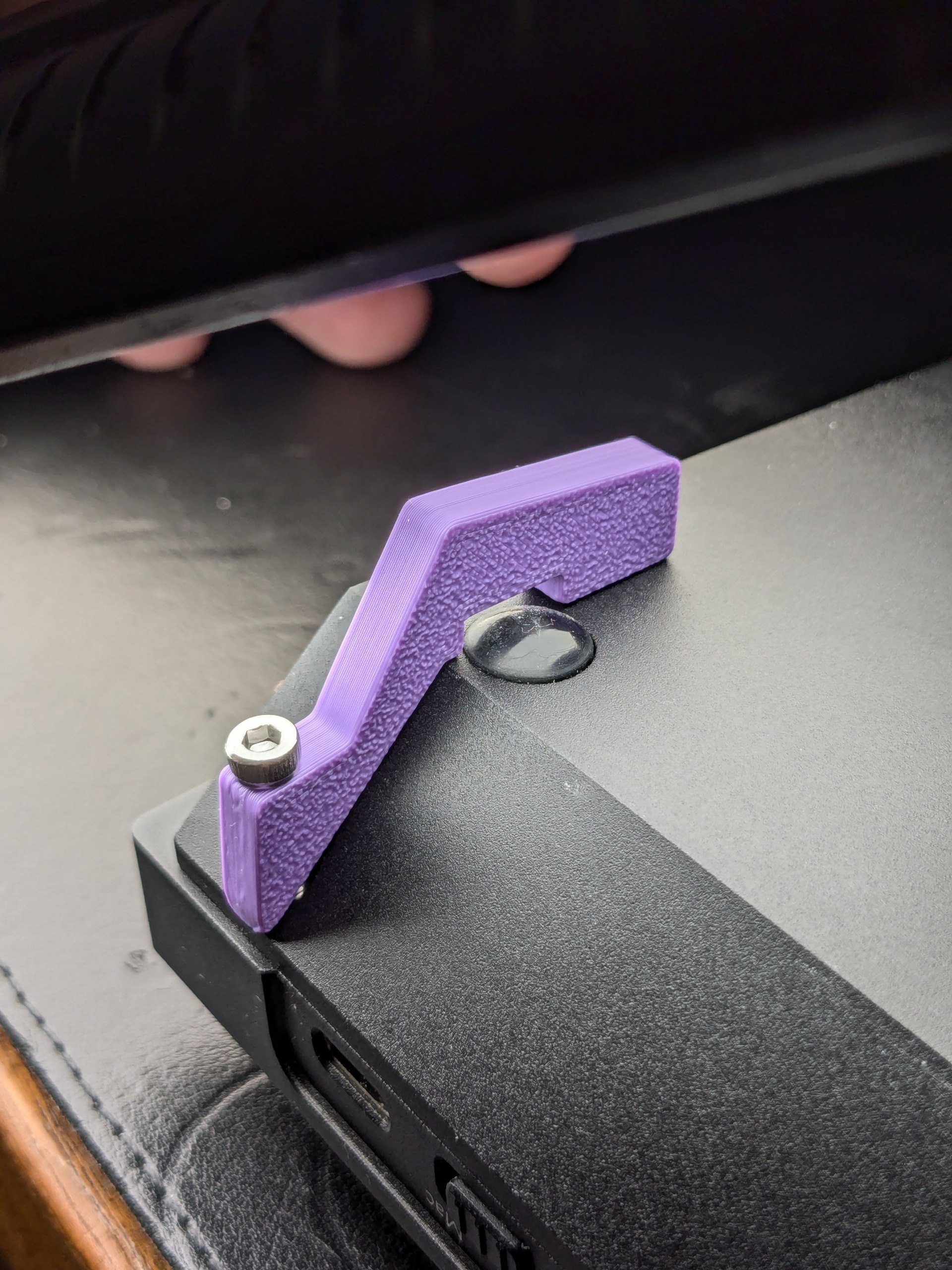

The feet have slots in them for the original anti-slip pads so the pads do not have to be removed for the feet to fit in.
Should print well no matter what filament you use. Front pads on the keyboard should be enough to keep the keyboard still even if you use PLA/PETG or some other hard filament. For TPU, I would probably increase the width by a small amount.ront pads on the keyboard should be enough to keep the keyboard
I've added the Freecad document here so you can adjust measurements or modify the project as you see fit.
Tested compatibility(submit a make and I'll add your keyboard here):
-Q1
