M20 conduit mounting bracket

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Kategoria
Mechanical Parts
Licencja
Creative Commons — Attribution — Noncommercial
SzczegółyWydruki i komentarzeRemiksyKolekcjePowiązane

Purpose

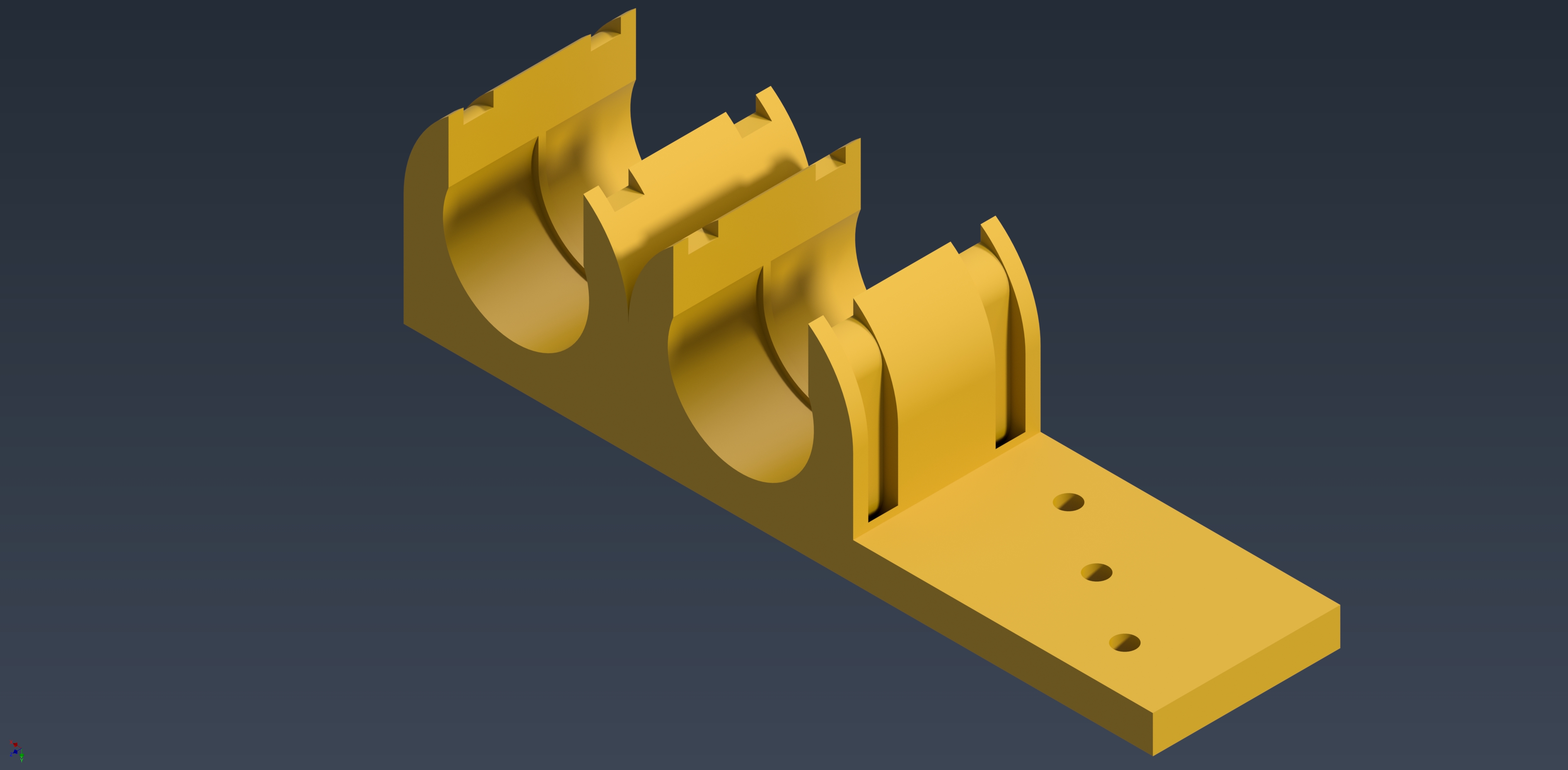

  • Mounting M20 cable protection conduits for electrical installations and cable management.

  • Prevents sagging and ensures a clean, parallel routing of cables.

Features

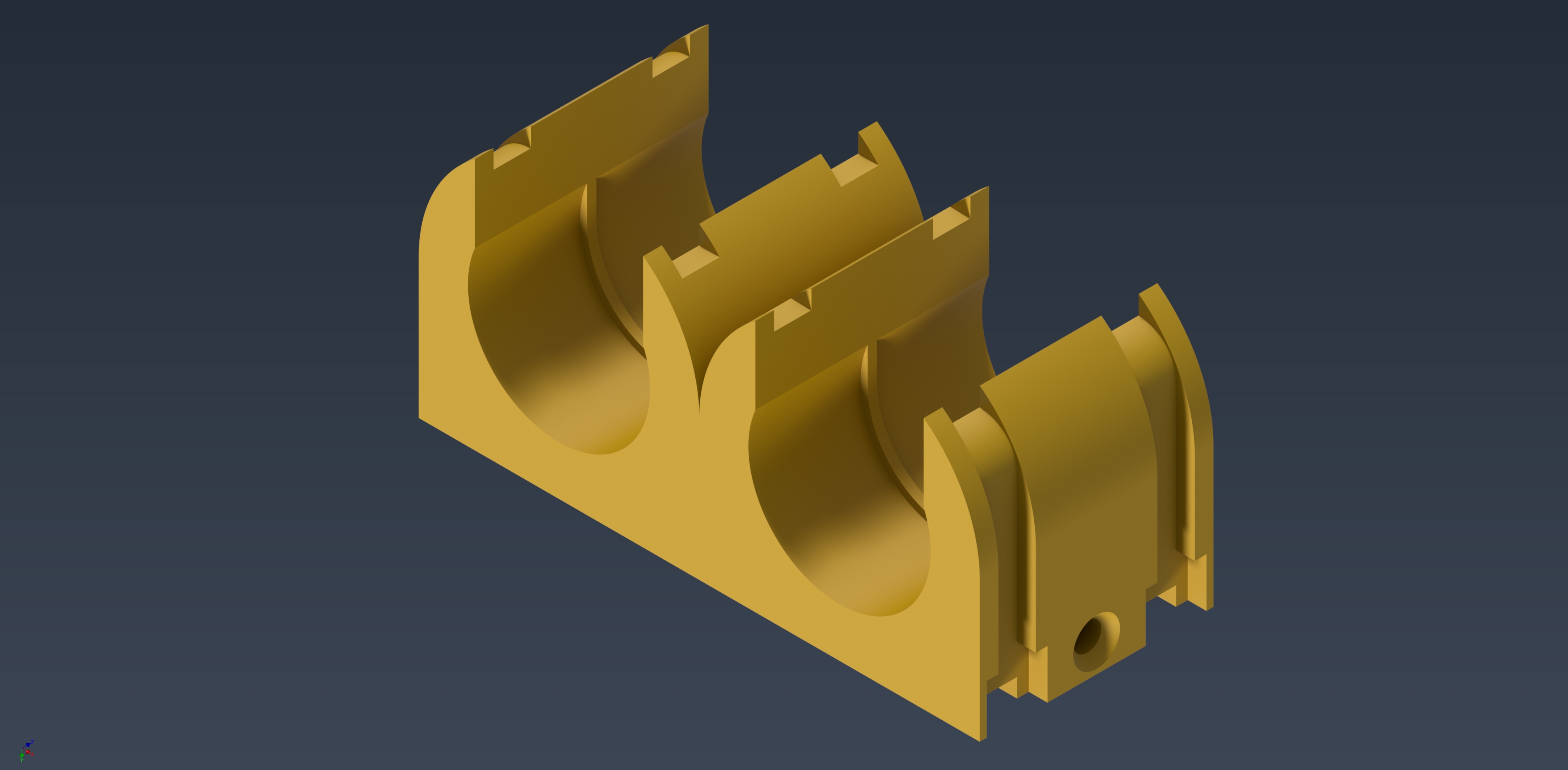

  • Clip mechanism: The conduit snaps into place and is held securely.

  • Cable‑tie slots: Integrated openings allow cable ties to be threaded through for additional fixation and to prevent lateral movement.

  • Screw mounting: Rear side includes a mounting hole for screws or wall plugs.

  • Robust geometry: Designed for FDM 3D printing with sufficient wall thickness for long‑term durability.

  • Space‑saving design: Holds conduits close to the surface, ideal for tight installation spaces.

Printing Recommendations

  • Material: PETG or ABS for increased temperature and chemical resistance; PLA is sufficient for dry indoor environments.

  • Infill: 20–40% depending on expected load.

  • Orientation: Print flat on the back side for maximum strength at the mounting point.

  • Supports: Usually not required; use minimal supports for overhangs if needed.

Applications

  • Home installations, workshop, garage

  • Mechanical and plant engineering

  • 3D printing projects with structured cable routing
