Filter for PCB soldering
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Attribution — Noncommercial

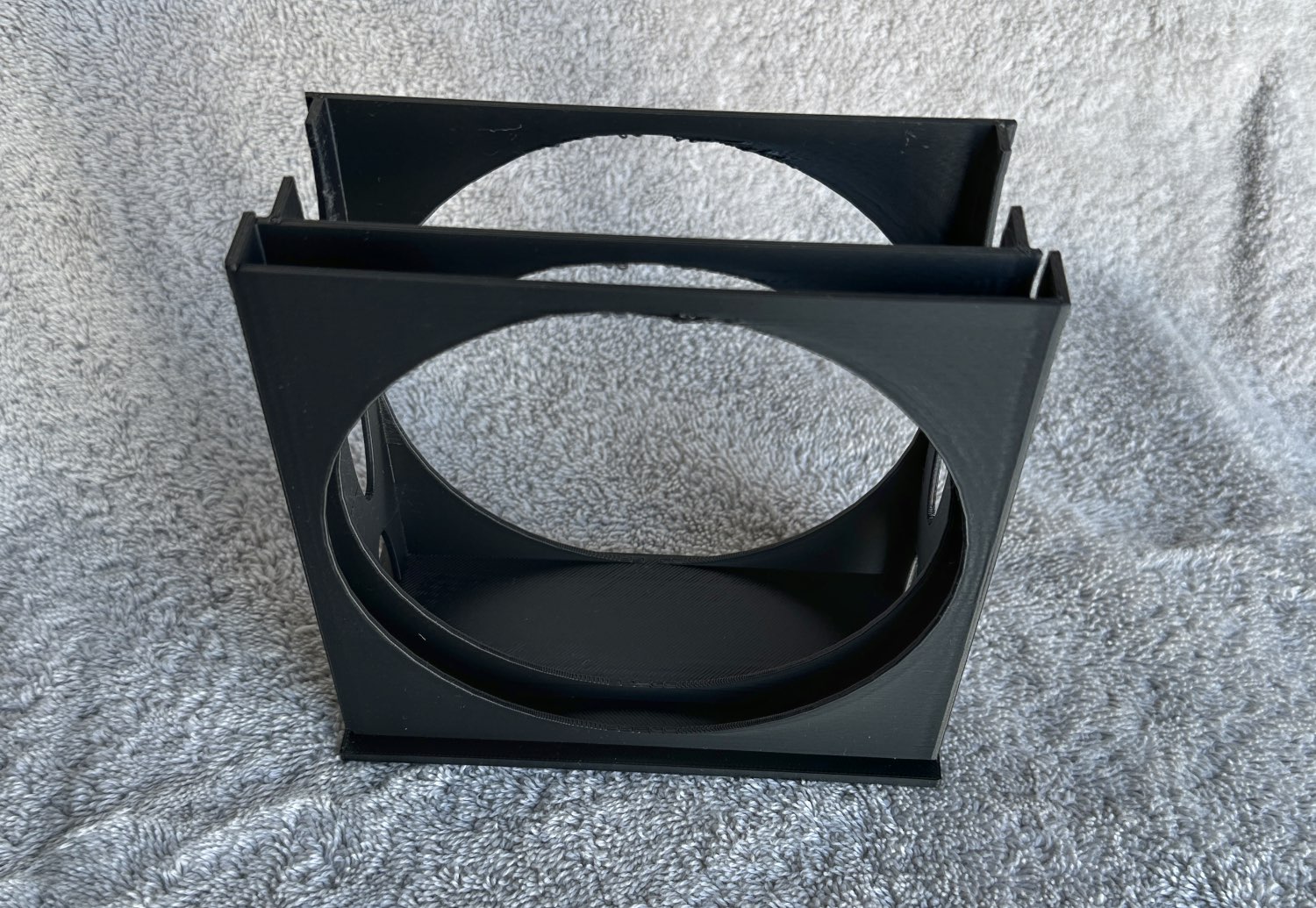

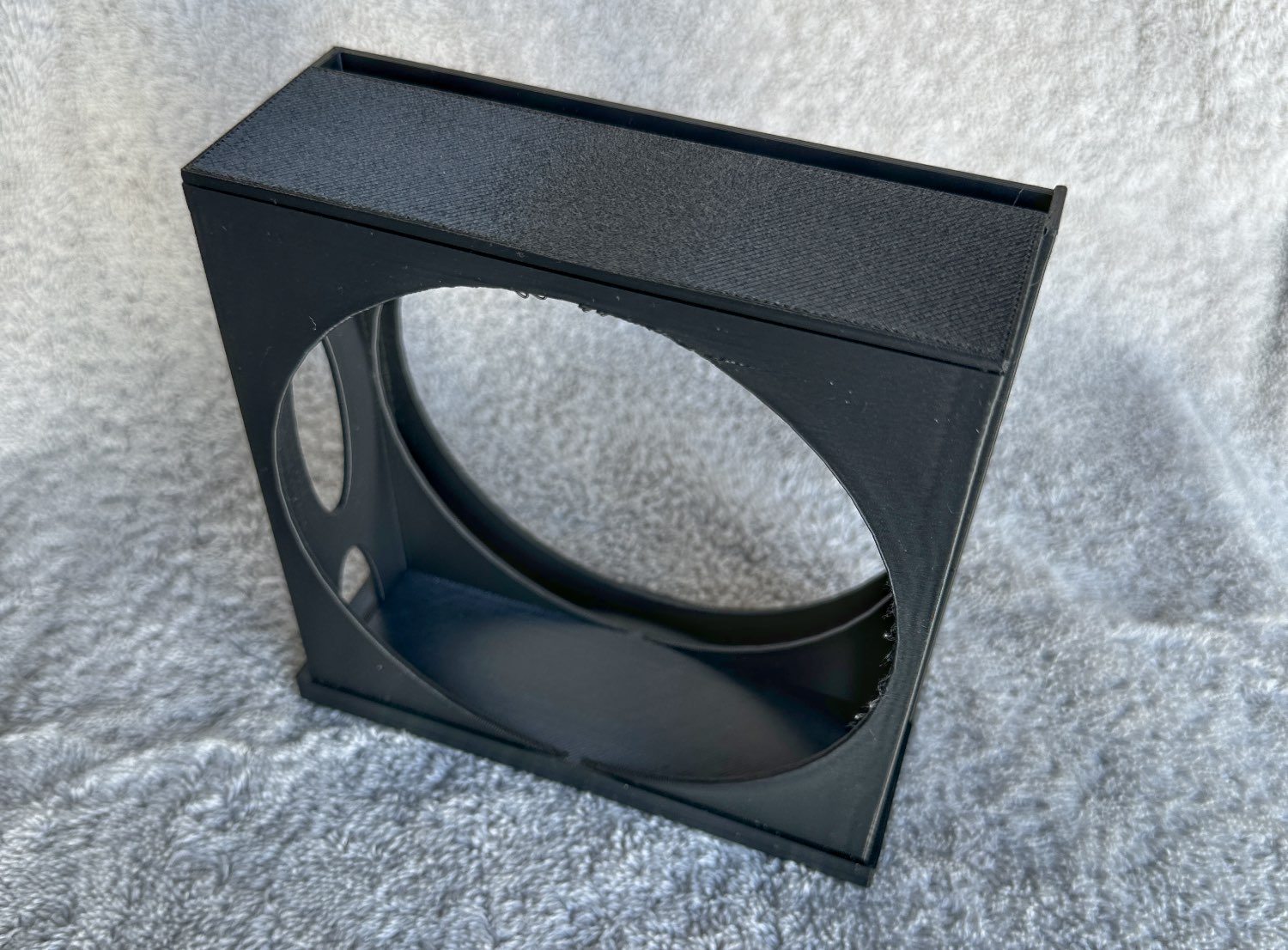

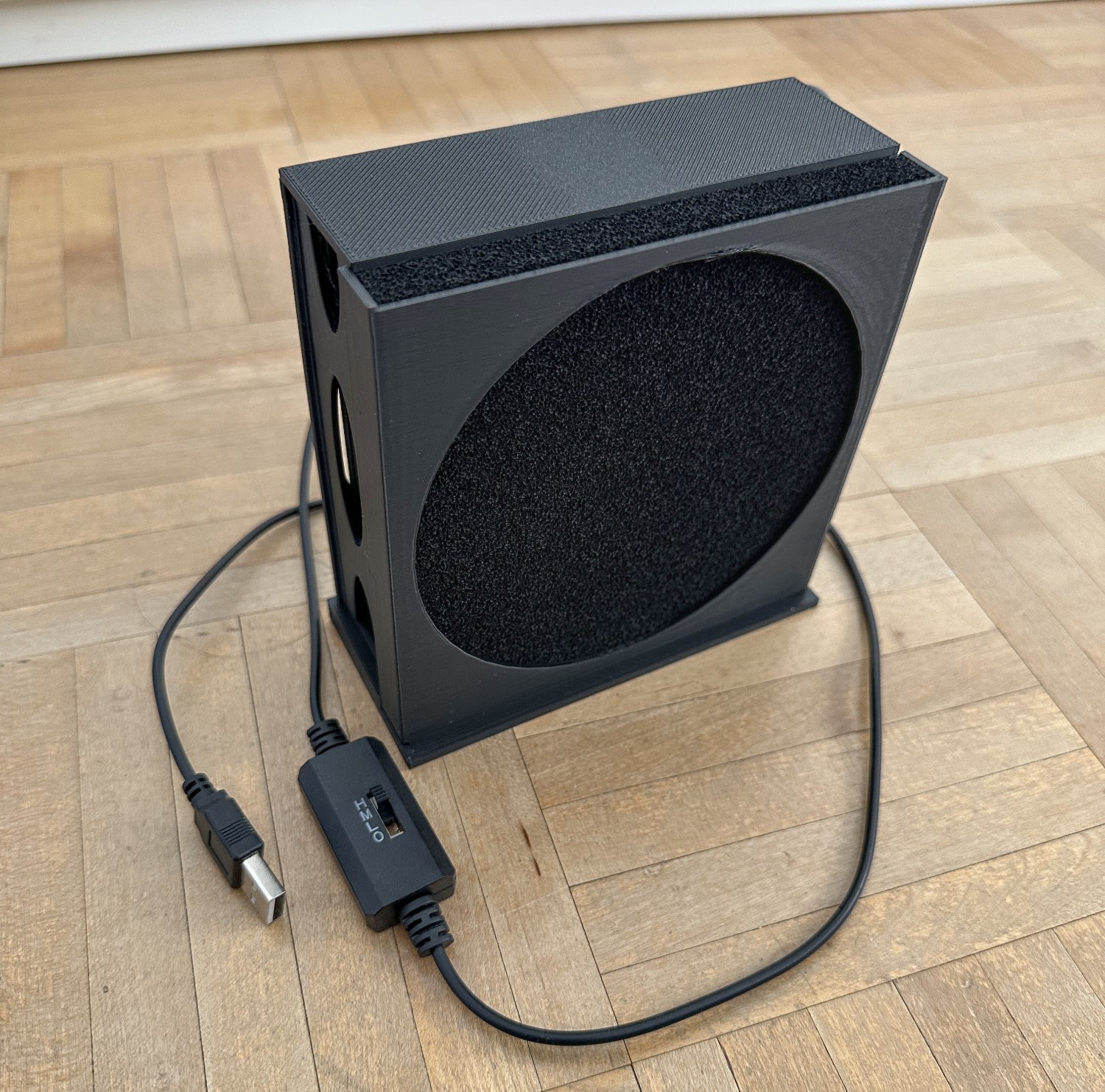

I designed this soldering filter using filters and a fan that I could buy on Amazon. The fan is USB-powered and measures 120 x 120 mm with a thickness of 35 mm. The filters are made of activated carbon and measure 130 x 130 mm with a thickness of 10 mm.

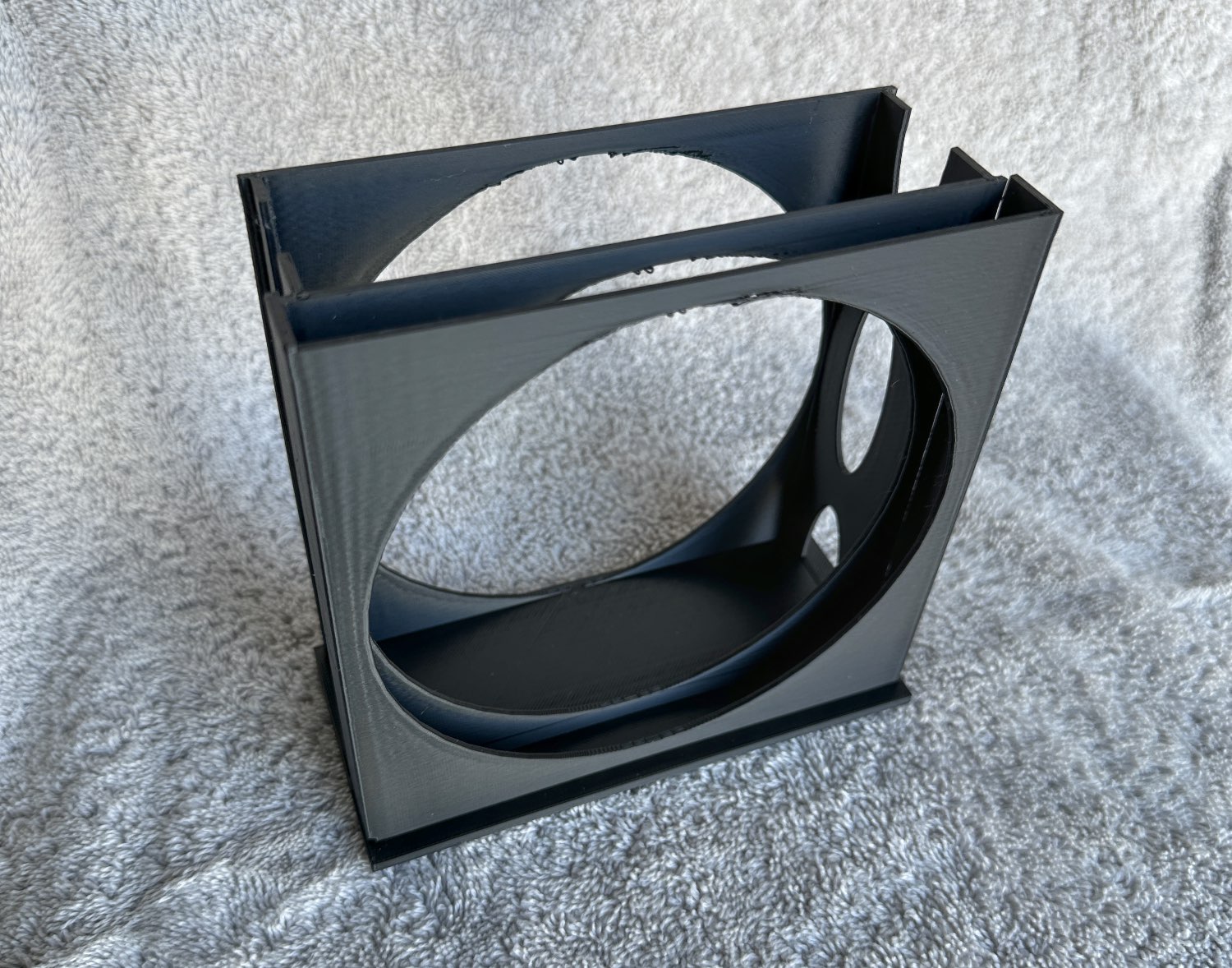

I didn't use supports for printing, but for a perfect result, you can place them 30 mm in the center of the circles, as shown in one of the included photos. Without supports, the tops of the curves are slightly uneven.
I dont put links to the fan and filter because after a certain time they dont work but they are easy to find on Amazon.
