Sharpy McSharpface - Knife sharpener

Sharpy McSharpface

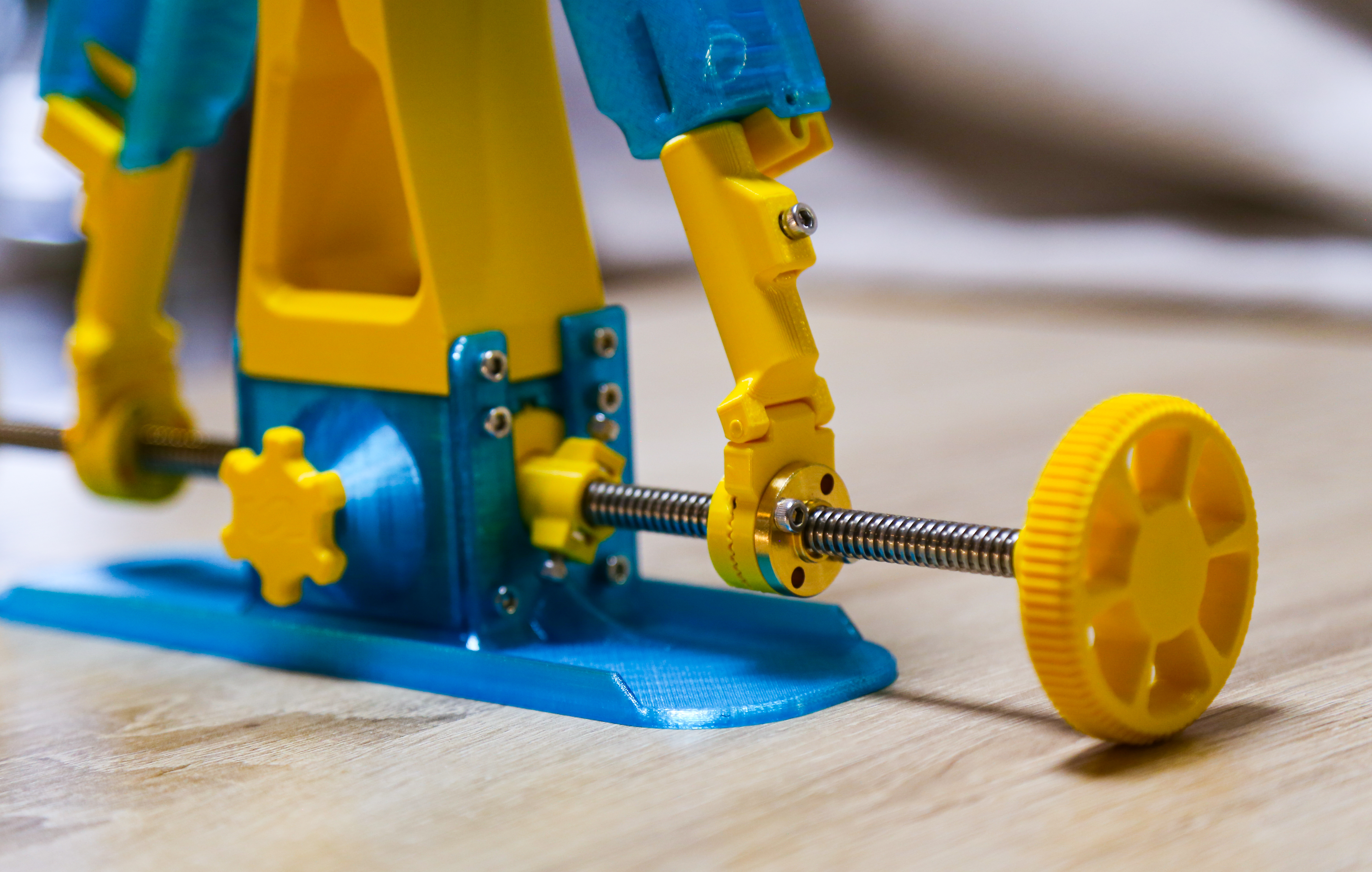

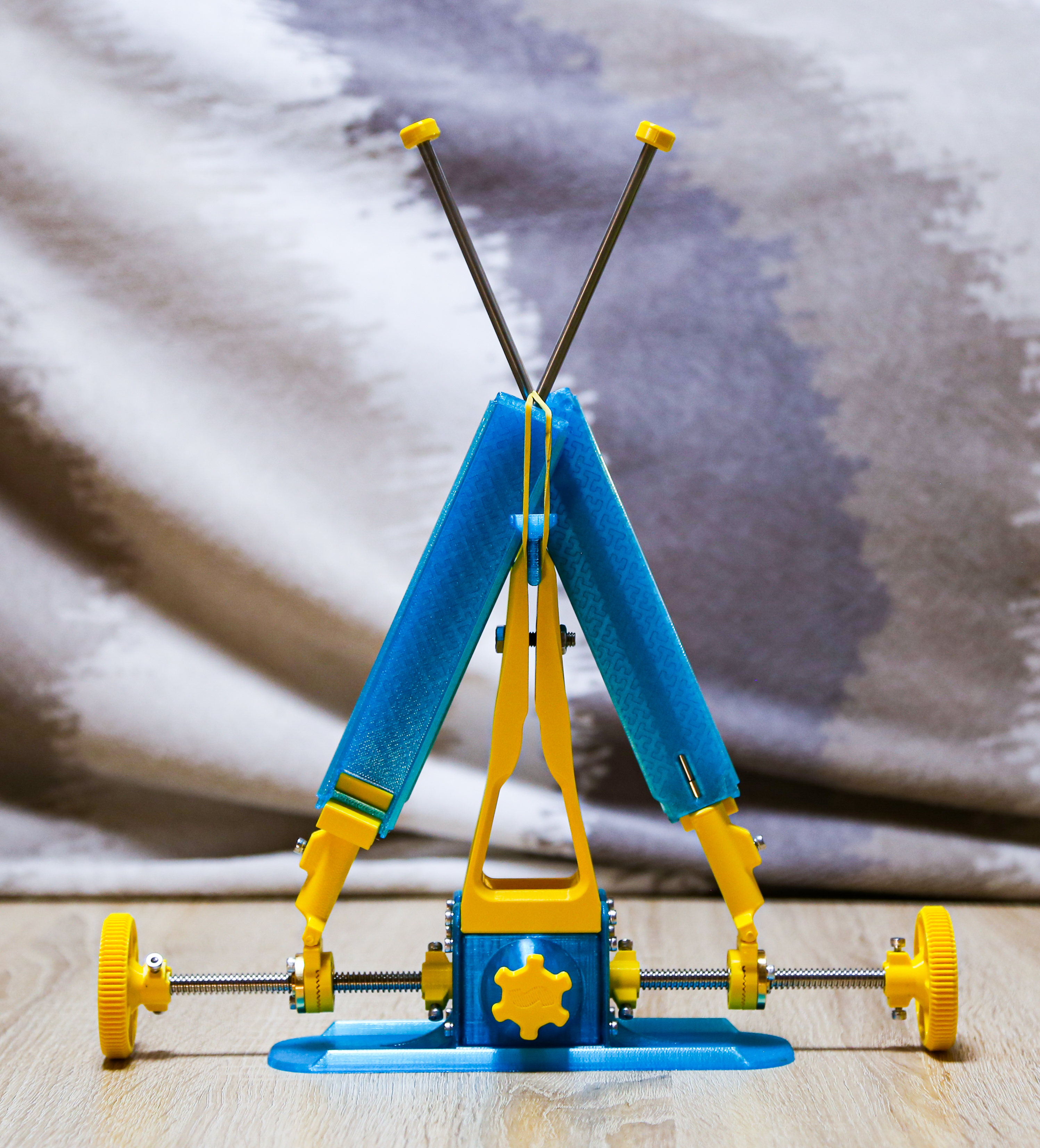

Precision symmetrical sharpening system for consistent and repeatable, razor-sharp edges. Two rods leading sharpening stones are mounted on a trapezoid leading right-left screw for precise and symmetrical angle adjustment. All made from printable parts and easily obtainable non-printable parts.

Useful for most kitchen and EDC knives (no serrated blades)

Key benefits:

• Symmetric and precise angle management

• Guided sharpening stones for consistend bevels

• Compatible with Ruixin and KMFS sharpening stones

• Easily obtainable hardware parts

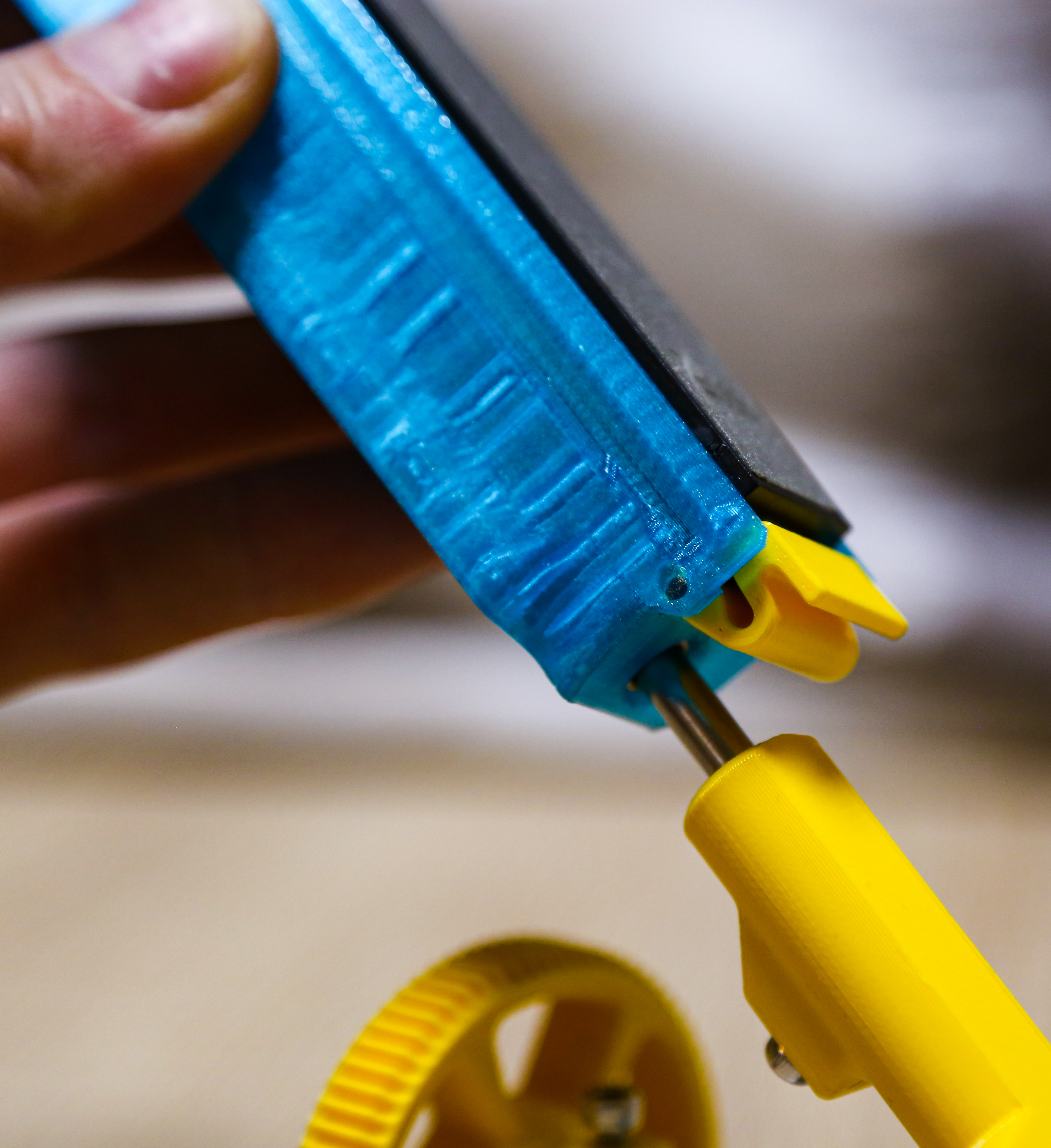

The stone holders are quite tolerant, but there are limits:

• max stone width is 23mm

• max length 162mm

• min thickness 7mm

What's included in STEP / STL files:

• All necessary construciton parts

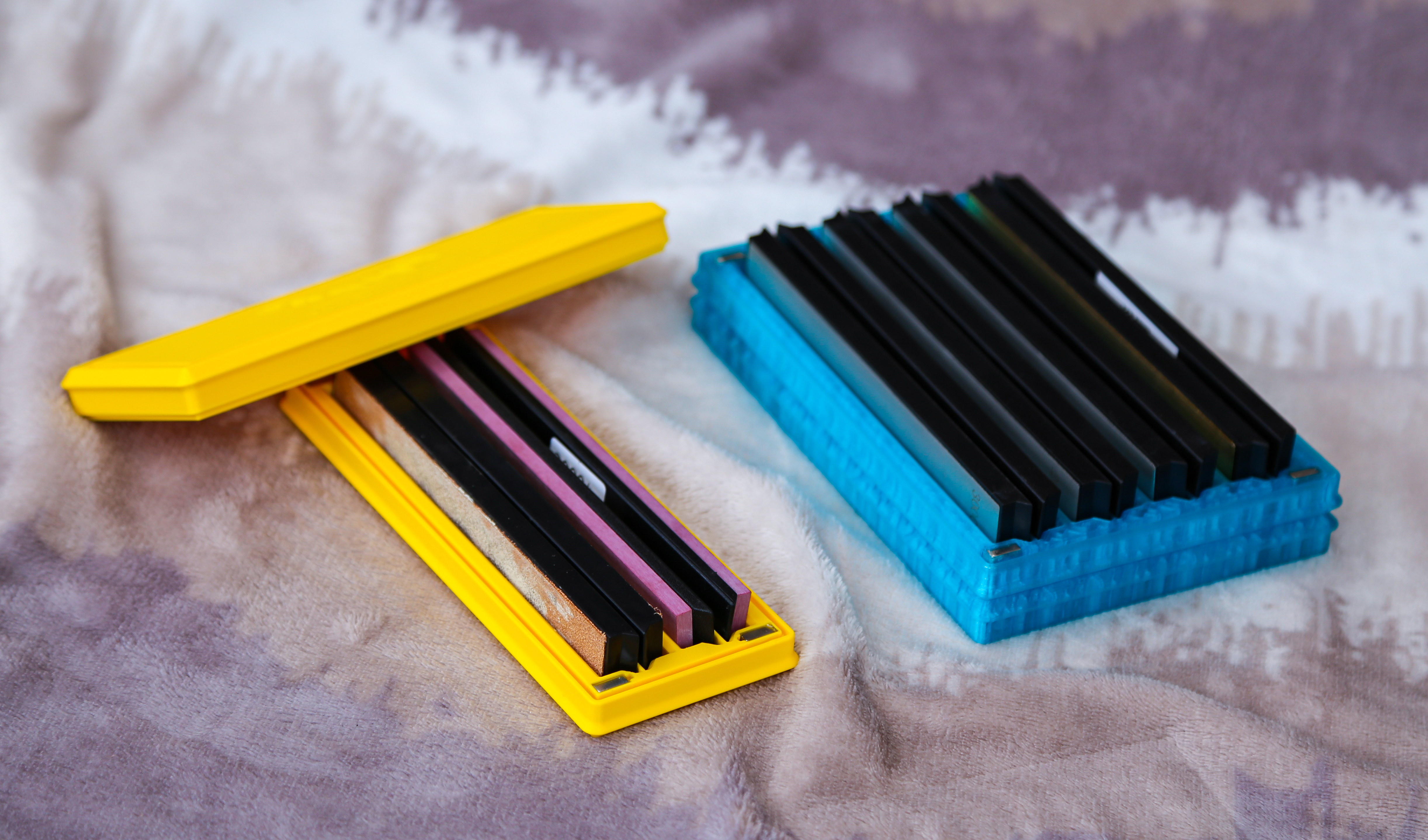

• Boxes for stones to store in

• Tool box for additional tools

• Attachment for digital inclinometer

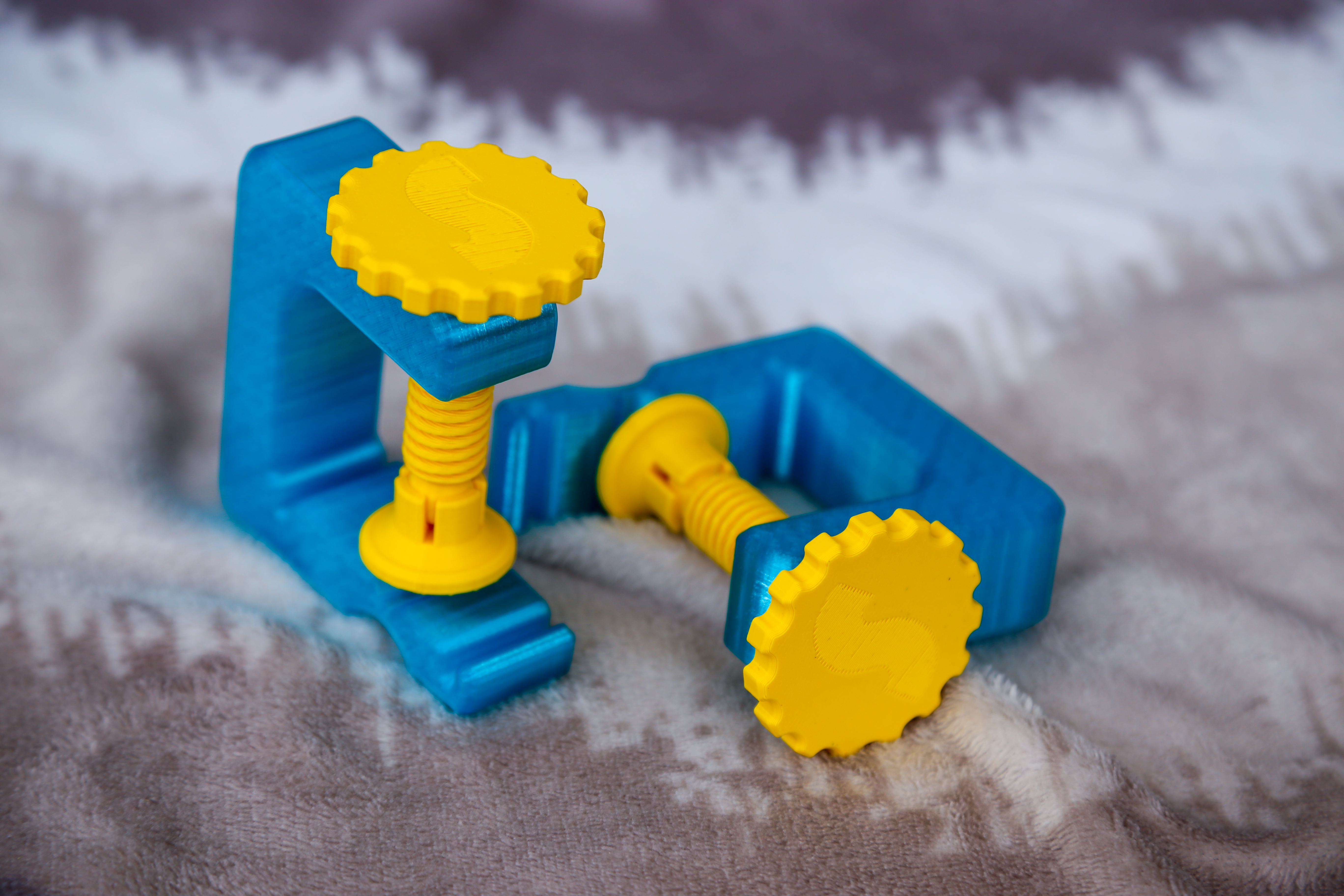

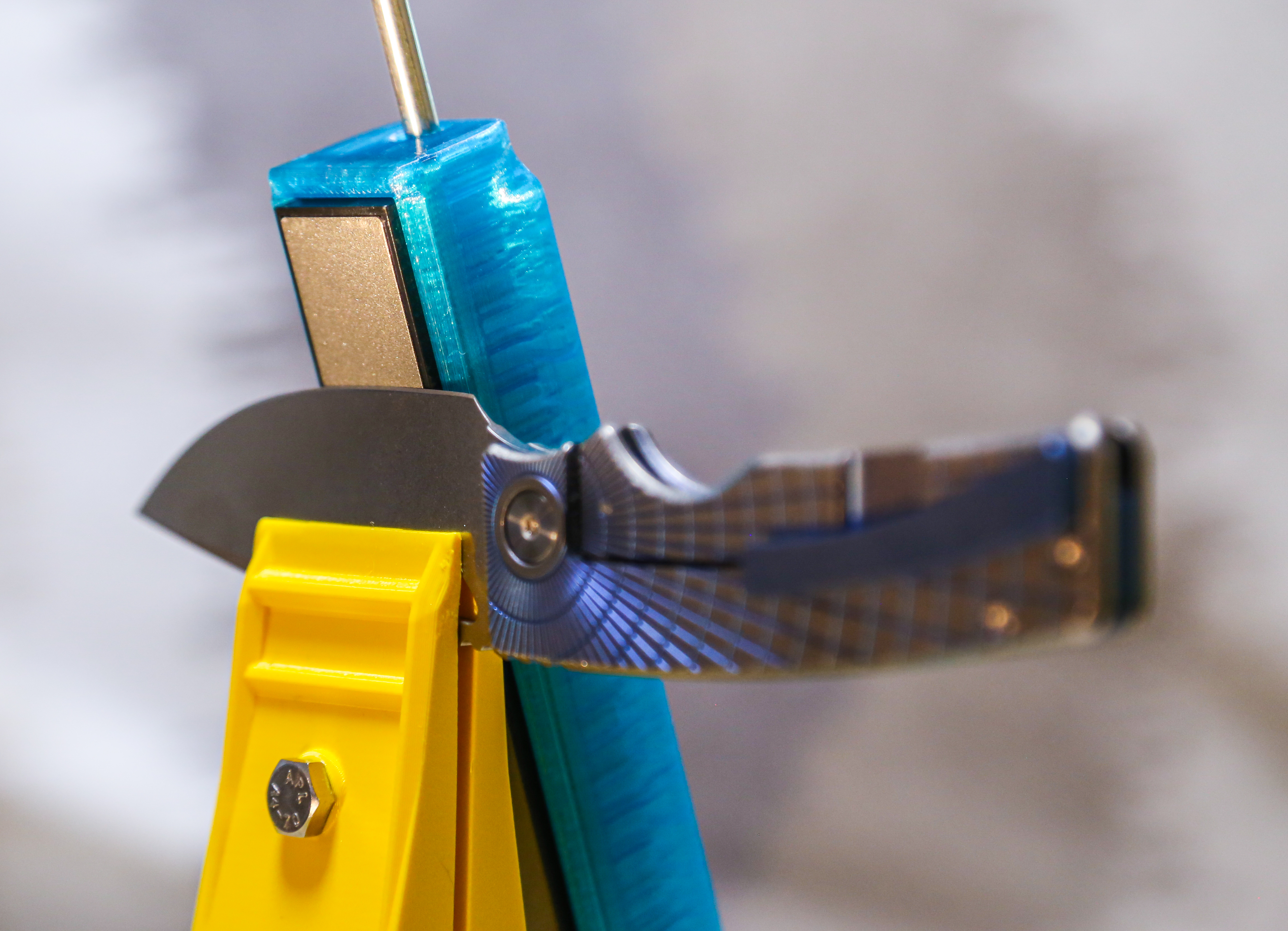

• Tightening knobs for knife fastening

• Small tool for installing sleeve bearings

What's not included:

• Right-left trapezoidal lead screw + nuts

• Various M3 screws for the construciton

• Square M3 nuts

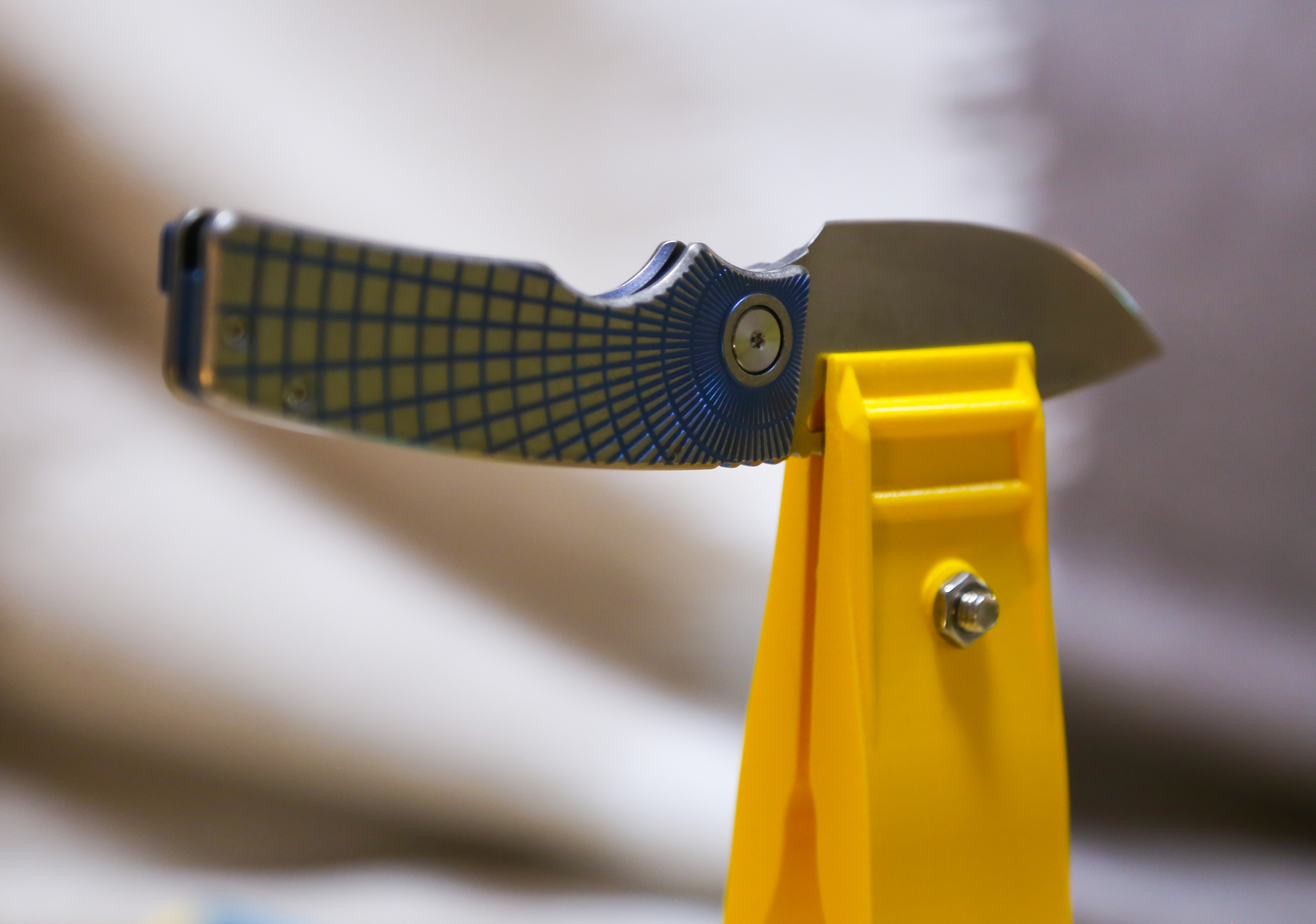

• M6 screw and nut for knife fastening

• Smooth straight rods

• Steel backed PTFE sleeve bearing 5x7x10mm (but printable replacement part is available)

What to prepare:

• You will need PETG filament, preferably for all parts

• M3 screws of different lenghts (see parts table below)

• M3 square nuts (see parts table below for their number)

• One M6 screw and one M6 nut for knife fastening.

• Steel backed PTFE sleeve bearing 5x7x10 (see parts table for details)

• Right-left leading screw (see parts table below for details and link to store)

• Smooth straight rods (see parts table for specifications)

• Screwdriver matching your screws

• Pliers for easier square nuts placing

• Compatible sharpening stones (see parts table for details)

• Generic rubber band to be used with the Tools - Storage Tool

Printing recommendation:

• No suports should be needed

• 3 perimeters should be all right, 4 perimeters for Knife Holder

• 20% infill is reommended

• The parts are already oriented the intended way

I suggest to use parts with mouse ears (additional circles to be removed after print) when available, to make sure the warping will be under control. I added them to two parts, Knife Holder and Stone Holder - Base.

Assembly instructions:

See the exploded view image below the parts table for parts placement overview

available in "other files" for easy download. You can download it from photos as well, but Printables won't guide you for download, you myst right-click it for download.

For detailed assembly instructions, see the video at the bottom.

Parts table:

This parts list contains affiliate links for Amazon. If you purchase through these links, I may earn a commission. This does not increase the price you pay.

This parts list contains affiliate links for Amazon. If you purchase through these links, I may earn a commission. This does not increase the price you pay.

As an Amazon Associate I earn from qualifying purchases.

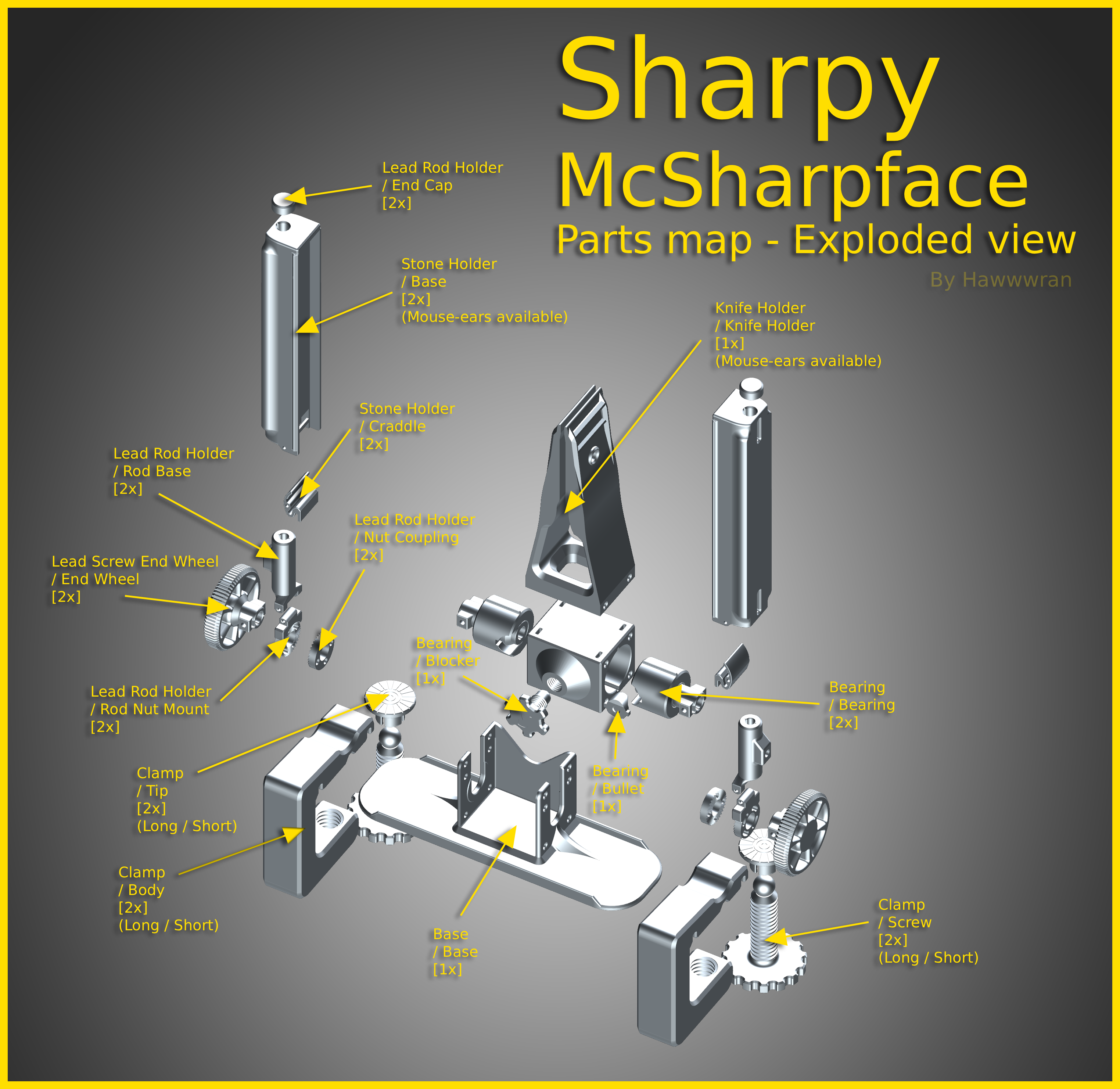

Parts map - Exploded view:

How to assemble (Video):

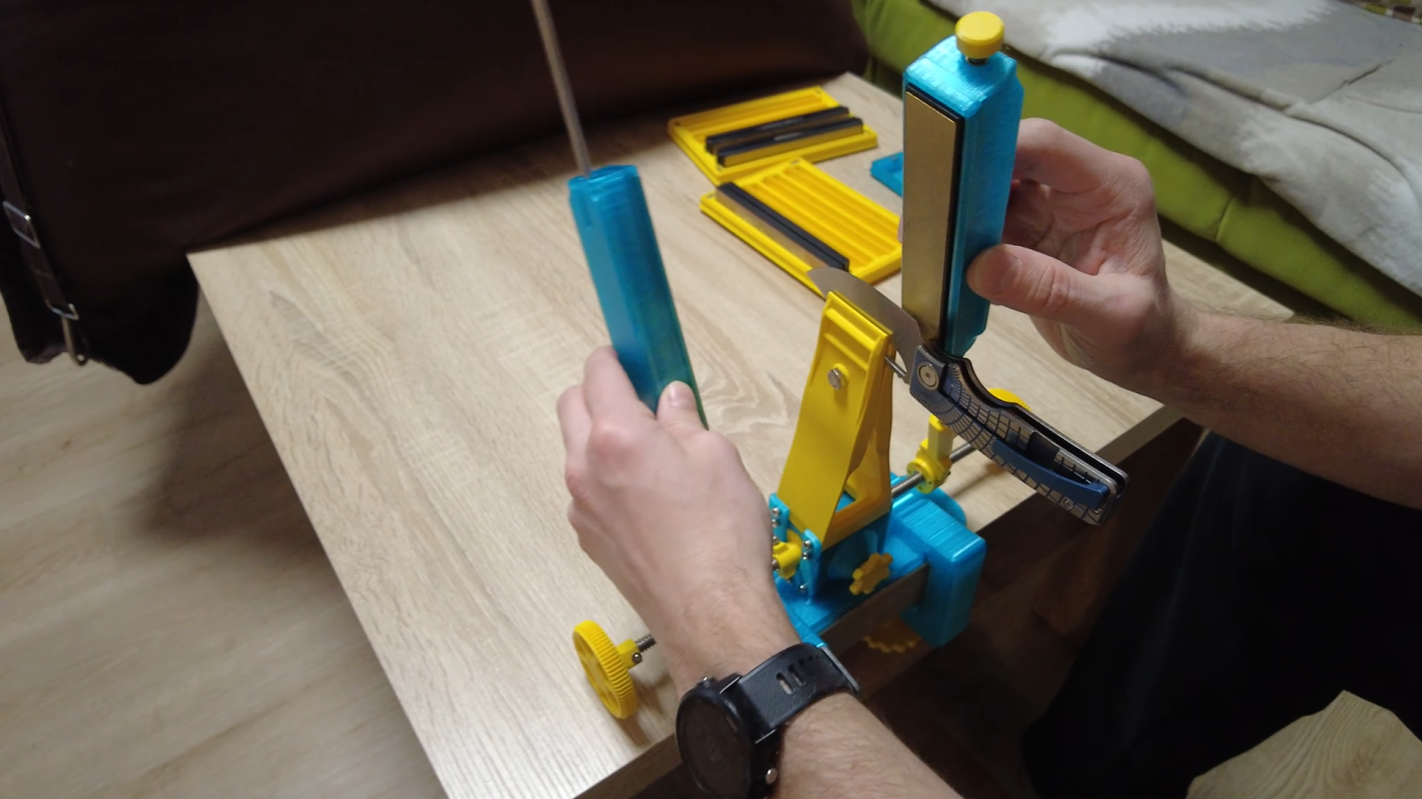

How to use (Video):
