CoPrint CX-1 Extruder braket for Ender 3 V3 Plus with LED bar - Quick swap version

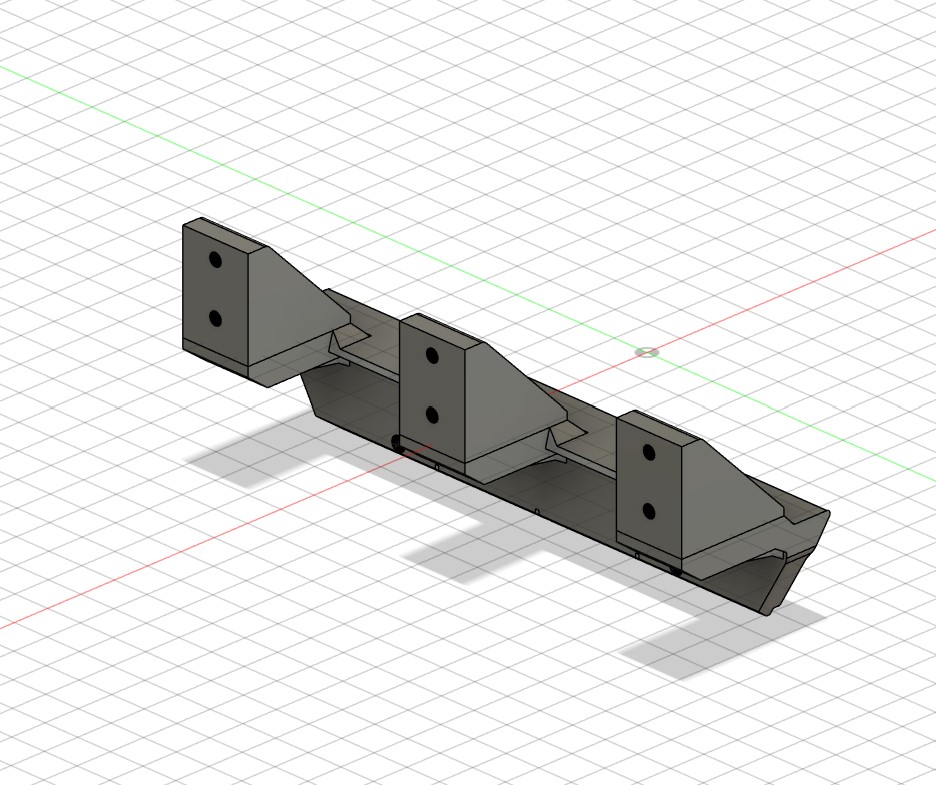

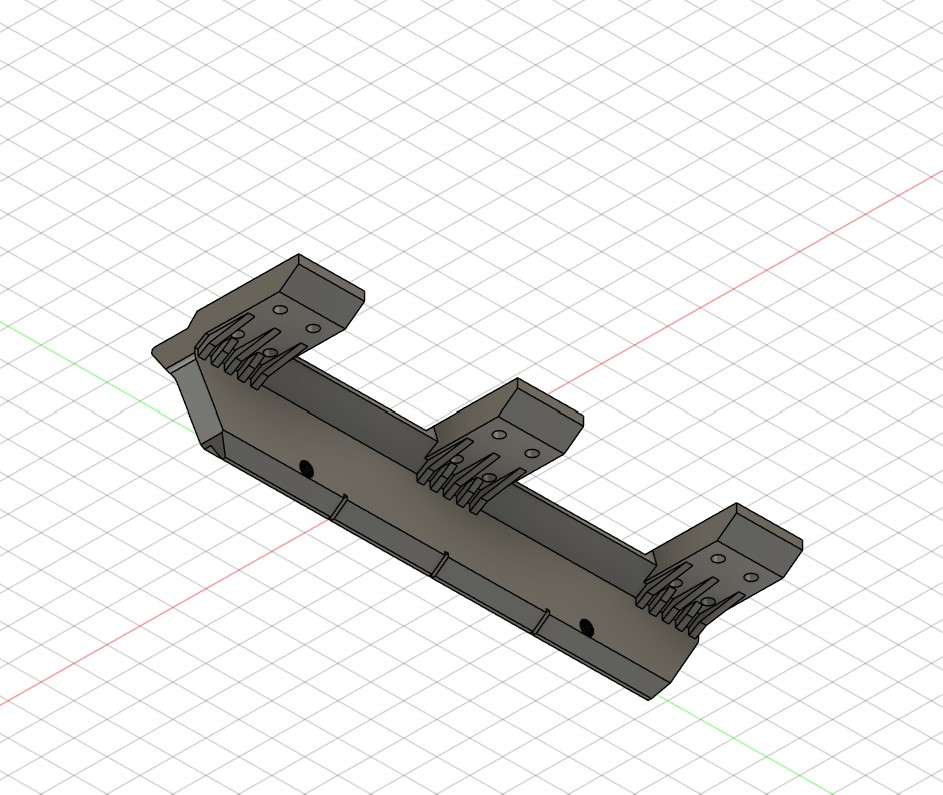

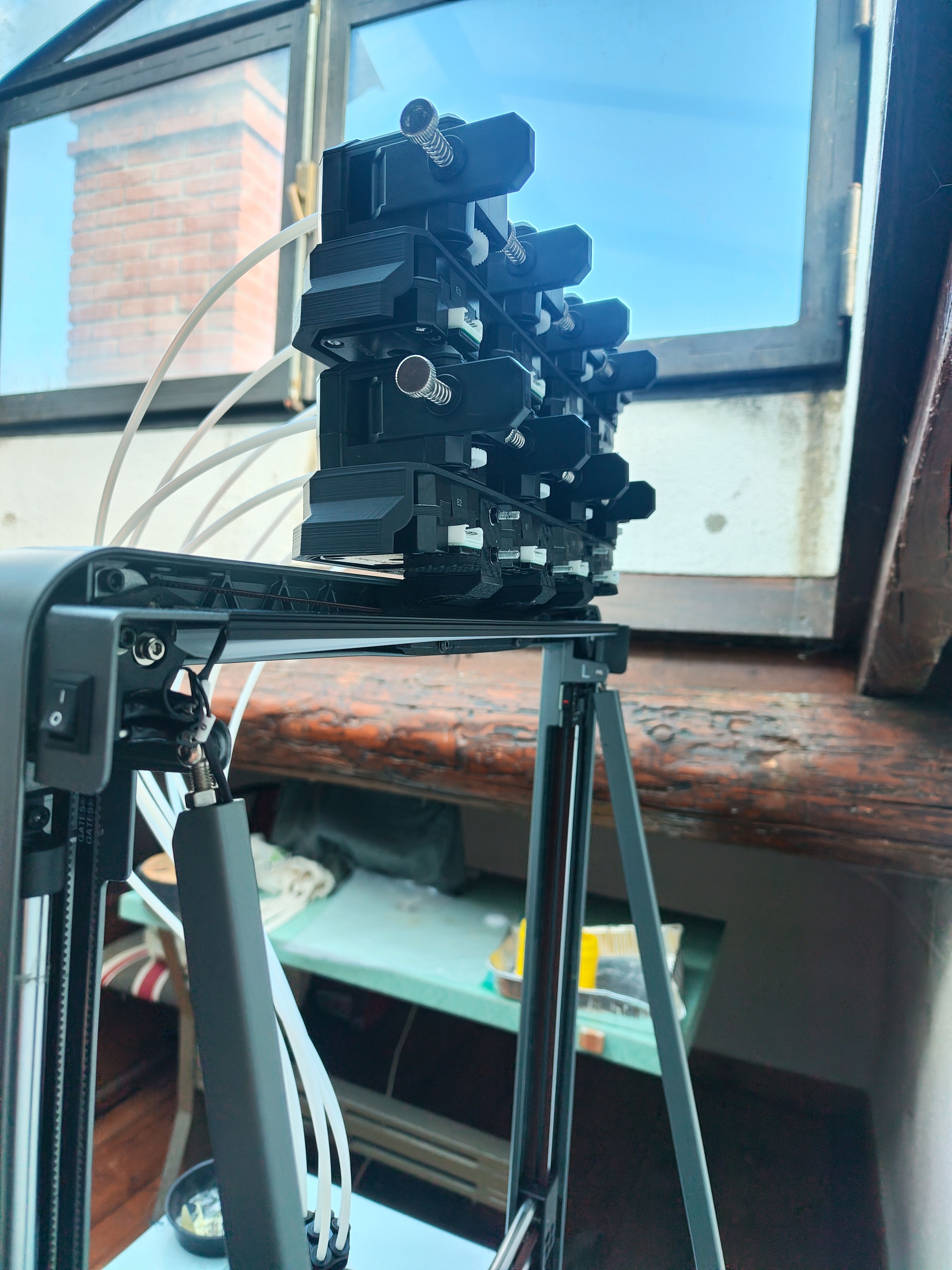

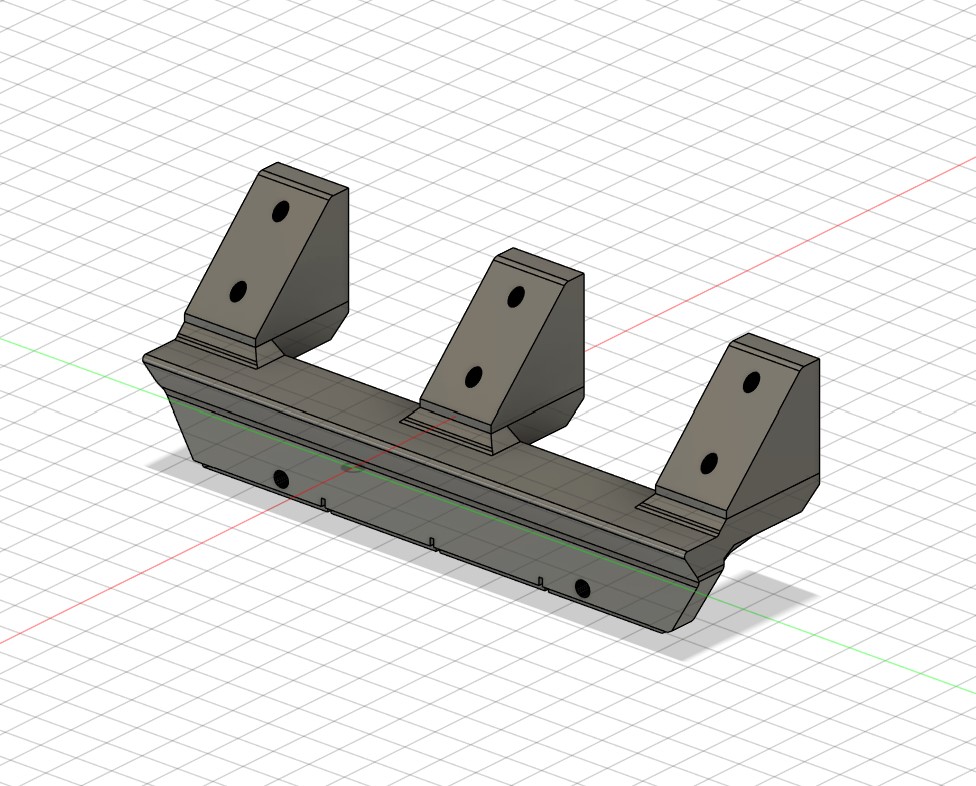

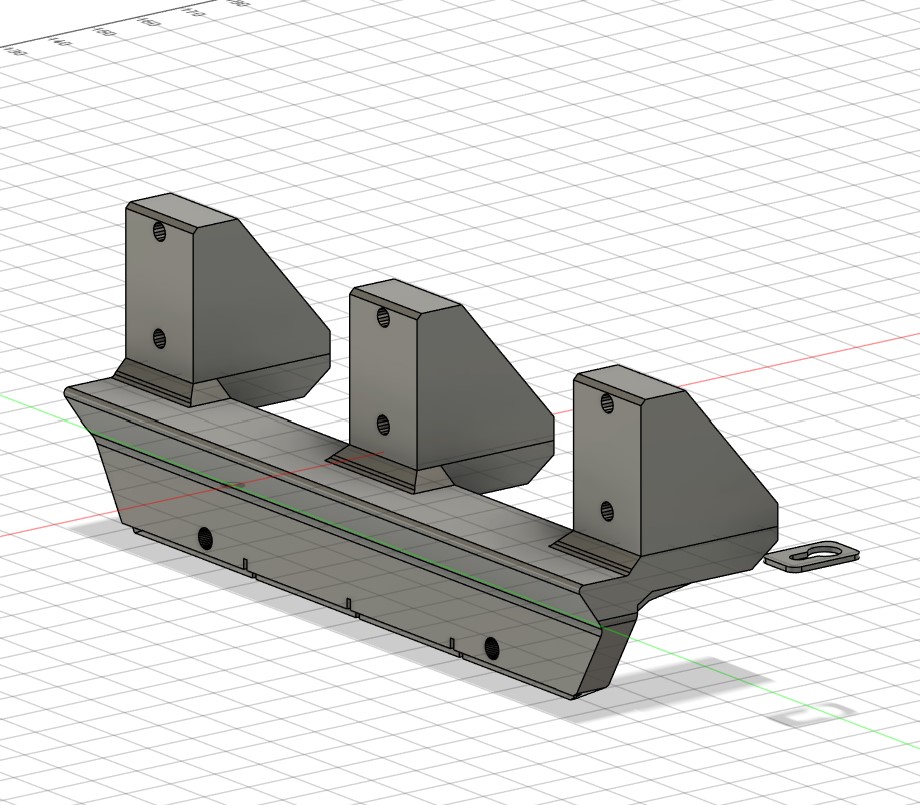

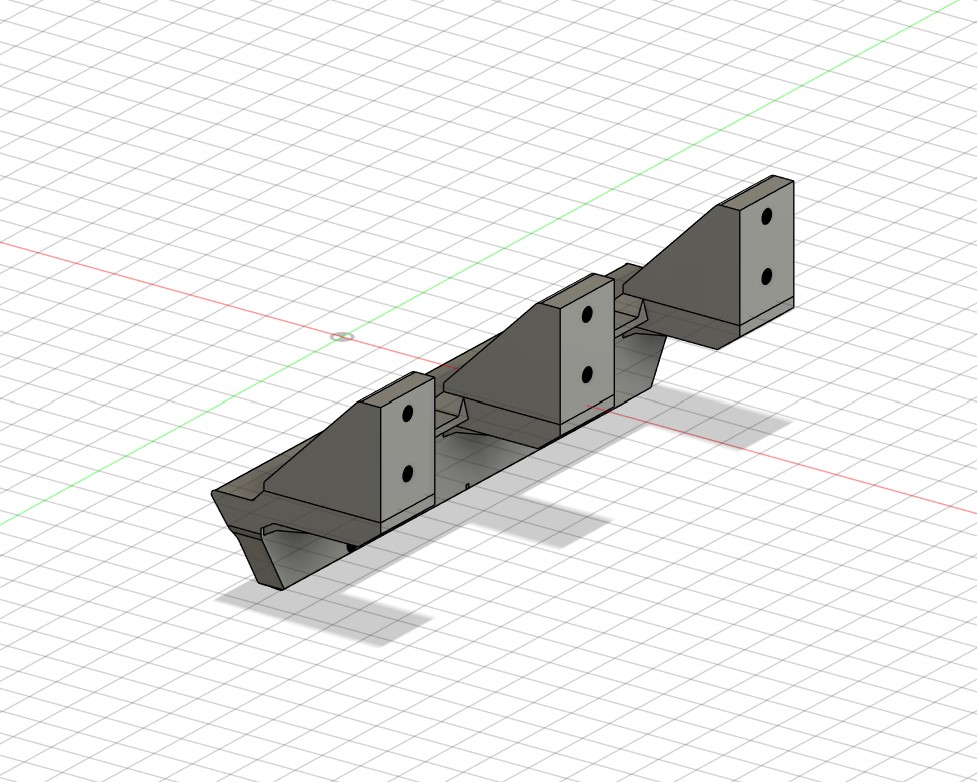

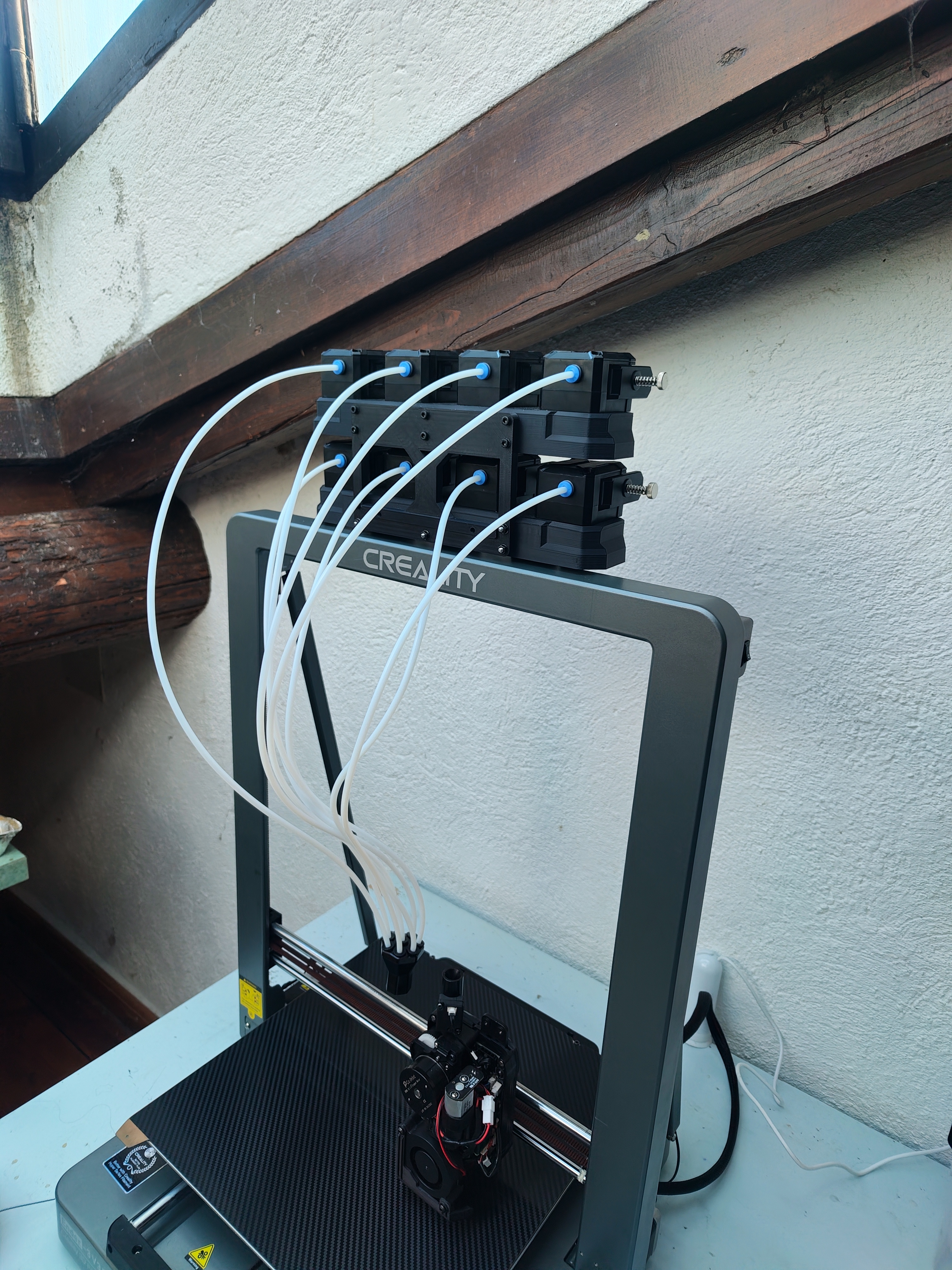

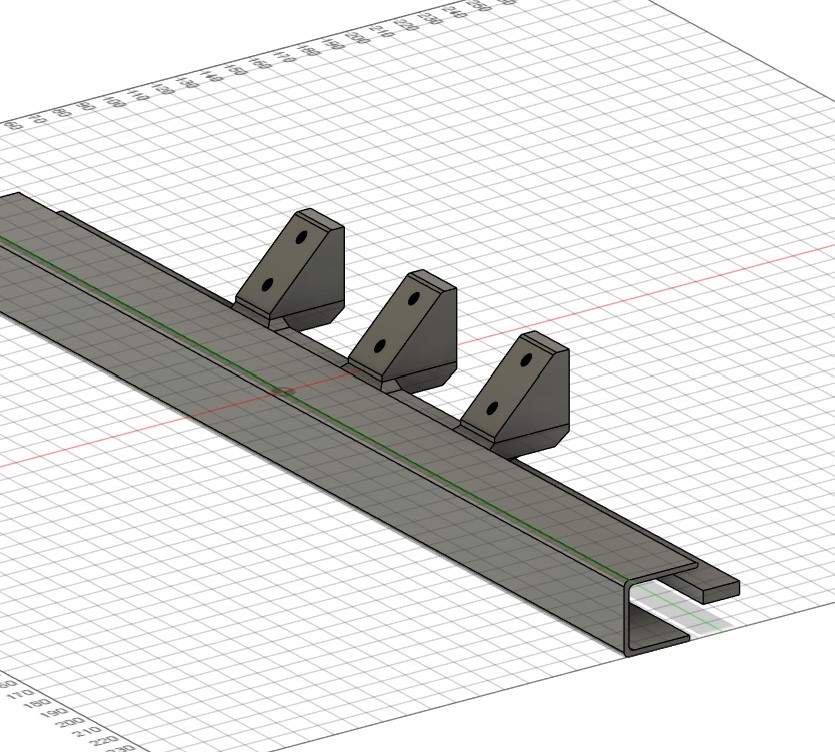

This bracket allows the CX-1 extruders to be mounted on top of the Ender 3 v3 Plus while maintaining its rear LED bar and ensuring a solid mounting directly to the printer frame via the two rear M3 screw attachments. This version is my Quick swap version and is different from the previous 2 because the CX-1 extruders attach to the bracket via a joint with M3 screws.

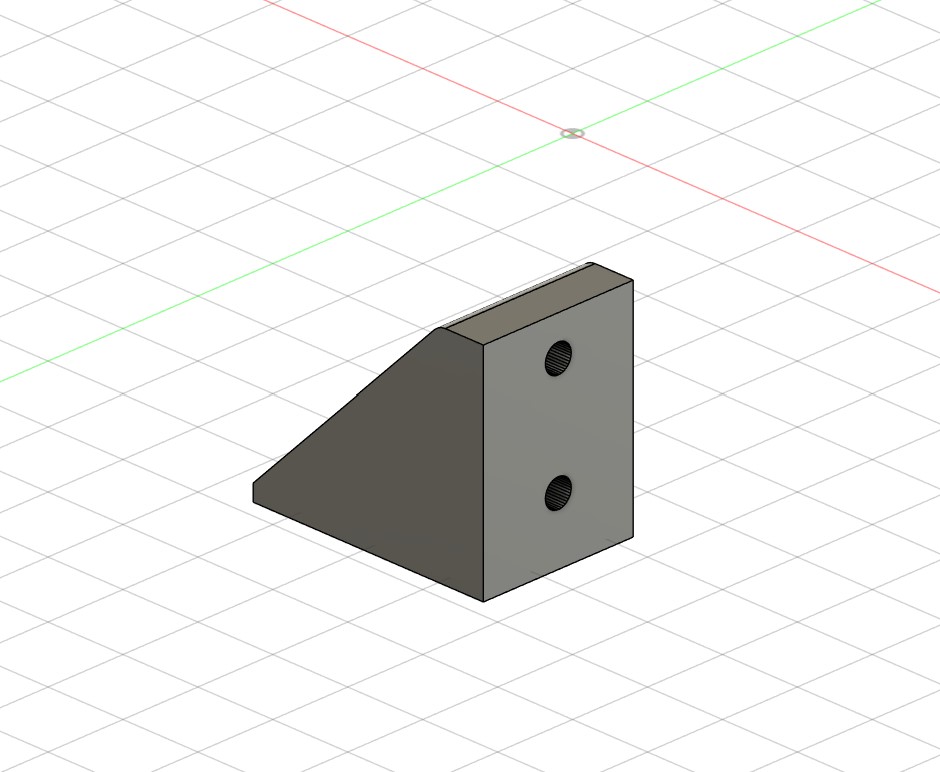

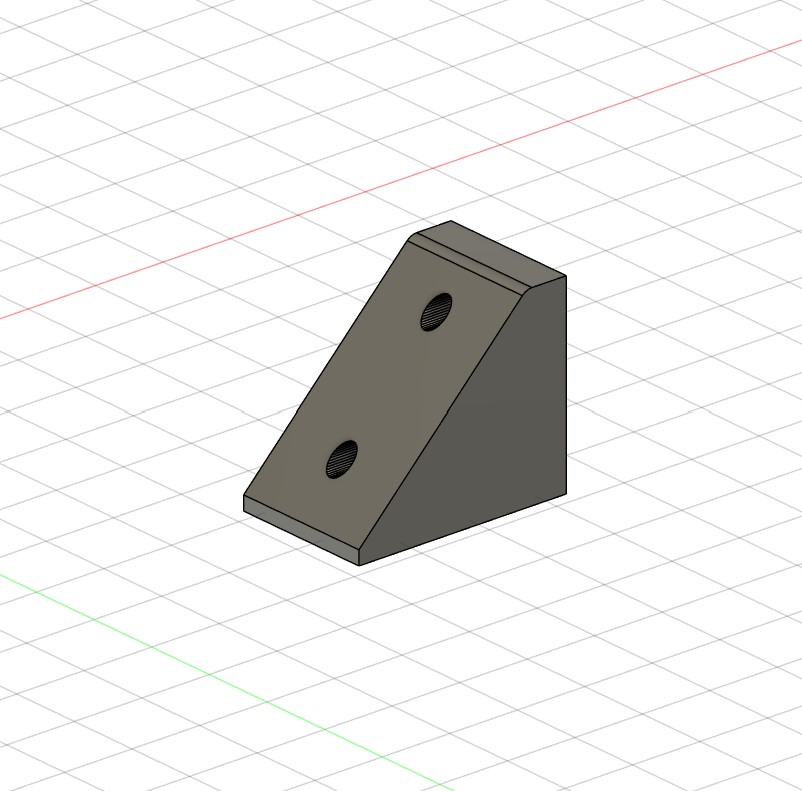

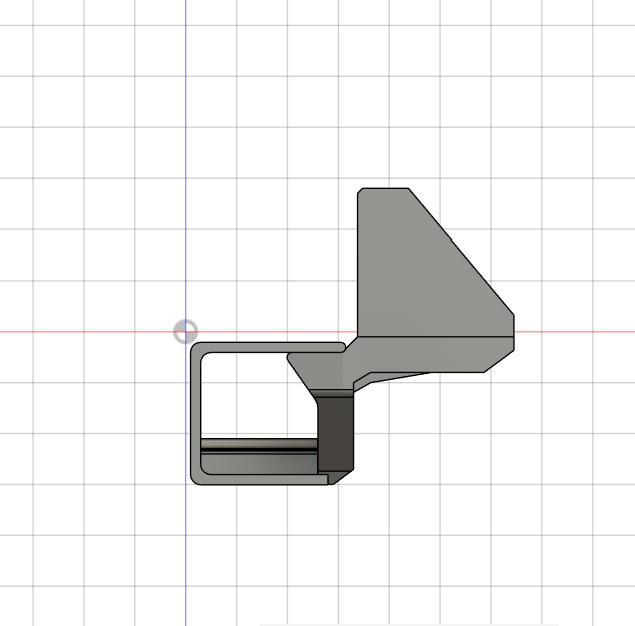

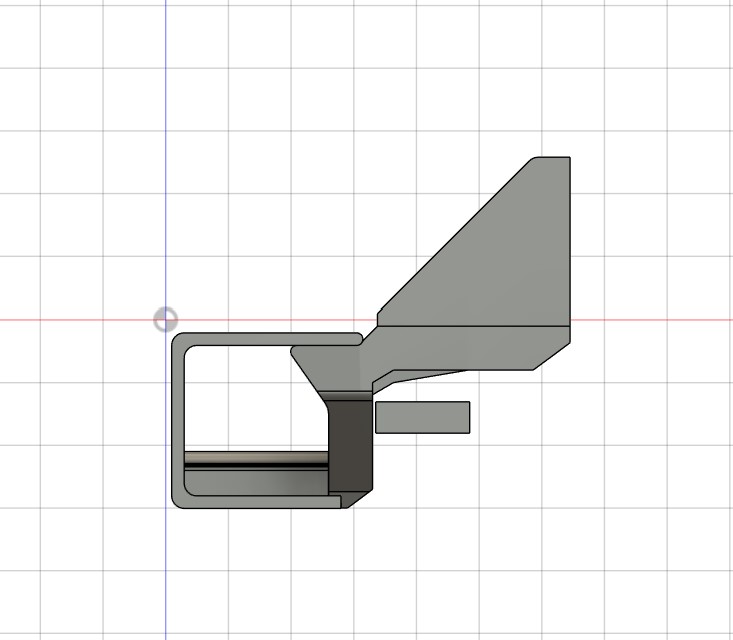

This braket is for both the old (inclined) and new (flat) version of the CX-1 mount released from Co-Print with inclined connections.

Material required:
- 2 x 10 mm M3 screws (to secure the braket to the Ender's chassis)
- 12 x 8 mm M3 screws (for the quick swap mechanism)

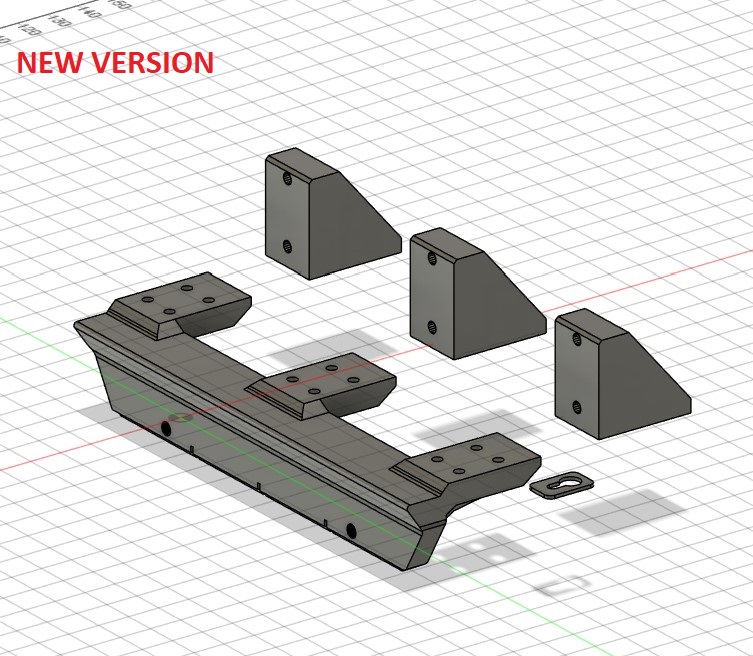

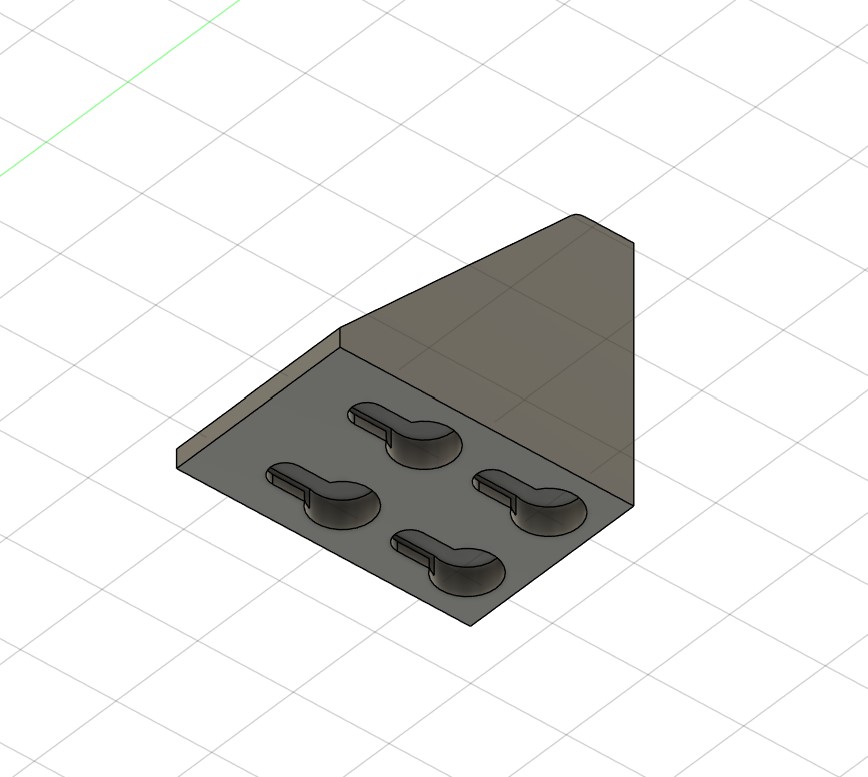

- NEW version: 6 x 25 mm M3 screws + 6 M3 washers + 6 M3 nuts (to secure the CX-1 mount to the "part 2    New version")

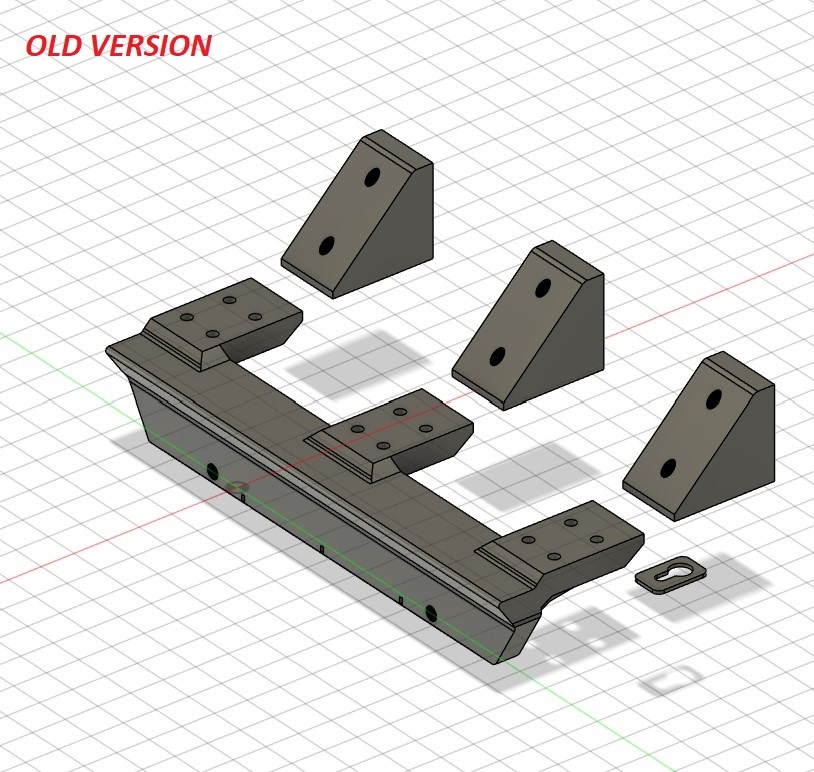

- OLD version: 5 x 65 mm Threaded rods + 10 nuts and 10 washers (to secure the CX-1 mount to the "part 2    Old version")

Optional material required(
-You may need a Dremel to cut the threaded rods to your desired size for the "OLD version".

Assembly phases:

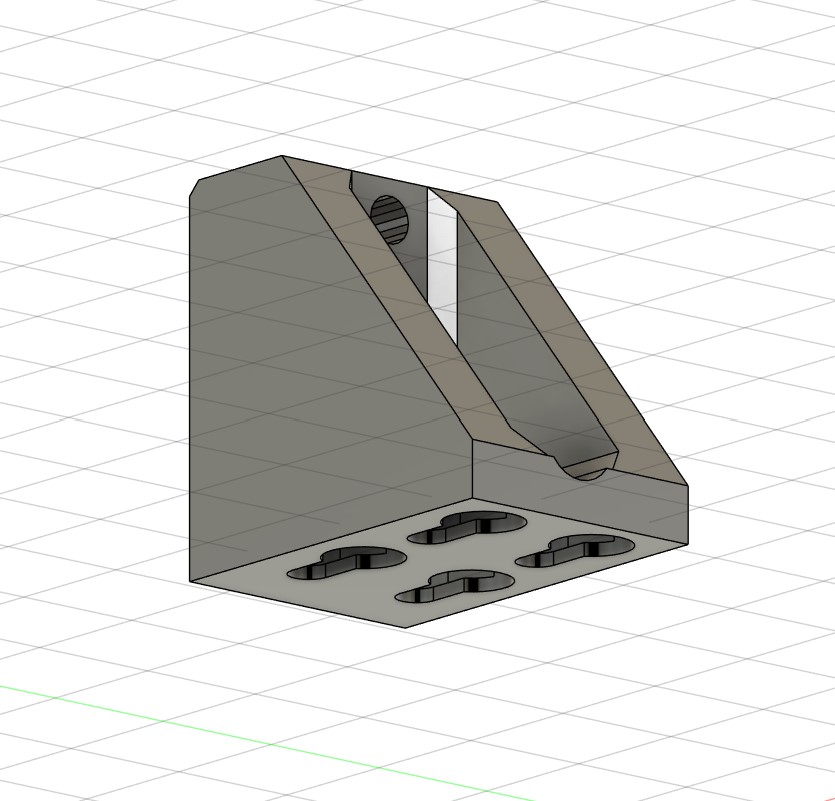

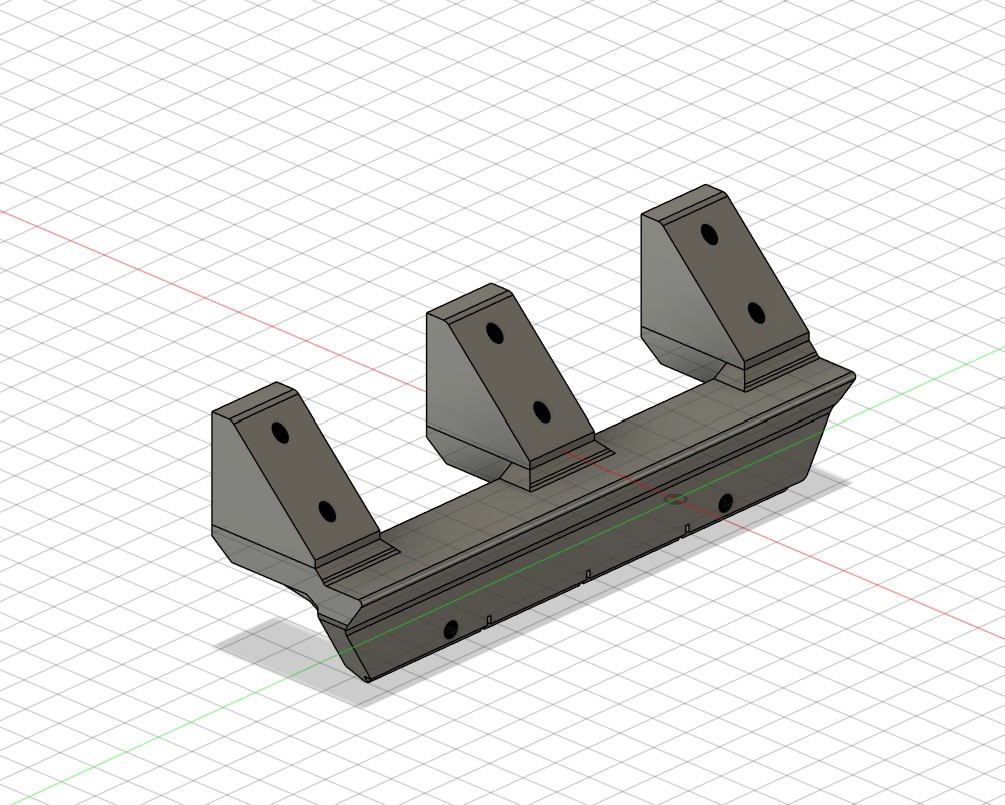

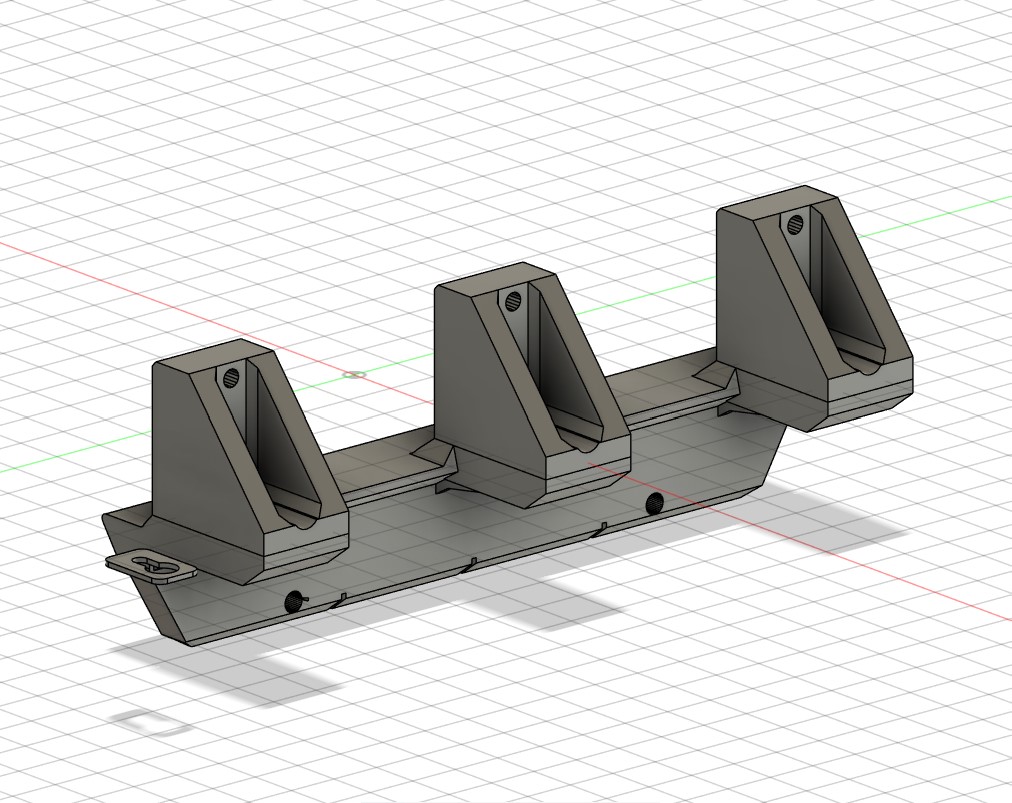

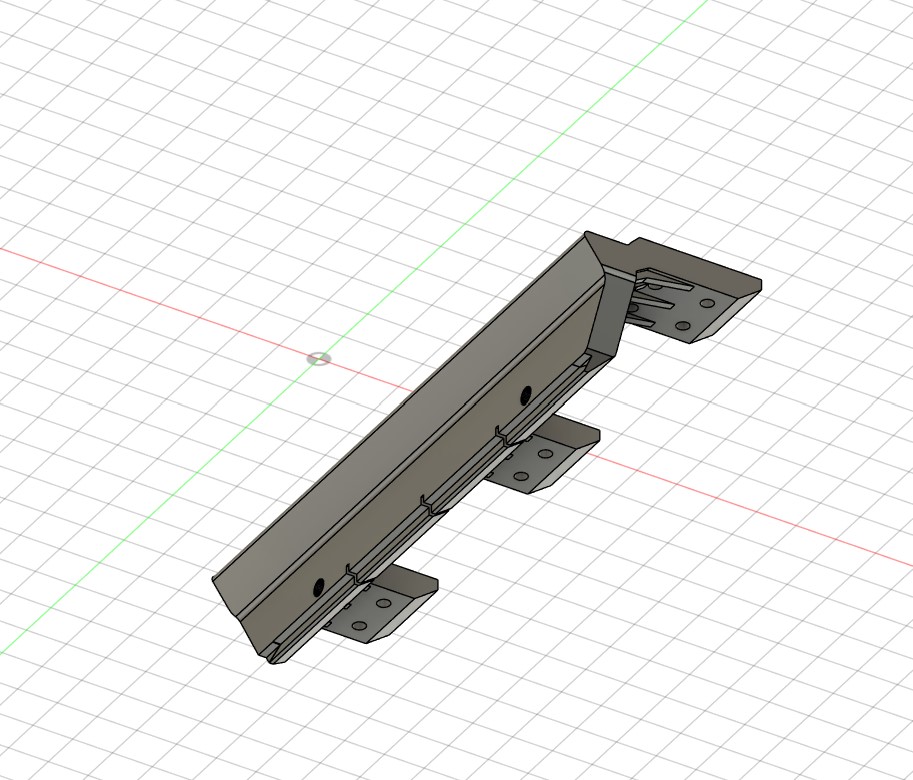

1) Screw the 12 M3 8 to the "part 1" on the 3 top surface (make sure the screws have at least 1 mm of space from the surface, use the leveler if you need to have them all at the same height)

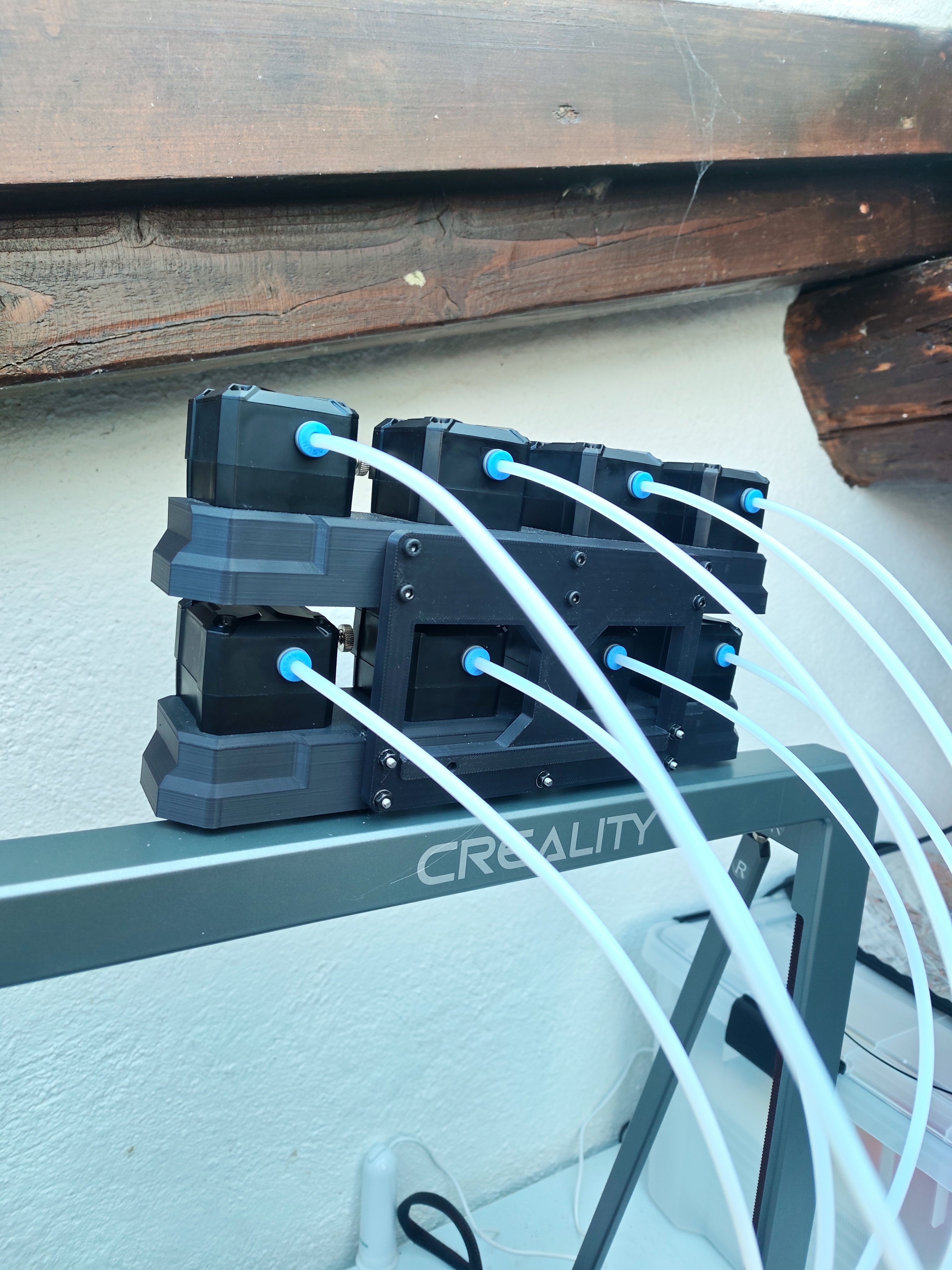

2) Connect the CX-1 4-extruder attachment from CoPrint to 3x "part 2" old or new version with the threaded rods or screws (cut the rods with the Dreamel if you want, this is for aesthetic purpose).

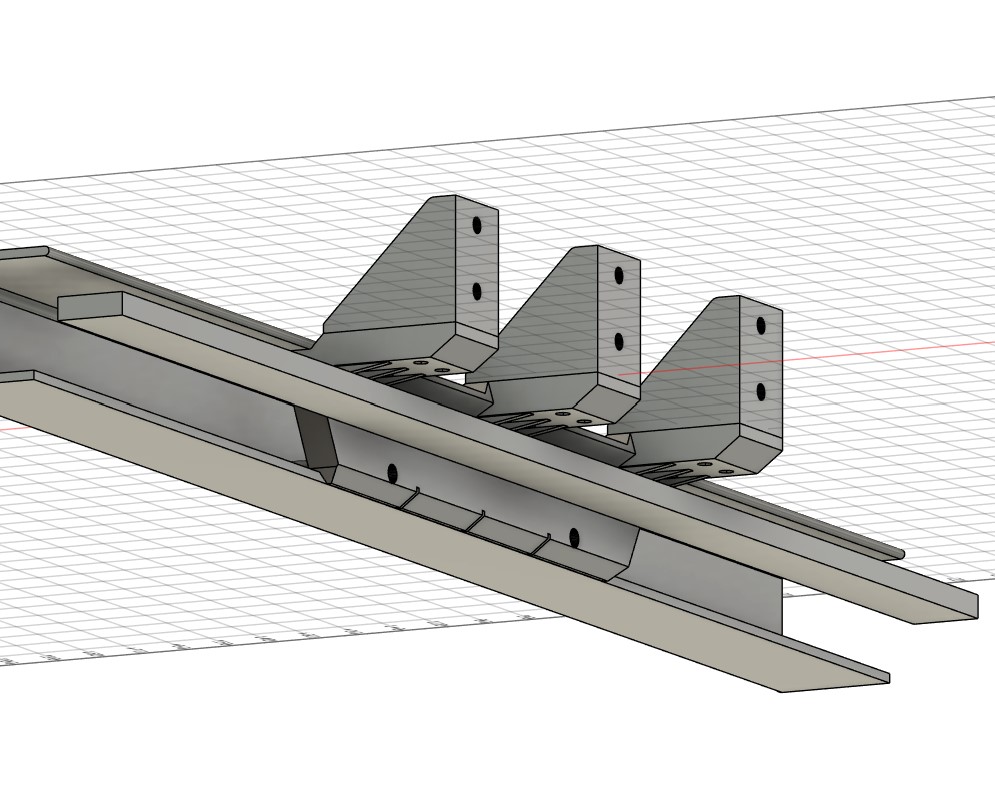

3) Remove the LED bar

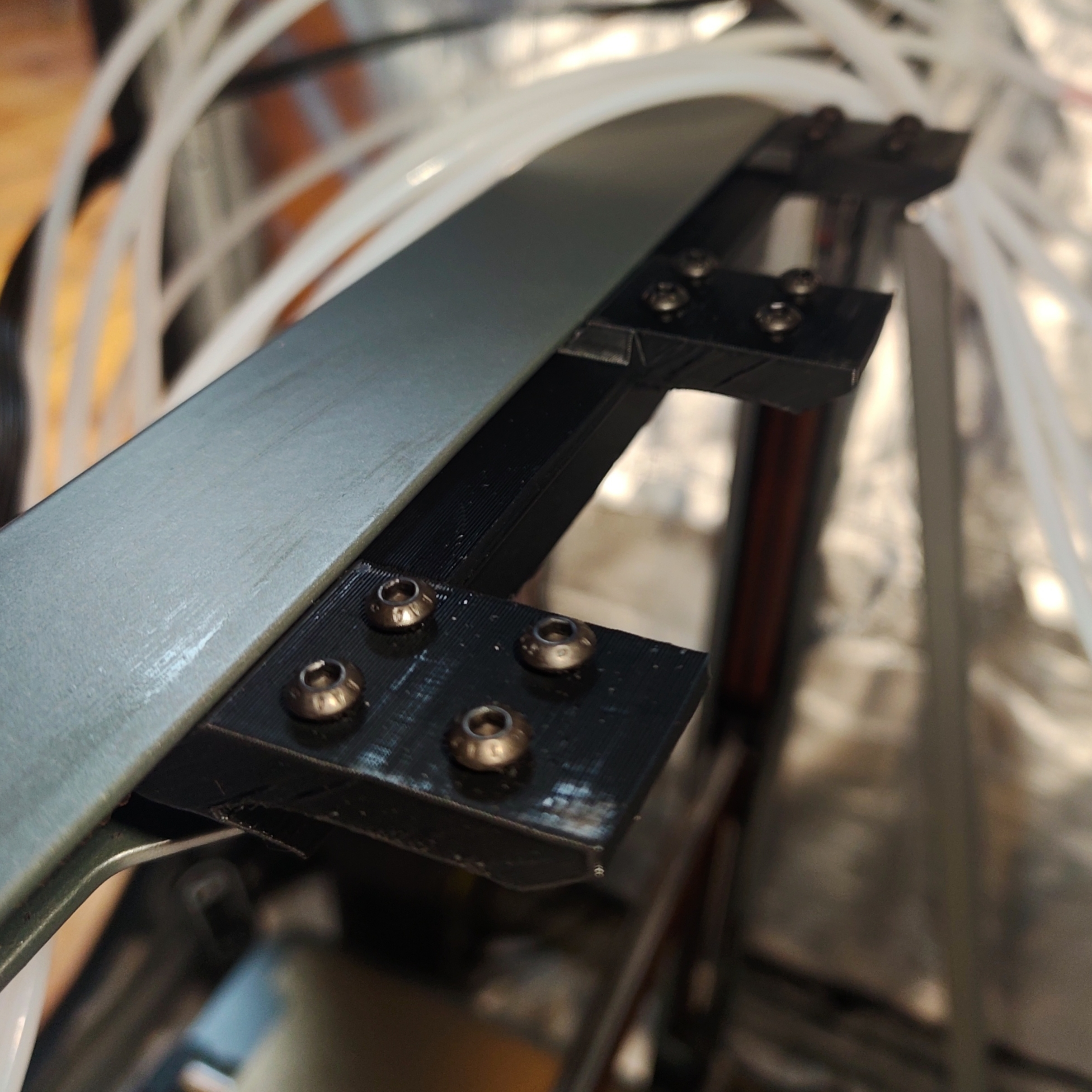

4)Connetct the "part 1" with the 2 x 10 mm M3 screws to the back od the upper frame of the printer
5) Put the LED bar back on.

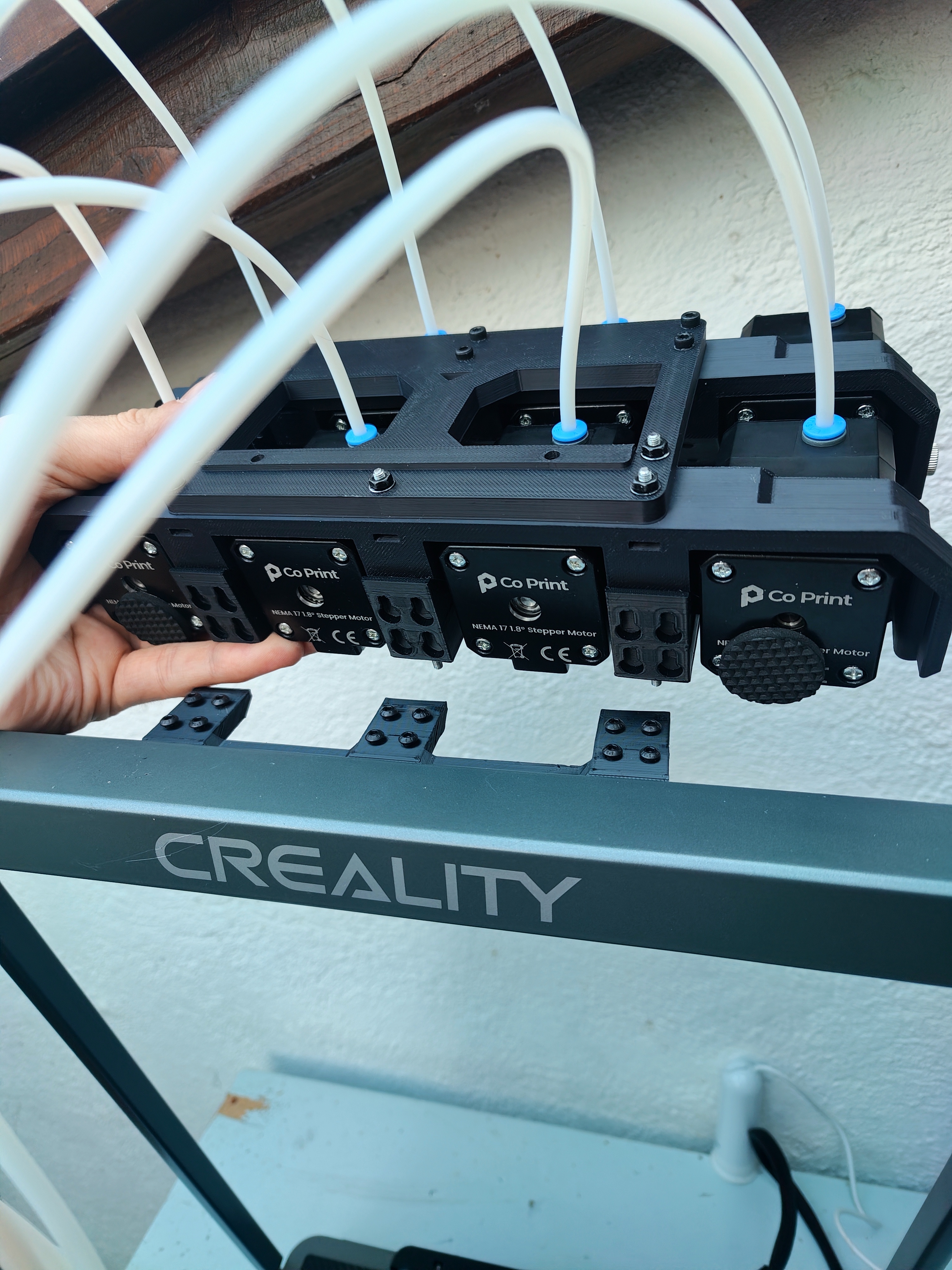

6) Connet the "part 1" and "part 2" with the quick swap mechanism and ensure that is thight. Try different screw thighteness if you want.

Plastic material and instruction:
- i've printed these parts with eSun ASA+ with 2 mm layers height, 5 walls, 15% infill.
- You can print them even with ABS and PETG if you want. I don't recommend PLA because it's a bit fragile.

This Braket is compatible with this carriage since it move the extruders back enough (I designed this specifically for this stl too). This carriage give you back 300x300 mm printable area with the Chromahead installed.
