BME/BMP280 Housing
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Accessories
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

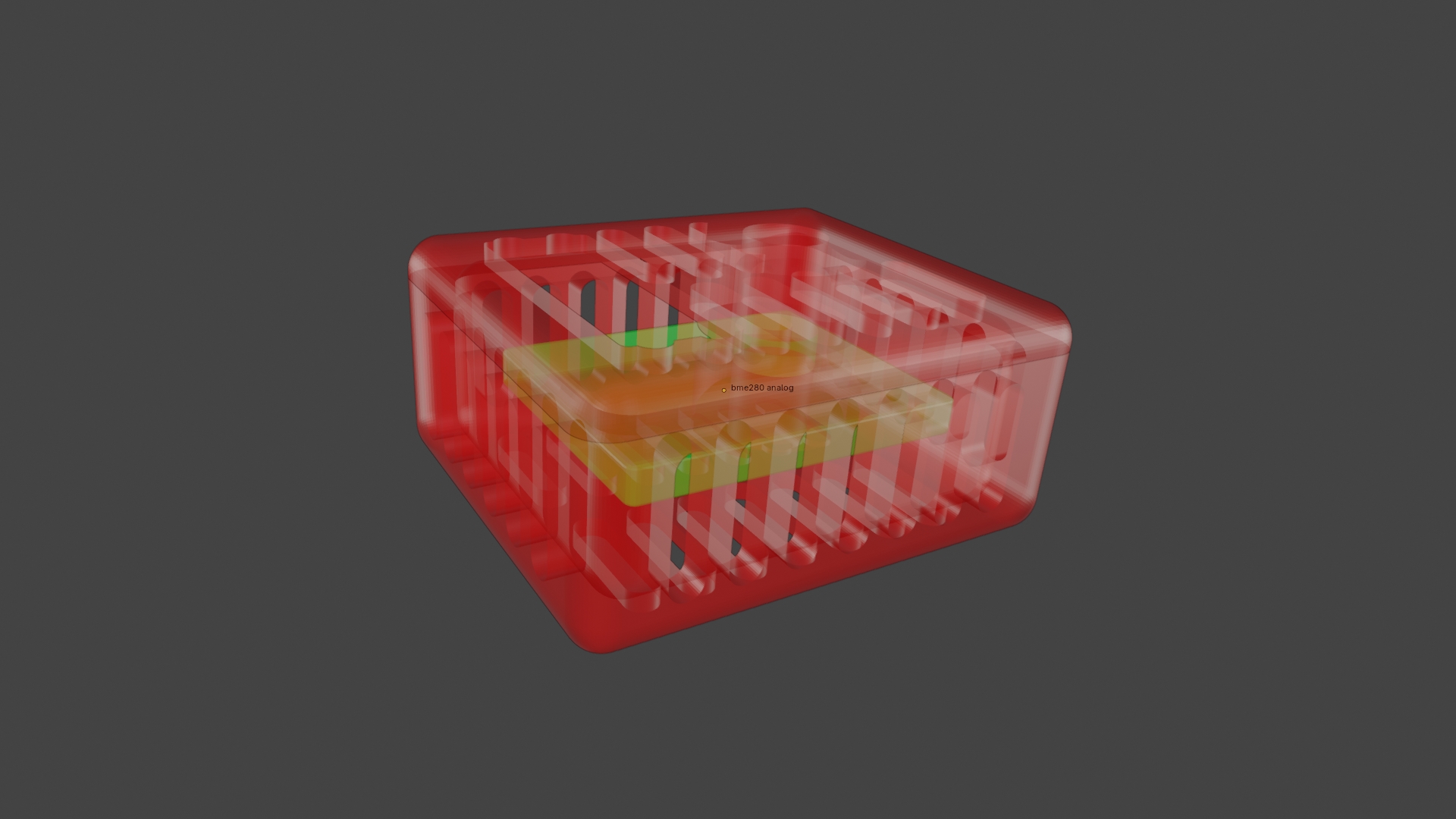

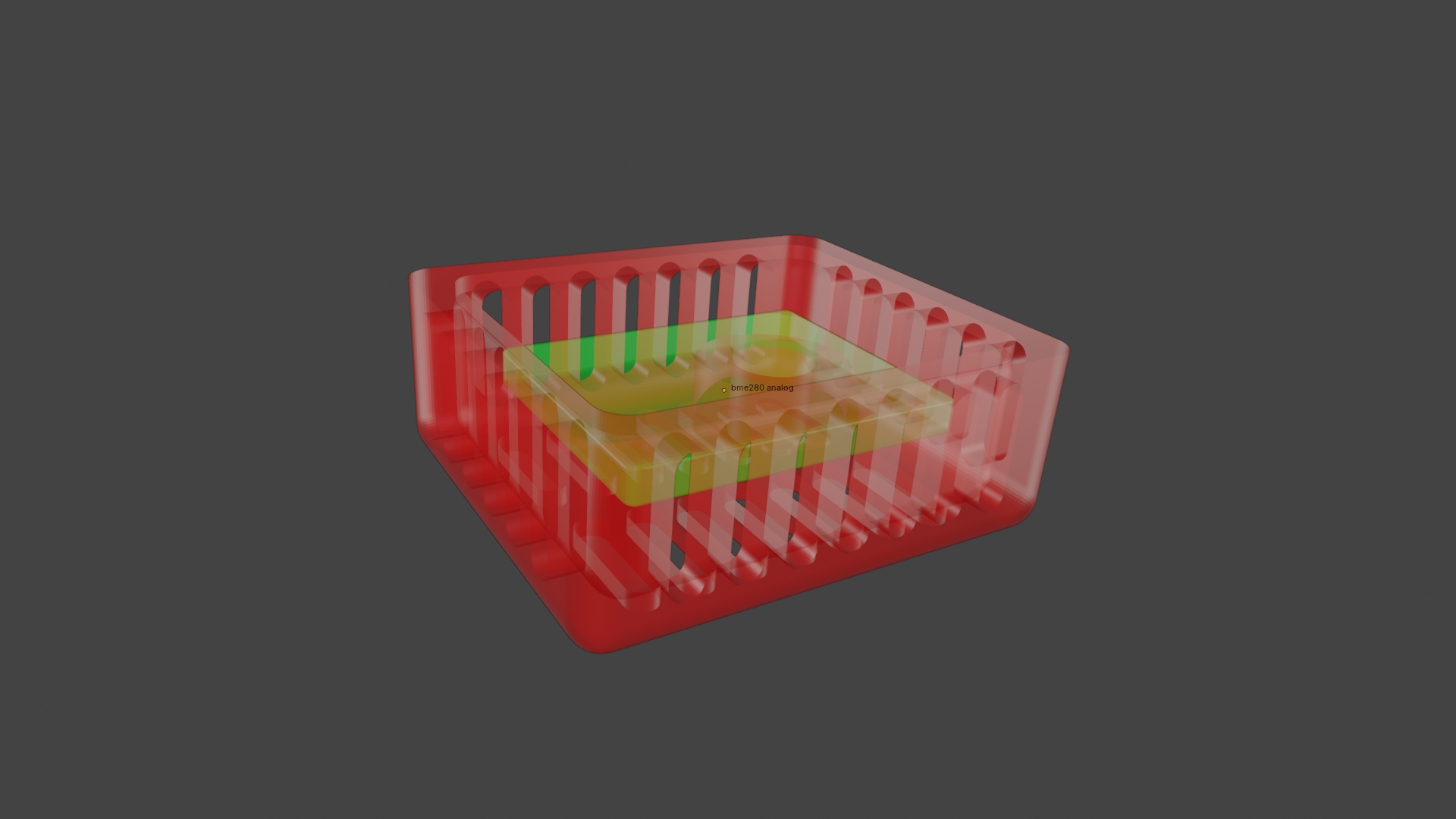

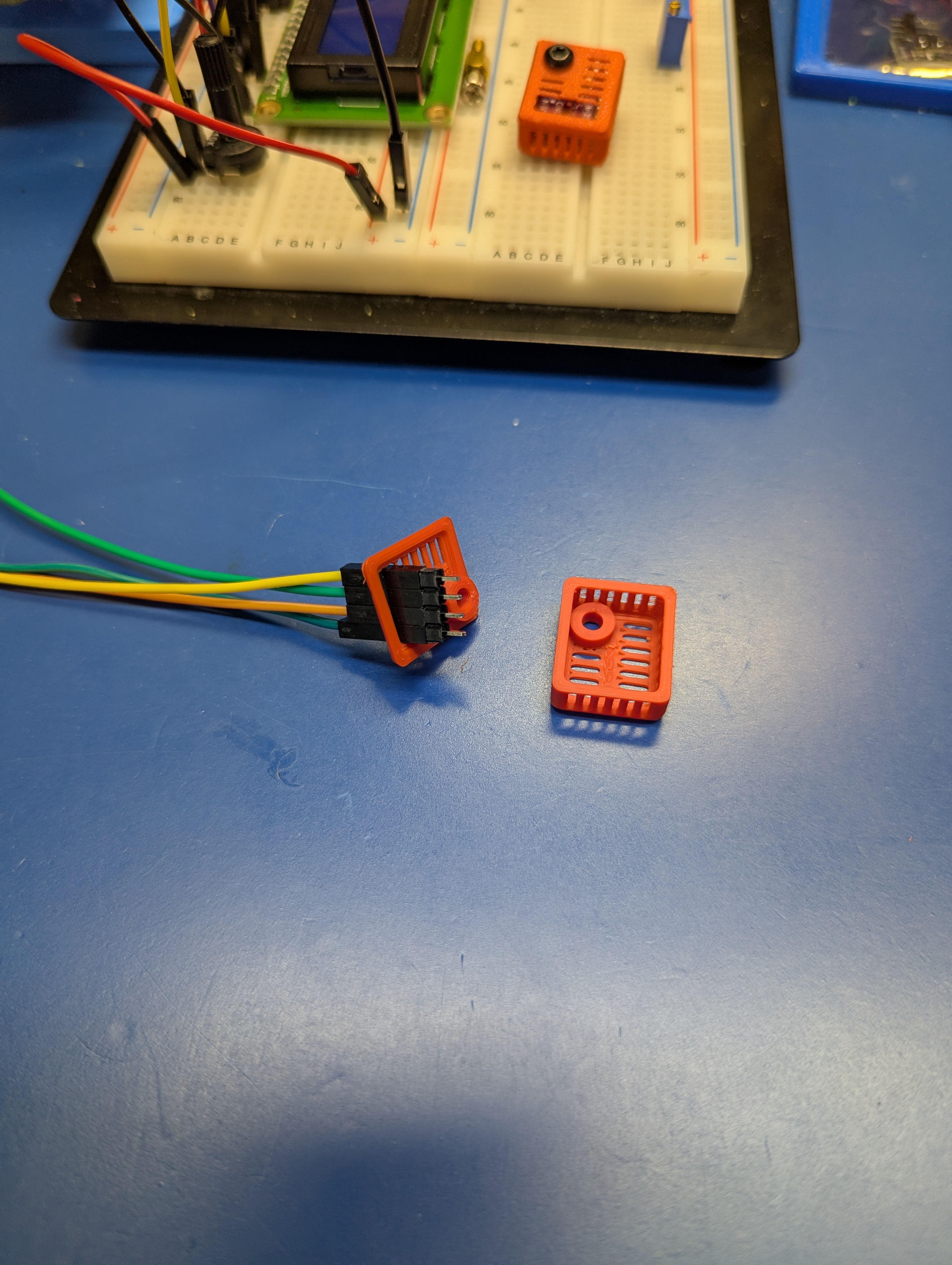

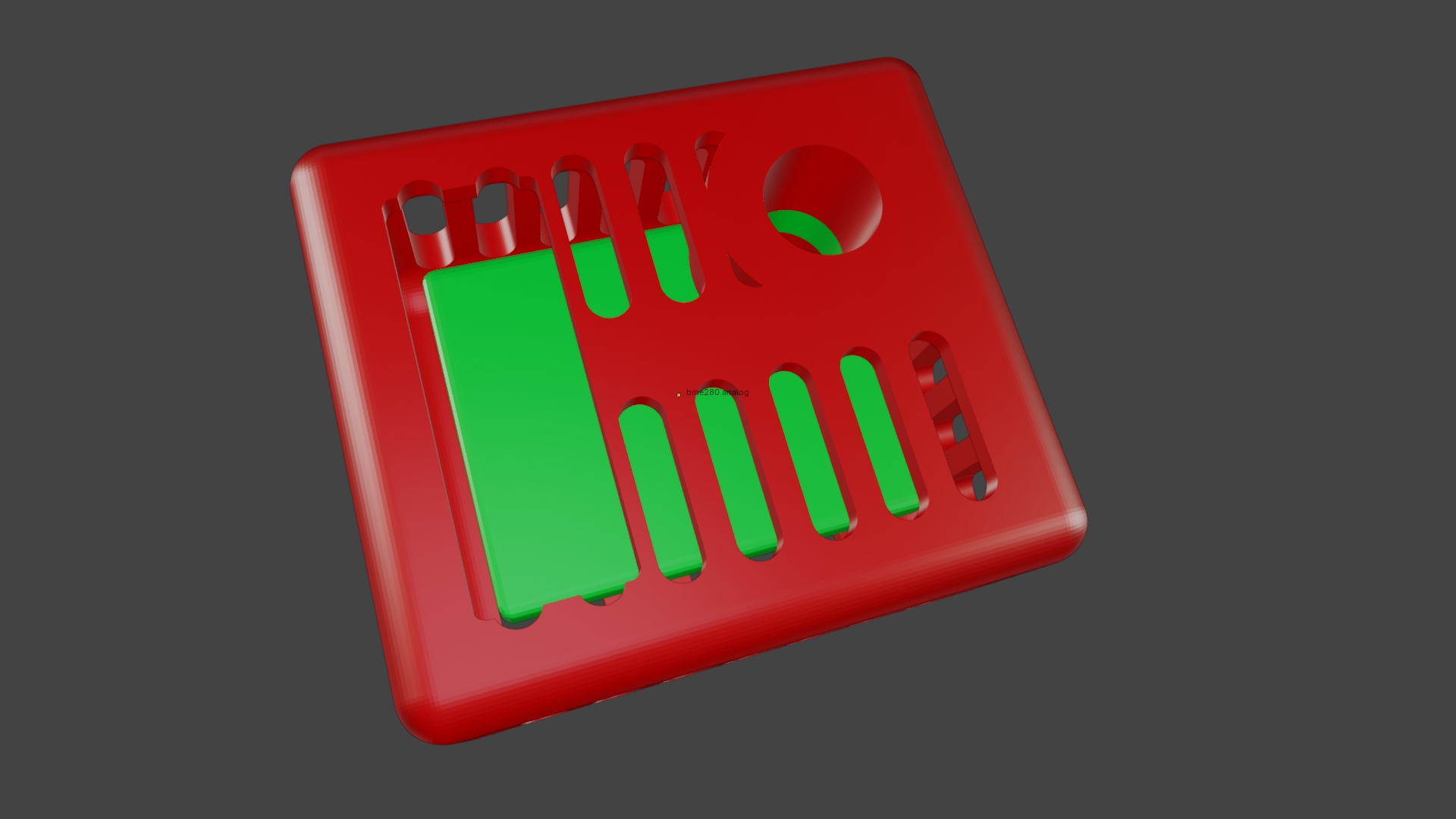

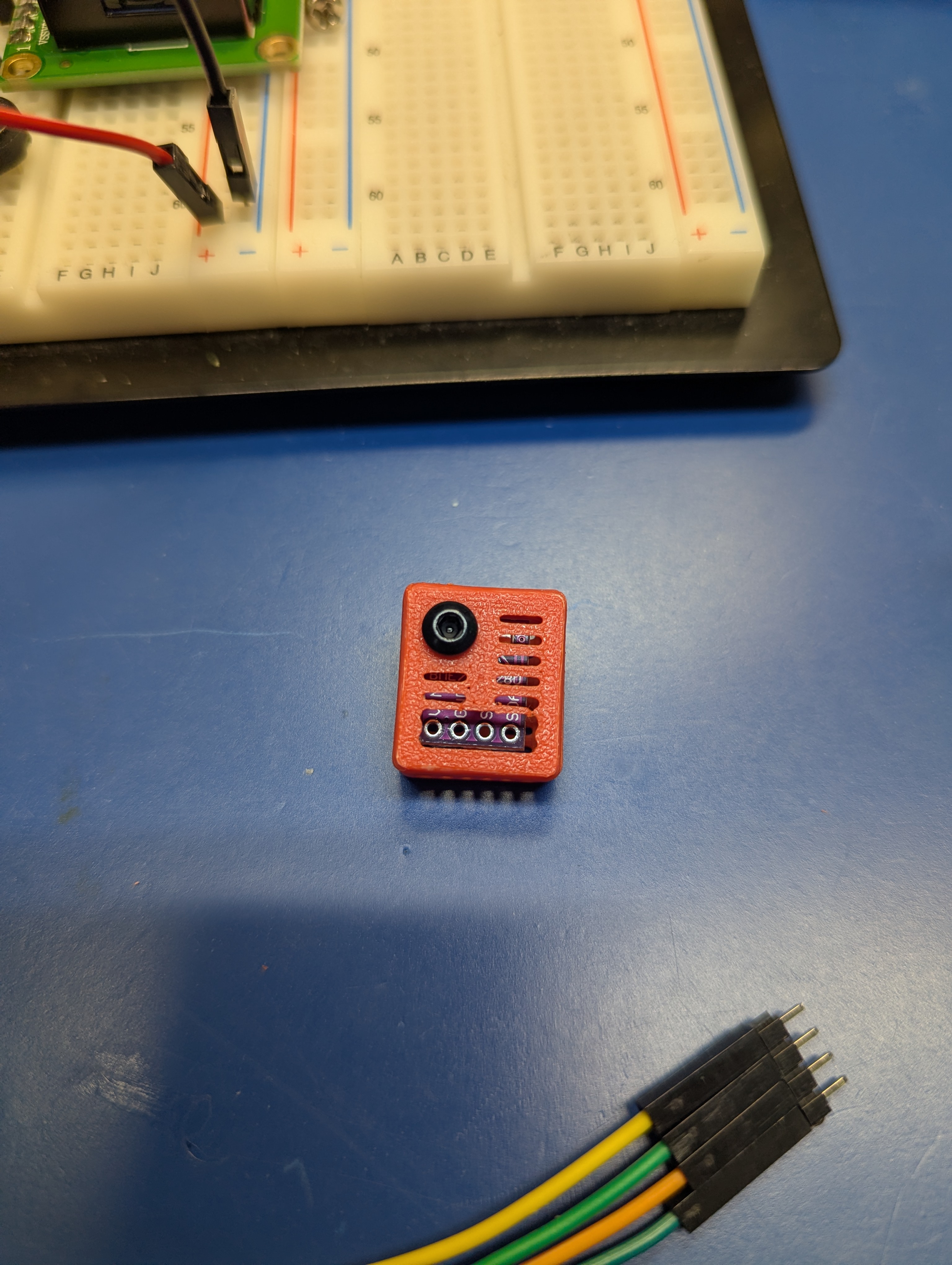

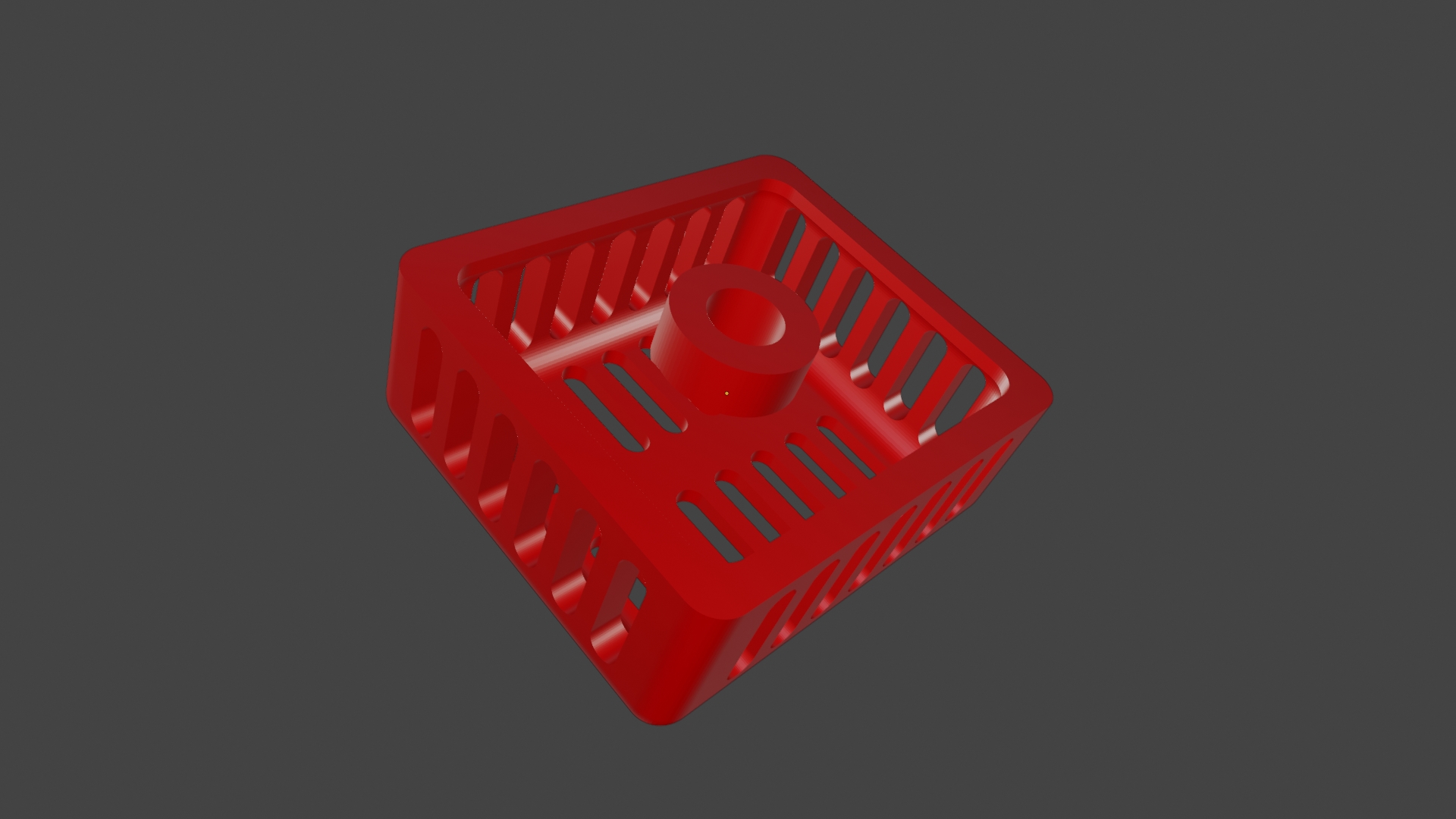

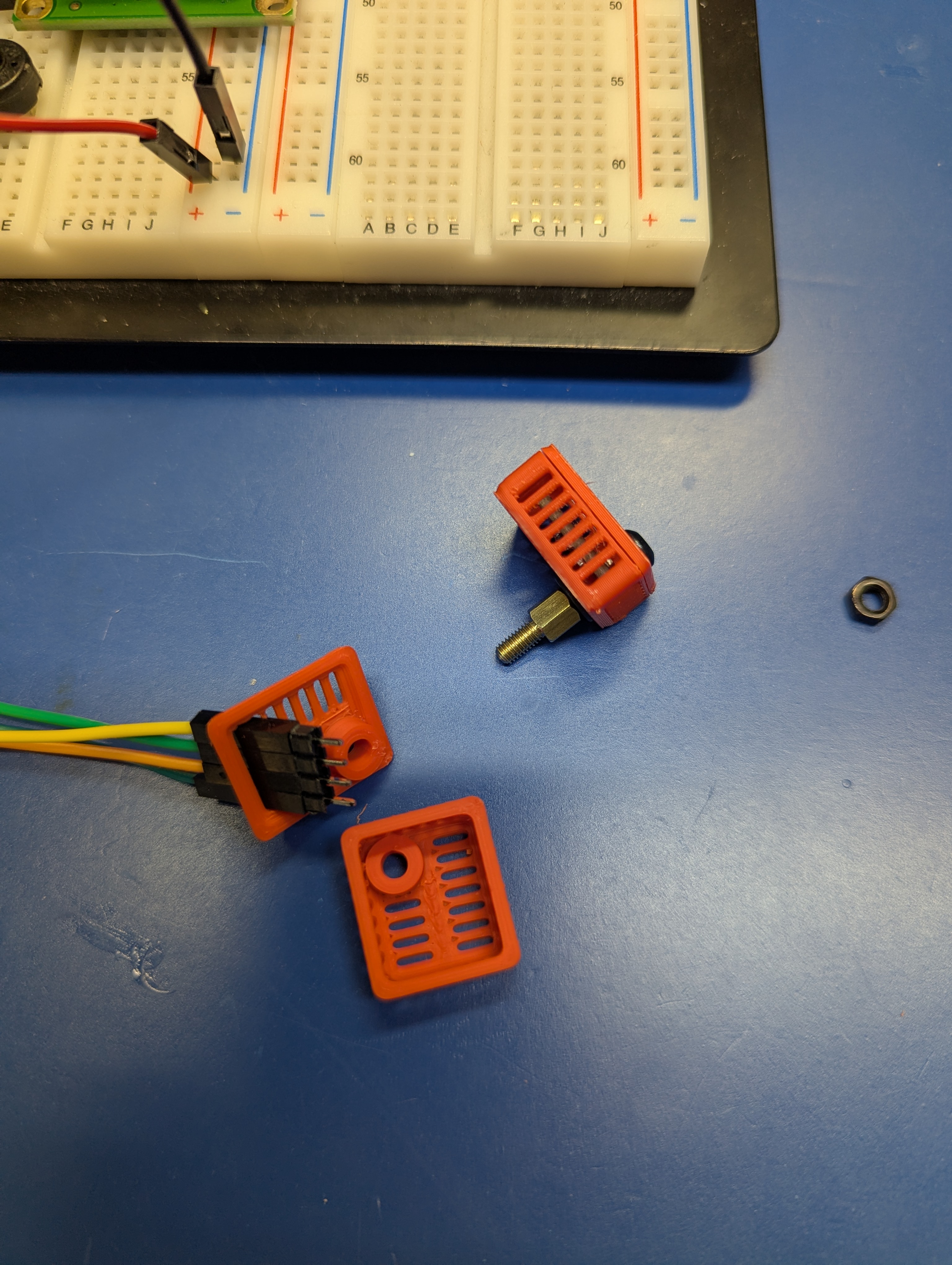

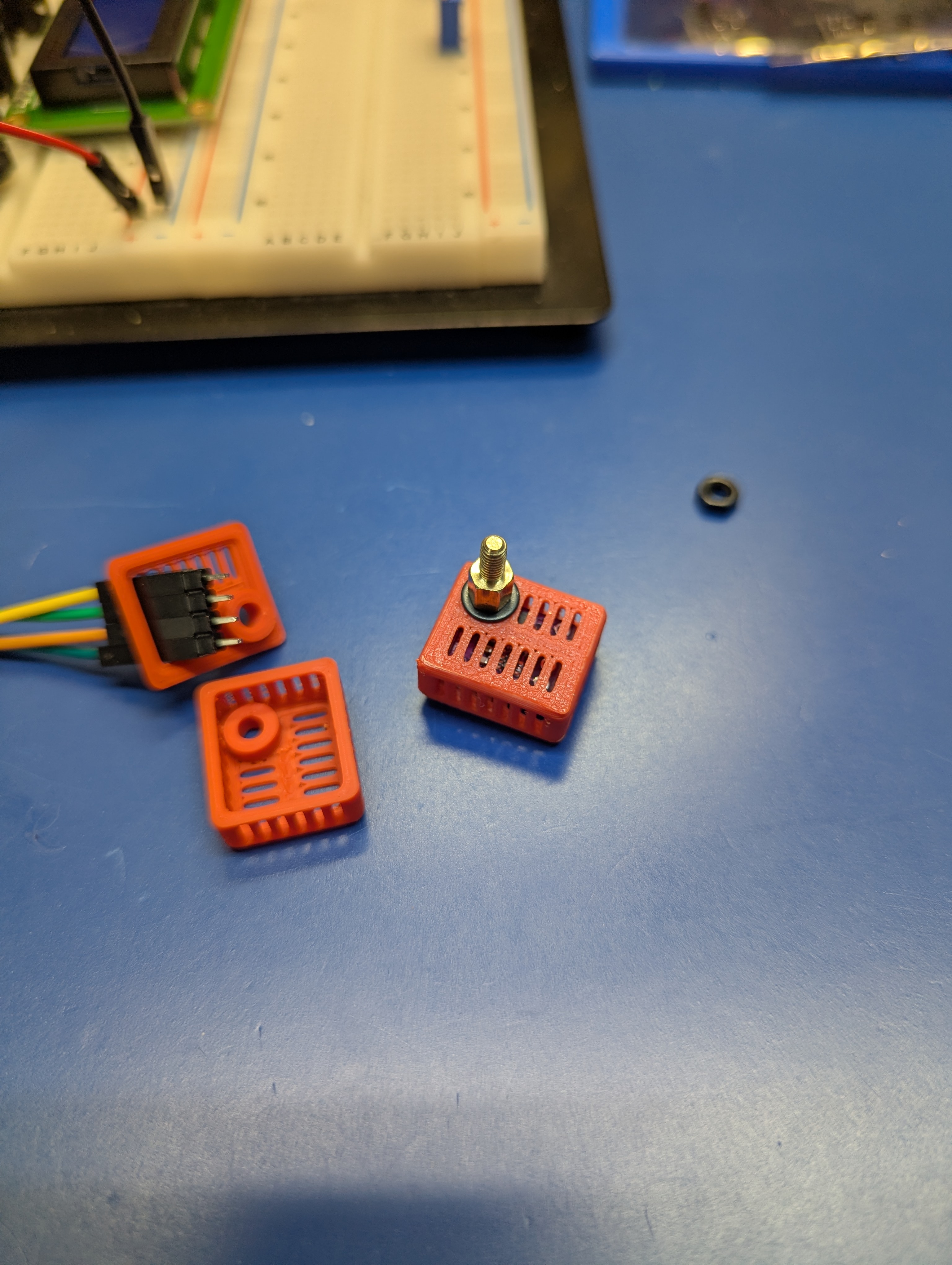

There are plenty of these available but my design holds the module tightly inside the housing. In addition, the single screw hole is through and through so it's possible to use the same M3 bolt to hold the housing together and secure it another board with a standoff.

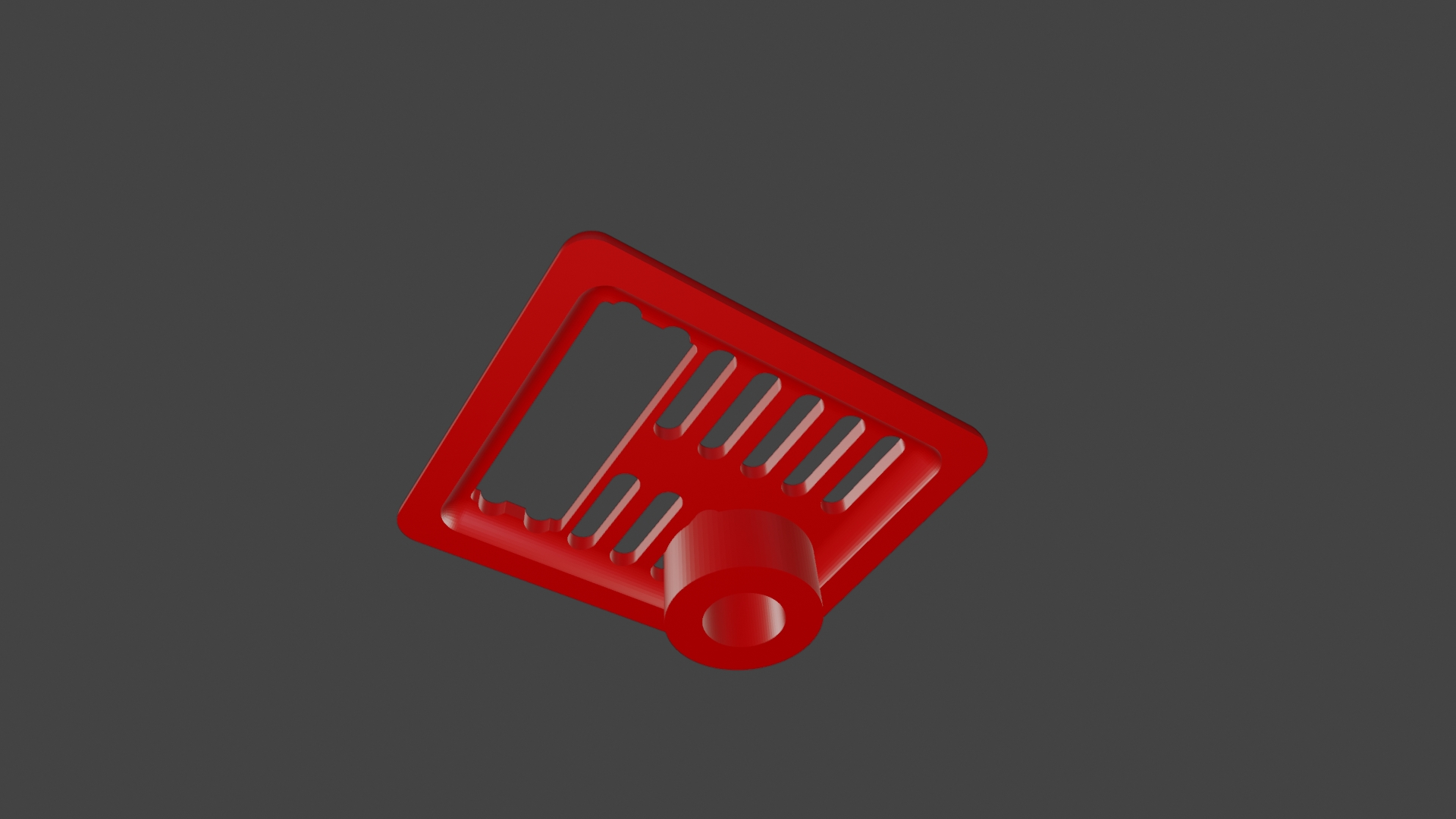

If you find your BME280 board is thicker than 1.5mm just sand down the plastic standoff inside the top piece.

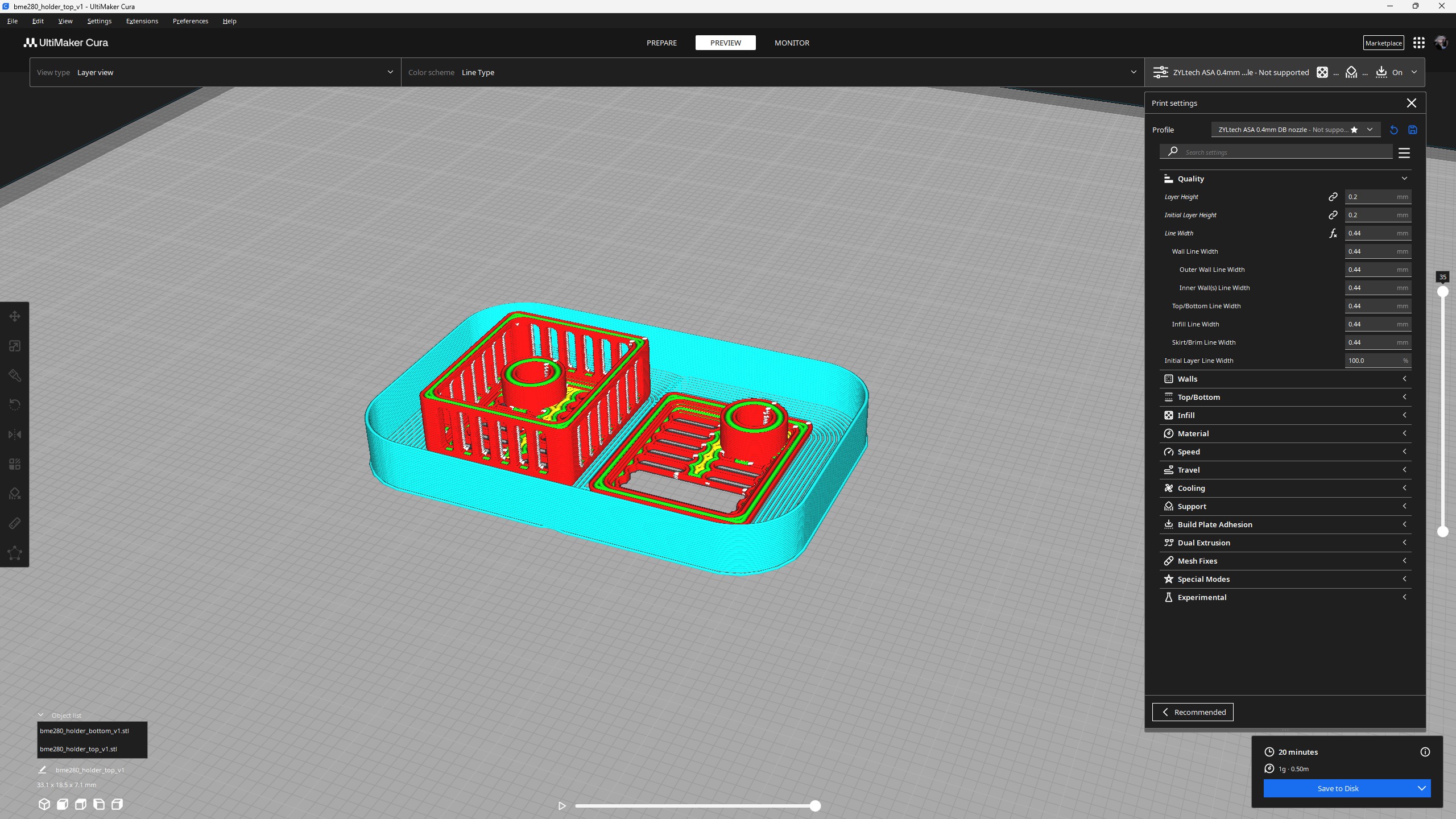

I printed this using ZYLtech Matte Red ASA on my Ender 3 S1 Pro with a 0.4mm Diamondback nozzle at 0.2mm layer height. I used ASA as this will be monitoring conditions in a DIY filament dryer that will reach 65C.
