THE GEN2 270 COLLECTION

The complete set of GEN2 270 cases · the Large collection in the GEN2 QuickLock Modular System. At about 256 mm inside, the 270 swallows long tools, cordless kits, and big spools. This model includes all 18 cases: 1W to 4W widths × 0.5H to 3H heights.

Every GEN2 case is a building block: pair it with a drawer for modular storage, add hinges to make a cabinet, or leave it open as cubby shelving.

UNDERSTANDING SIZES

GEN2 parts are labeled Length-Width-Height in GEN2 units (for example 270-2W-1H). Match drawers, doors, and accessories to those values and they fit:

• Length is the collection, or case depth: 59 / 115 / 165 / 185 / 240 / 270.

• Width is how many columns wide (1W to 4W).

• Height is how many rows tall (0.5H to 3H) · need taller? Case Extenders stack on top.

Start by choosing your drawer size, then pick the matching case. Some sizes are meant for cabinets or cubby shelving and don't have a matching drawer. The full lineup lives at jerrari3d.com.

MOUNTING: TABLE TOP, UNDER-TABLE OR WALL

Build your GEN2 270 setup three ways:

• Table Top · foot rails and covers turn a multi-case row into a freestanding unit.

• Under-Table · rails screw up under a desk or shelf.

• Wall · brackets hang the stack on a wall.

The free GEN2 Planner (below) lays out any mount and lists every part you need.

WORKS WITH GEN2 270 DRAWERS

Cases and drawers are a matched pair · pick your drawers, and this case set fits them:

CAD AND STEP FILES

Want to modify GEN2 parts or design your own? The editable CAD and STEP source files are a Jerrari Club exclusive:

PRINT SETTINGS

Recommended filament:

• PETG or PCTG · durable and flexible, the best choice for cases. ⭐ Budget pick: PETG Black (affiliate link).

• PLA · stiffer structure, works well if it won't be exposed to heat.

Supports: none · Perimeters: 2-3 · Nozzle: 0.4 mm · Layer height: 0.2 mm

LET THE FREE GEN2 PLANNER HANDLE THE DETAILS

Build your layout in the free GEN2 Planner · it figures out the cases and parts you need, creates a complete parts list with download links, and generates a custom step-by-step 3D assembly guide for your exact setup.

👉 gen2planner.jerrari3d.com · free to use, right in your browser

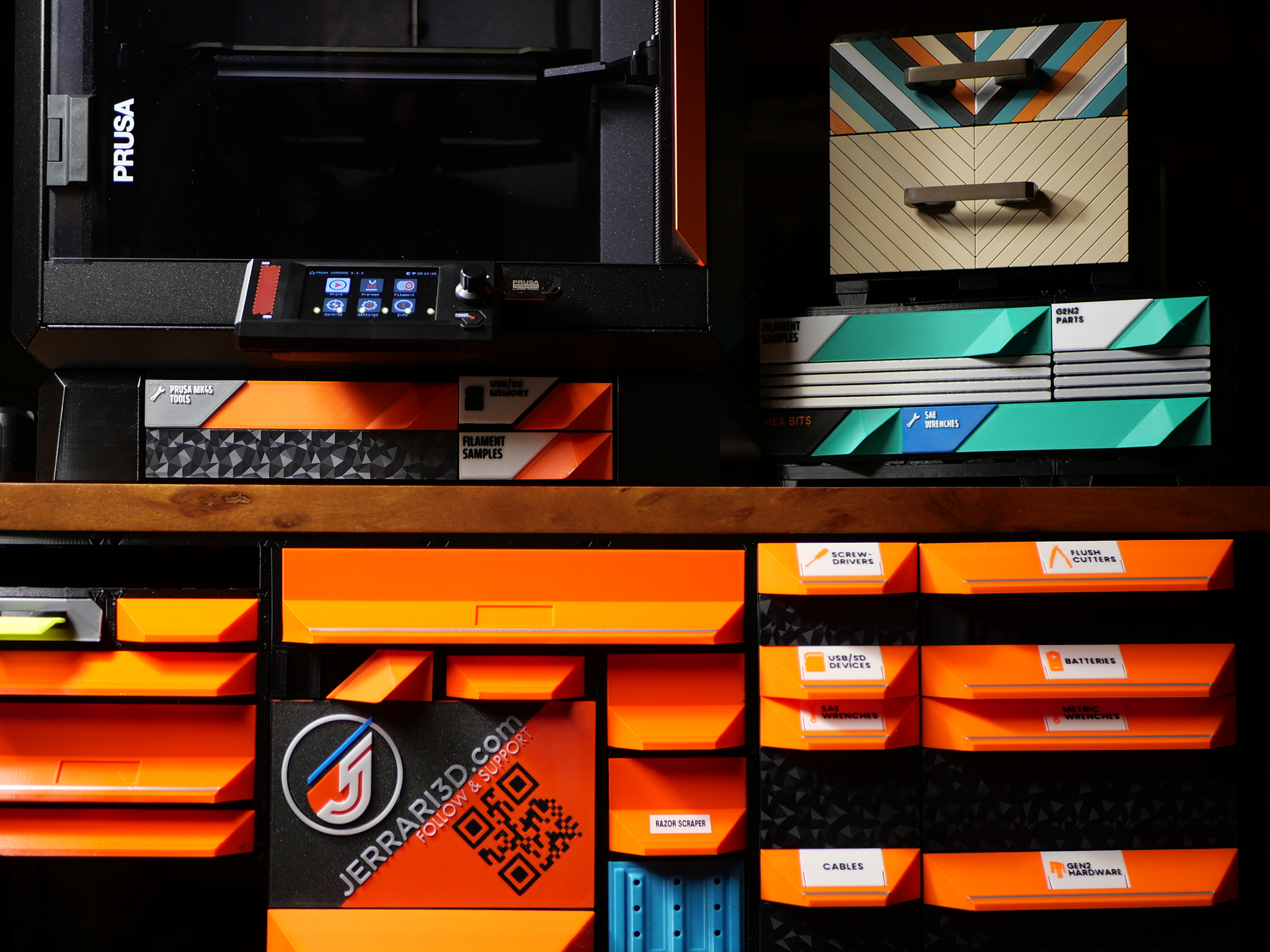

SEE THE SYSTEM IN ACTION

SUPPORT GEN2 AND UNLOCK MORE

Join the Jerrari Club for member-exclusive models and early access to upcoming GEN2 releases · every membership helps fund continued development, from new models to free tools like the GEN2 Planner.

Looking for a one-time upgrade instead? Explore the premium faceplate collections.
