Desktop Fan- Adjustable Tabletop Fan
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
A small fan for blowing away fumes, cooling hot glue, or other uses. Uses a 60x60x15 or 60x60x20 DC fan.
- Ocena
- 0 / 5
- Polubienia
- 18
- Pobrania
- 34
- Wydruki
- 0
- Wyświetlenia
- 190
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Ideas
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

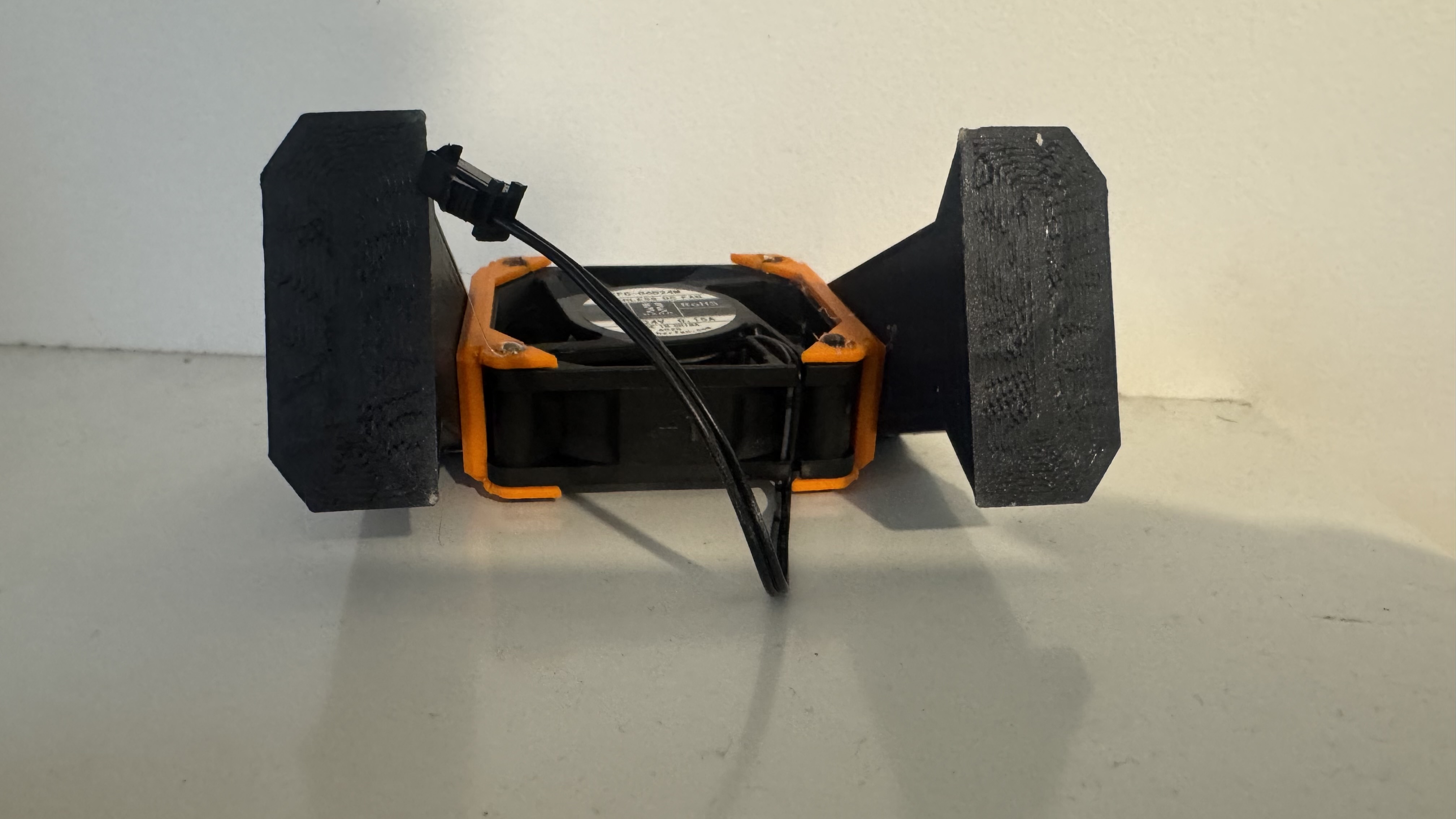

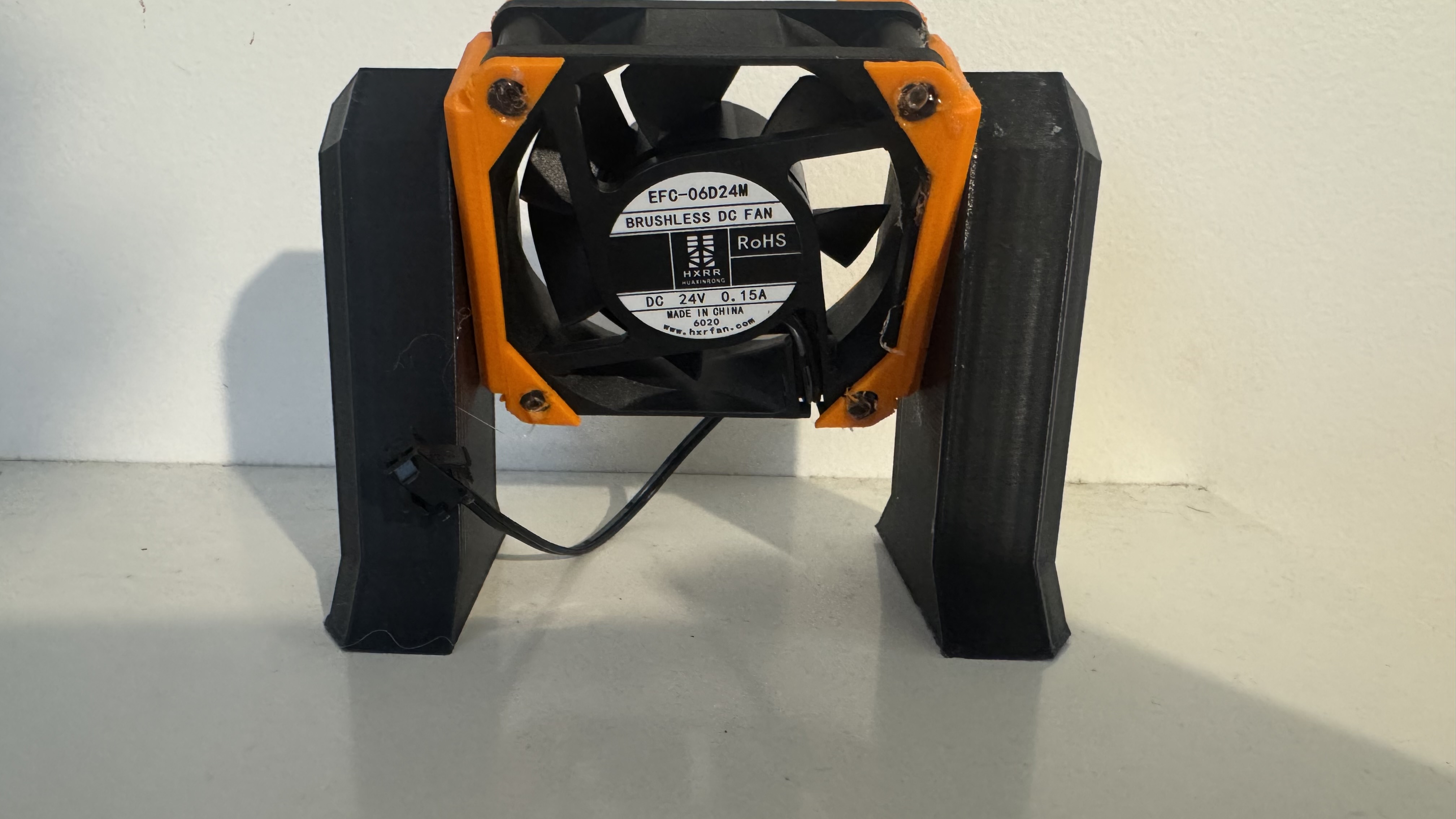

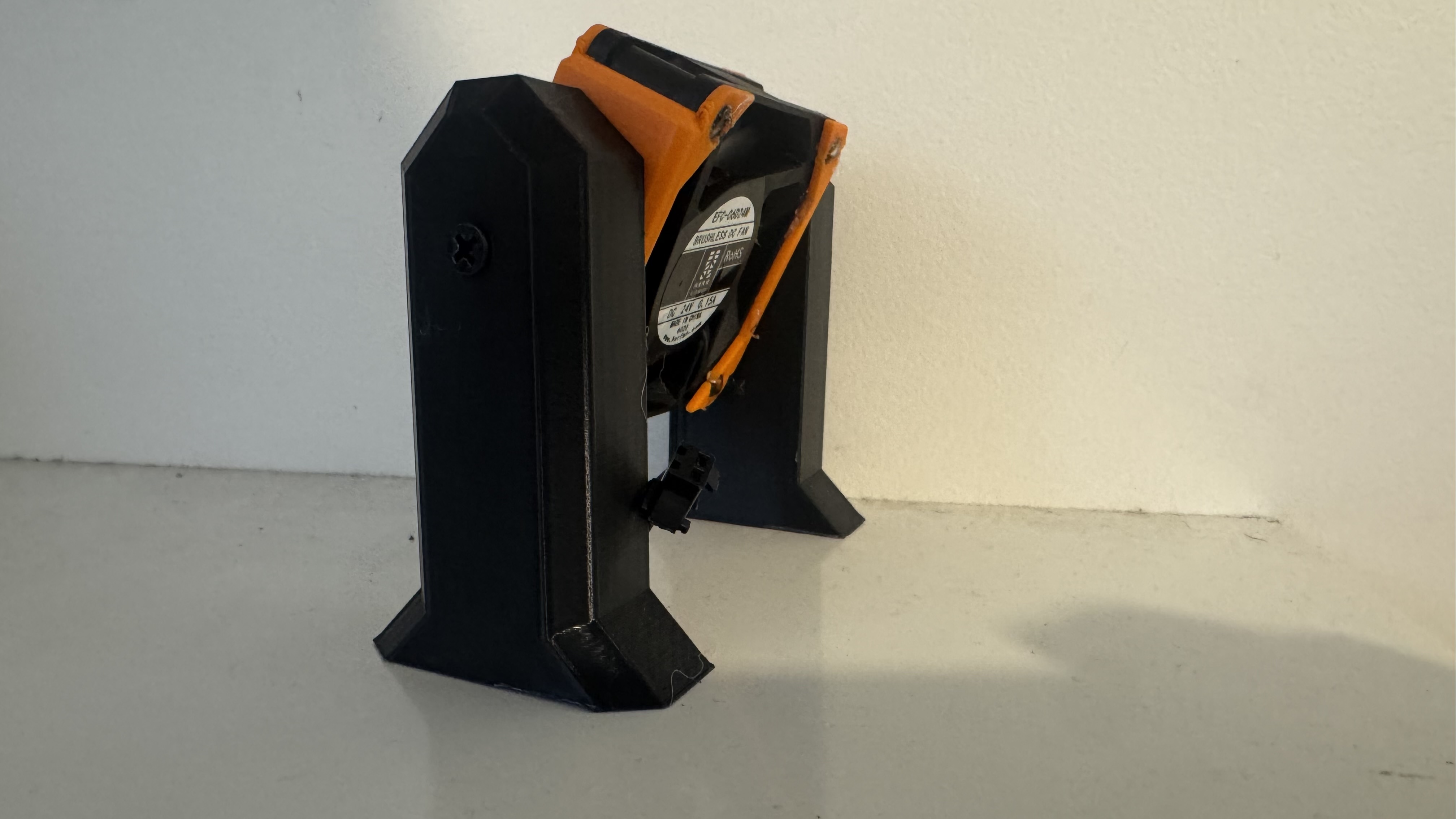

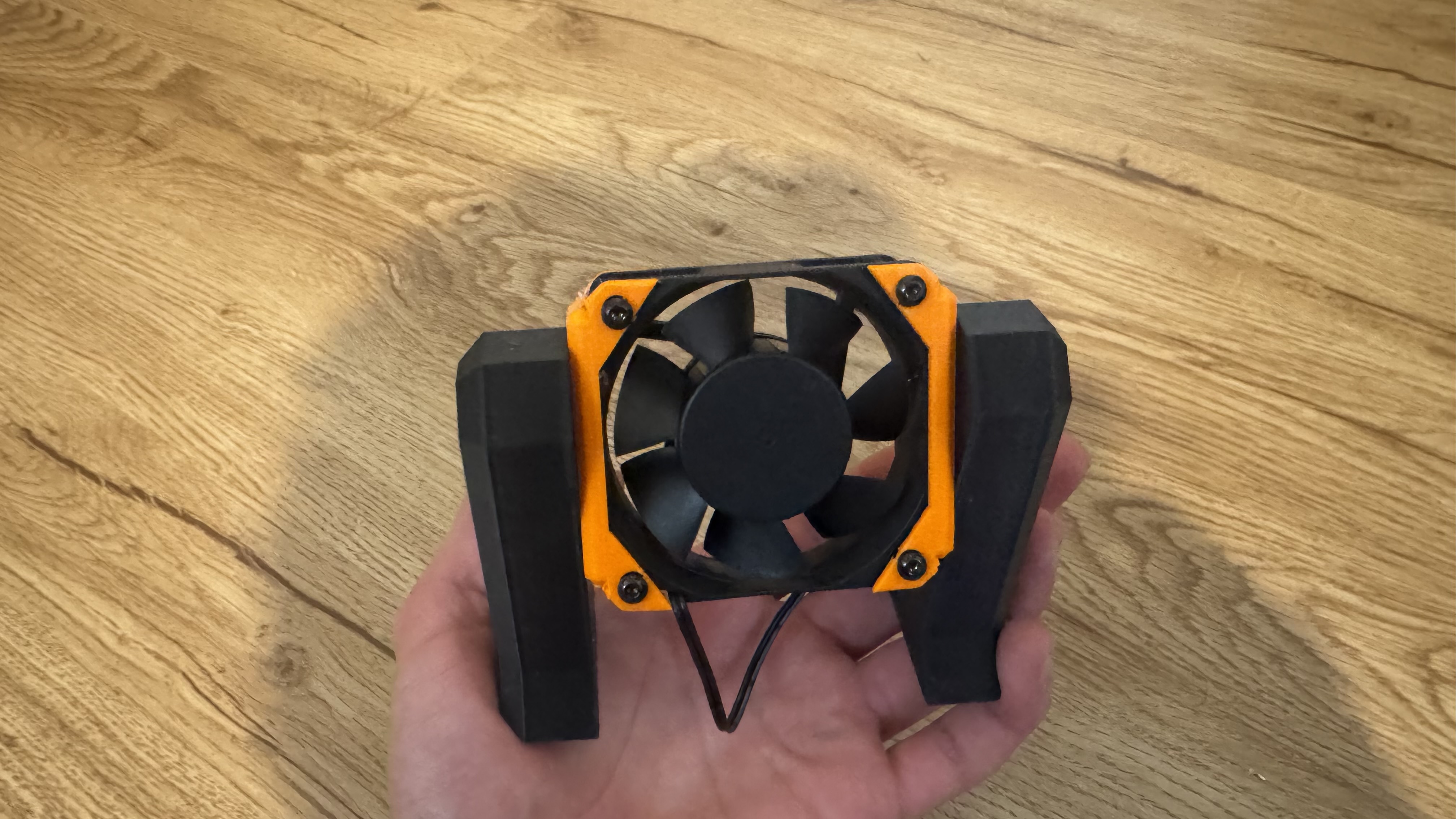

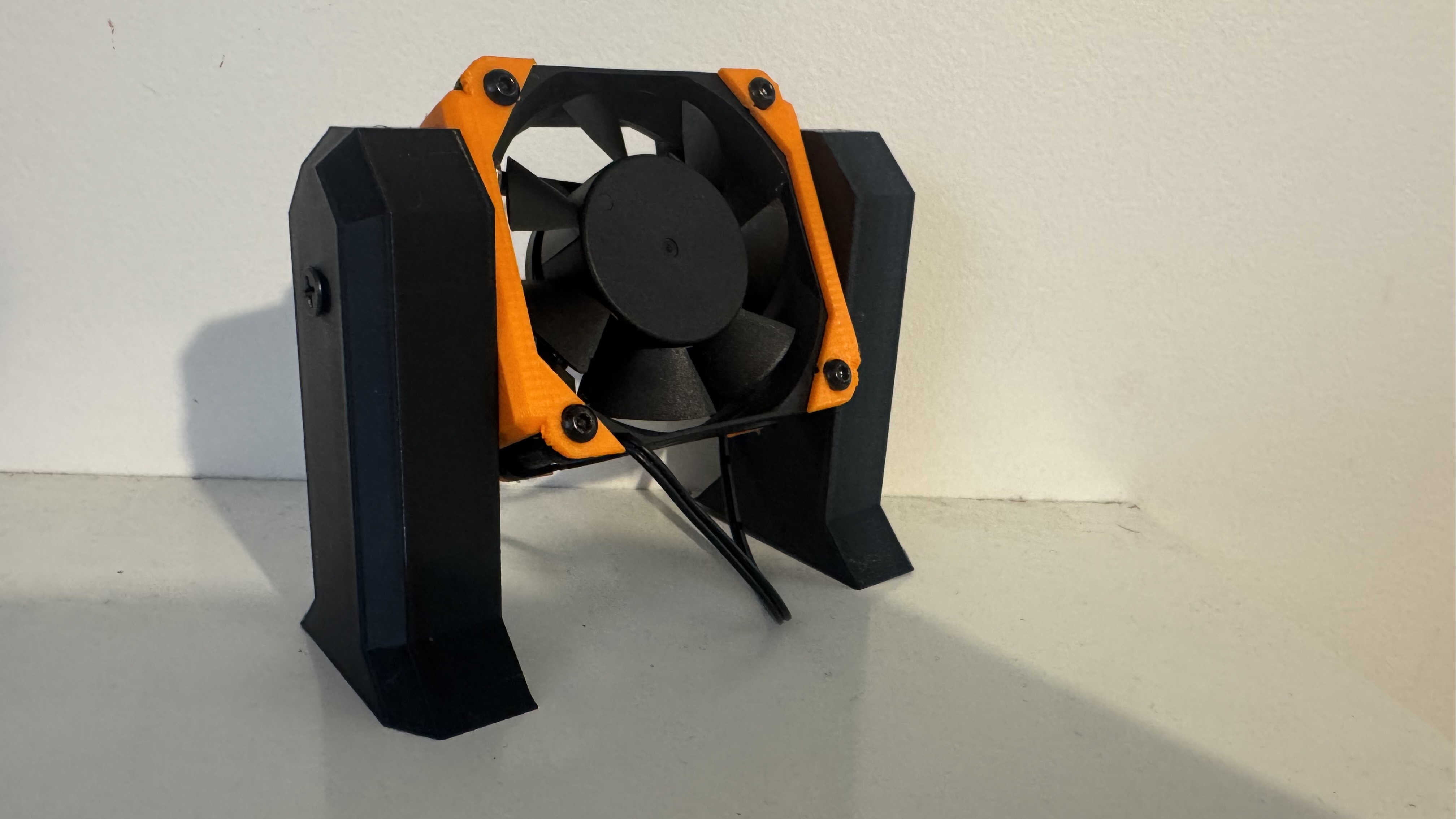

Simple fan made with a 60x60x15/60x60x20 fan, screws, and a few printed parts. It can be used for blowing away fumes, cooling hot glue, or other uses.
BOM:
1x 60x60x15mm or 60x60x20 DC fan (common on 3d printers, pcs)
6x M4x25 Screws
1x Power supply (use appropriate voltage/current for your fan.
Optional: 1x Power switch

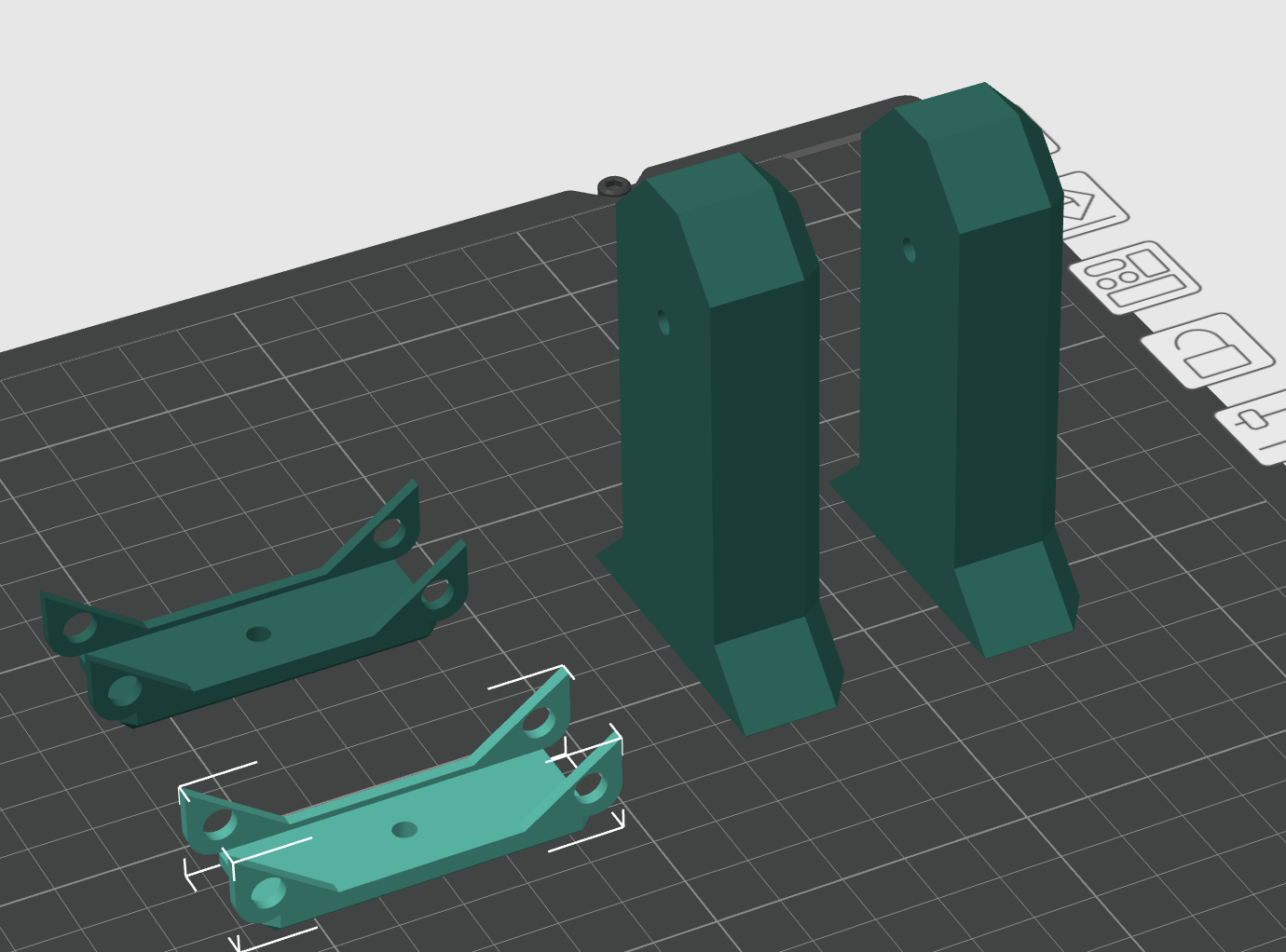

Assembly:
Attach the two brackets to both side of the fan and affix them with 4 screws. Use glue or nuts as needed to sercue the screws. Also glue the sides of the fan to the brackets, as the screws may not be enough.
Stand the two towers upright and mount the fan/bracket assembly between them

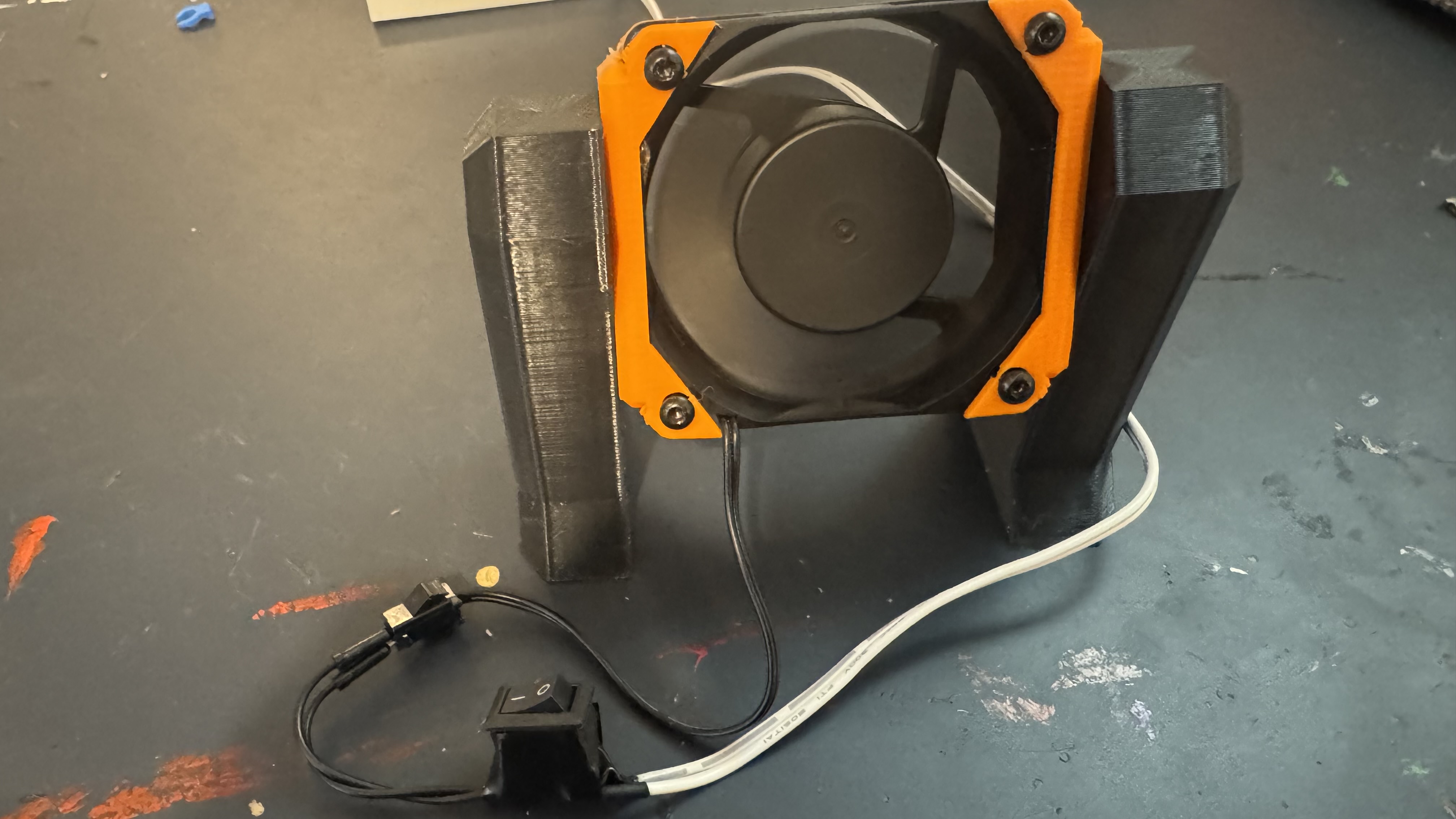

Wire the fan to the power supply/switch and turn it on
Enjoy your new fan!
Thank you to Kaloyan Georgiev on GrabCAD for the reference model: https://grabcad.com/library/sunon-maglev-fan-60x60x15-mm-1
