Parametric Whoop Buzzer Mount [OpenSCAD]
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- GNU General Public License v3.0
Parametric buzzer mount for a tiny whoop. Pictured is my HDZero M8.

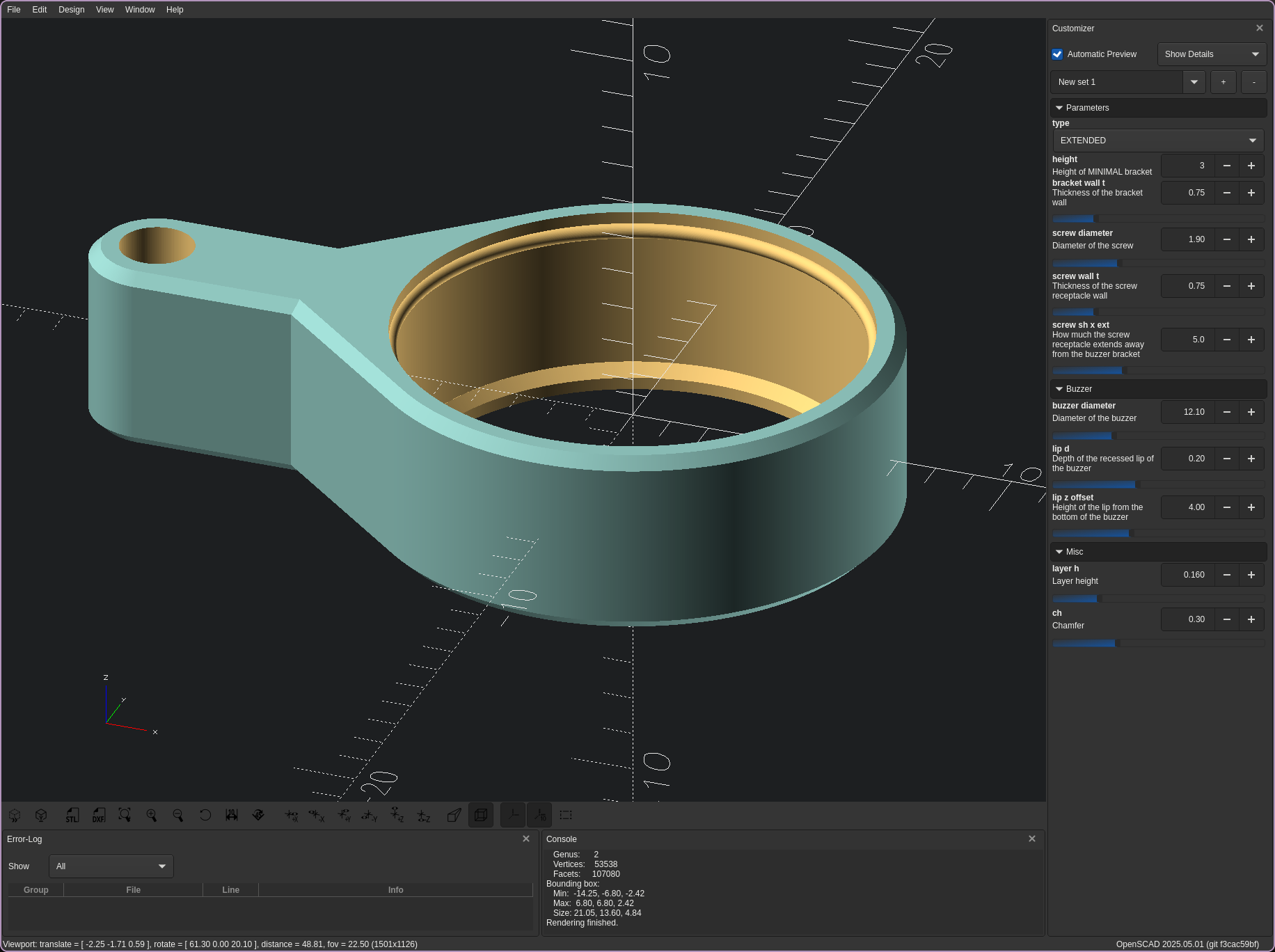

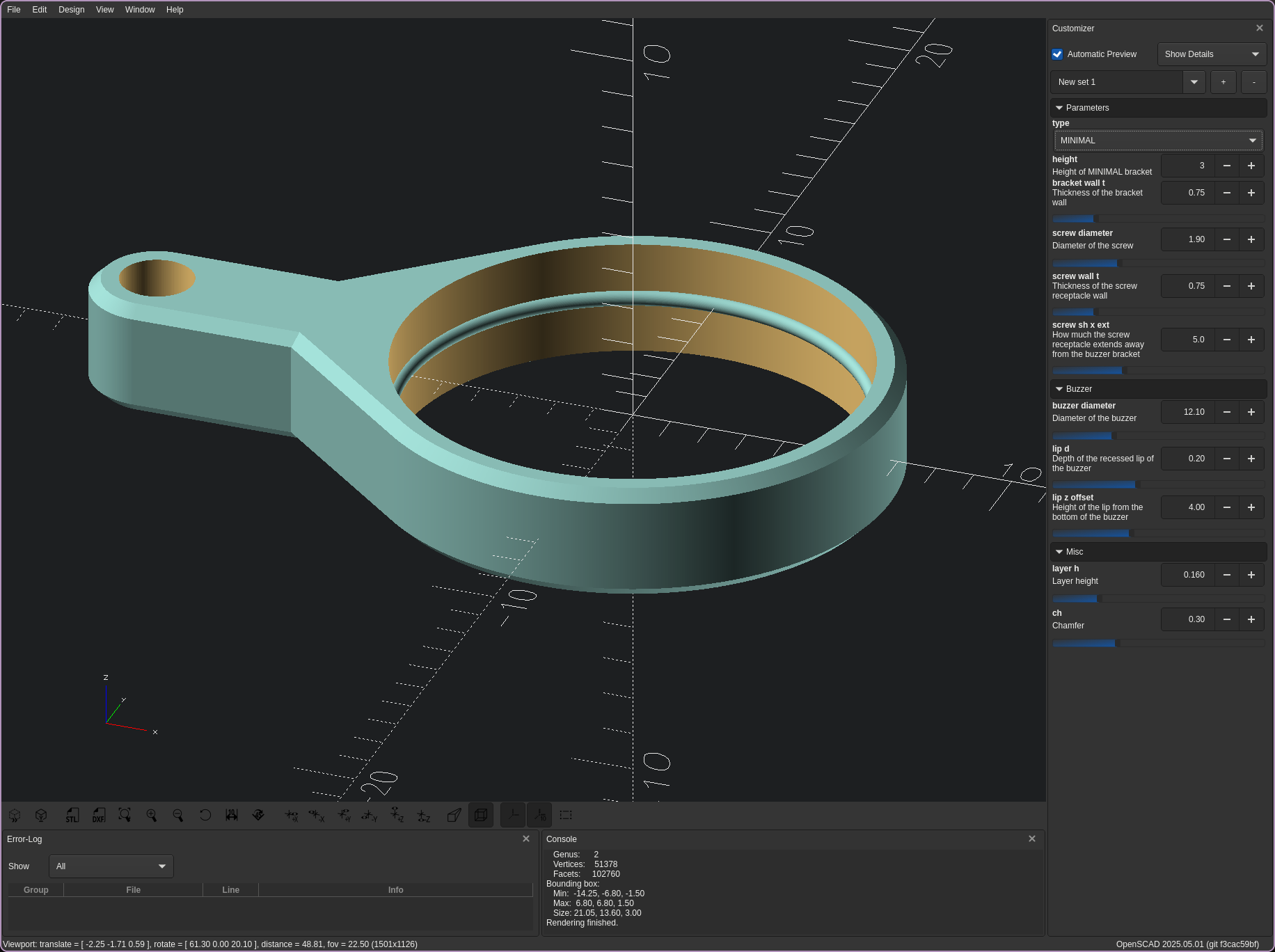

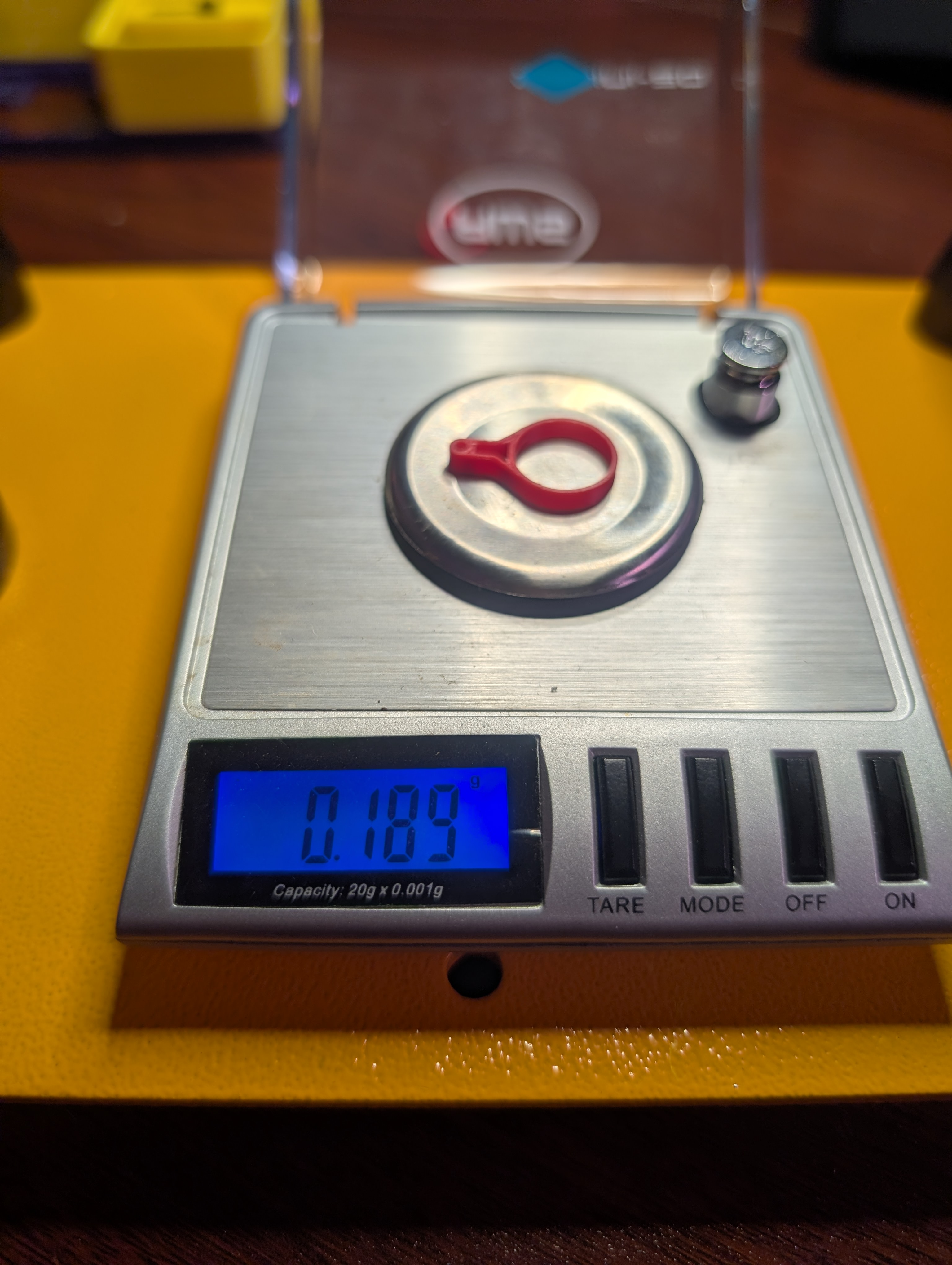

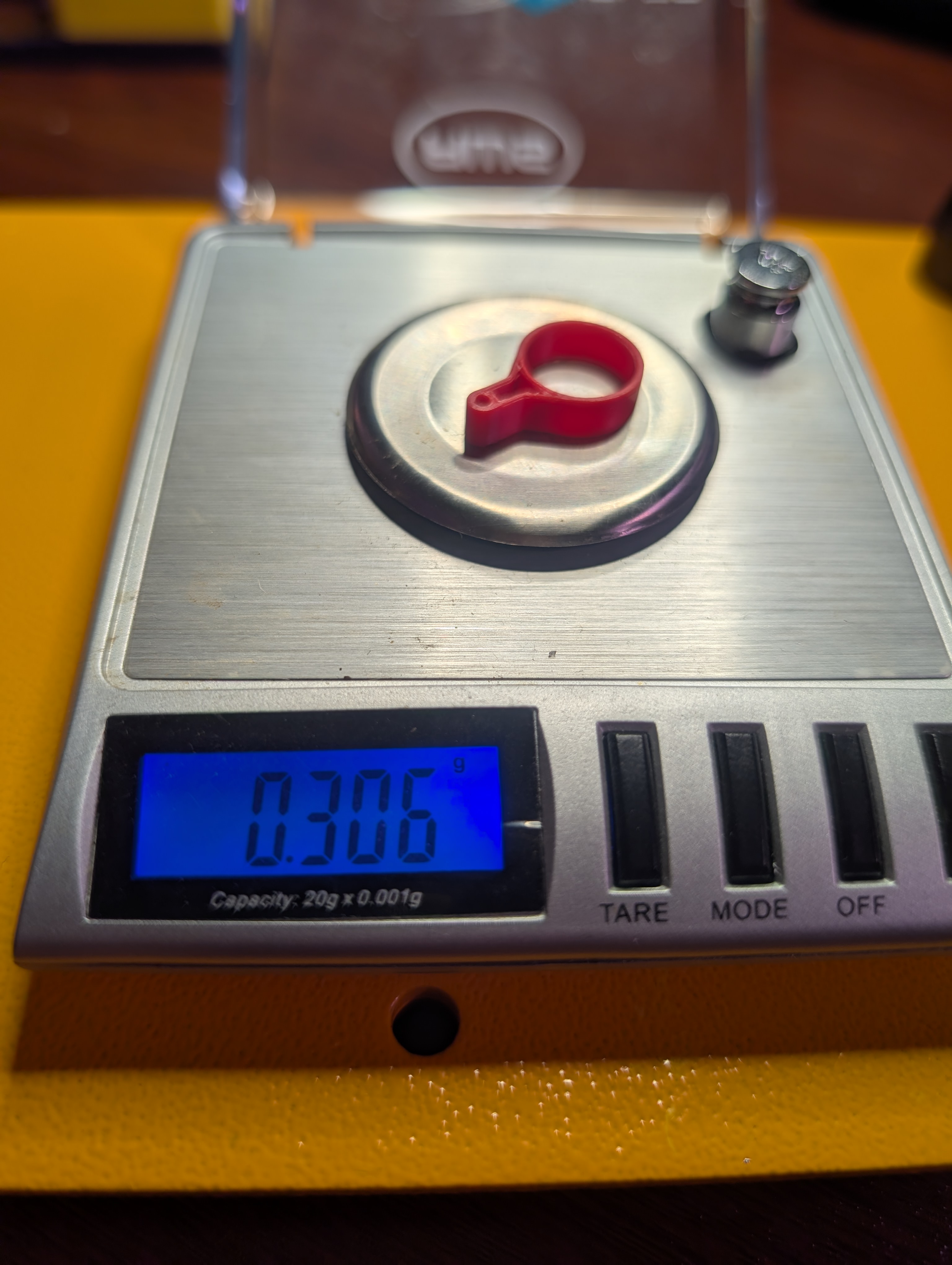

The groove of the buzzer is used to hold it in place. Many parameters are adjustable and two different bracket styles are provided. If you really wanted to, you can get it lighter than pictured, but durability will suffer.
Instructions
Local
Download the latest OpenSCAD Development Snapshot. OpenSCAD is free software.
Launch it and open the attached *.scad
If you do not see the "Customizer" pane click on Window -> Hide Customizer
Enter whatever parameters you want
Press F6 or Design -> Render
Press F7 or File -> Export -> Export as STL
Web (Alternative)
If for some reason you can't get it working locally you can use https://ochafik.com/openscad2/ to customize the model using your browser.
Printing Instructions
Use the provided print profiles.
Alternatively:
Layer height: 16
Top shell layers: 0
Bot shell layers: 0
Infill: 0%
