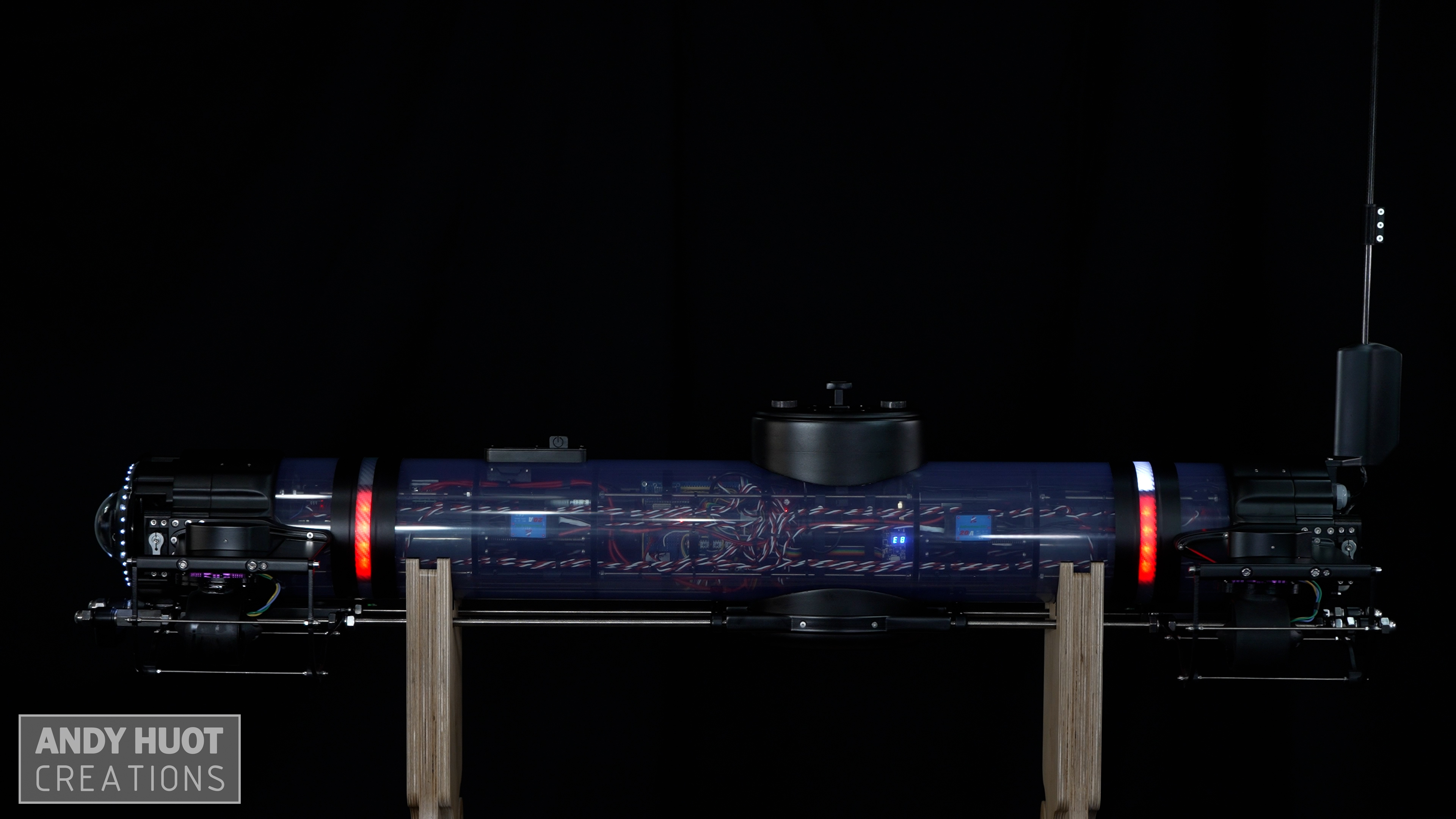

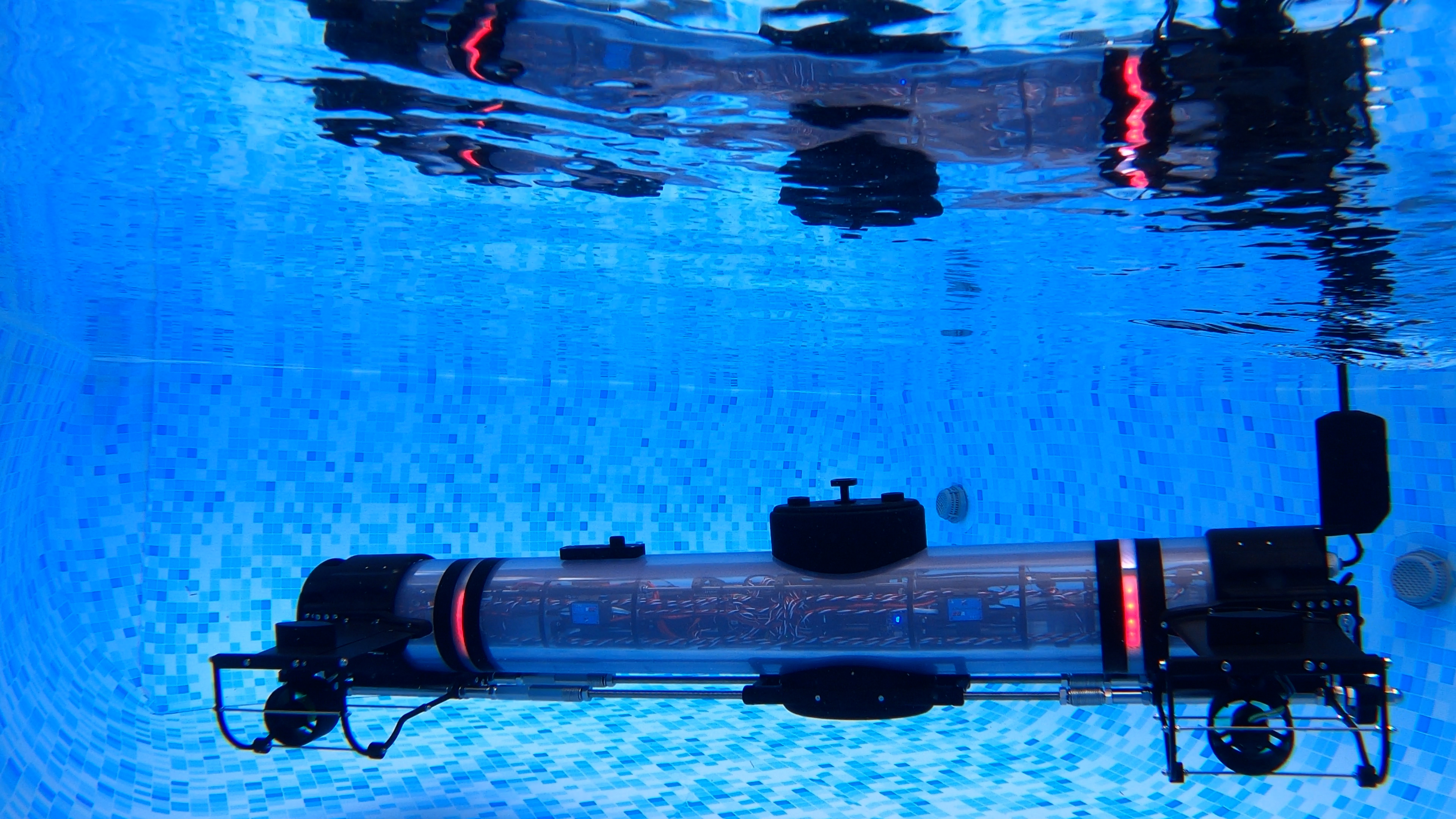

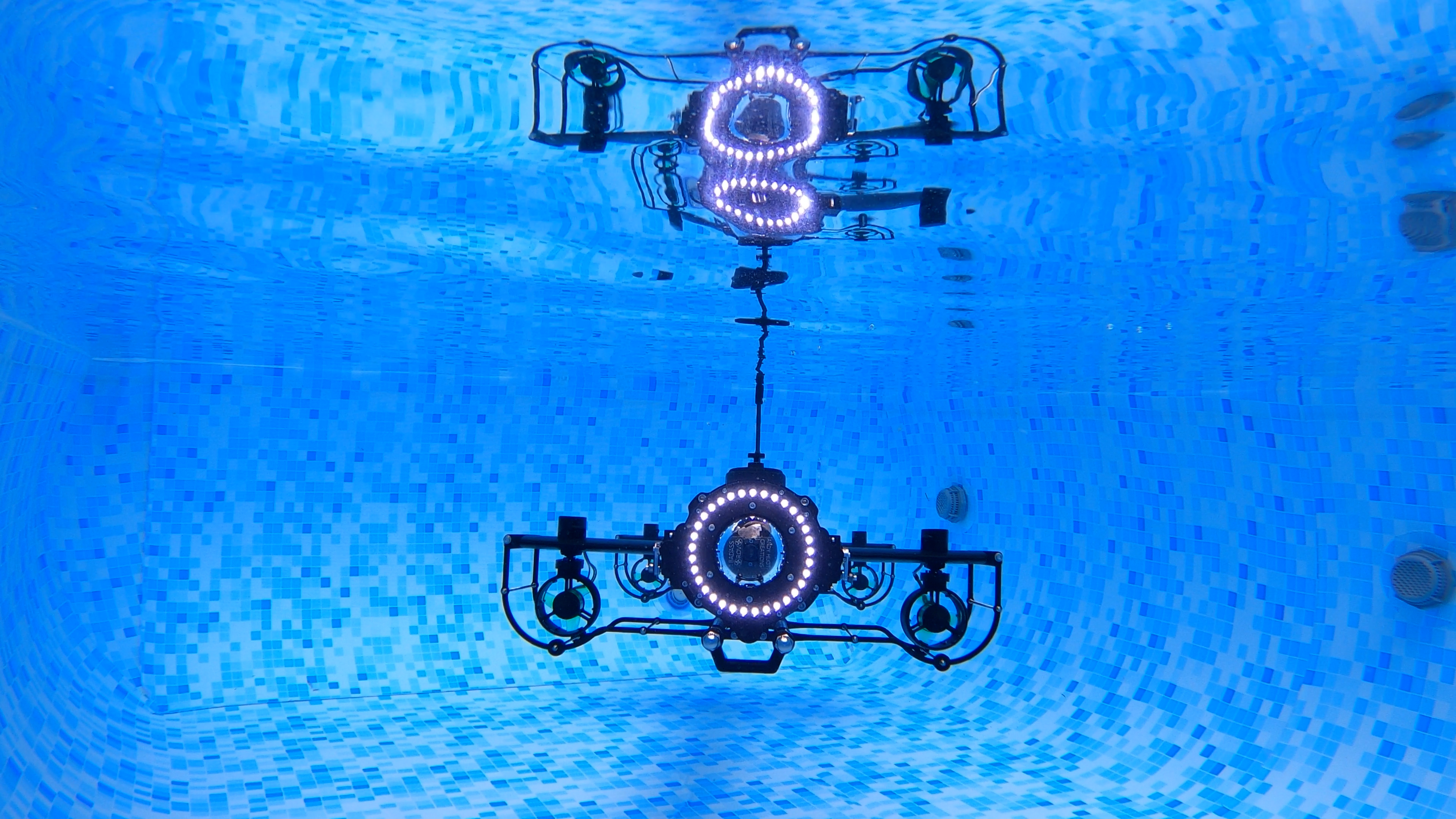

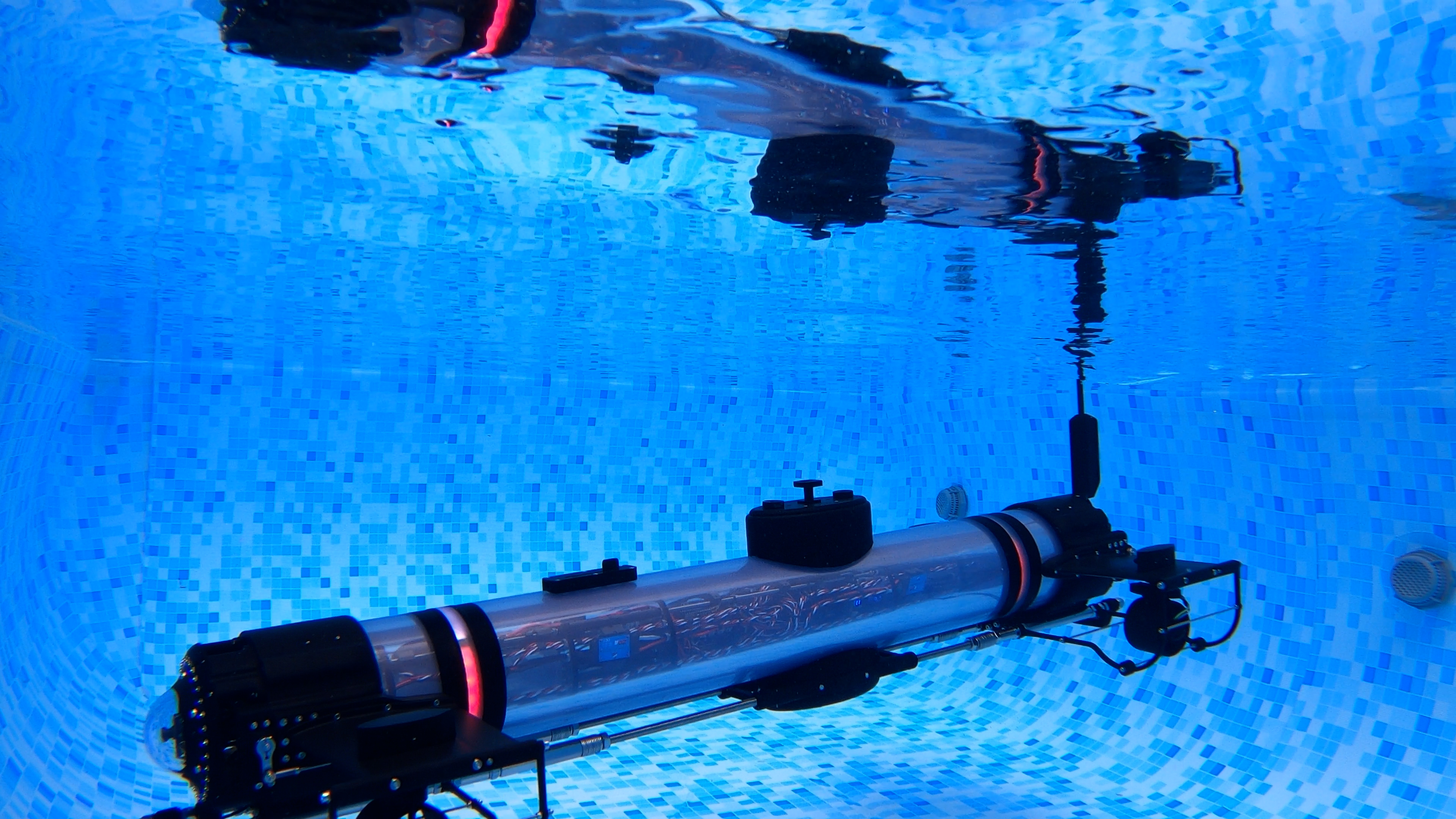

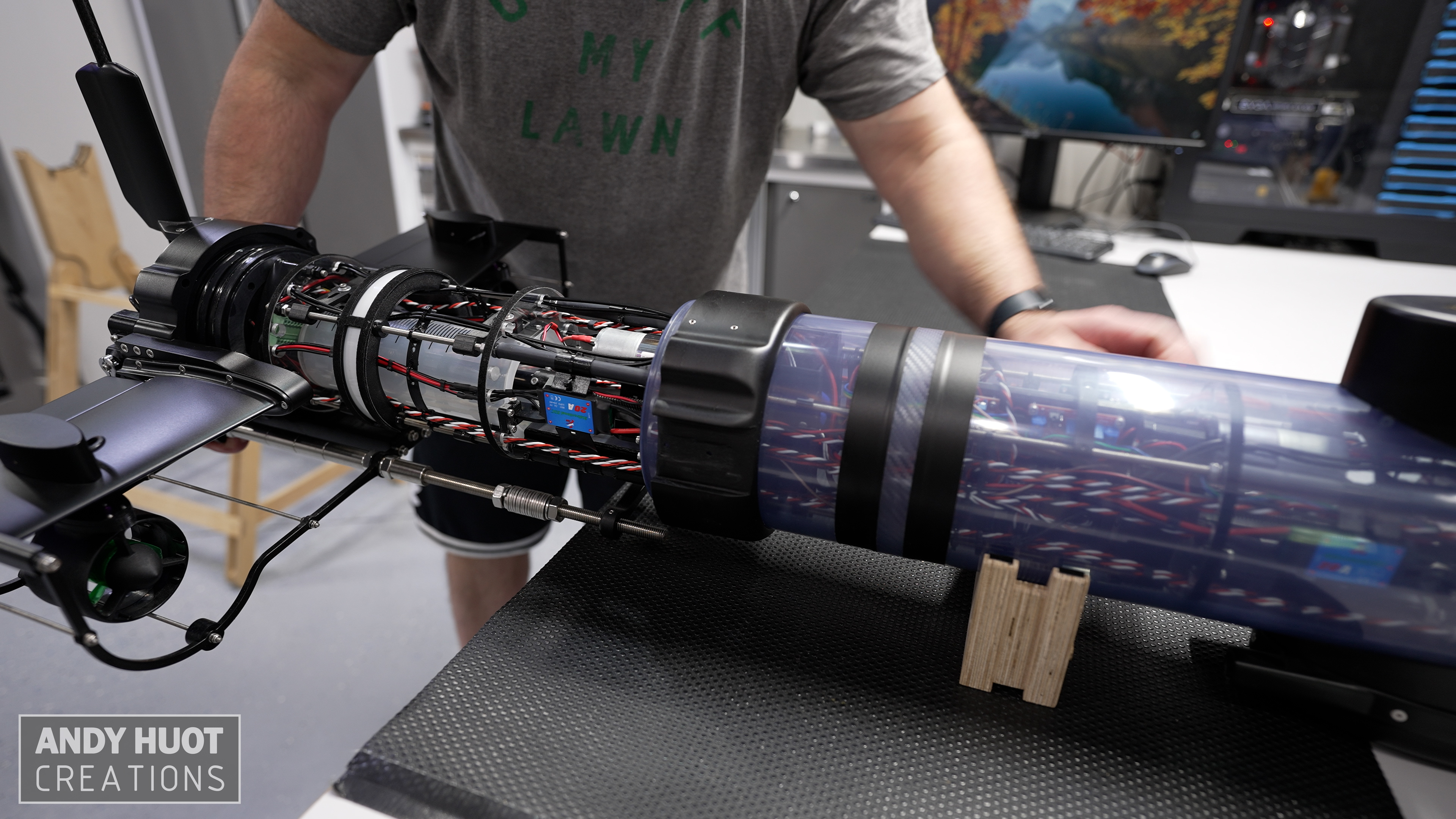

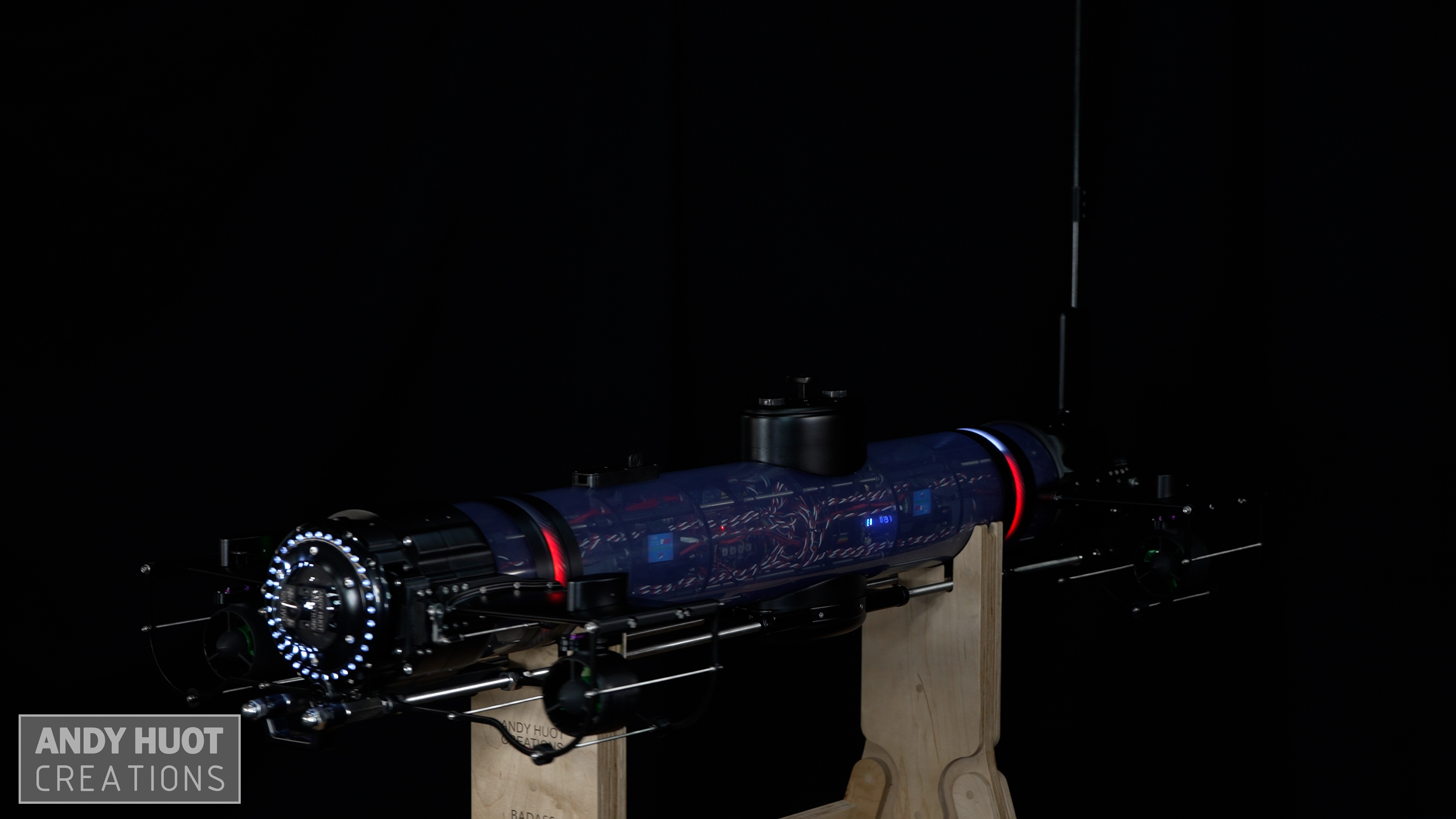

Untethered ROV

I spent over 1200 hours in the design, development, and build of this "Untethered ROV".  Now you can reap the benefits!  Please watch the video.  I will add more info here in the coming days.  This is a very well-rounded project for people who like projects and learning.  My approach is to give you enough information to get it done, but encourage you learn and figure things out on your own...with me as support of course.

You will need access to software that allows you to open a step file of an assembly, take measurements if needed and open files within the assembly.

Purchase Components (affiliate links);

Syringe for Ballasts: https://amzn.to/4tawXu0

Serial Wombat I/O ExpanderS: https://amzn.to/4t64mpP

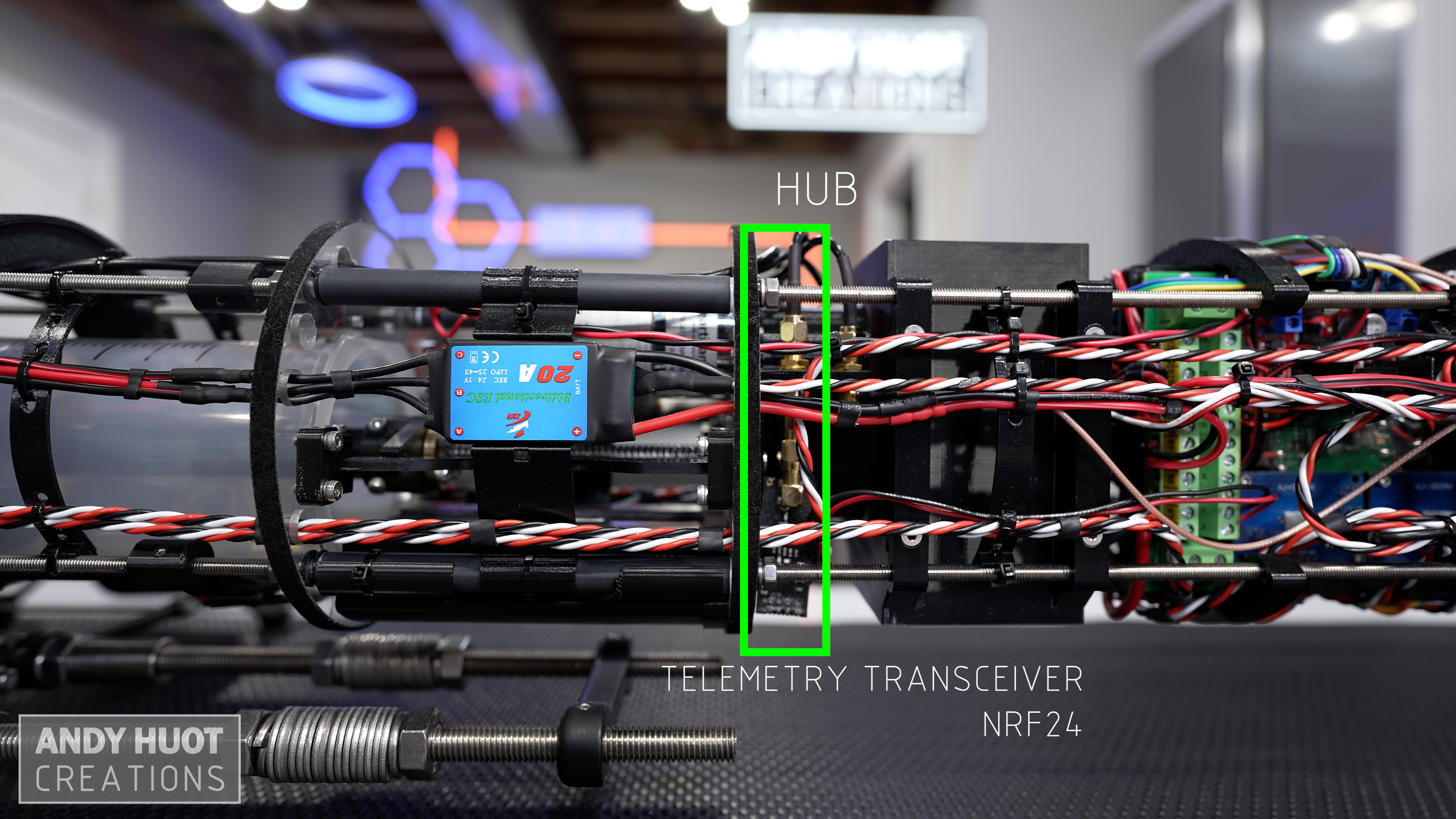

NRF24 2.4G Transceceiver Module: https://amzn.to/4ulHi7v

ESP32 for ROV Control: https://amzn.to/4dEsQC3

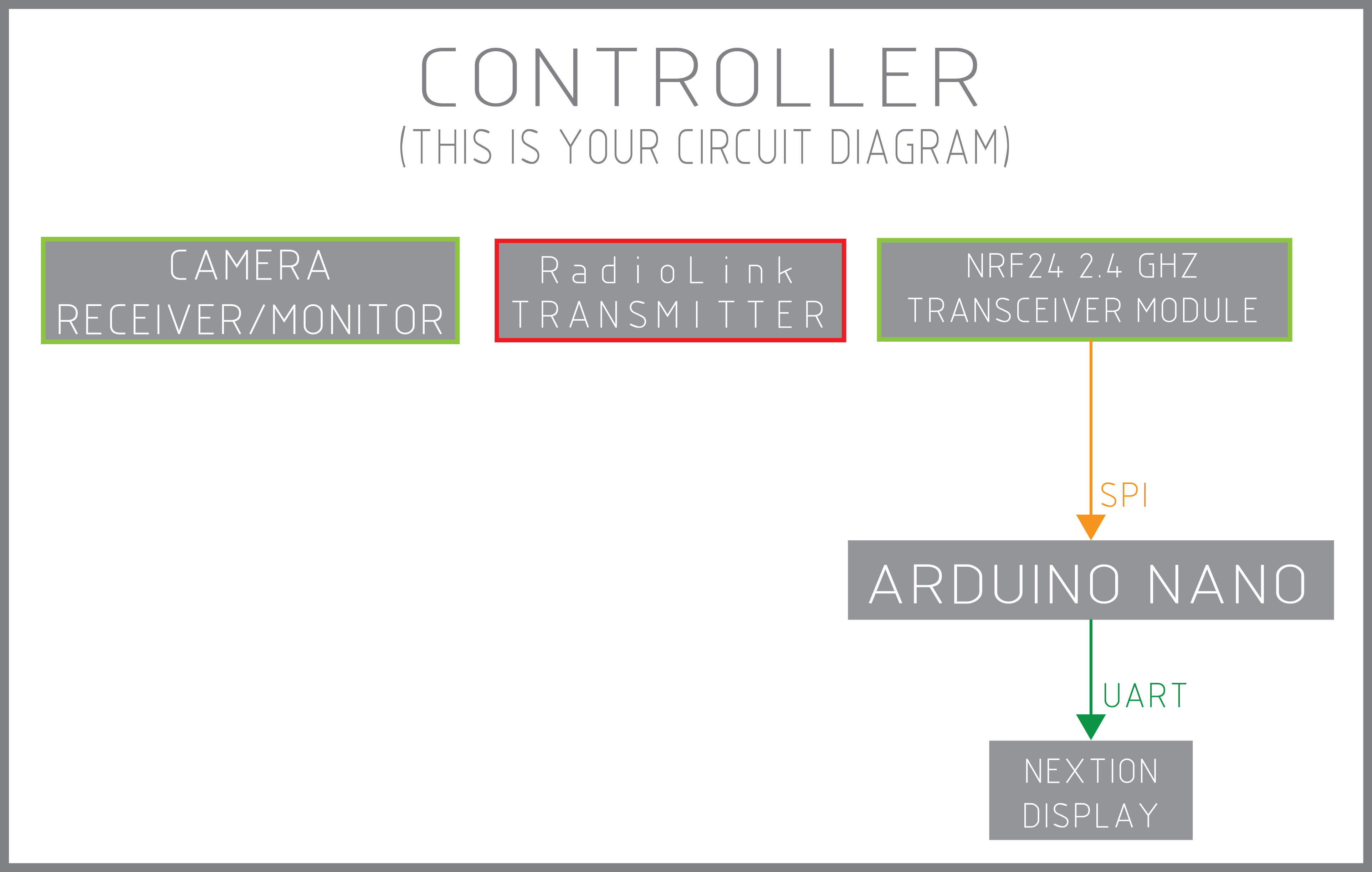

Arduino Nano for Controller Display: https://amzn.to/3PdhdIW

PCA9685 PWM Servo Driver: https://amzn.to/4tUaV08

BNO055 IMU: https://amzn.to/3QO4VXW

ADS1115 ADC: https://amzn.to/4d12M2z

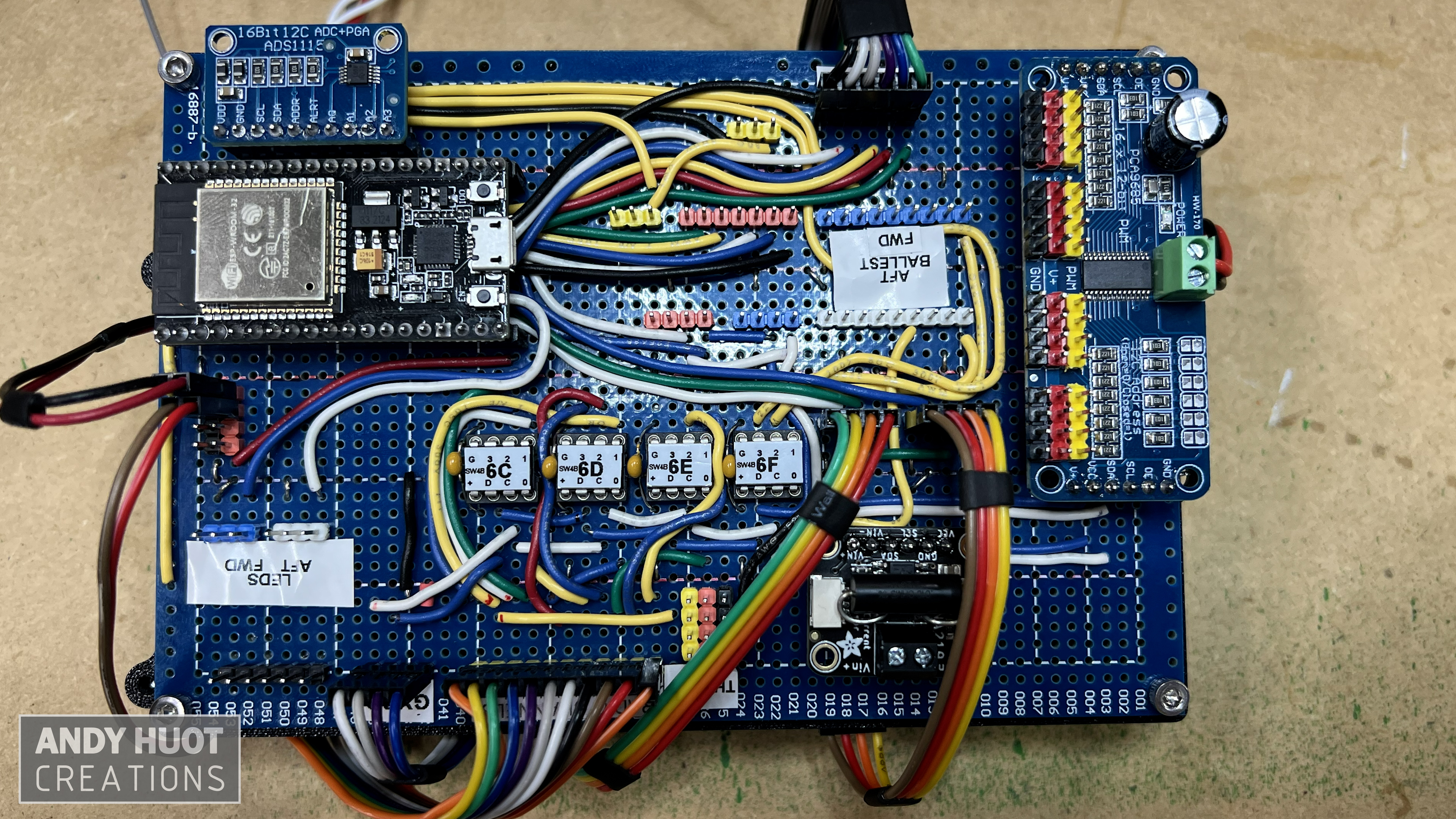

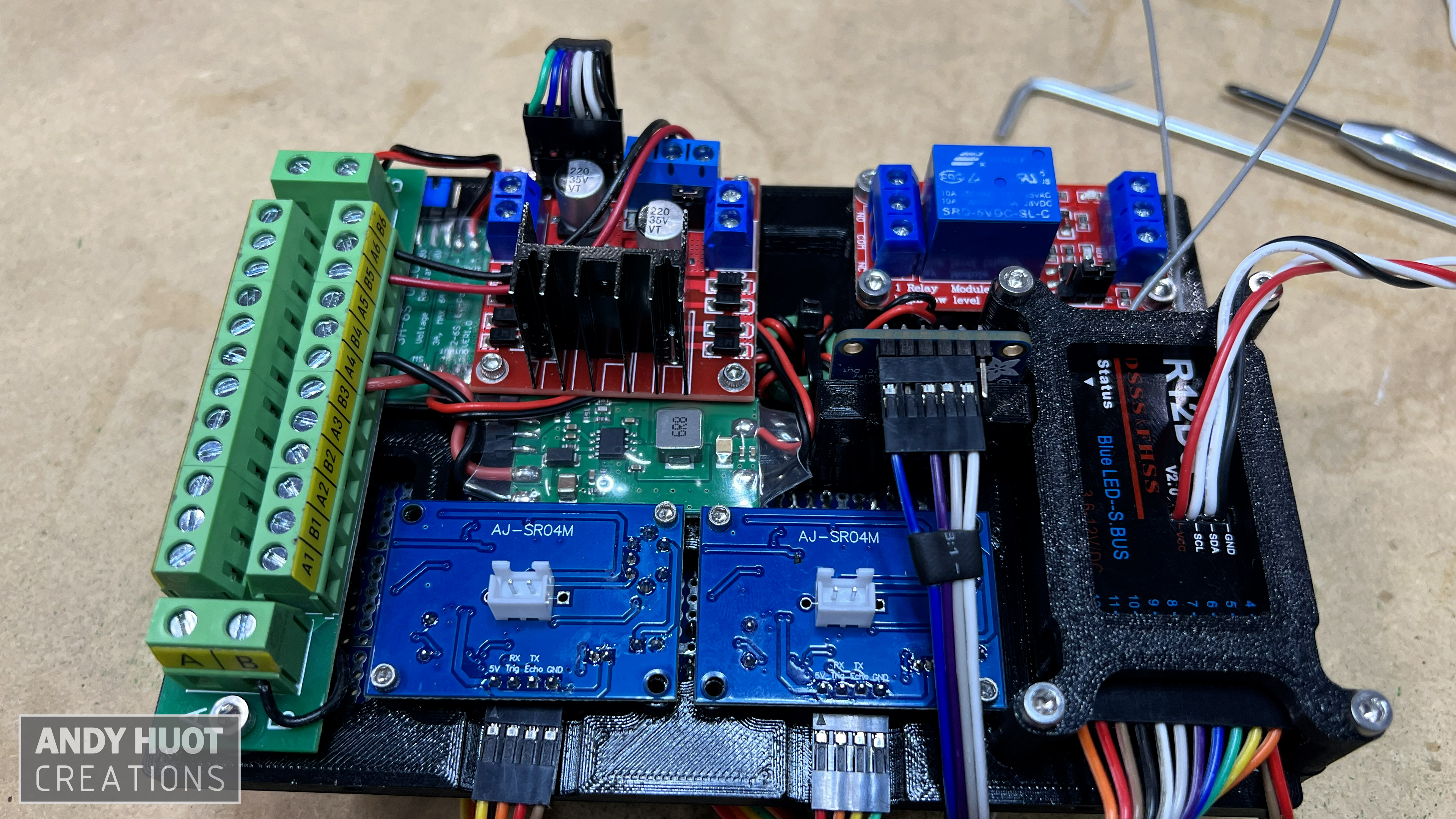

Protoboard I used for main circuit board: https://amzn.to/3QLPTC2

Hookup Wire for Protoboard: https://amzn.to/4djleES

Dupont Connector Kit for Terminating Cables: https://amzn.to/4d0EtBH

Ballast Motor Driver: https://amzn.to/4d47zjS

Ballast Limit Switches: https://amzn.to/4eYyVKB

Magnets for Sensors: https://amzn.to/4cT2ADM

JSN-SR04T Ultrasonic Sensors: https://amzn.to/4eo5VvM

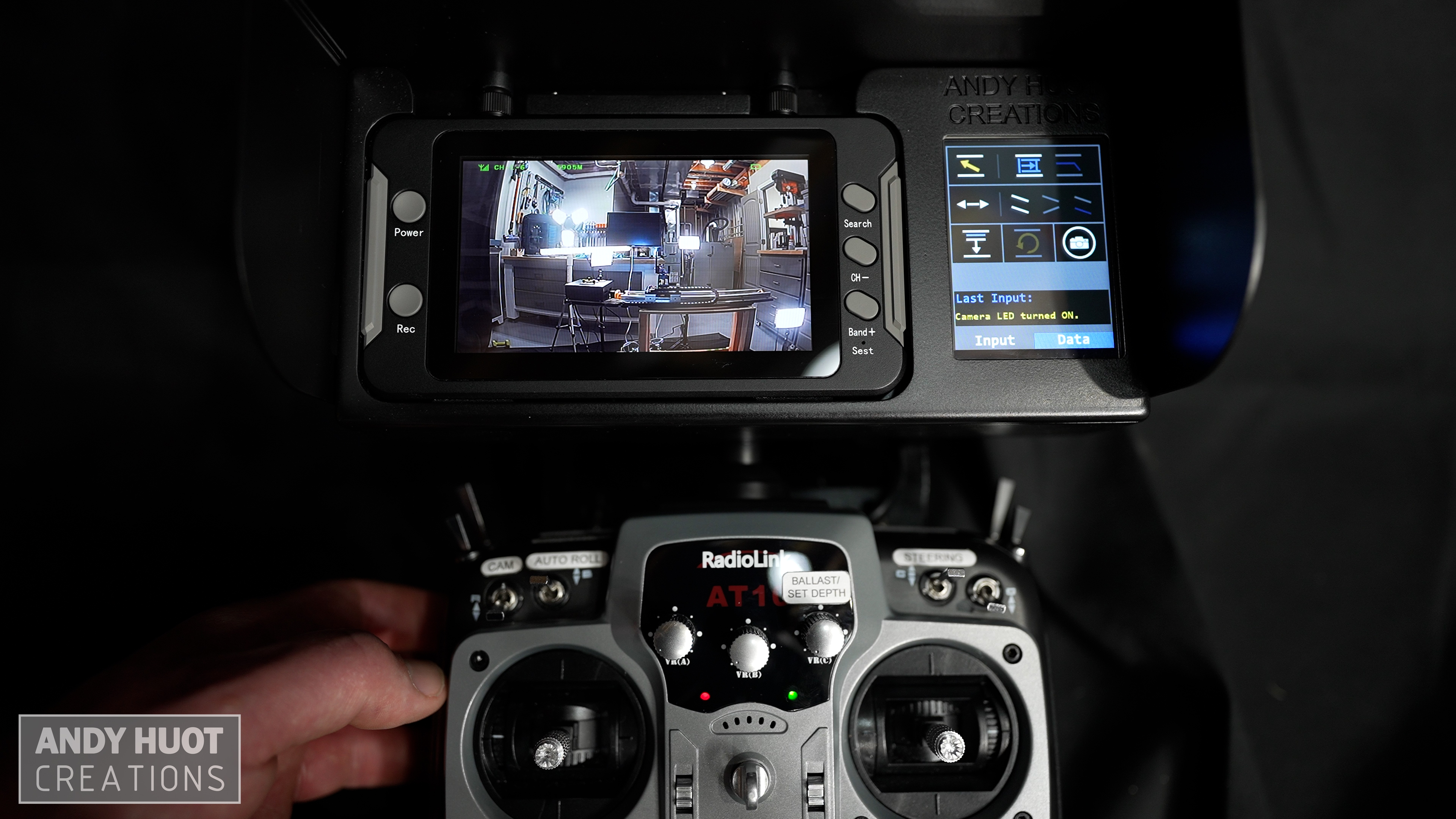

AT10II Radio Controller: https://amzn.to/4wayx20

Radio Controller Battery: https://amzn.to/4eoV30z

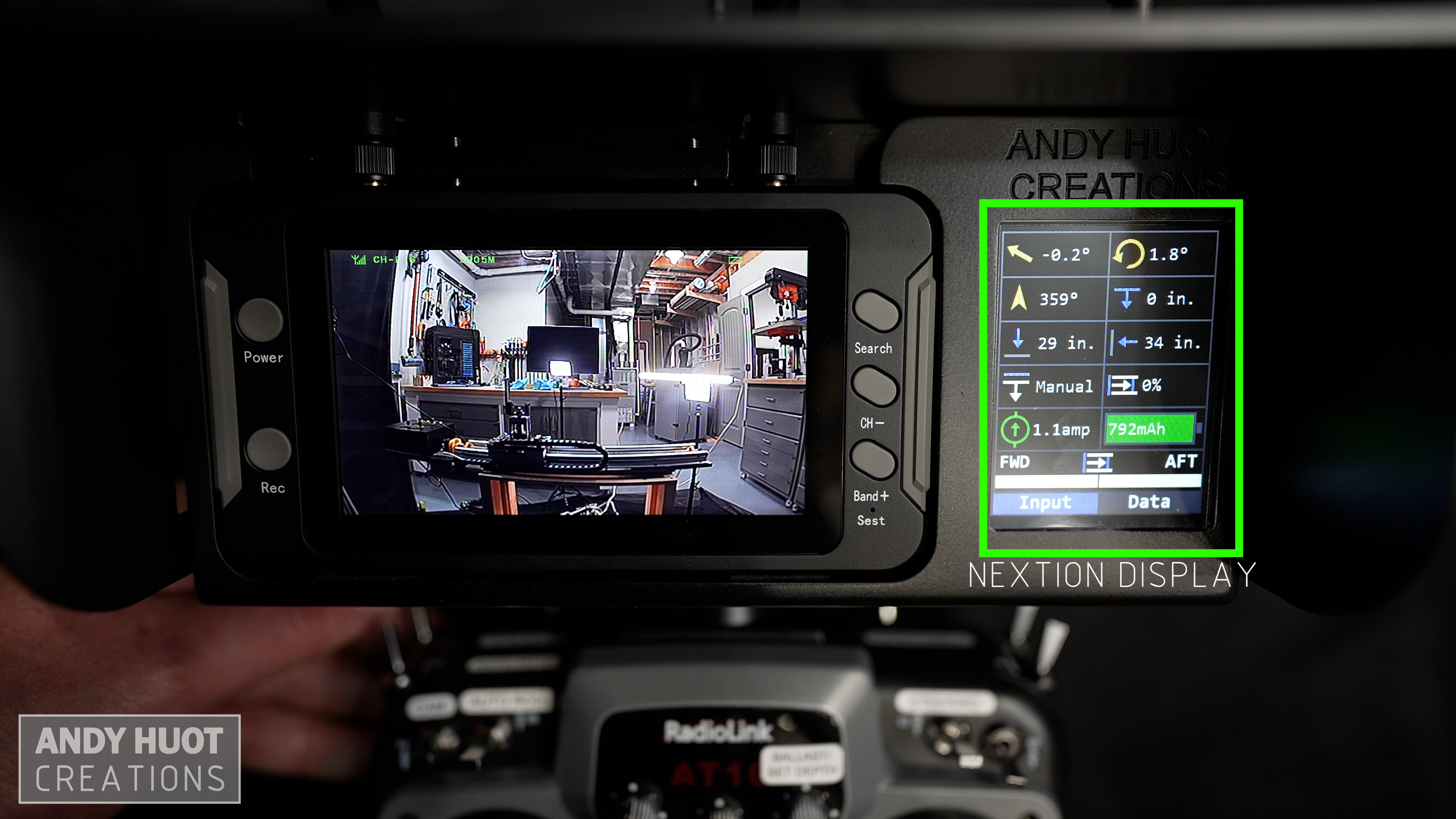

Nextion Display for Telemetry Data: https://amzn.to/3ReIiMm

Servo Twisted Extension Cable: https://amzn.to/4cL6H4H

SMA Extension Cable for Antennas: https://amzn.to/4tr6loR

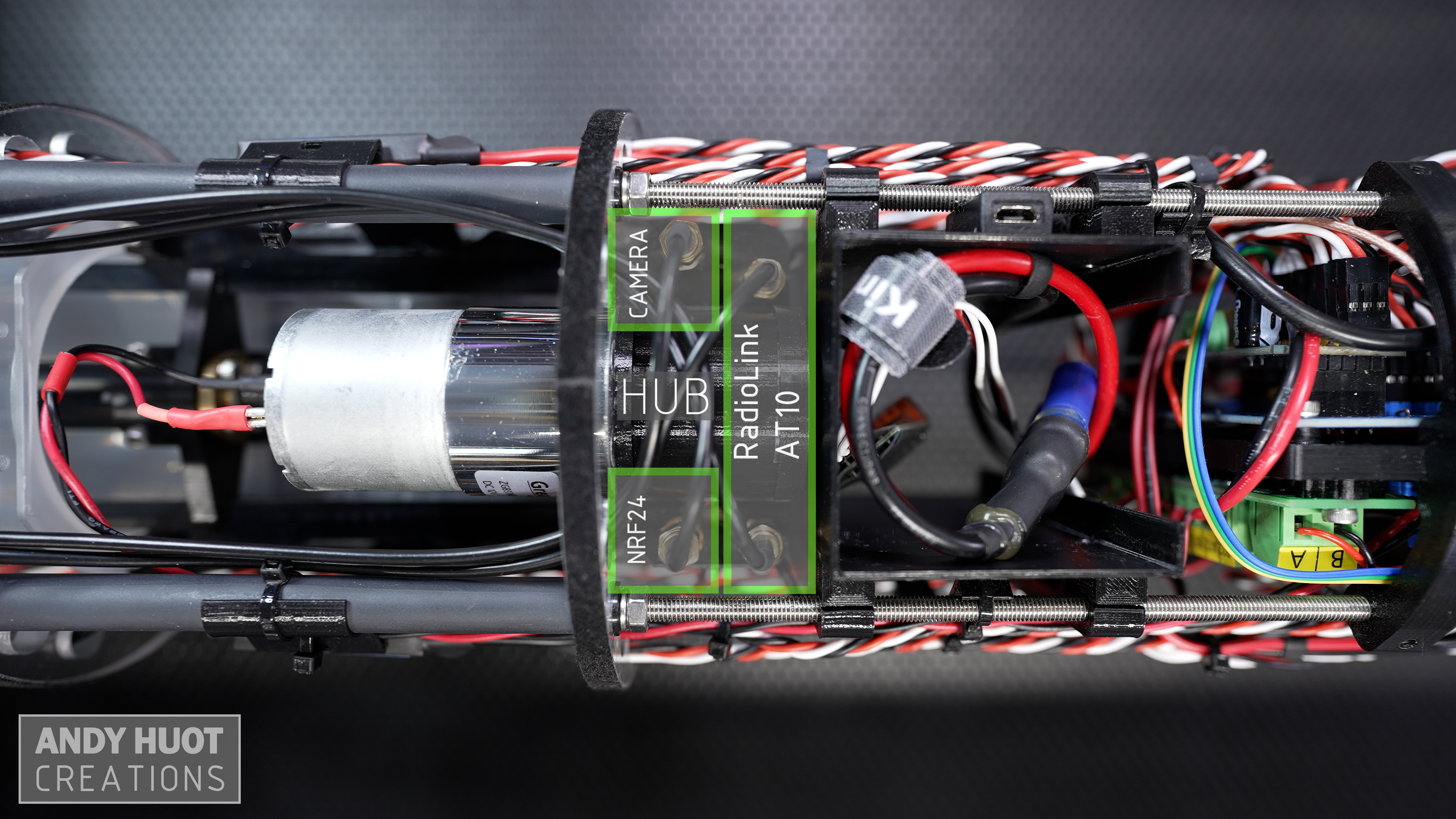

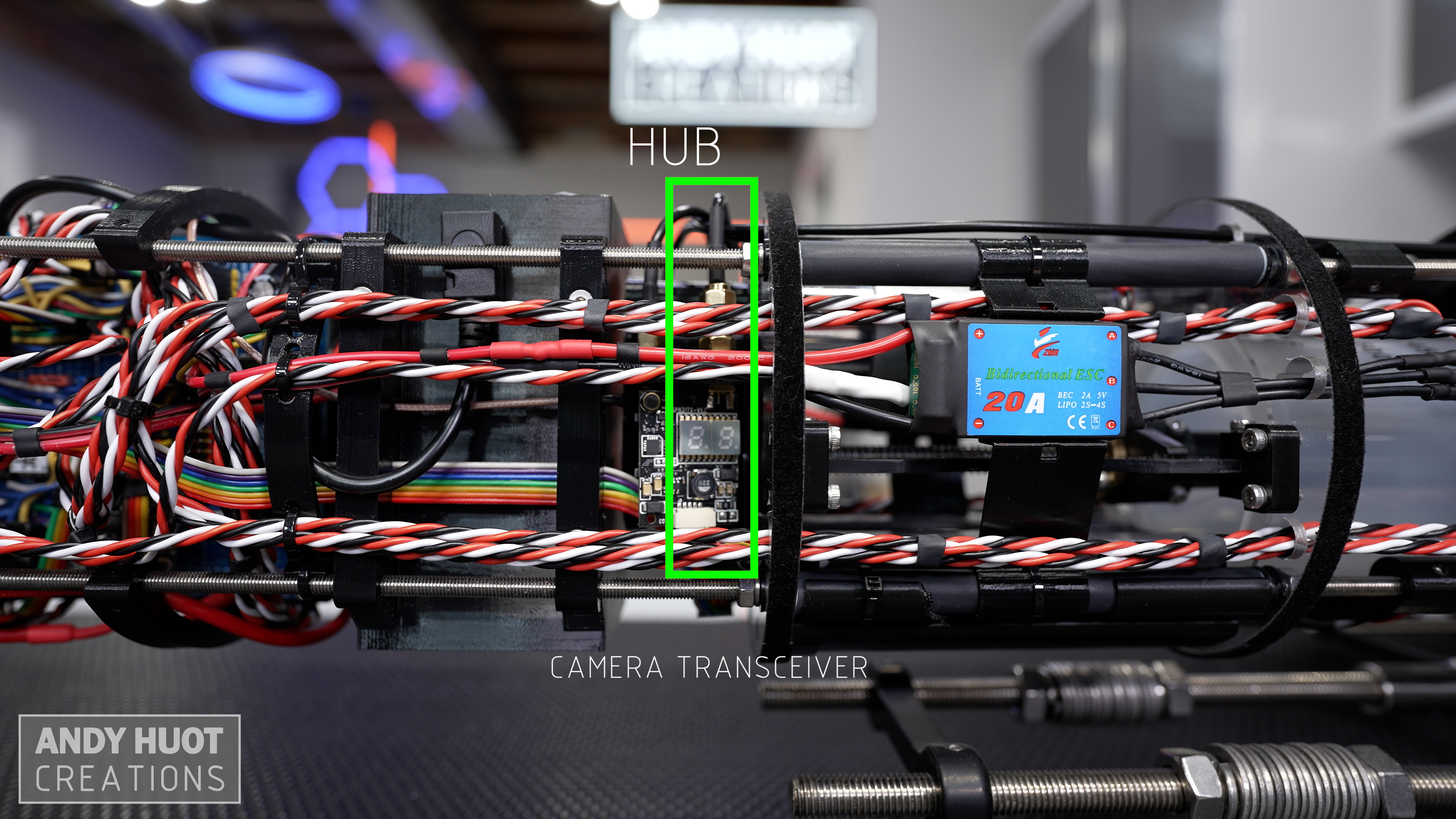

Pigtails to Hub from RadioLink: https://amzn.to/3Rka5uW

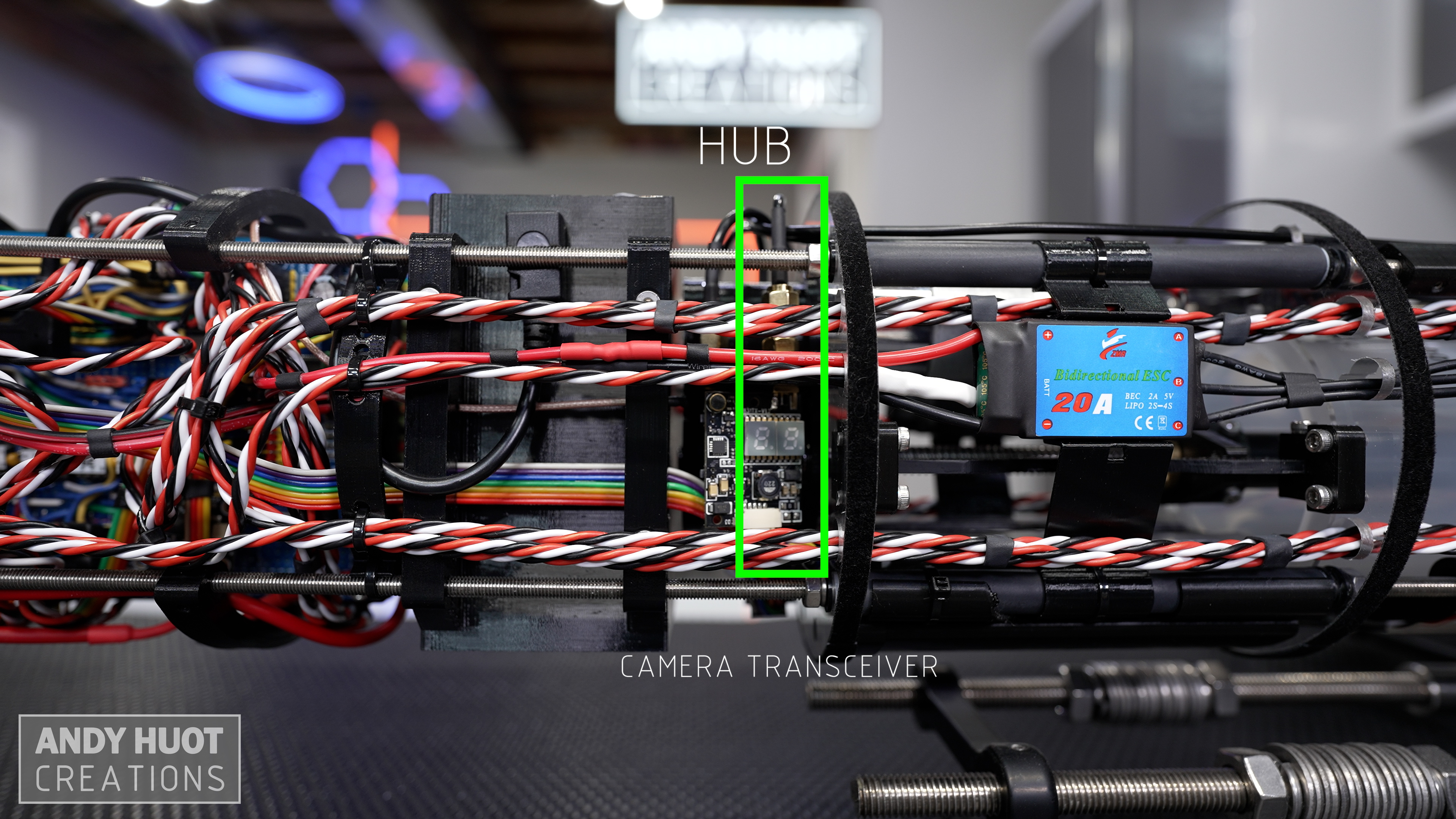

SMA Adapters for Hub: https://amzn.to/4dbmpVy

FPV Camera Receiver and Monitor: https://amzn.to/4ujrYZ6

FPV Camera Transmitter; https://amzn.to/4ujs5Uw

FPV Camera: https://amzn.to/4tMCPuD

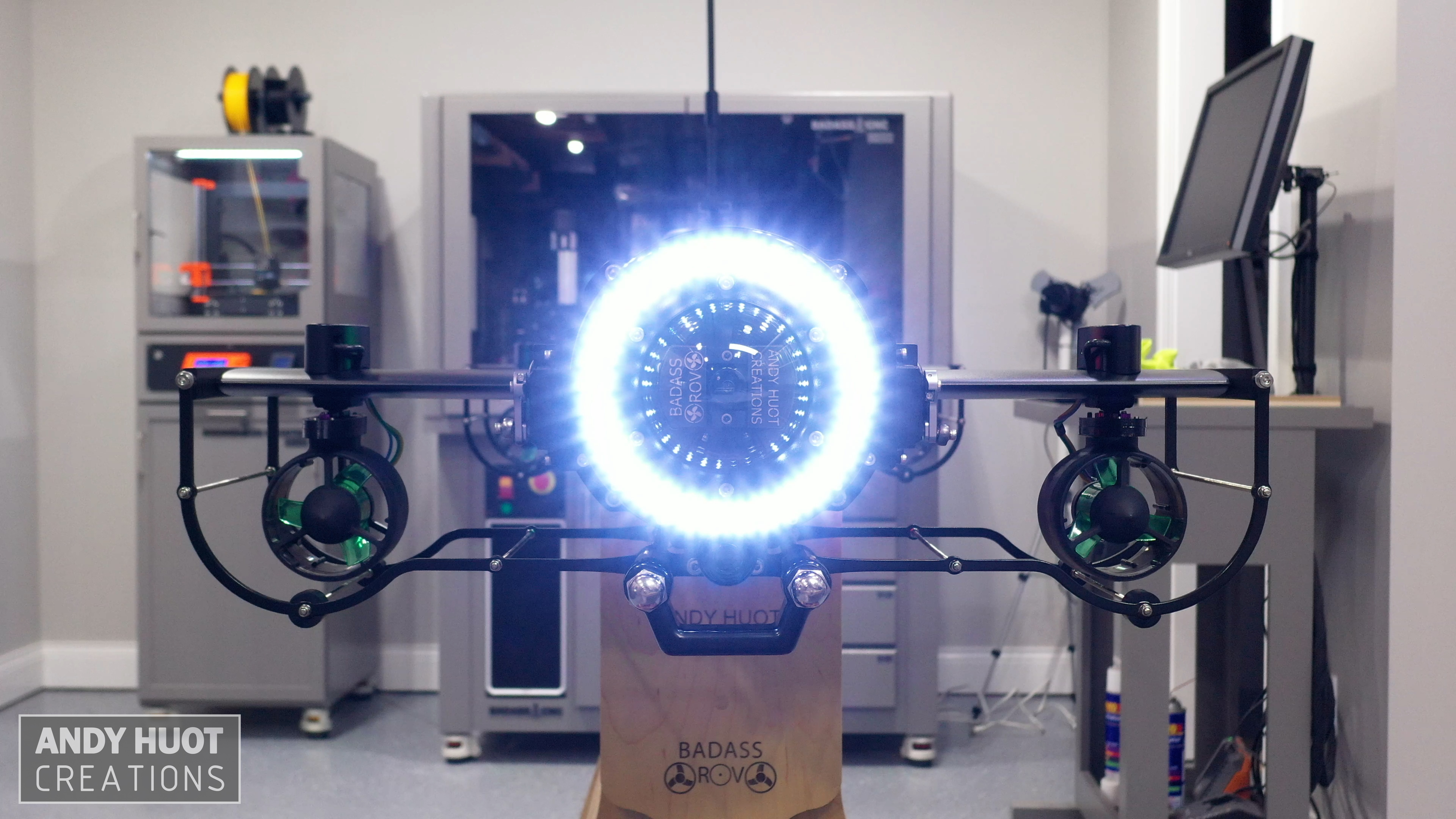

Switch for Camera LED Ring(what I’d use today): https://amzn.to/4wfj68D

100 RPM 12V Gear Motor for Ballast Control: https://amzn.to/4n7IN6T

Underwater Thruster for Propulsion: https://amzn.to/3OVCgja

INA219 Current Sensor for Battery Usage and Current: https://amzn.to/4waBtM8

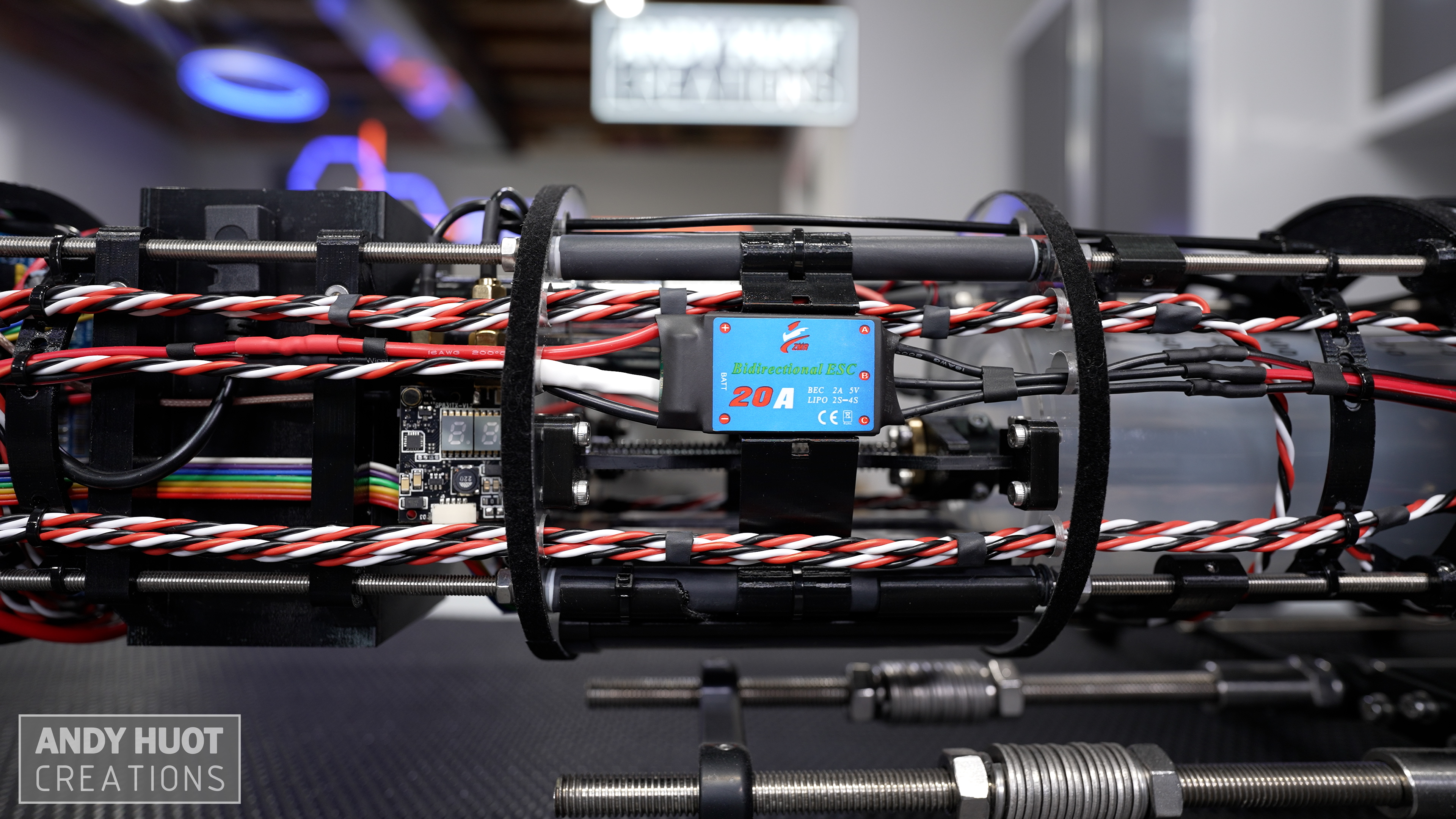

Bidirectional ESC for Thruster Control: https://amzn.to/42HXsfB

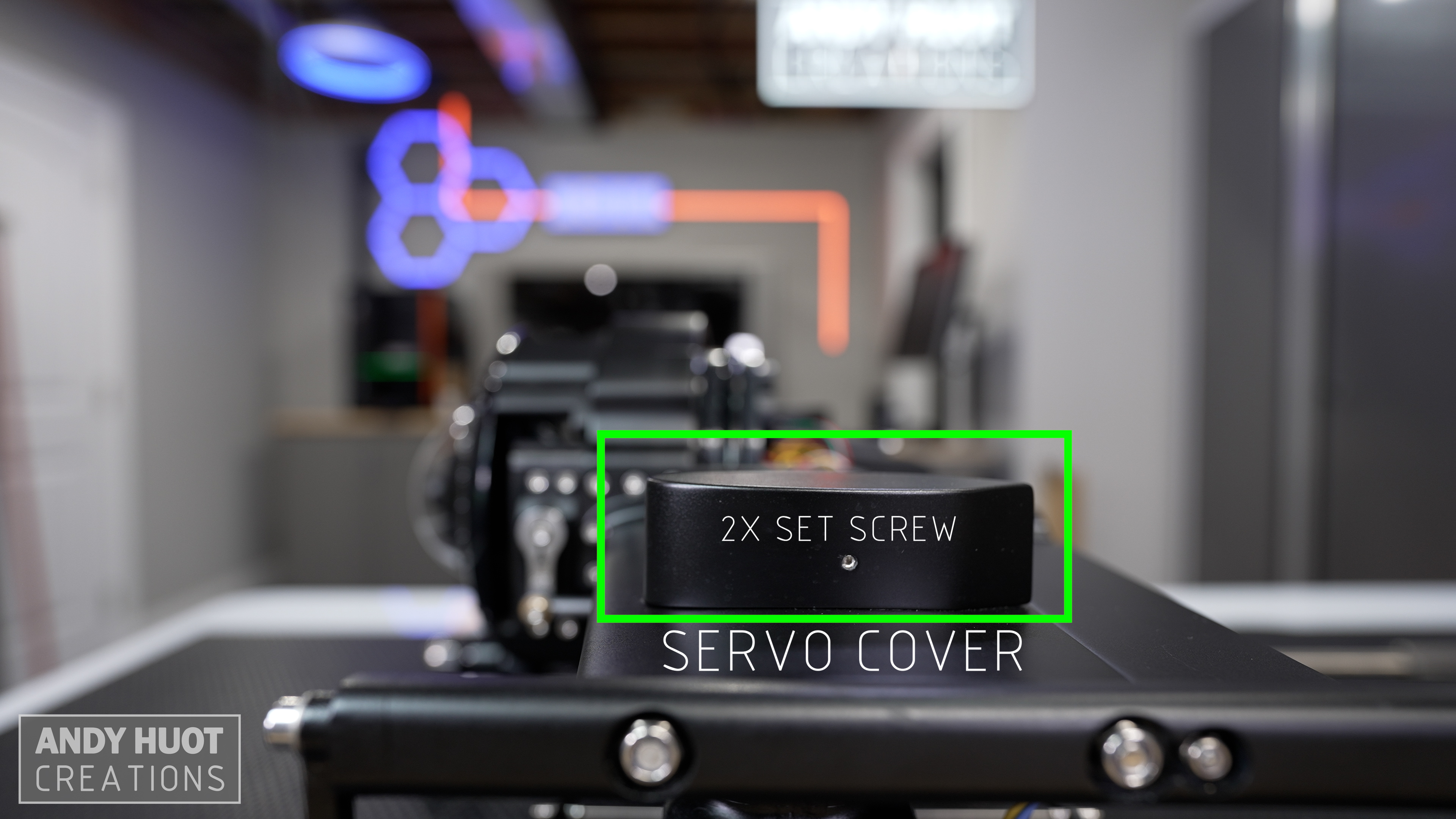

Servo Horn for Thruster Mounting: https://amzn.to/42OB1p3

Rod End for Flaps Servos: https://amzn.to/4unpTeE

Servos for Flaps: https://amzn.to/4uq0lxz

Y Harness for Servos: https://amzn.to/4epgoHo

Servos for Thrusters: https://amzn.to/4dk0Svd

16 Amp Terminal Block for Power Distribution: https://amzn.to/4wdCaEl

Waterproof Grease (get the 3 pack): https://amzn.to/497wmT5

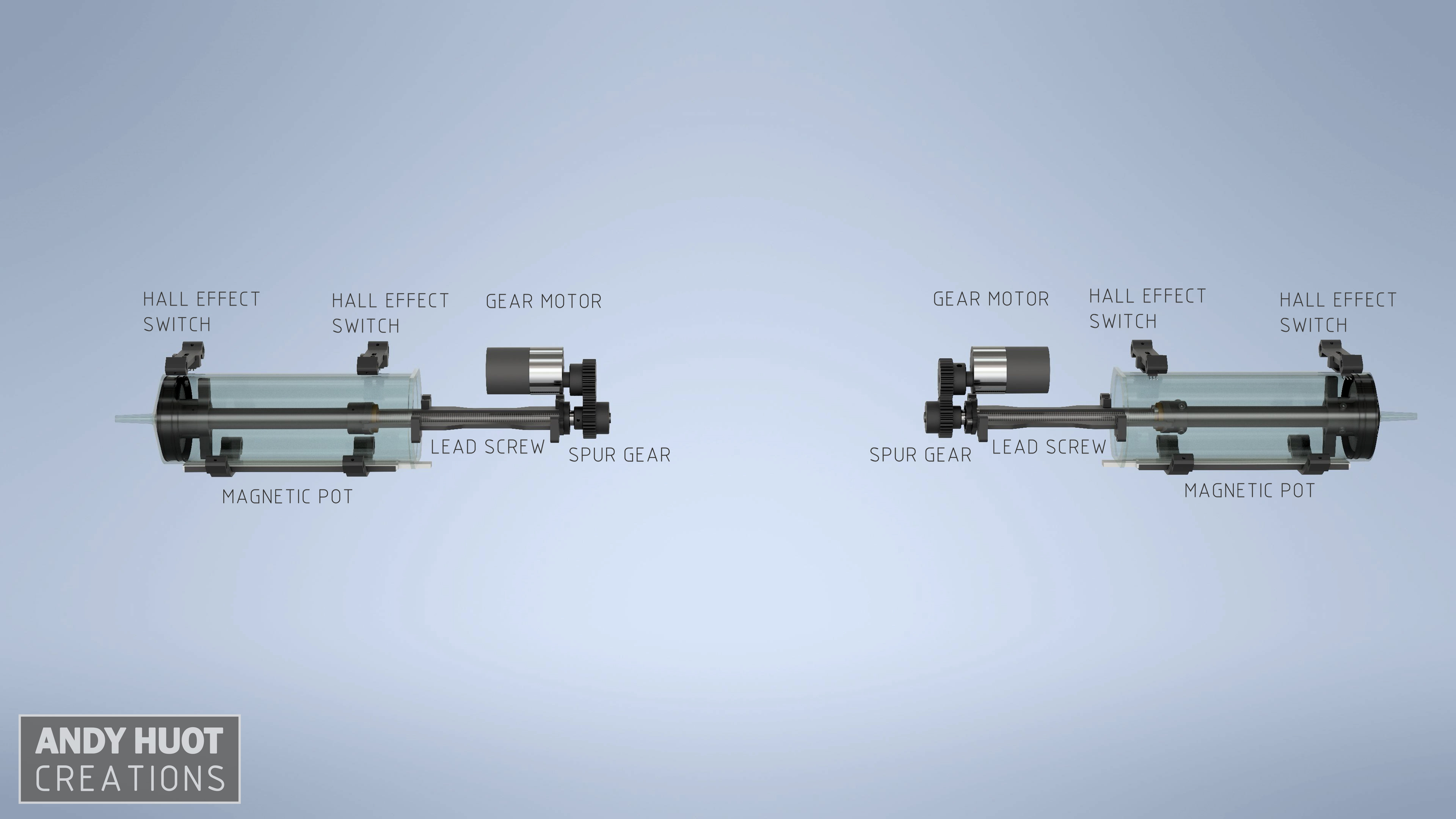

Magnet-o-Pot Linear Potentiometer for Ballasts: https://store.spectrasymbol.com/products/magnetopot-linear-potentiometer?variant=40674516107379

5” Clear PVC Pipe x 50”: https://flexpvc.com/cart/agora.cgi?p=PVC-CLEAR-PIPE-NSF-Sch40&p_id=CL40NSF050&xm=on&ppinc=detail

Acrylic Dome for Camera: https://amzn.to/4emshxC

Zip Ties for Core: https://amzn.to/48LLCoi

Battery for ROV: https://amzn.to/48D6vlH

M3 Heat-Set Inserts: https://amzn.to/4cYUh8a

M4 Heat-Set Inserts: https://amzn.to/4tPxZx1

M5 Heat-Set Inserts: https://amzn.to/48GPBTc

M6 Heat-Set Inserts: https://amzn.to/49q8HNv

10 Pin Terminal Block Connector: https://amzn.to/4tIx0hS

M3 x 180mm Threaded Rod: https://amzn.to/4n5w44F

M10 Nylon Lock Nuts: https://amzn.to/4t9Qc7e

M10 Coupling for Weight Balance: https://amzn.to/4tcsXt4

M10 Cap Nut: https://amzn.to/4nrsEcV

M20 Tap: https://amzn.to/42fOlTk

M12 Tap: https://amzn.to/4tK3SH1

Metric Flat Head Screw Set: https://amzn.to/4dkoaB3

M3 Screw Set: https://amzn.to/3P1HcmC

M3 SHCS Screw Set: https://amzn.to/4tP6uDu

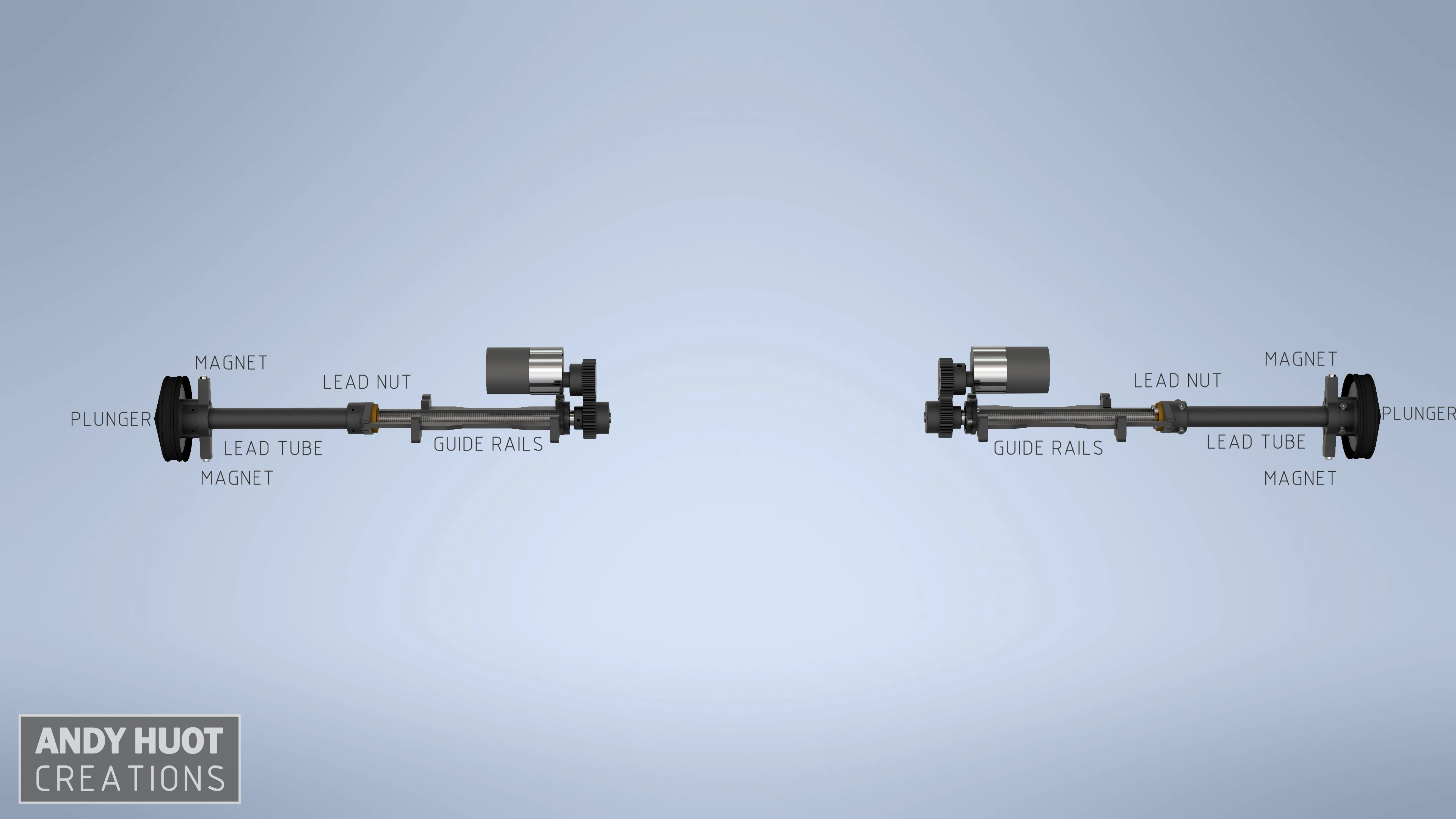

Ballast Lead Screw and Nut: https://amzn.to/3OUDafS

Ballast Bearing: https://amzn.to/3RhoA2x

M3 Threaded Rod: https://amzn.to/4d6AML1

¼” ABS Rod for Dowels.

M3 Threaded Rod: https://amzn.to/49ns3CU

M3 Threaded Rod: https://amzn.to/4cMEBGj

M3 Nylon Lock Nut: https://amzn.to/4epX90k

M3 Washers: https://amzn.to/4urFzh7

3mm Sleeve Bearing for Flaps: https://amzn.to/4tNRaab

M5 Nylon Lock Nut: https://amzn.to/4w84kR6

Nylone M5 Hex Nut for Core Assembly: https://amzn.to/4tUC574

M5 Threaded Rod for Wings: https://amzn.to/4vX9VcO

M6 Screws for Bulkhead: https://amzn.to/4w8g4mq

M6 Thumb Screws for Battery Compartment: https://amzn.to/4w61vA1

Metric Set Screw Kit: https://amzn.to/4eowOQf

Metric Tap Set: https://amzn.to/4dlxi8z

Sanding Sticks: https://amzn.to/3R5lVZU

Sanding Sticks: https://amzn.to/4ns8peT

Sanding Sponges: https://amzn.to/42PHWPb

Paint I used for parts outside of hull: https://amzn.to/49IjCCi

Potting Epoxy I used for waterproofing electronics: https://amzn.to/4eIgbPI

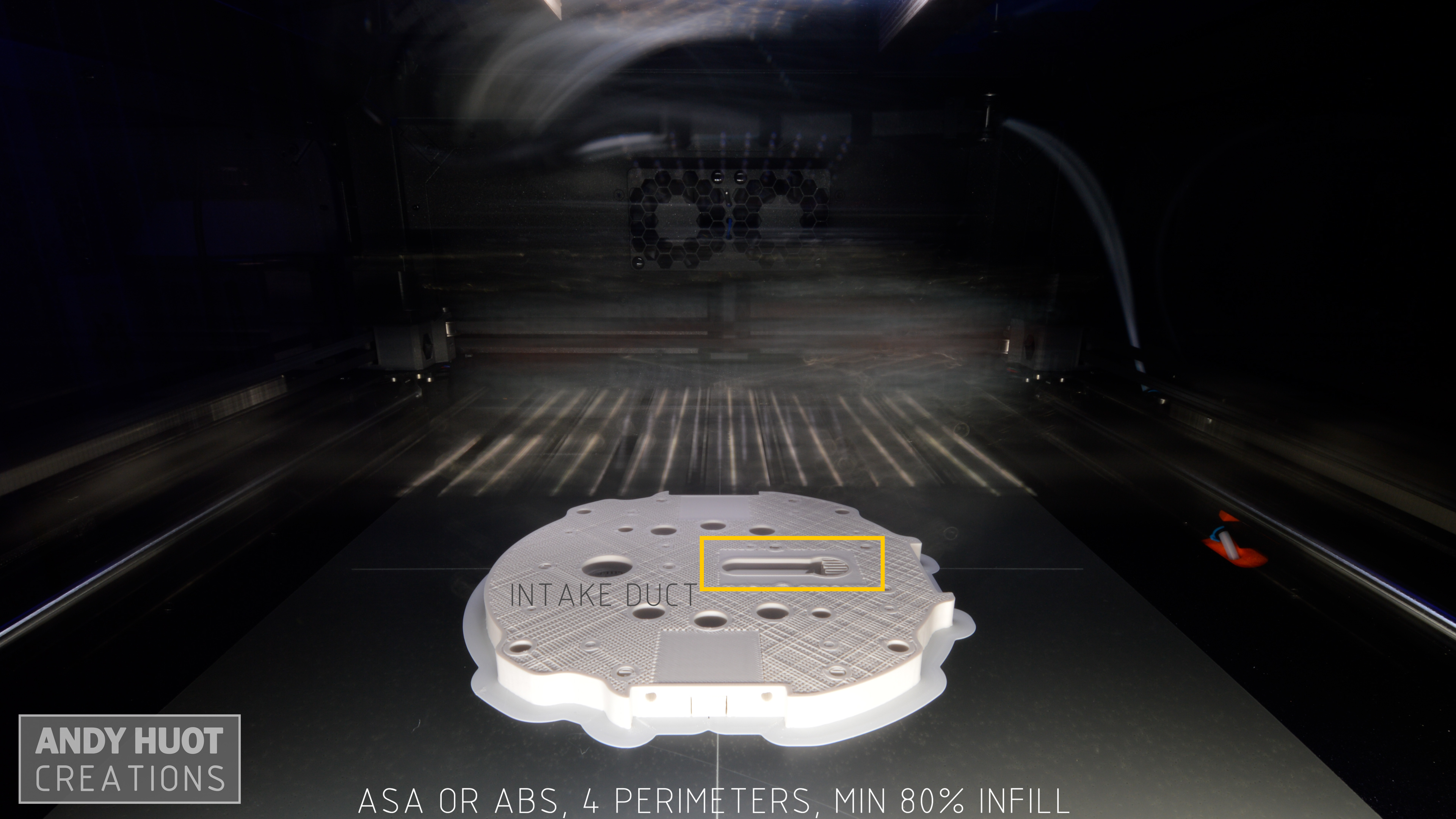

PETG (What I used for everything I printed, except the bulkheads, and battery compartment blocks)

What I would use to print bulkheads and battery compartment blocks: https://amzn.to/48VMJBW, https://amzn.to/435BPpK,
