RaspberryPi Zero(2)/BananaPi M2 Zero Bracket
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Printer Parts & Upgrades
- Licencja
- Creative Commons — Attribution

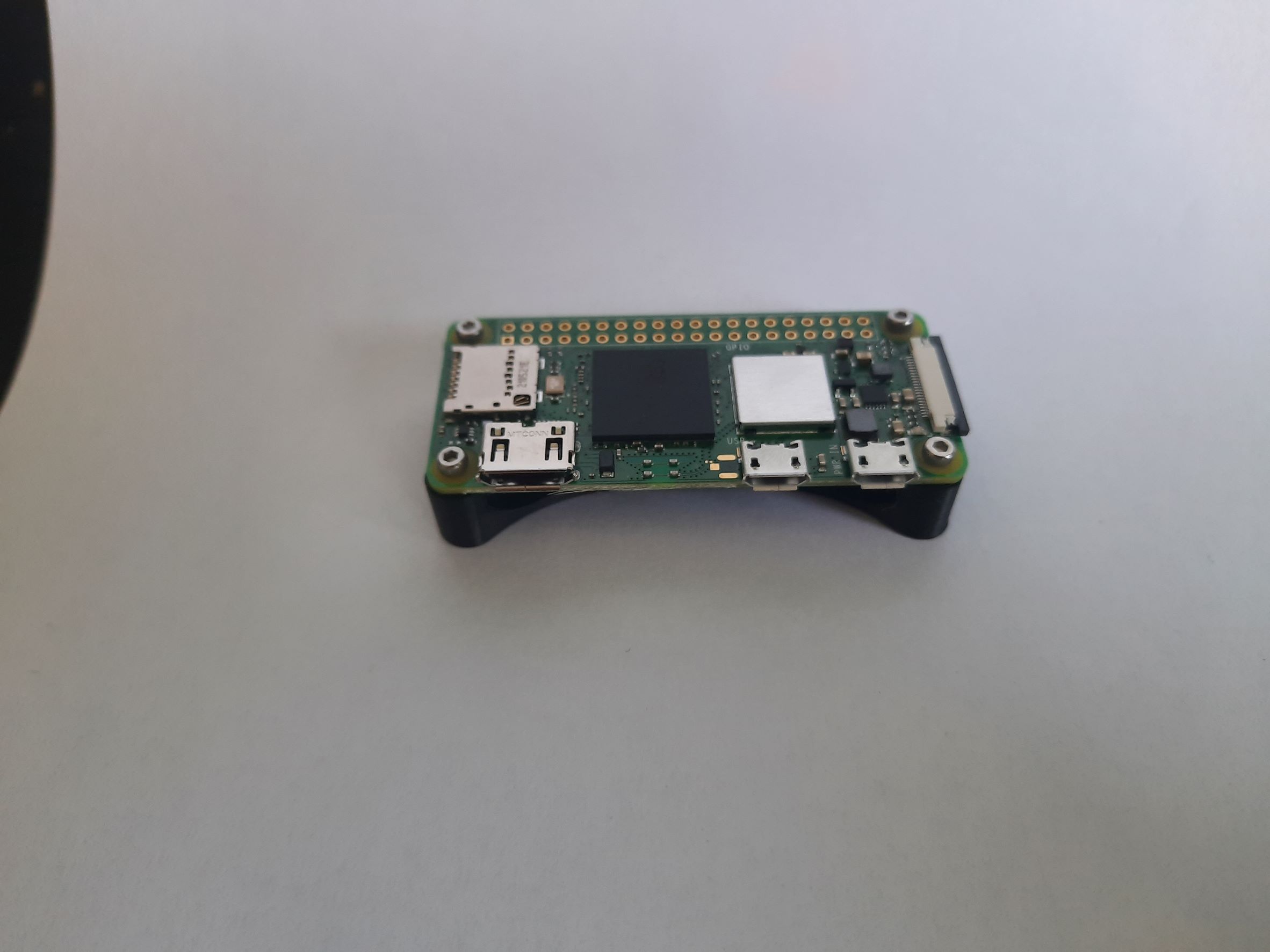

Simple bracket for PiZero(2) and BananaPi M2 Zero with threaded inserts. You can add the modified DIN-clip to put it on a DIN-rail, use it without the clip or just 3M VHB tape. Choose the needed Version below, M2 is for M2 threaded inserts, M2.5 for M2.5, just that easy.
Use at least M3x8 BHCS ISO 7380-1 screws to mount the DIN-clip on the bracket.
Personally I used Ruthex M3x5.7, M2.5x5.7 and M2x4 inserts, but everything shorter should be fine.
You will need my modified DIN-clip here, if you want to mount this on a DIN-rail.
Printed with ASA just fine.
Changelog
16.10.2022
- added .step-files for M2/M2.5 w/ and w/o screwholes for the DIN-clip
- fits BananaPi M2 Zero
If you have any suggestions, help is appreciated.
