Features:
- Replaceable 'feather' head.
- simple shape, fast to print.
- Flipable, flat on both side. Works on table or fence. (Depends on your t-track position on the fence)
- No support needed.
Why replaceable head?
- No need to re-print the whole shape if the 'feathers' broke. Save time, save filament, save the earth.
- experiment with different types of materials to suit your needs.
- experiment with different feather shapes / angles / thicknesses.
- color customizeable!

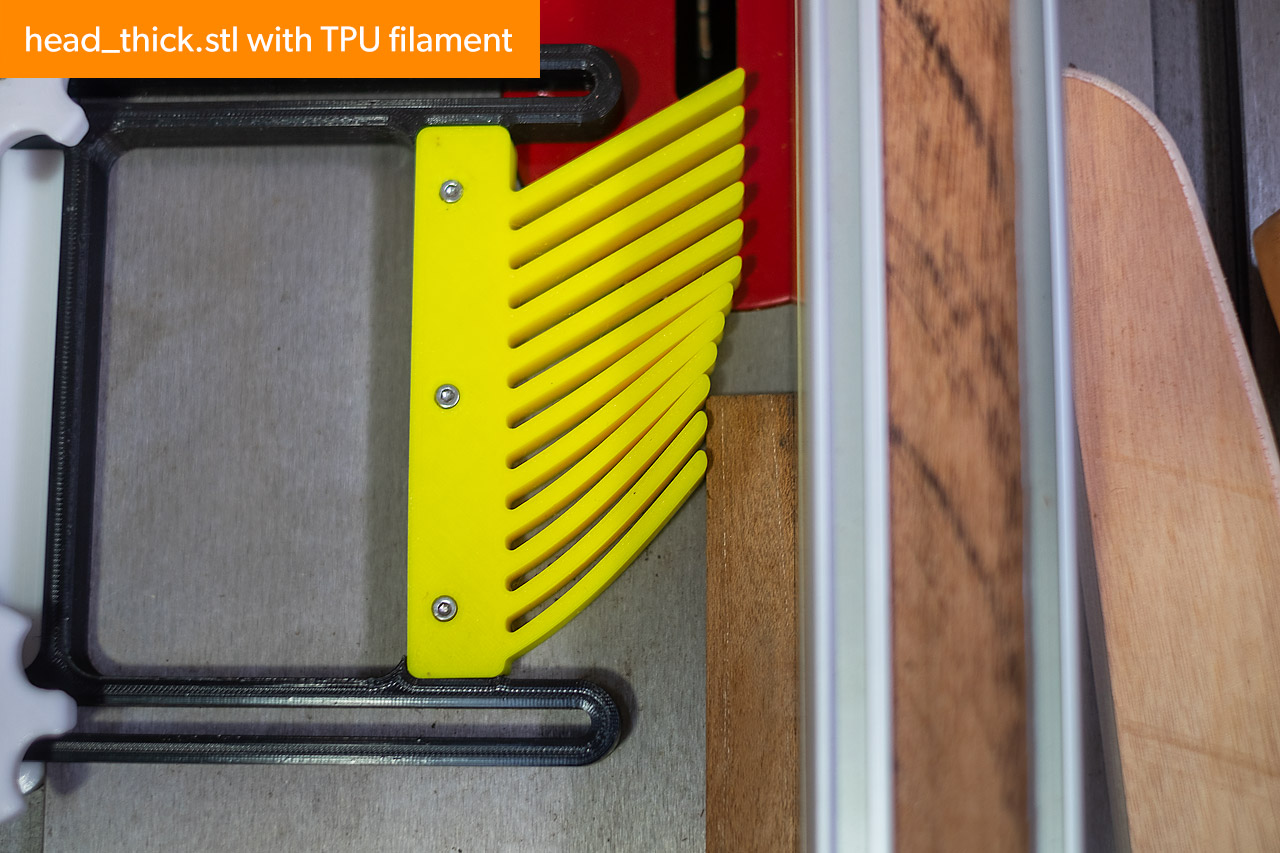

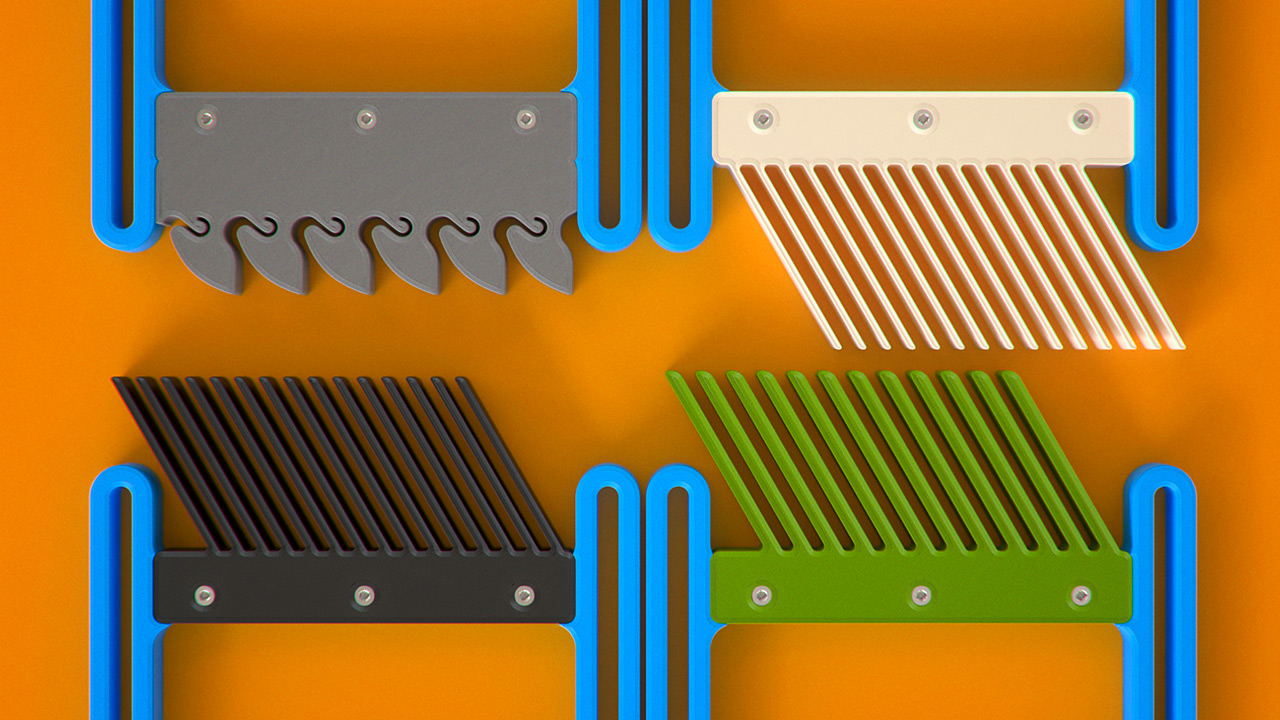

Including extra 2 optional head designs (thin and thick). And 1 experimental head (spiky head) inspired by featherpro product, best printed with flexible filament (tpu)
T-nut fits standard 19mm miter slot.
Hardware needed:
- 2 m6x40mm bolts and nuts
- 3 m3x15mm allen hex bolts
Too many parts, I'm confused!!

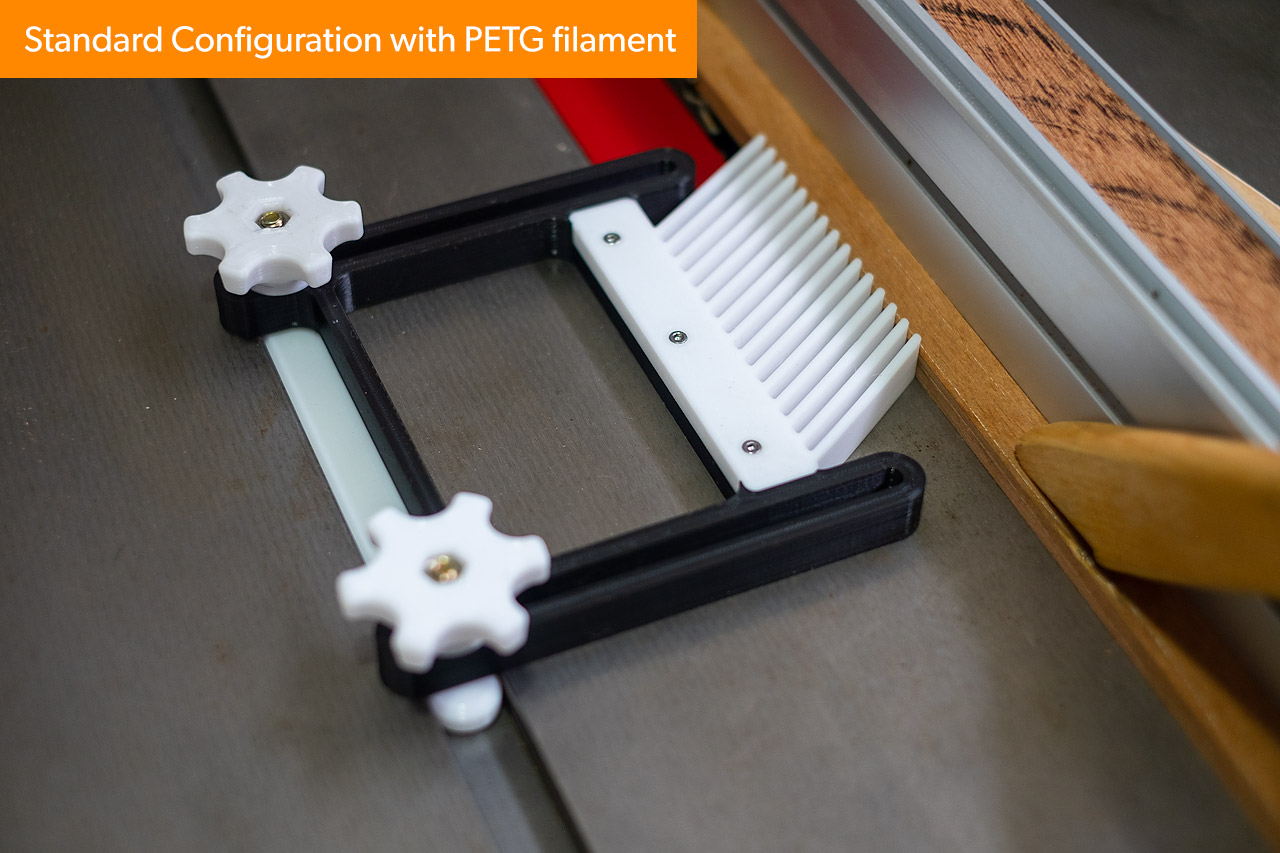

Don't worry, the basic things you need to get this featherboard to work are in the main_part folder :)

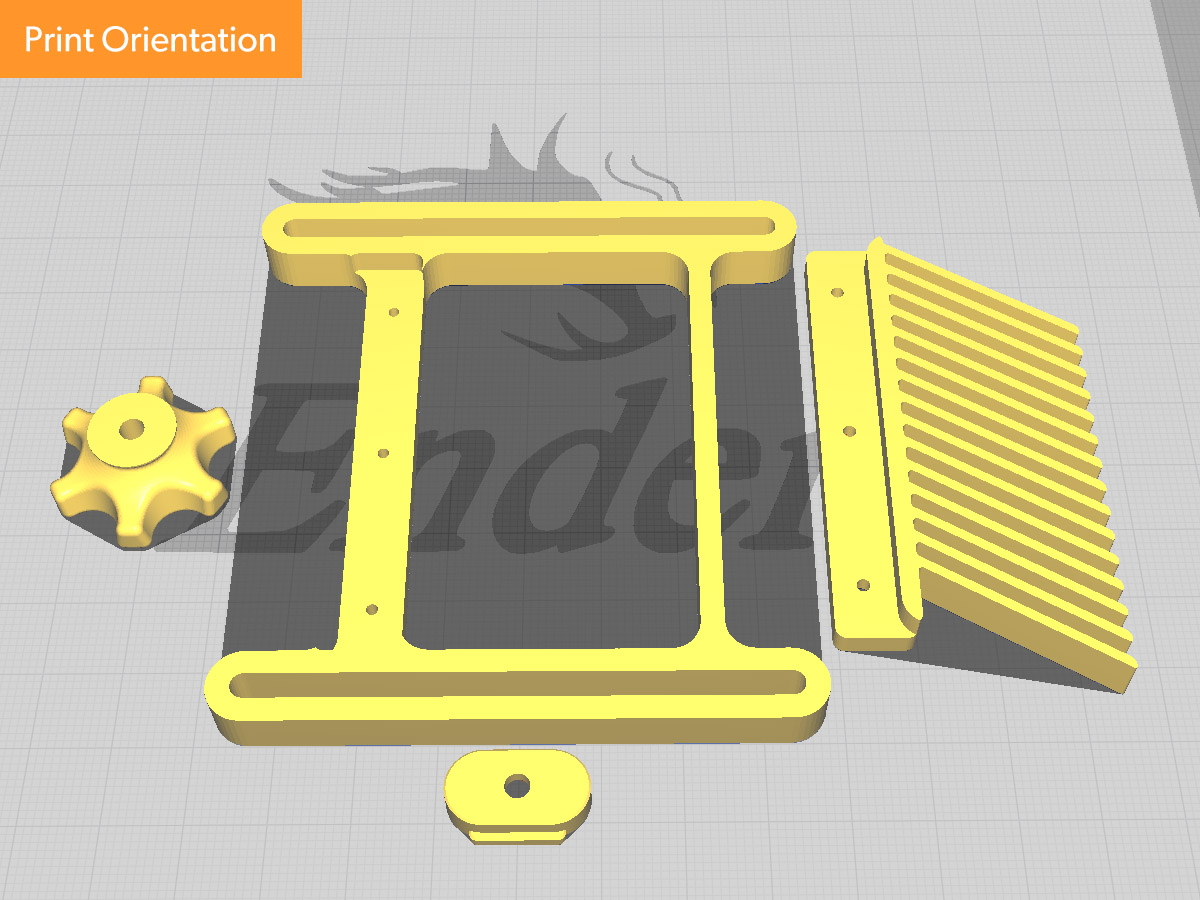

See image for print orientation, no support needed.

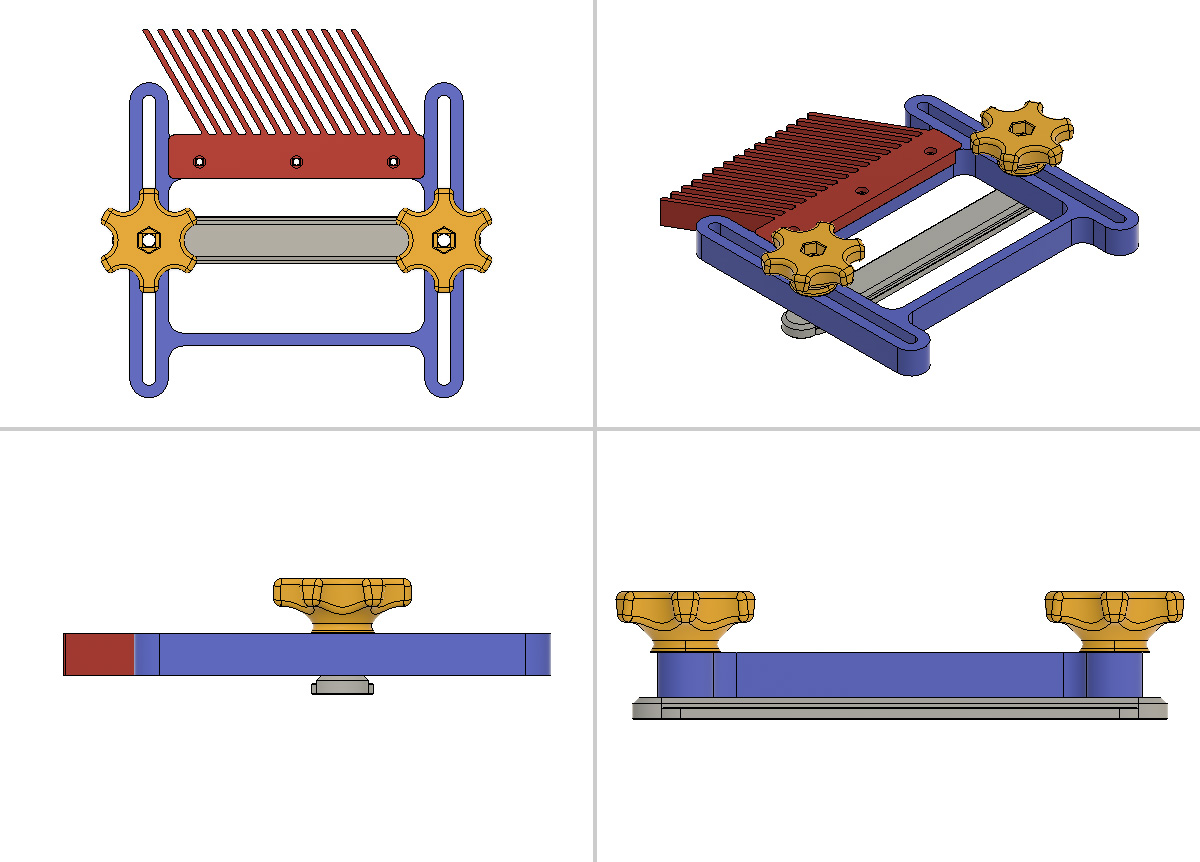

step file included so you can make your own head attachment.
