This is box to house, protect, and display the wonderful LED-NIXIE-M clock by www.led-genial.de. It is a nixie-style clock implemented through etched plexiglass panels edge-lit by LEDs. The software running on the controller is open-source and written in a variant of BASIC. It is easy to understand and customize as you please. The clock is a little dim in daylight, so the box provides a bit better visibility during the day and protects the clock itself from prying eyes and fingers (even though it is running on 5V.)
To order the clock for yourself in a light-assembly, light-soldering kit:
https://www.led-genial.de/LED-Nixie-M-6-stelliger-Bausatz-inkl-LED-Basic-Controller
This is not a cheap clock, a quick quote with shipping from Germany to US at today's currency conversion rates is approximately $177.
Print instructions
Download. Slice. Print. Assemble.
Summary

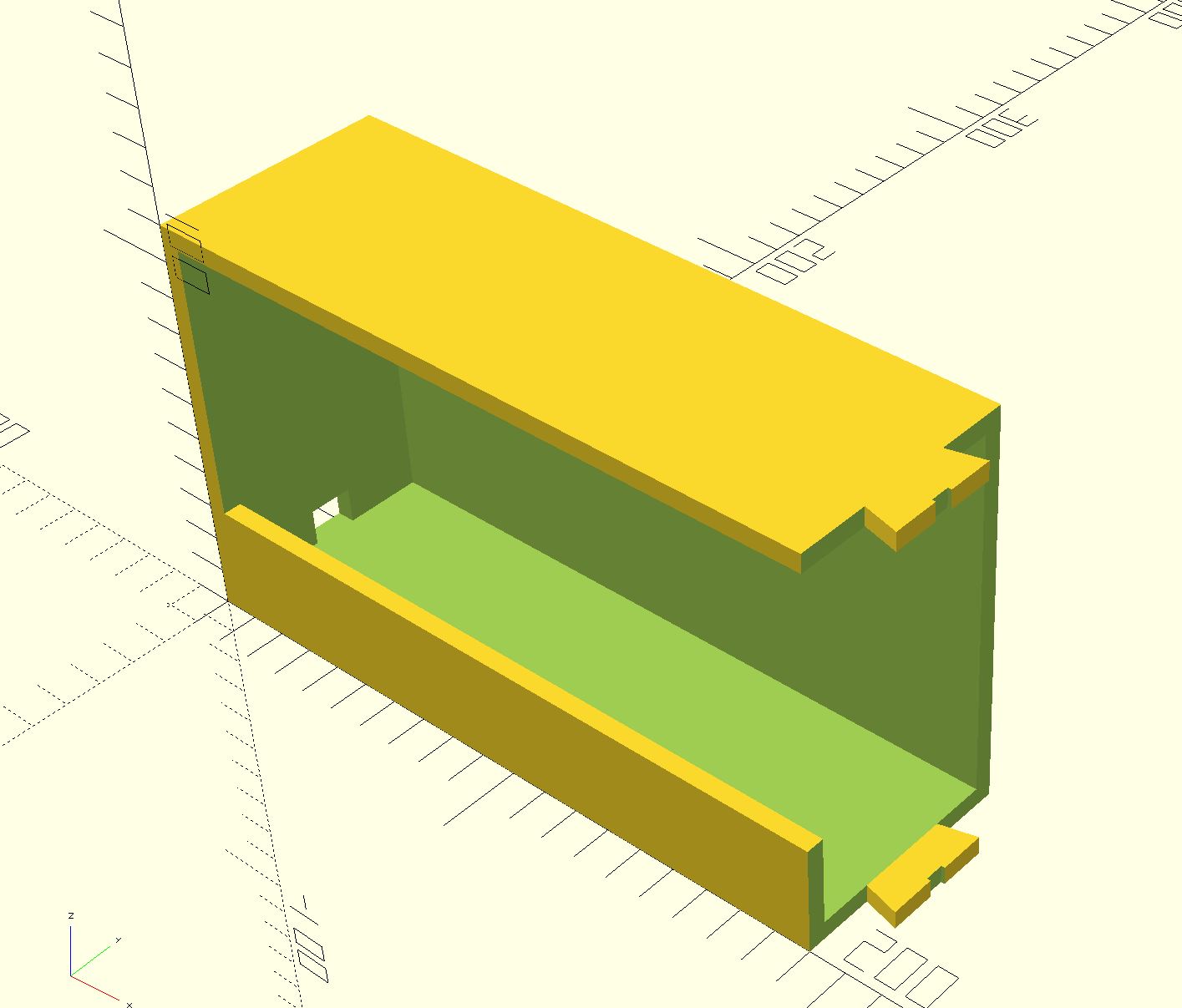

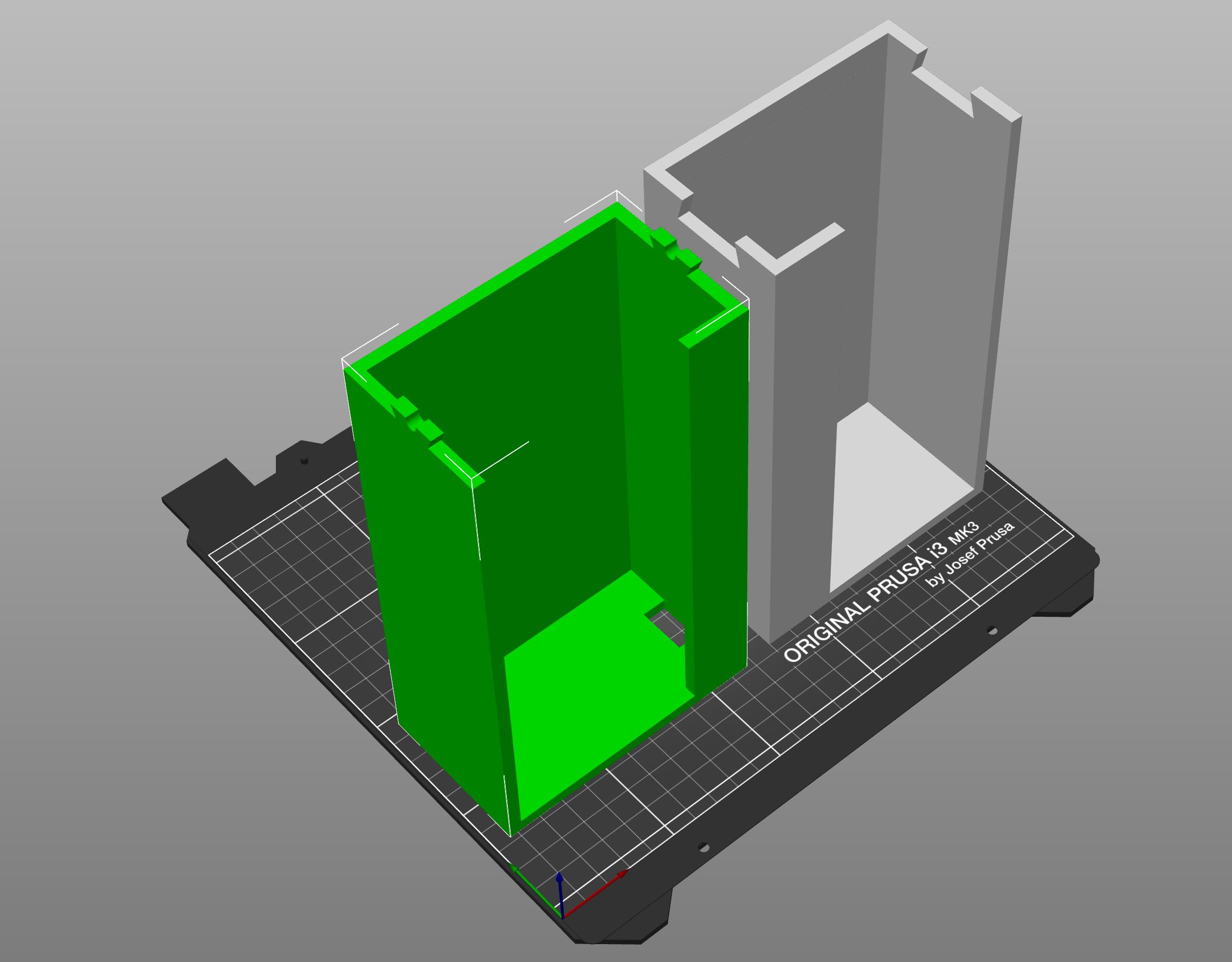

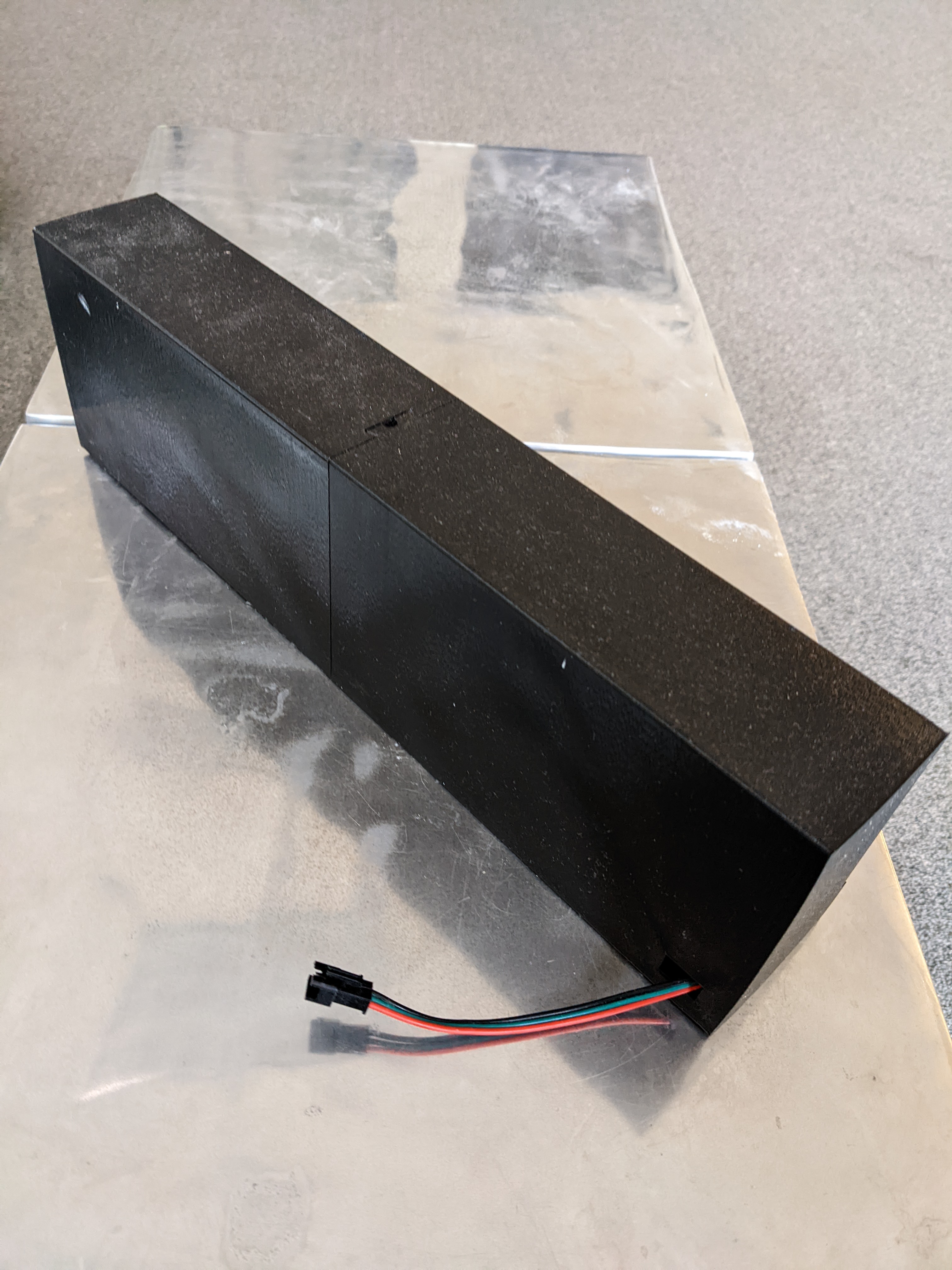

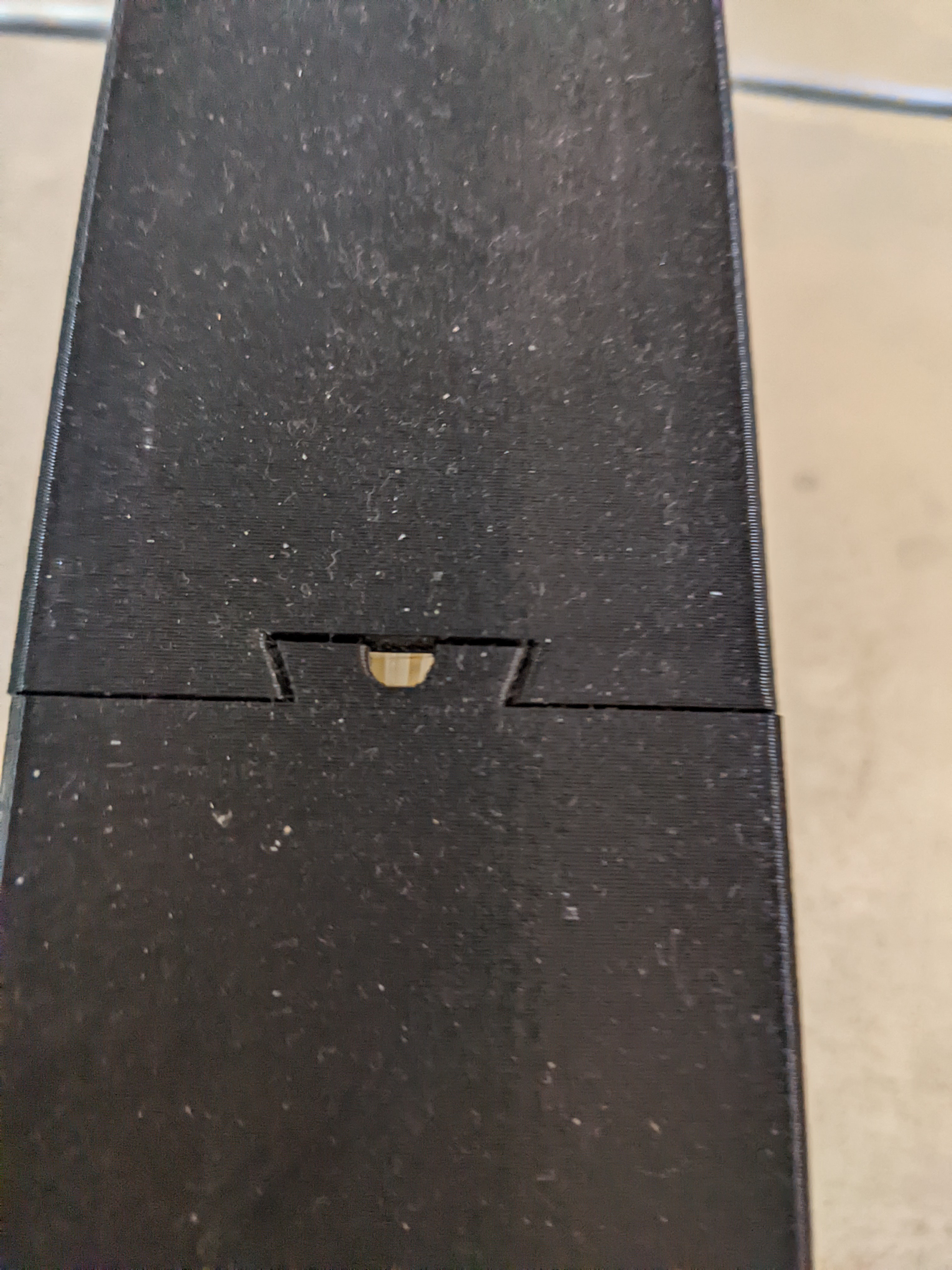

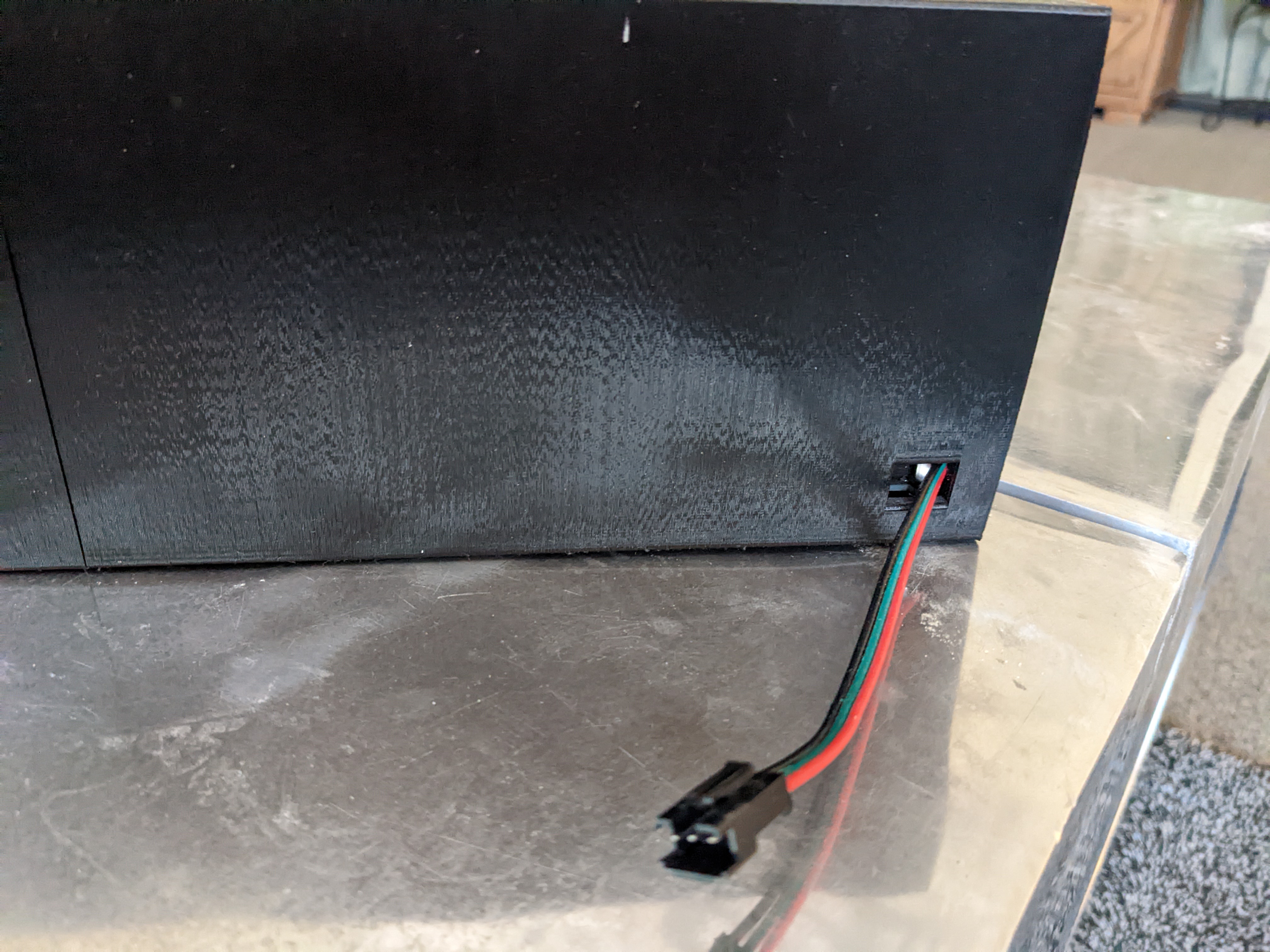

Box pieces assemble around completely assembled LED-NIXIE-M clock. Two halves interlock with dovetail joints. Hole in box allows for power cable routing. Controller (wheel) box sits external to this box. Box half heights are designed to fit on a Prusa MK3S (max Z-height = 210mm) Note this box is designed to fit the -M variant of this product, if you order the smaller or larger size, this box won't work without modifications.
How I Designed This
Designed from scratch measurements in OpenSCAD. I've included the OpenSCAD source for this model. If you are looking for custom design/modeling, feel free to drop me a line for a quote.
