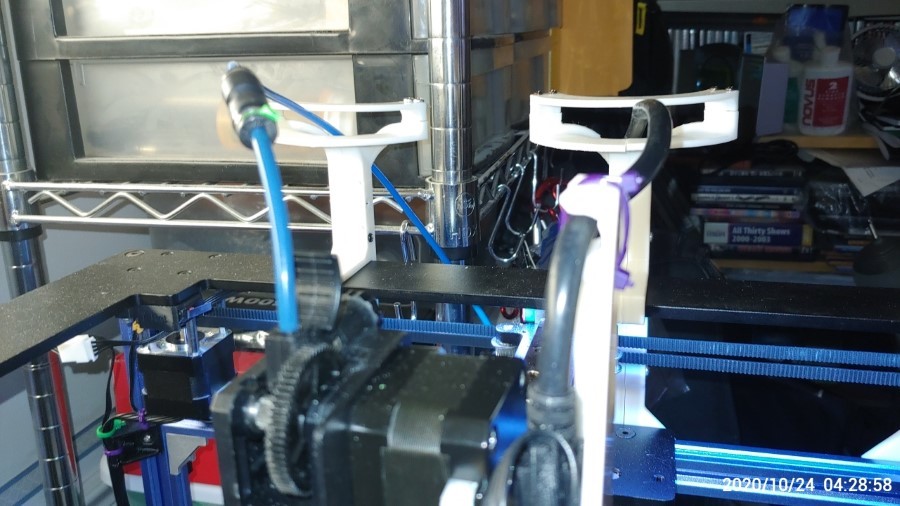

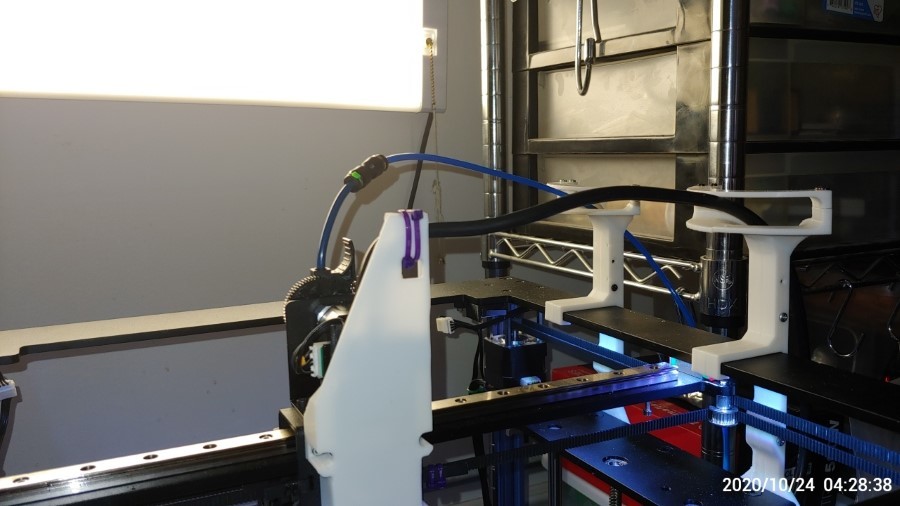

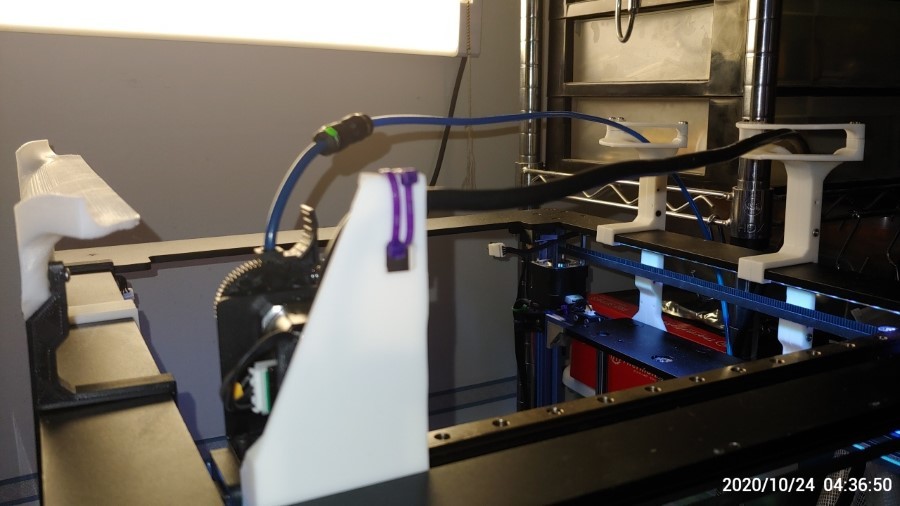

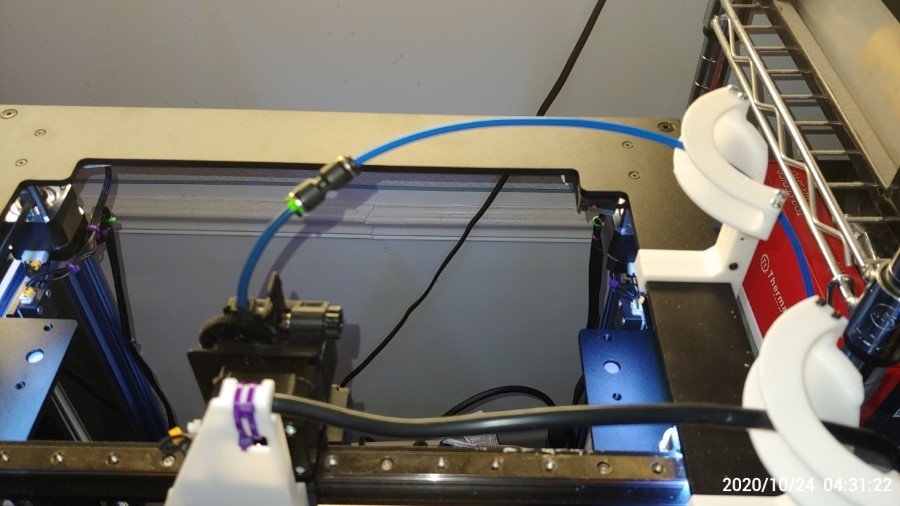

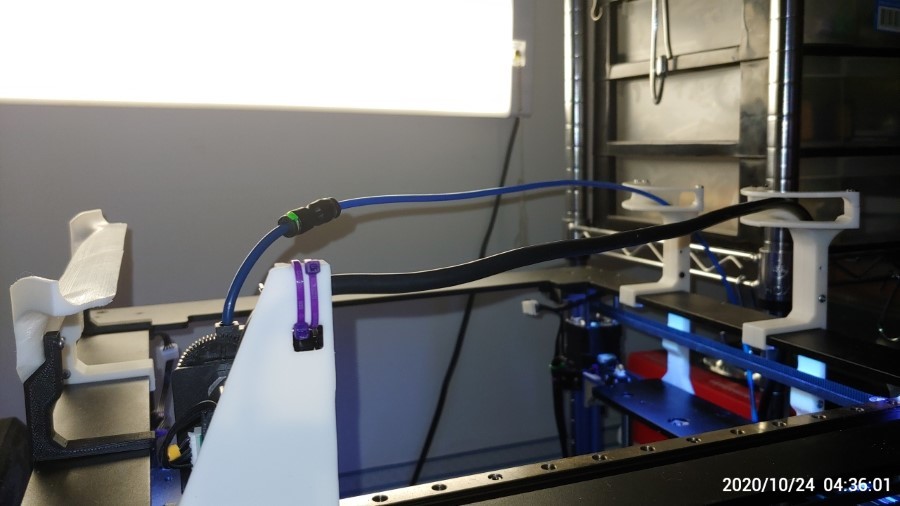

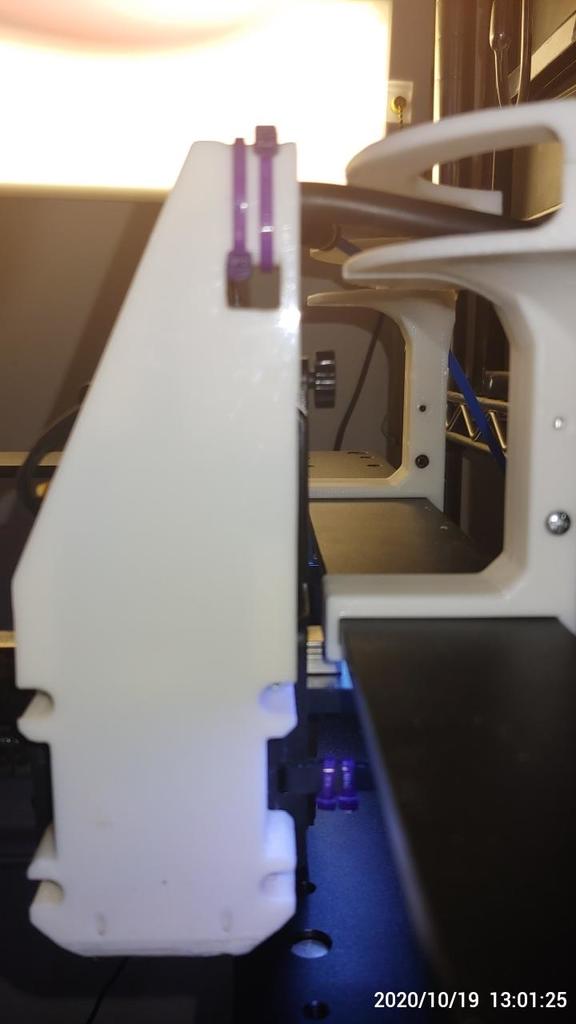

Elevates hotend cable from the controller to a strain relief mounted on the linear rail carriage assembly.

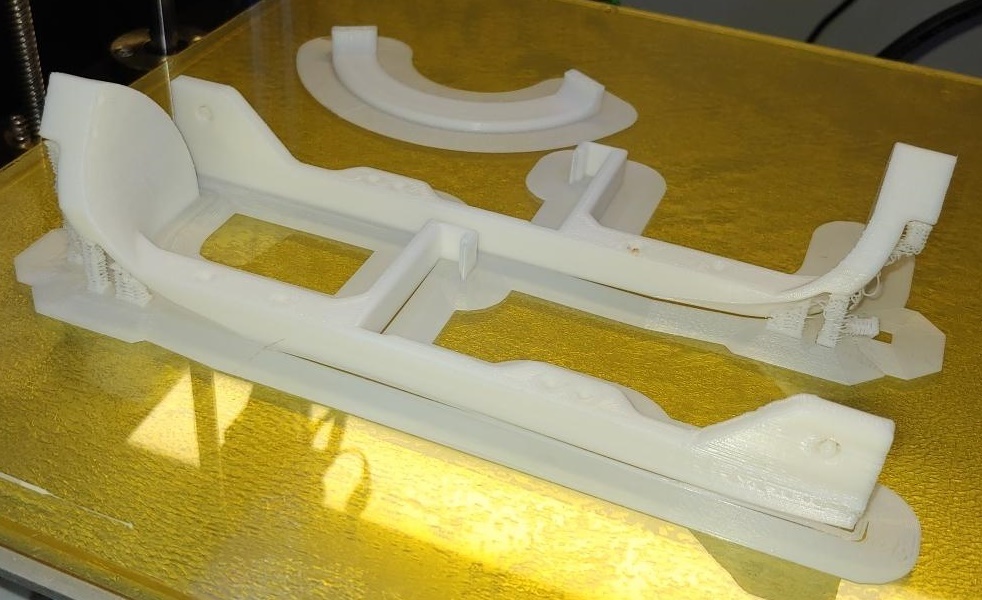

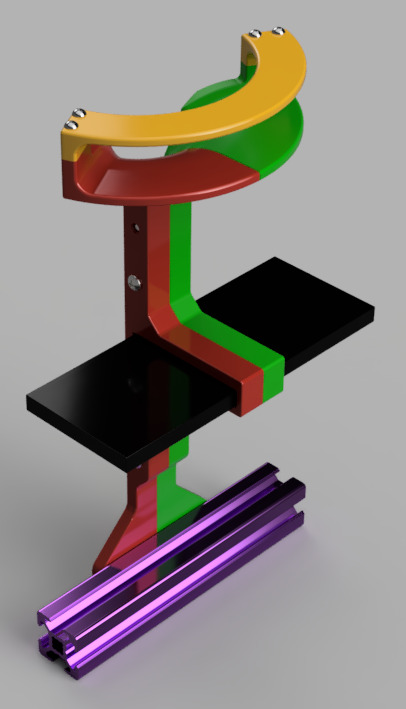

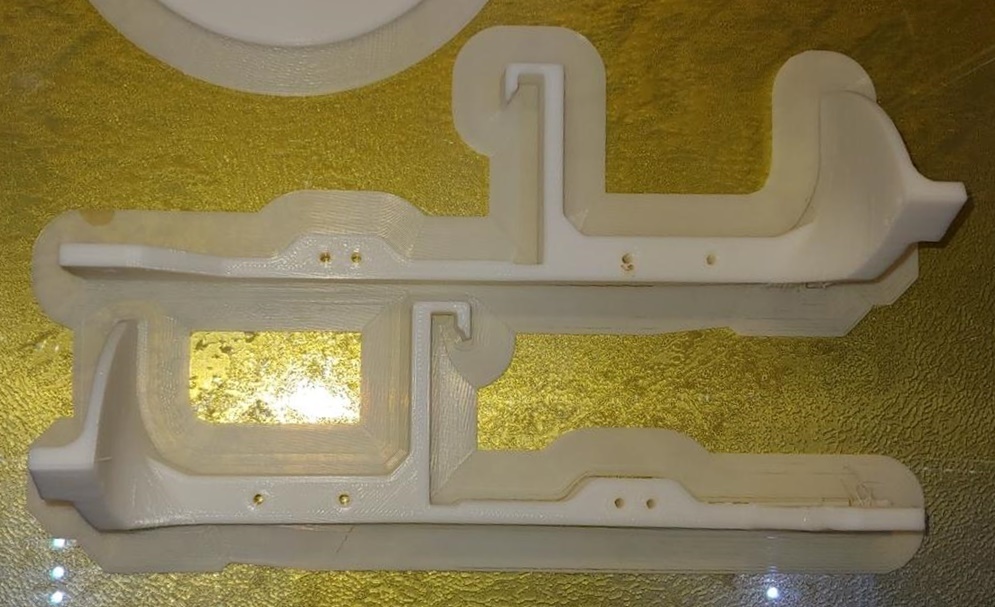

Two parts are mirror objects that are fastened together using No. 4 thread forming or M3 sheet metal screws.

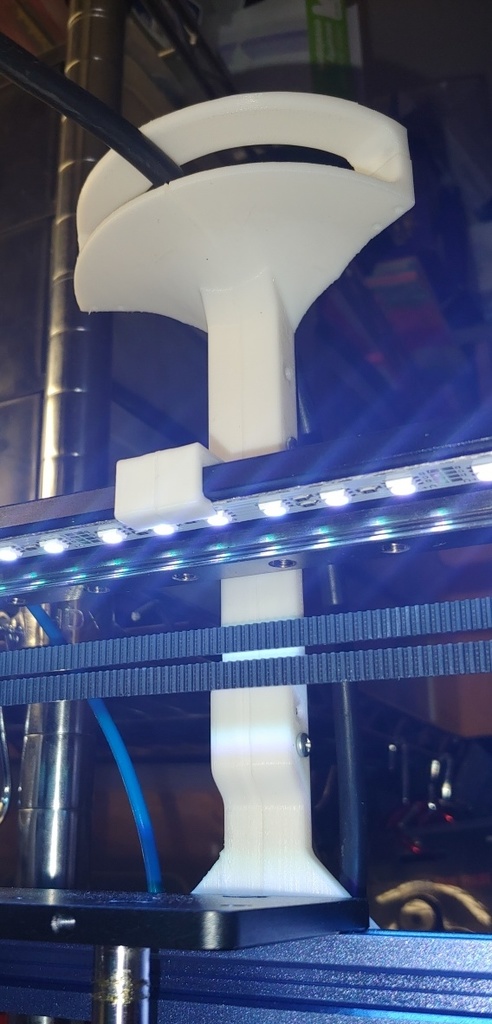

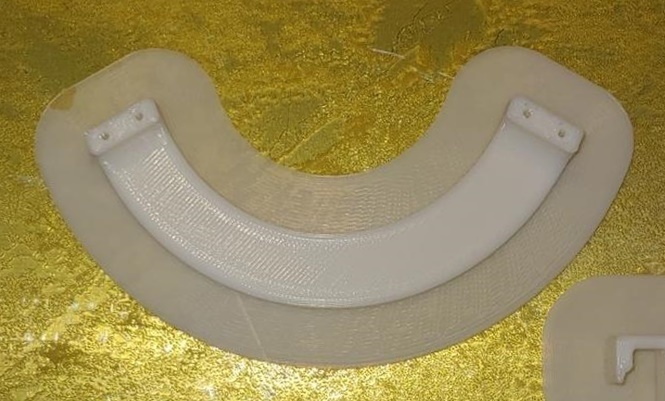

The third printed part is a cable retaining top cover attached using No. 2 thread forming or M2 sheet metal screws. It resembles almost a one quarter (1/4) ring with an outside edge that follows the same radius as the two mirrored brackets.

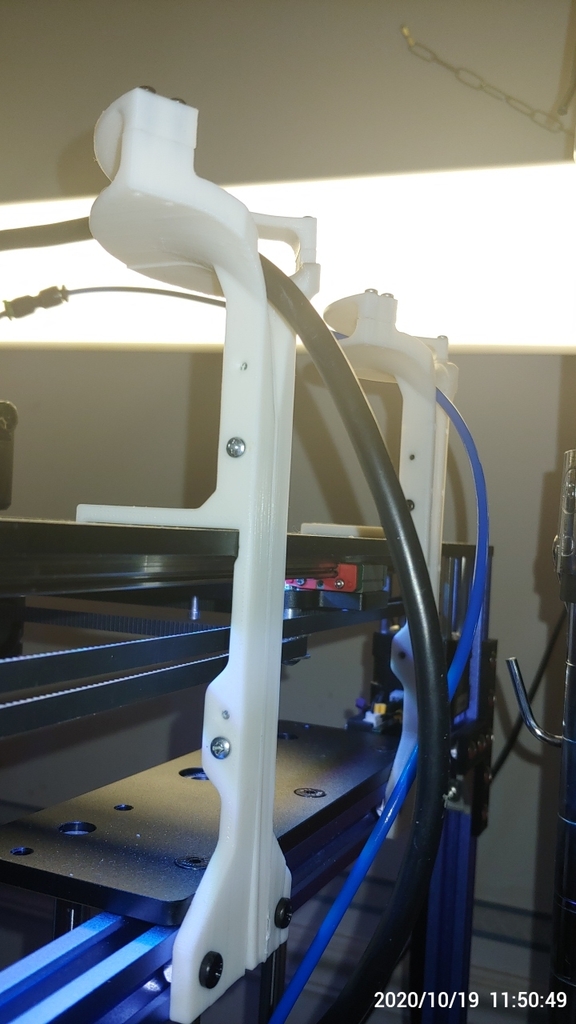

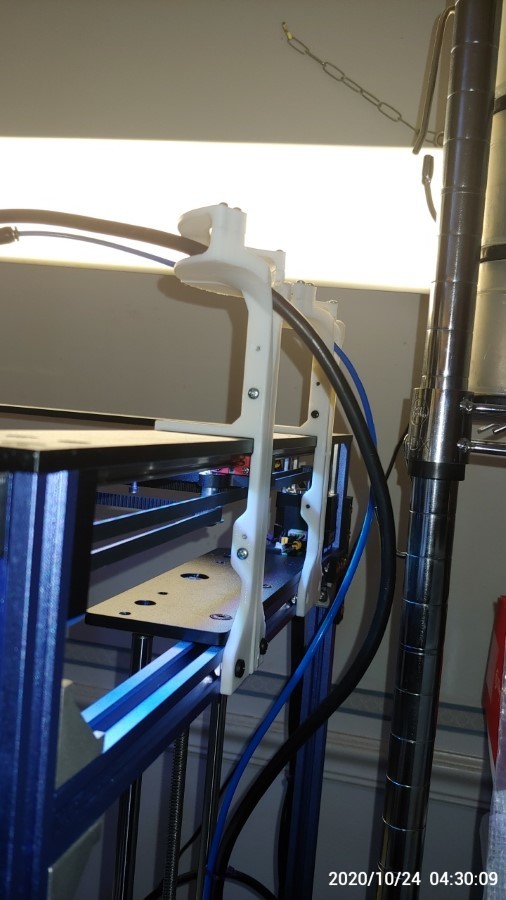

Attach the bottom of the vertical support brackets using a M4 x 8mm long screws and M4 drop-in nuts to the 2020 extrusion.
Complement Coreception Junction Cover with Hotend Cable Strain Relief:: https://www.thingiverse.com/thing:4629839
Print Settings
Printer:
SainSmart Coreception-300
Rafts:
No
Supports:
Yes
Resolution:
0.2-0.25mm
Infill:
40-70%
Filament:
Any ABS, PLA+ or PETG
Any
Notes:

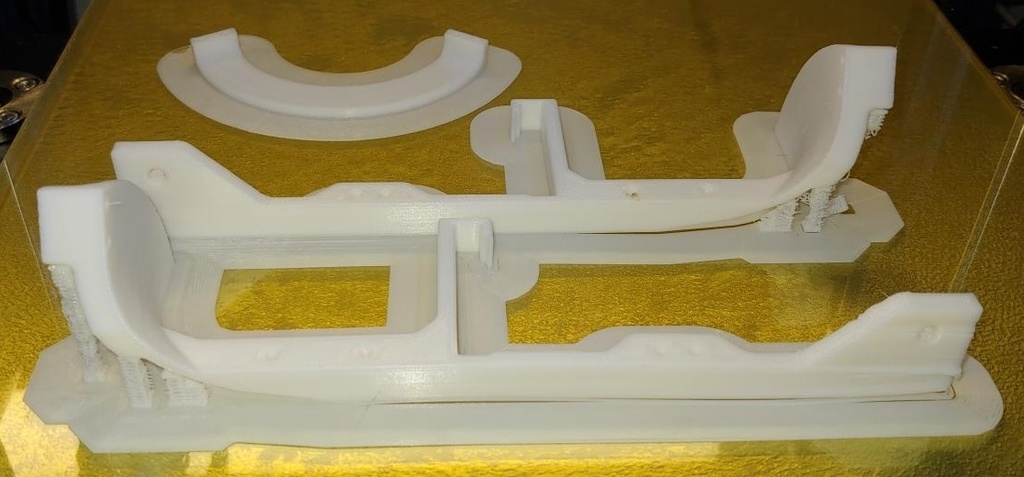

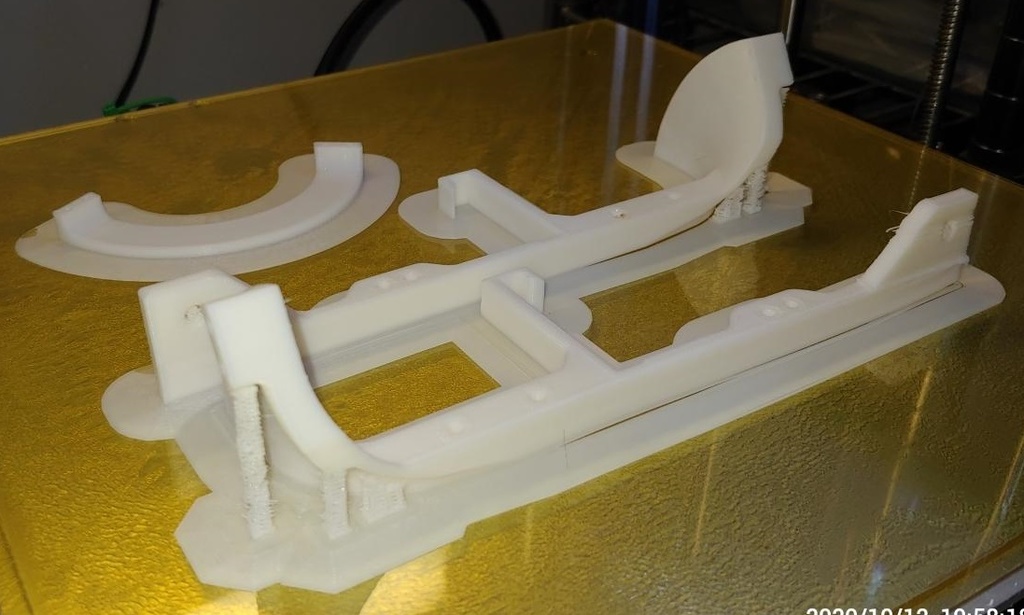

3D print with 20+ BRIM outlines
