Dogbone insulator
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Electronics
- Licencja
- Creative Commons — Public Domain
Not well tested. Use at your own risk
Here is my attempt to make reliable 3d printed insulator for my dipole antenna. Basically it's for 4mm rope/wire (6mm hole) but can be scaled proportionally.
I will attempt to use this insulators as a part of dipole antenna without center point mast so tension must be decent (4mm galvanized steel twisted line, not perfect but this is what i have on hand).
Any tests will be appreciated
Initial test:

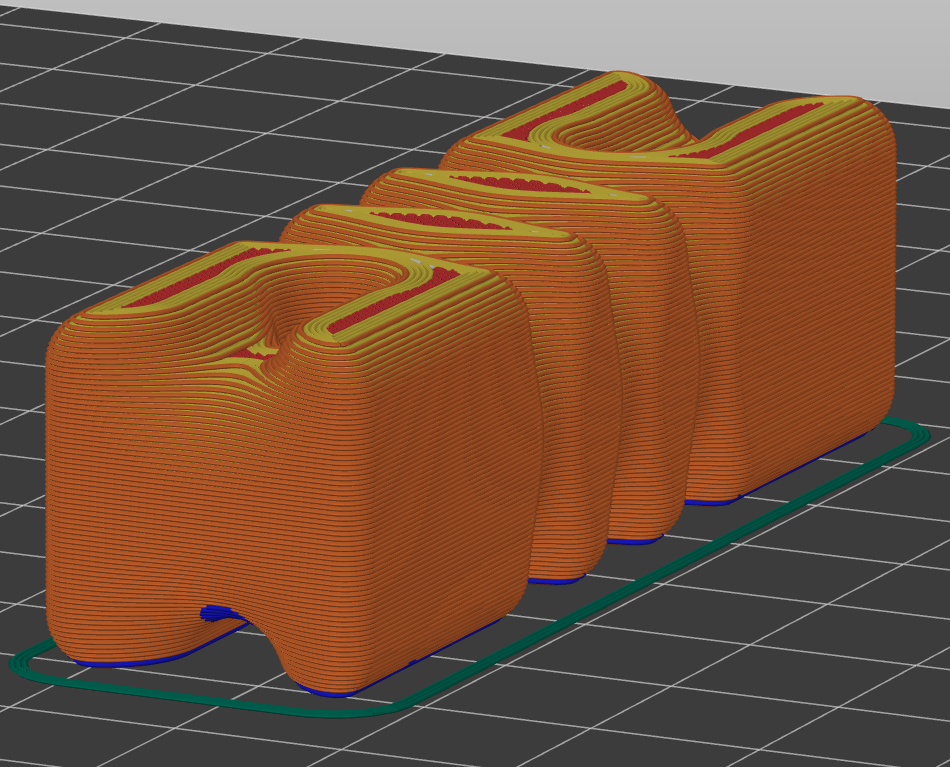

Withstood a longitudinal load of 40 kg (temperature +5 Celsius) without any cracks, damage or anything like that. Insulator was printed in PETG with 5 perimeters (0.4 nozzle), and 5 top and bottom layers (0.28mm), with layer orientation as on screenshot.
