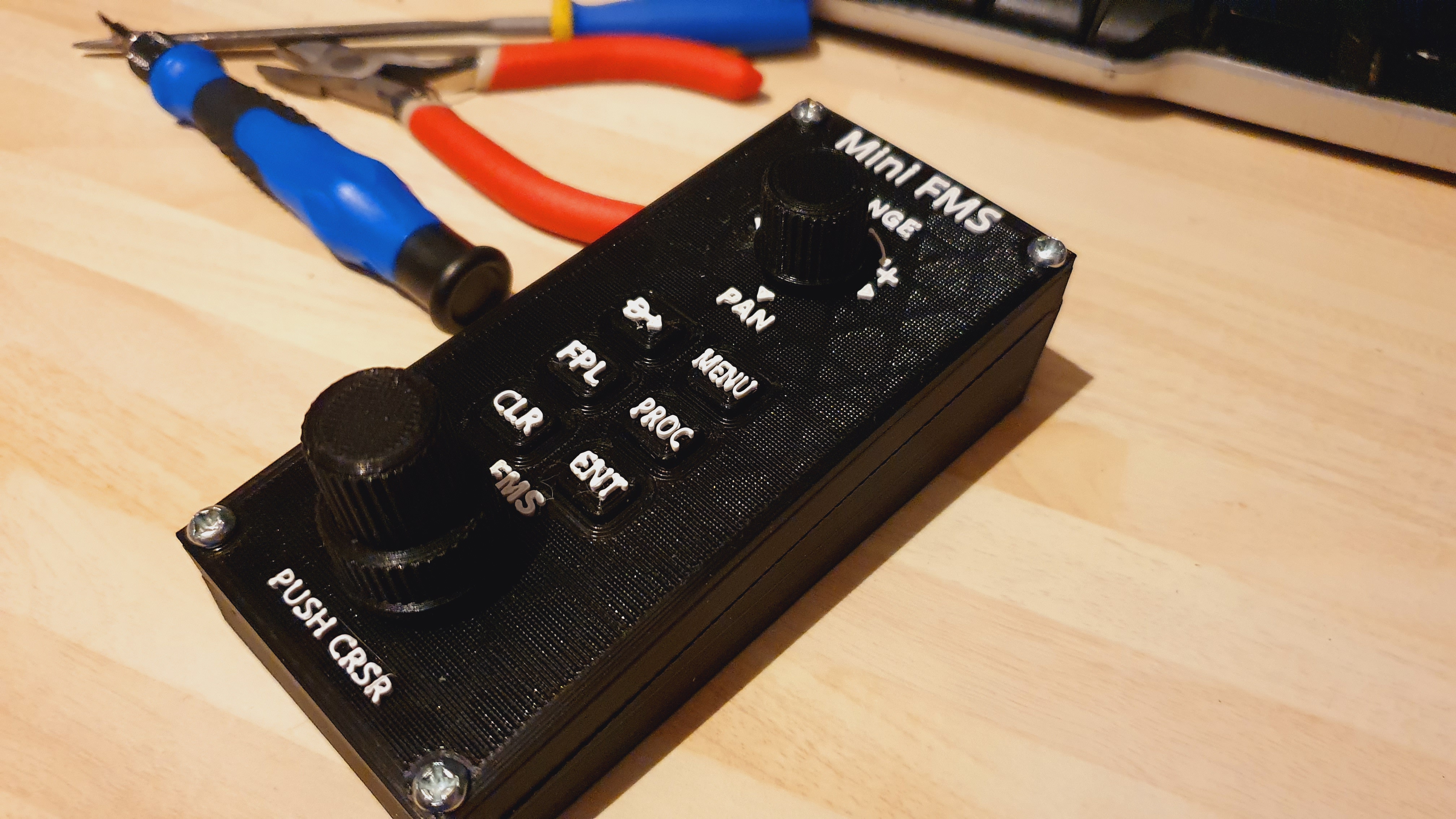

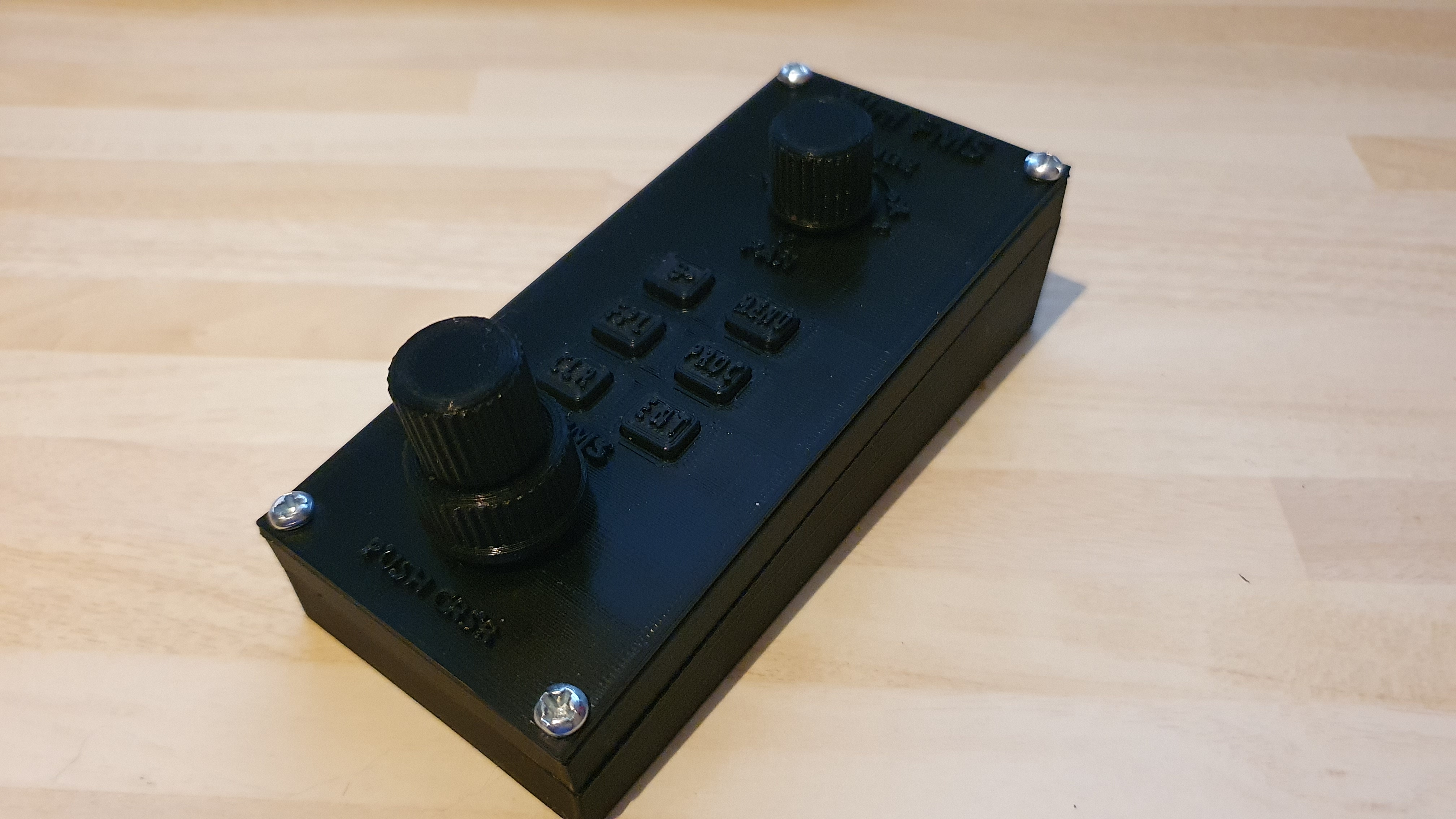

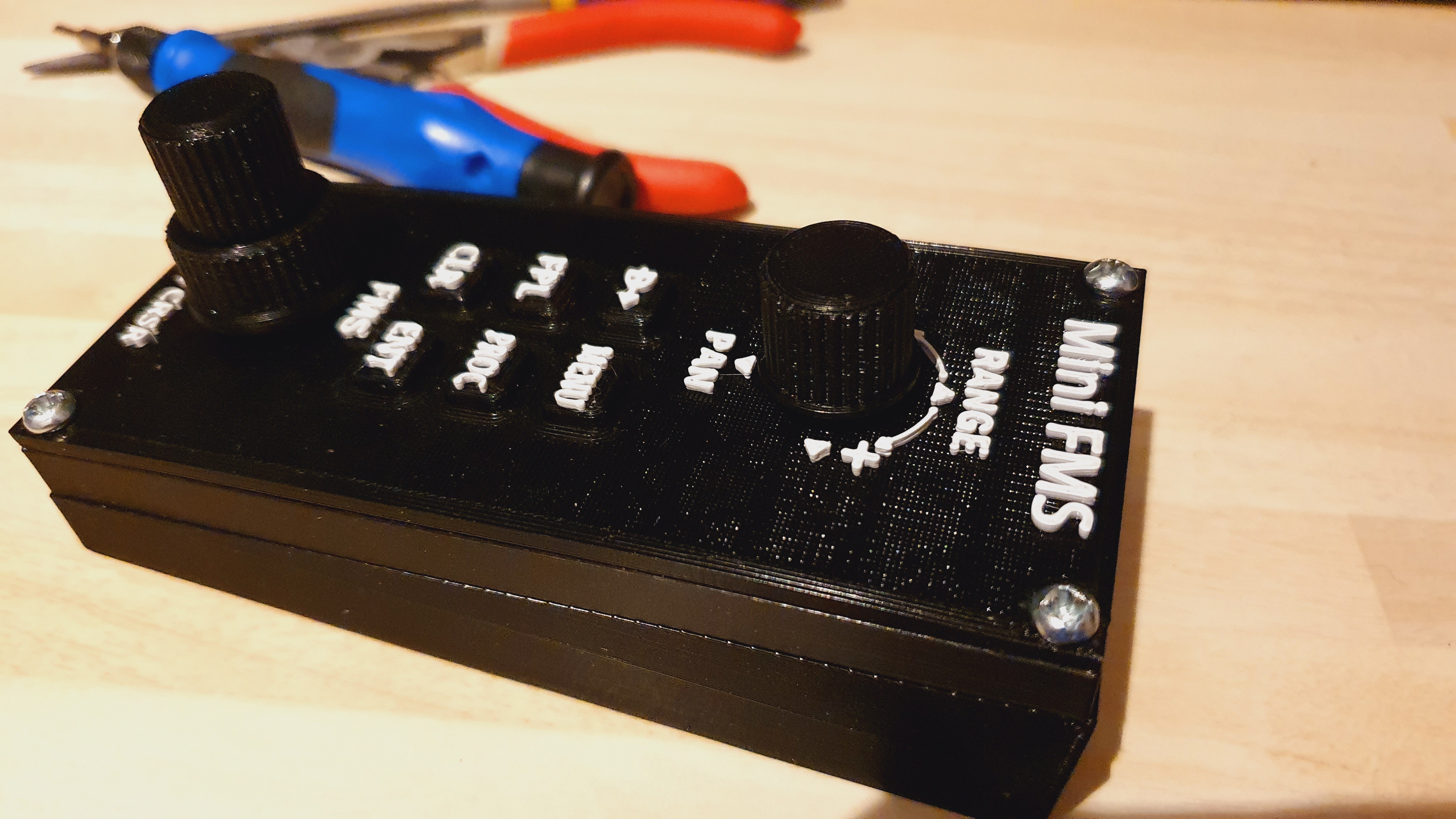

Mini FMS
Huddison Discord Server (for more information and config files) https://discord.gg/xDKwFYDsZk

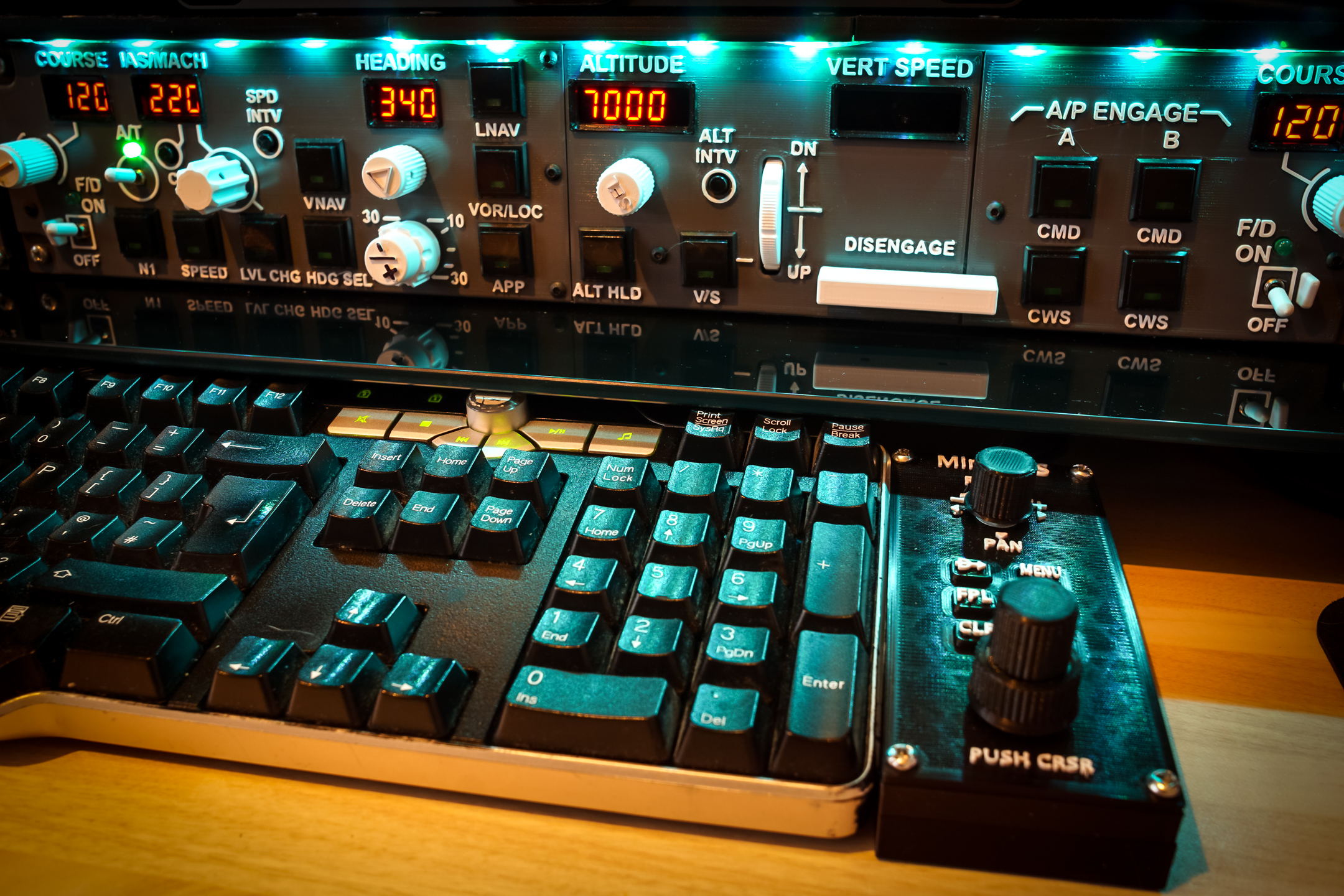

Mini Autopilot in this video is also available to make.

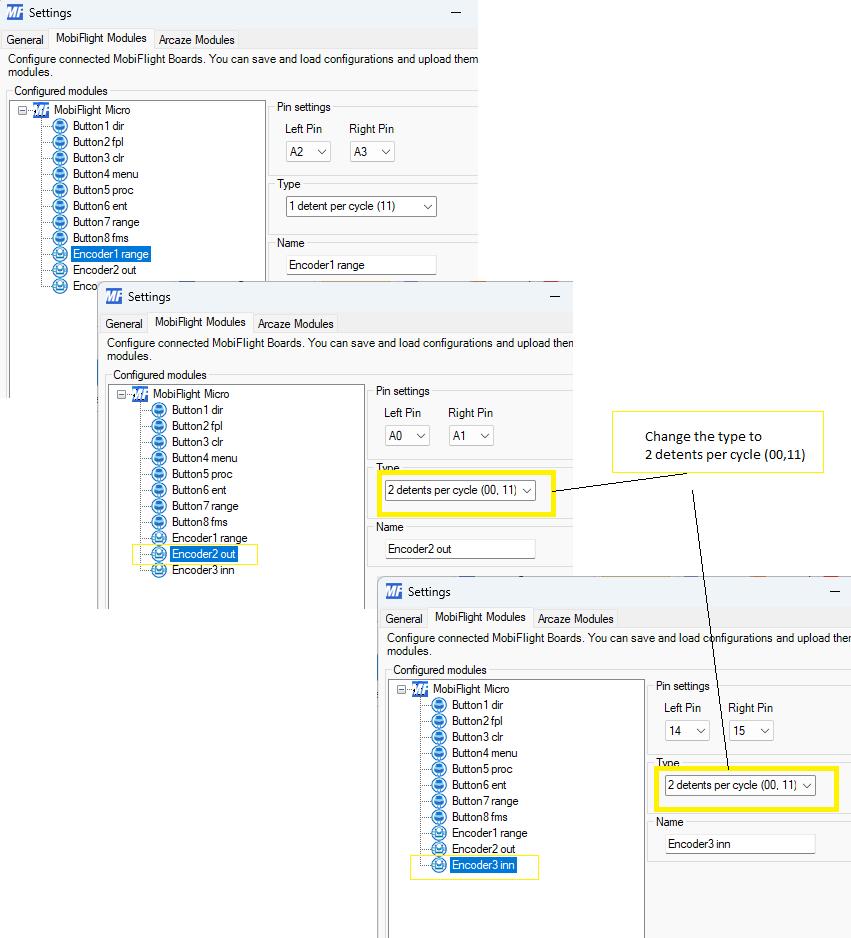

Software used - Mobiflight - https://www.mobiflight.com/

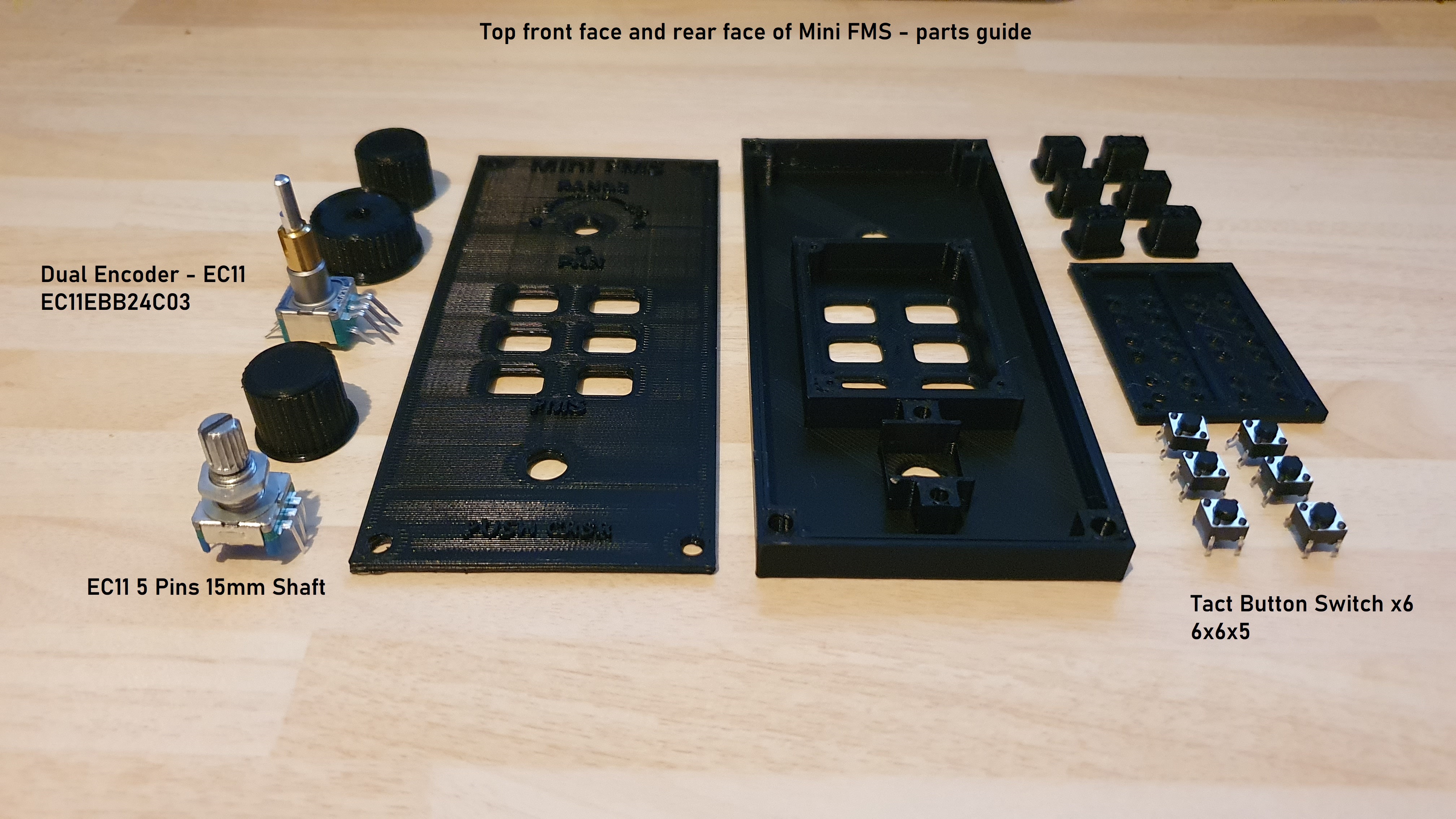

Parts list

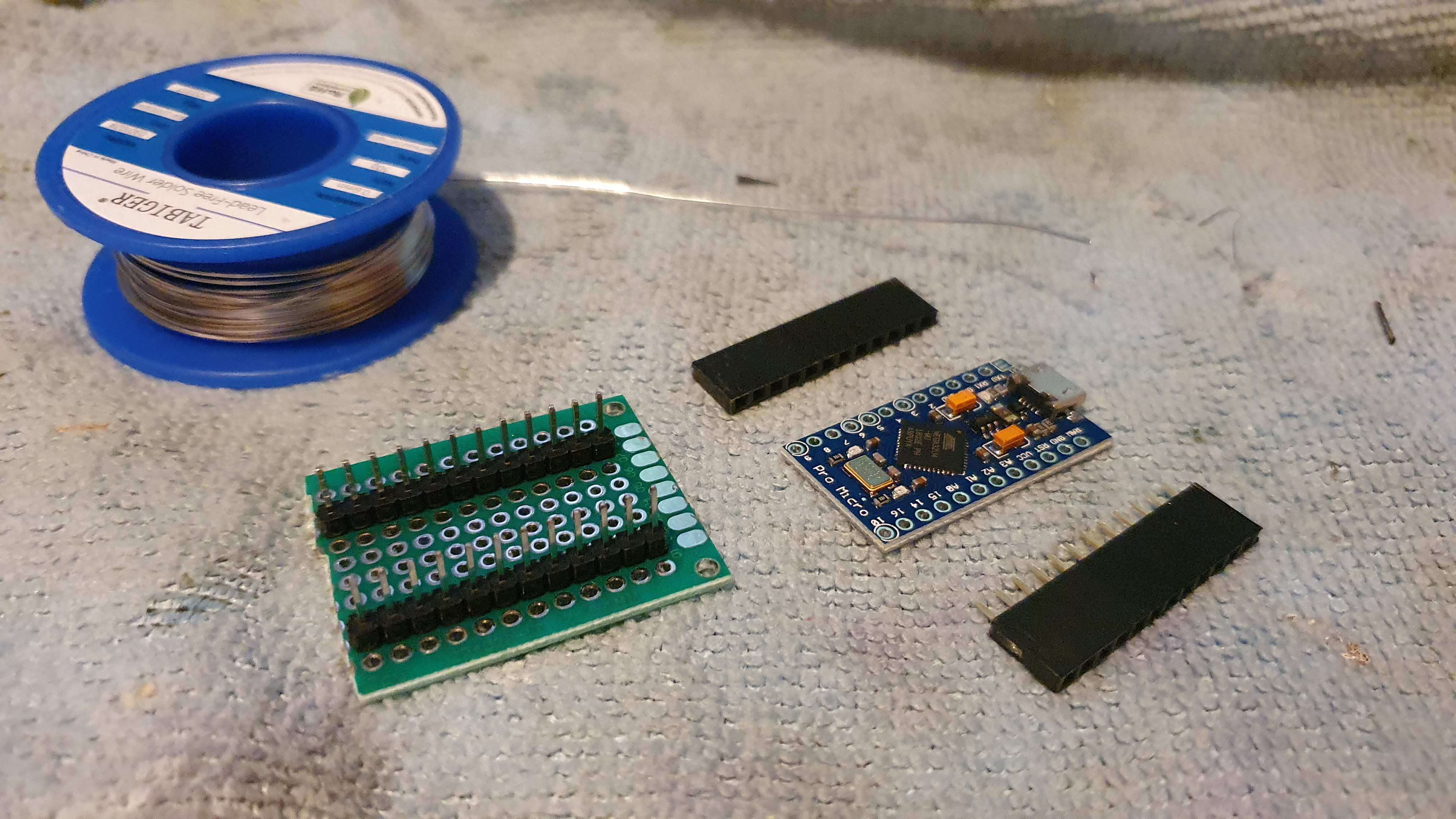

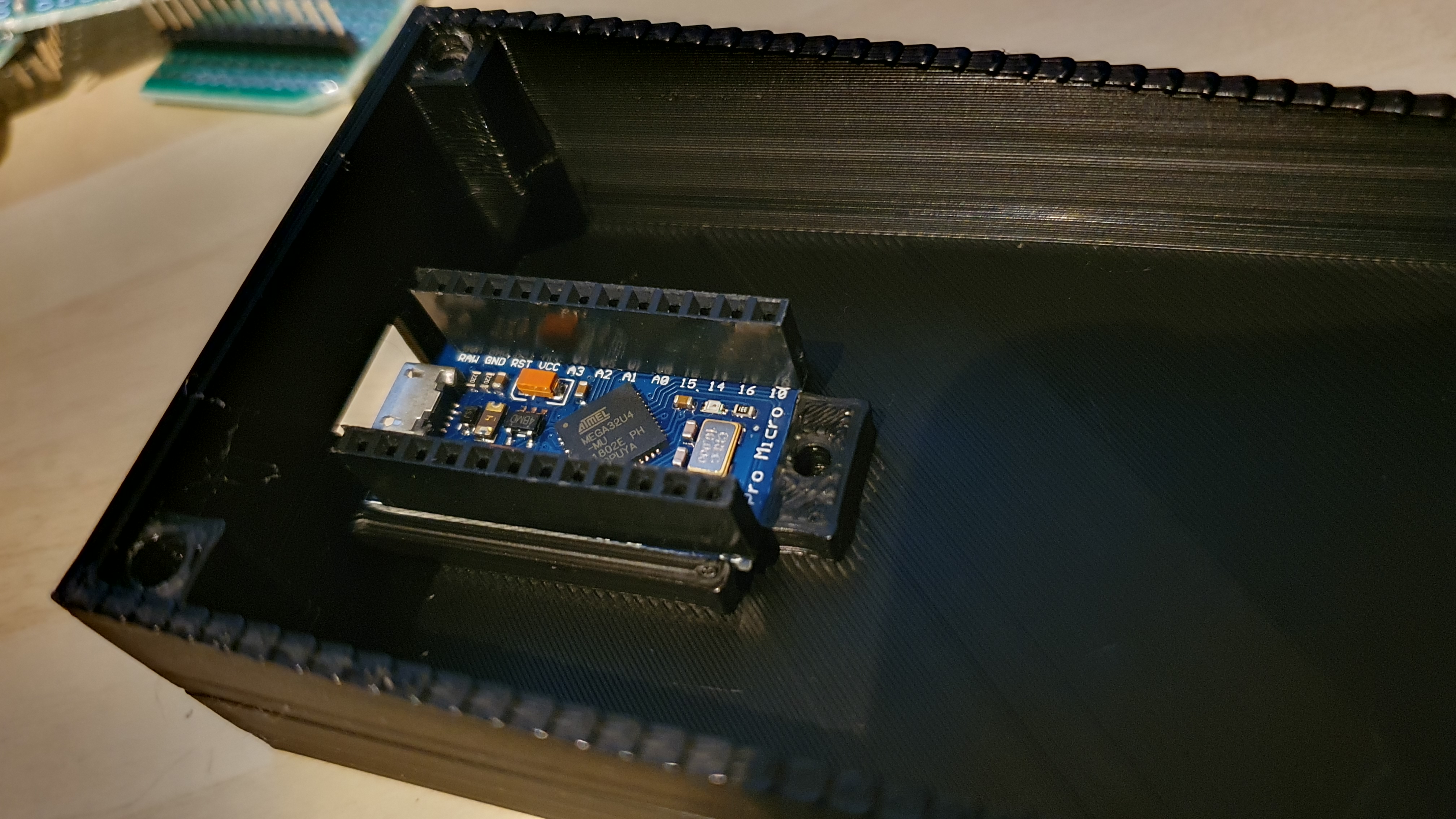

- Pro Micro ATmega32U4 16MHz 5V Micro USB Micro-Controller Board
- 6x Tact touch push button switch (6x6x5mm)

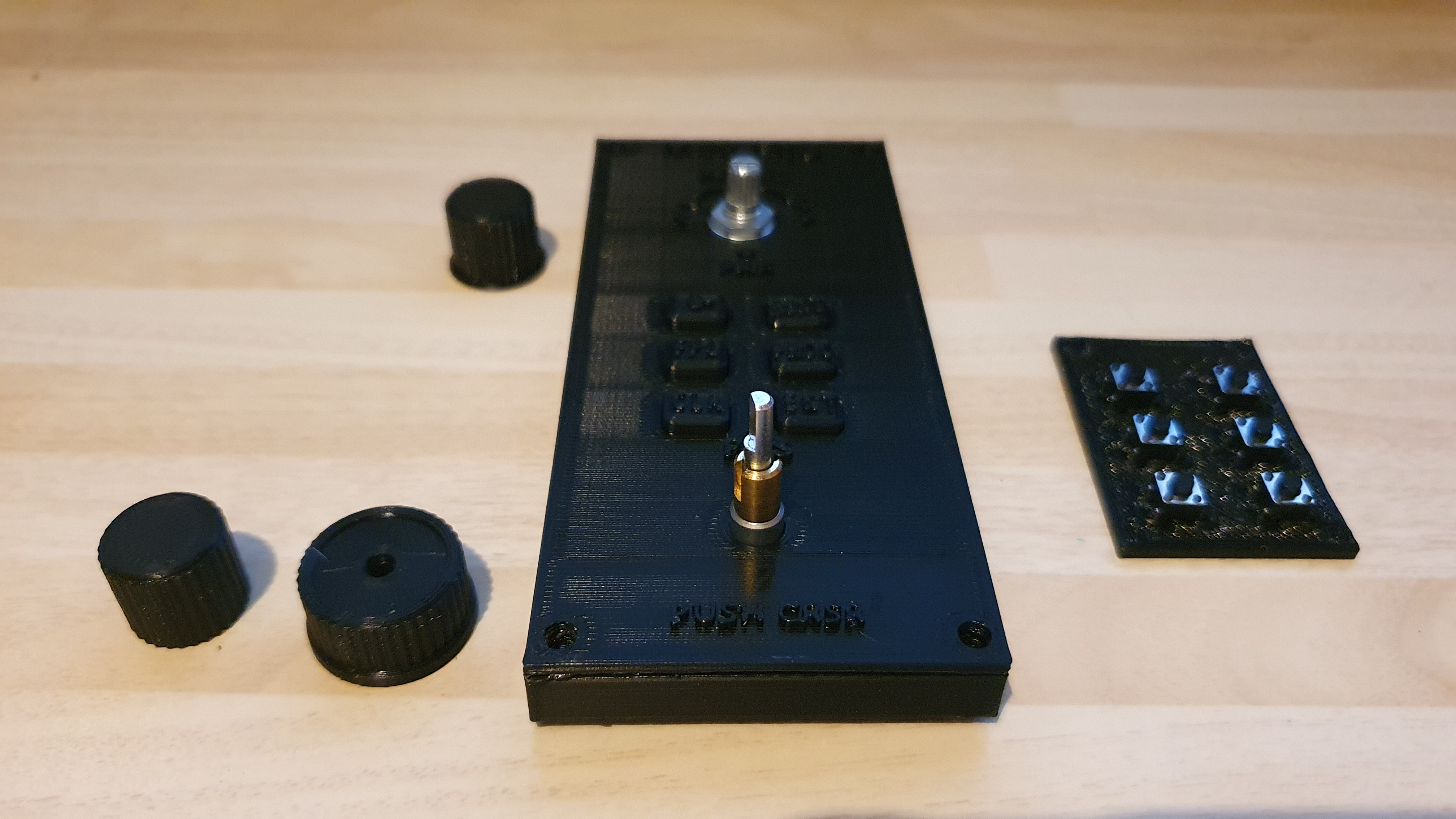

- 1x Dual encoder with switch (EC11EBB24C03)
- 1x Single encoder with switch (EC11 15mm round shaft 5pin)
- 2x M3*8 bolts/screws (for encoder clip)
- 4x M2*5 screws (for tact switches)
- 4x m4*20 pan head screws or similar (for case screws)

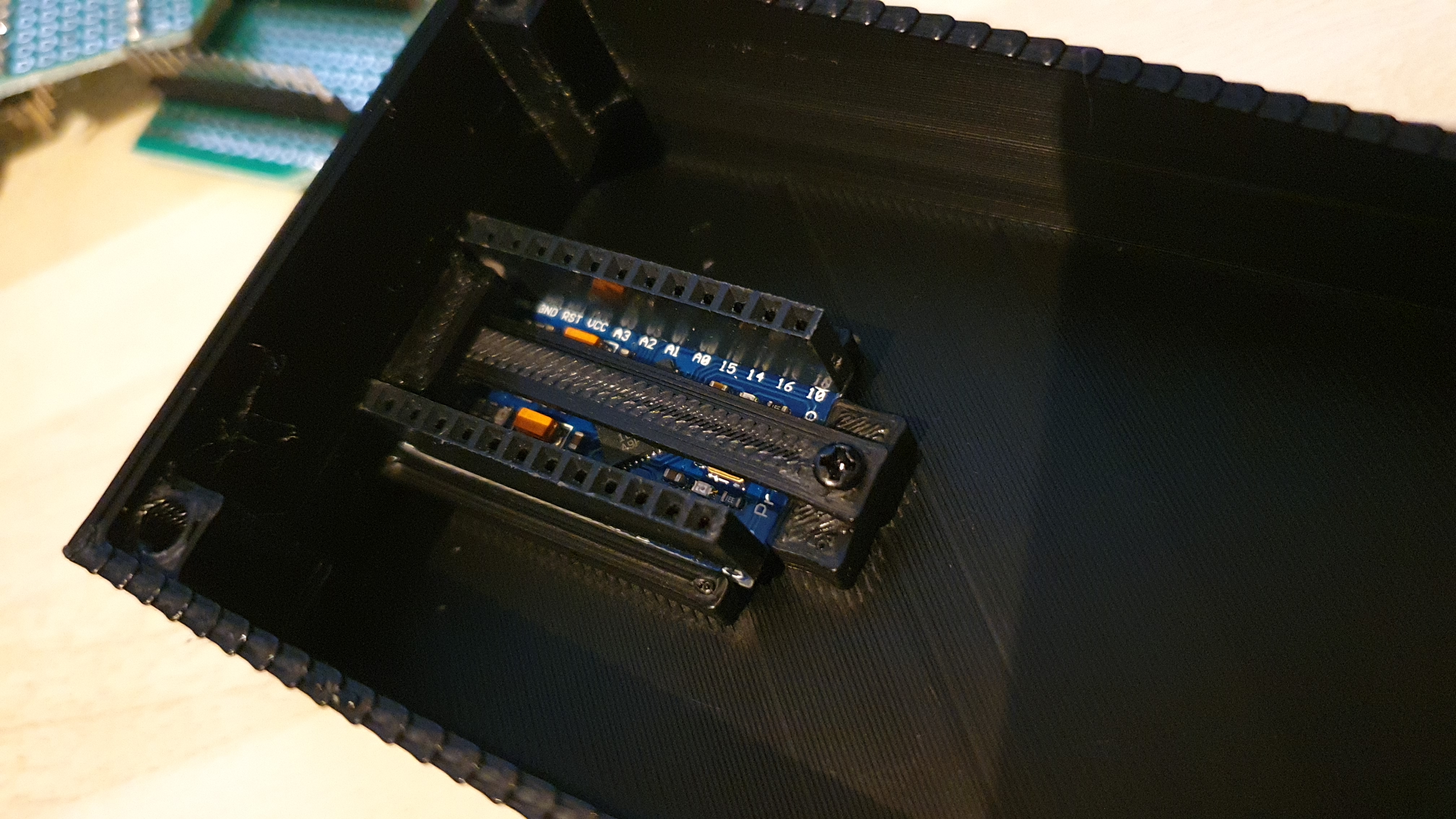

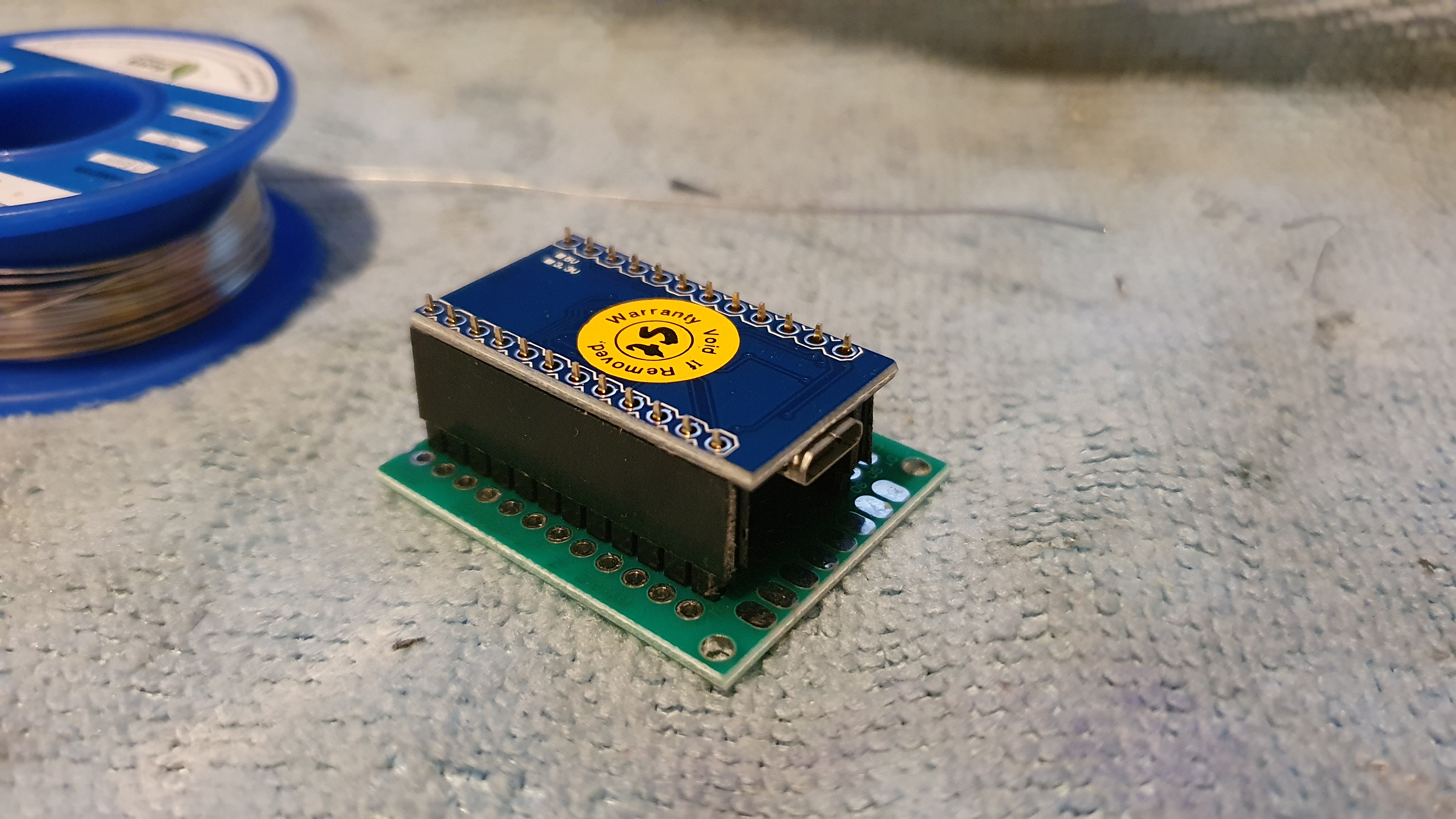

- Optional PCB mount/male pins/female pins (for Arduino quick release)
- White paint marker for lettering (optional)
Wire used for soldering parts to PCB mount - 22 AWG 0.35mm² Electronic Wire

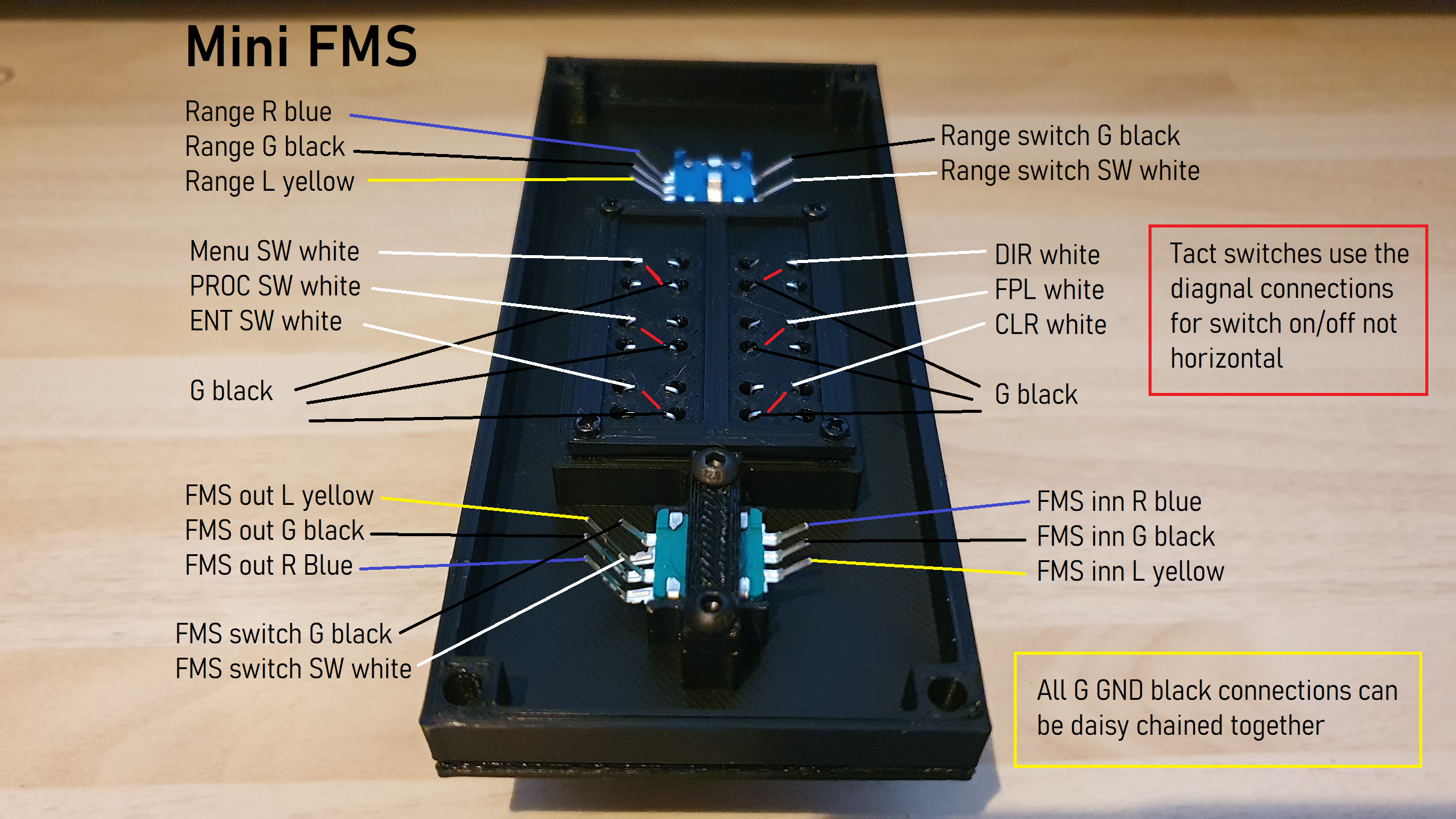

Wiring diagrams, Mobiflight setup and build instructions to follow asap
Presets included within the zip file for download

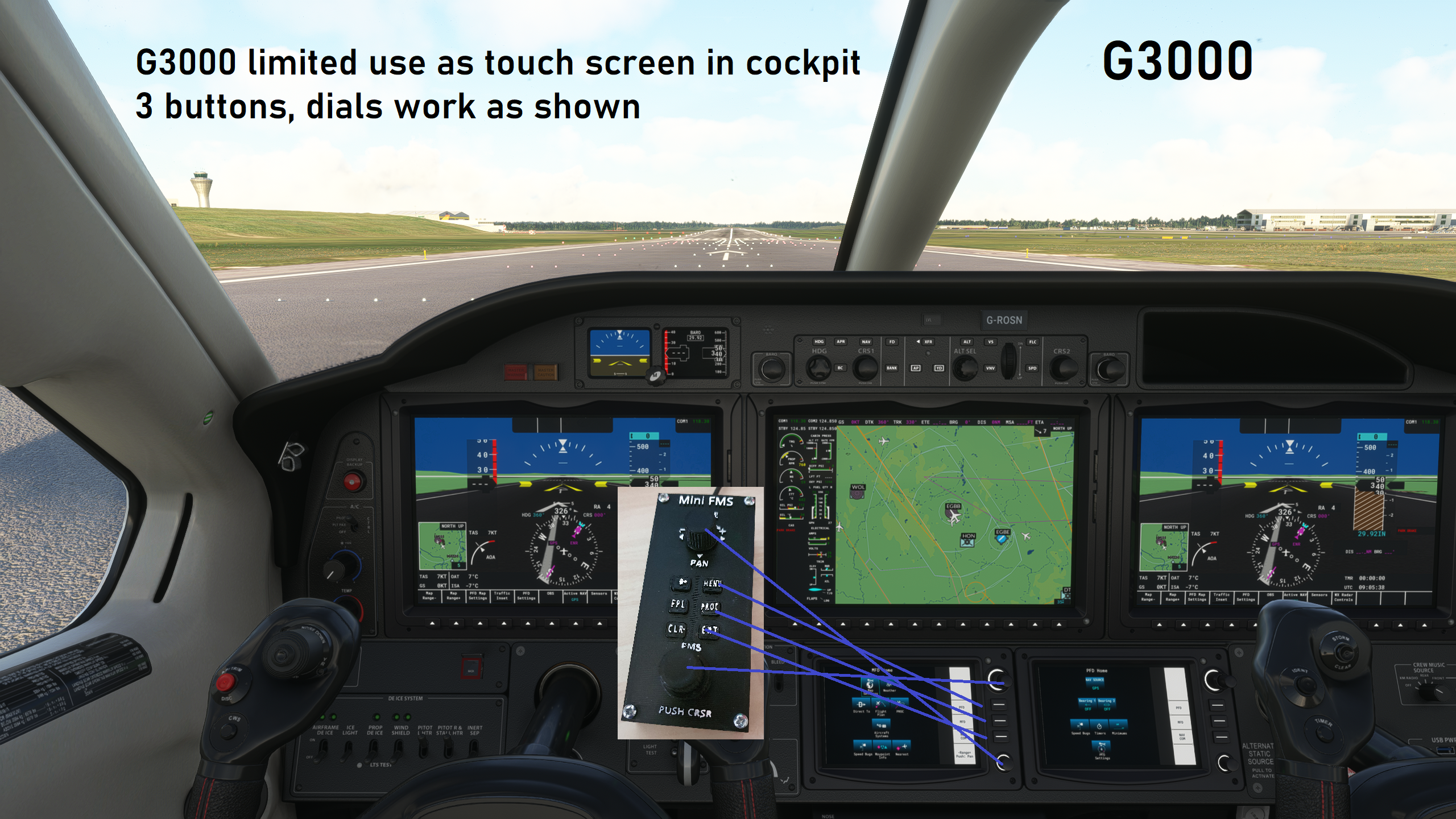

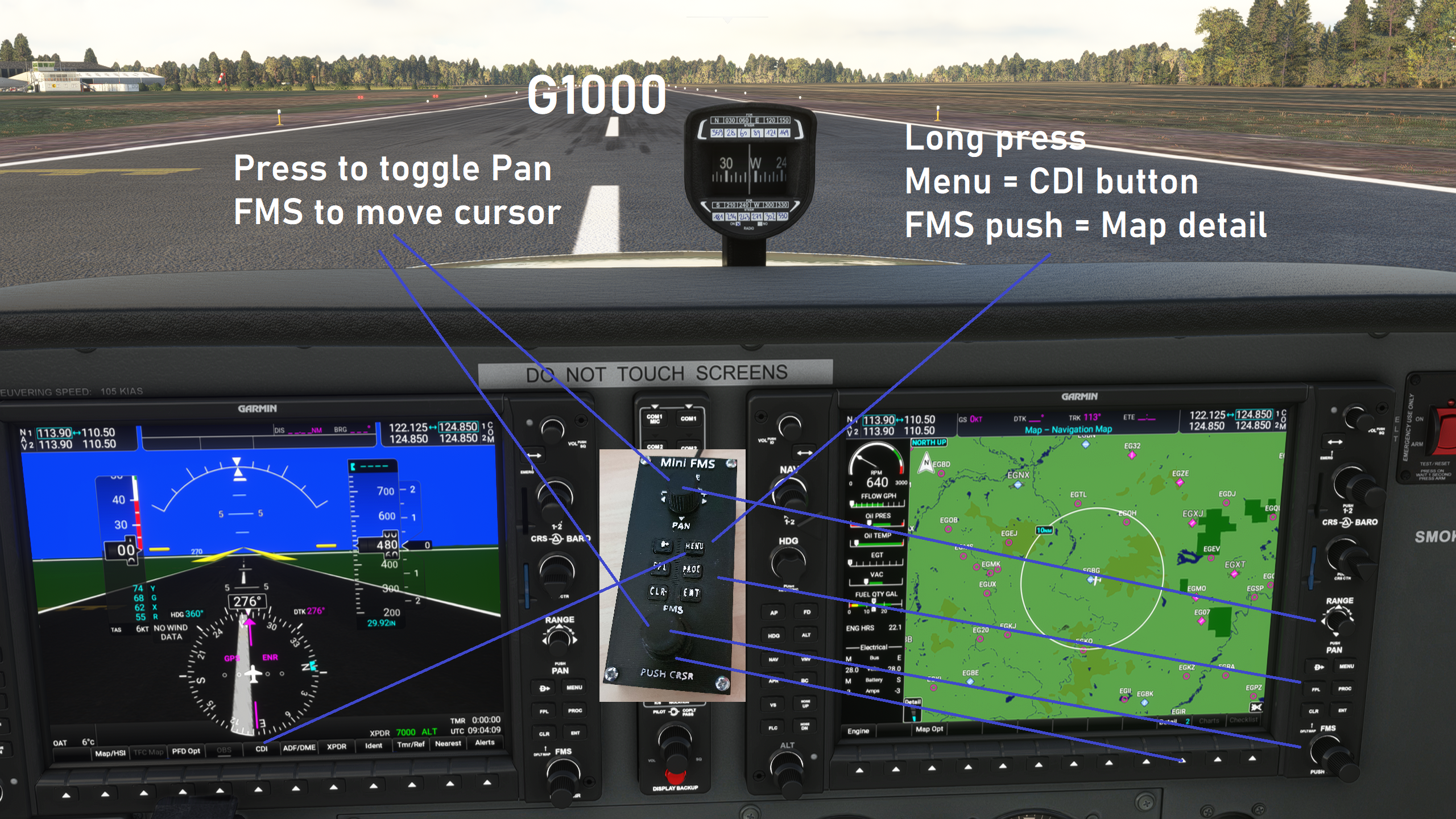

G1000, GNS530, GNS430, G3000, G3X, GTN750
Please leave feedback, comments, thanks.
As requested by the Flight Sim community - Huddison's Flight Sim Club Discord
