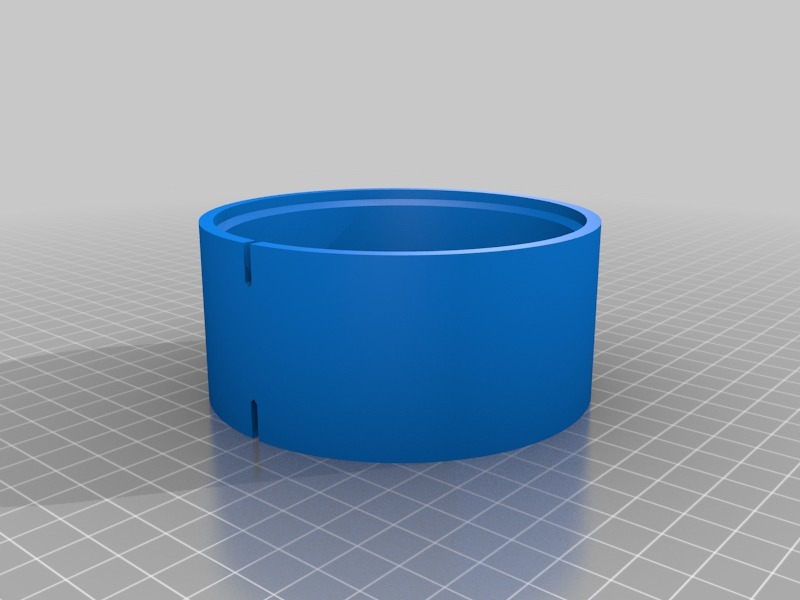

I designed this adapter ring to recycle an empty esun filament spool to accept MasterSpool refill coils.
I don't know if all esun spools are the same. The core of mine had a diameter of ~91mm.
The adapter has an outer diameter of 102mm and a width of 46mm.
Note: The Fusion 360 source file is included, so you can modify it to fit your needs.
Post-Printing
Step 1 (this is actually pre-printing not post-printing)
Take apart the spool and take measurements to make sure this adapter will fit.
Step 2
If it looks like it would, print the adapter.
Step 3
While it prints, shorten the core of both halves (measure twice, cut once! ;)). The new inner width of our spool will be 46mm. But it is a good idea to remove a little more material to ensure a tight fit.
Note: You have to do this on both halves, because the screw holes don't leave enough material to remove everything from just one side.
Step 4
Align the cutouts for the filament end, add your refill coil and reassemble everything.
Step 5
Done. :)
