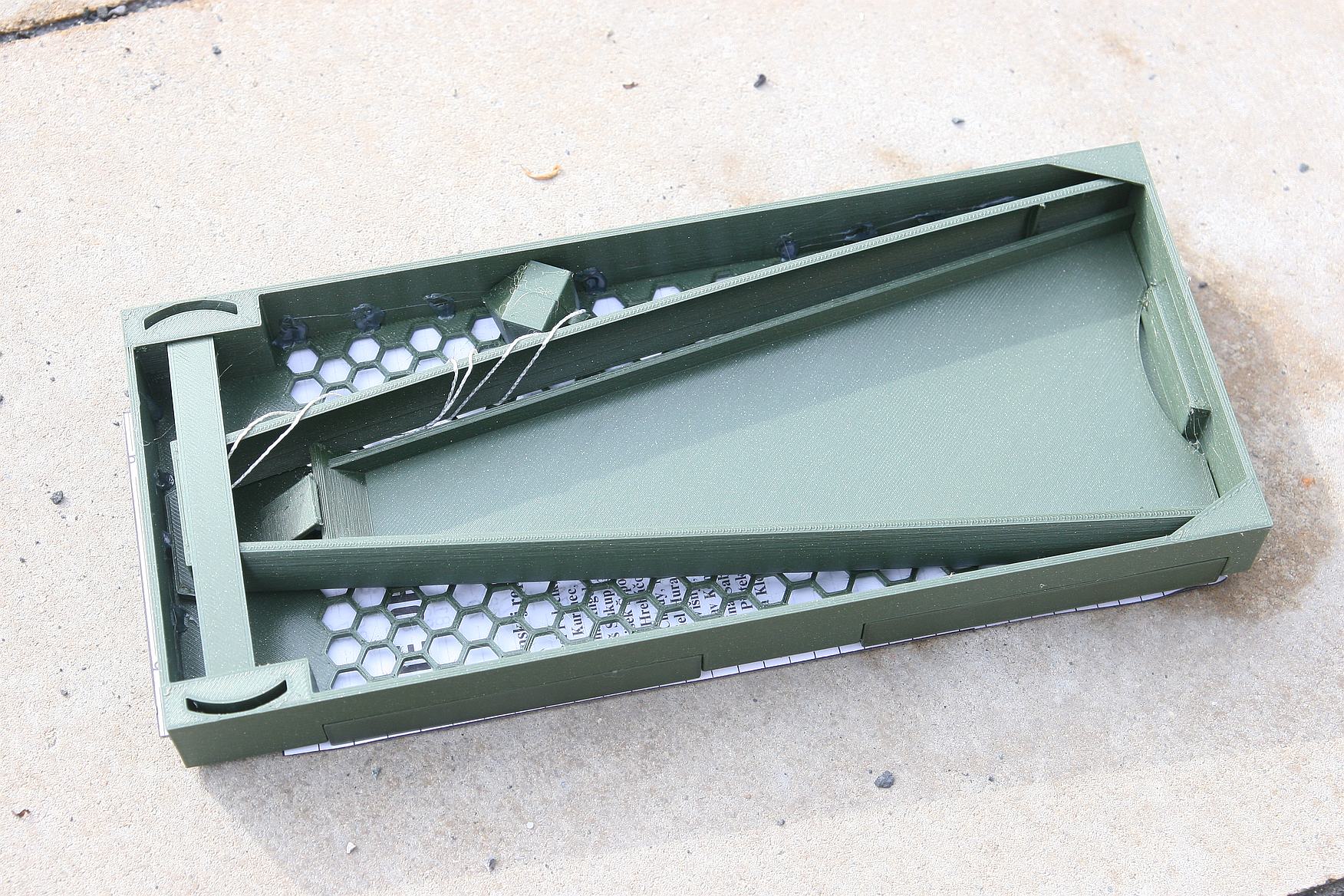

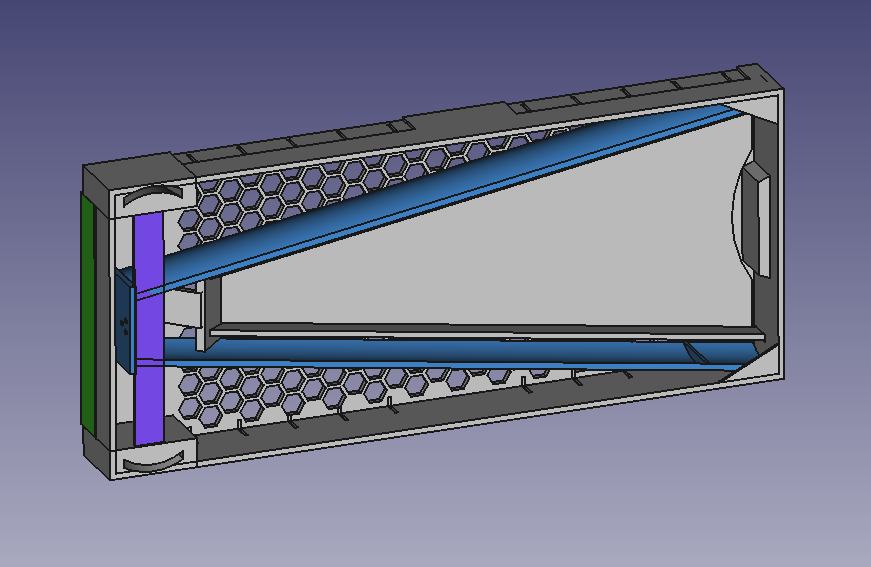

Plumb line piece needs to be printed as set of two and then glue it together, possibly with something heavy inside. Clips needs to be printed 5 times and glue to the sides of base plate. Other parts are not glued as can be folded into transportation position inside base plate. Holder plate must be inserted into holes on bottom side by slightly bending it to fit inside. It holds pieces in transporation position (picture 2).

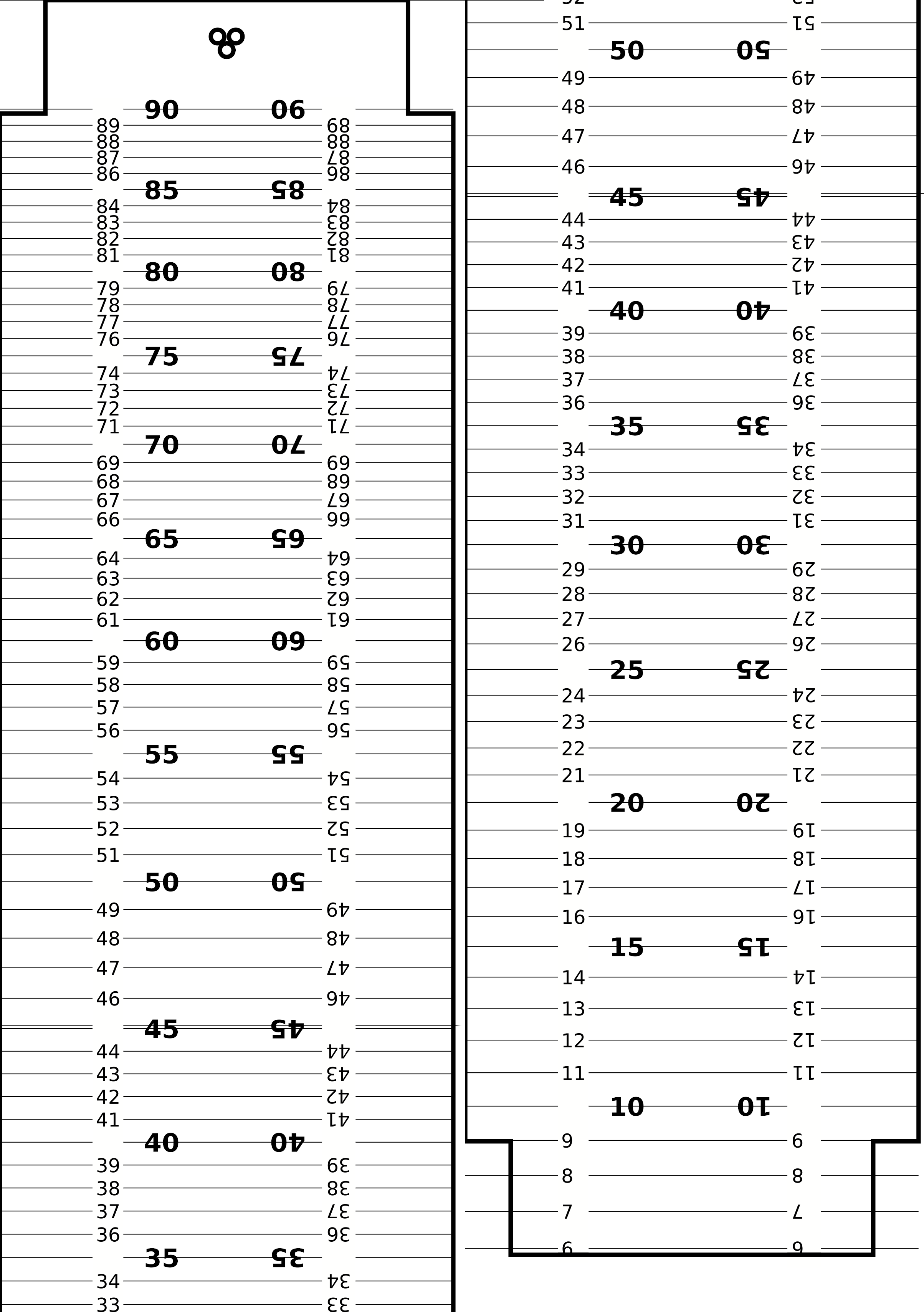

Attached pdf document needs to be printed on A4 paper, cut and both halves glued overlaying together to get one long strip. Then insert it under clips to base plate.

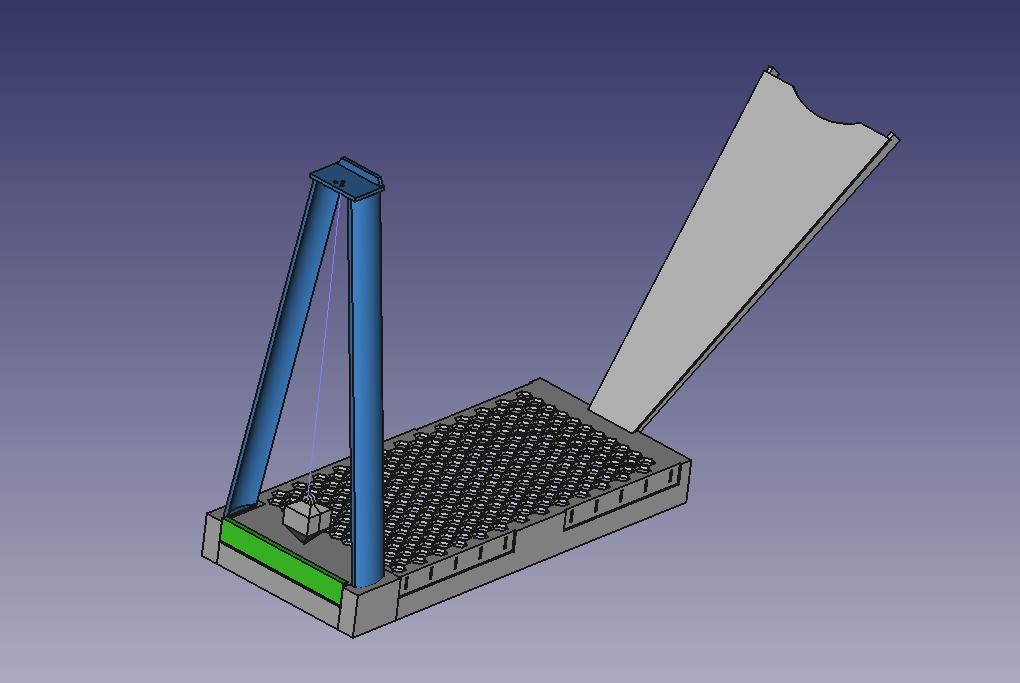

Plumb line must be attached to thread into holes on top of pillars freely hanging 1-2 mm over base plate. Bottom of it must be aligned with mark on paper before measurement.
