Space efficient spray can holder system, wall mount
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
60 degree angulated spray can holder system
- Ocena
- 0 / 5
- Polubienia
- 62
- Pobrania
- 523
- Wydruki
- 0
- Wyświetlenia
- 2549
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Organizers
- Licencja
- Creative Commons — Attribution — Noncommercial
SzczegółyPliki (1)Wydruki i komentarze (Wydruki: 0) (Komentarze: 1)Remiksy (1)Kolekcje (89)Powiązane
Why?
Thousands of spray can holders available.. but none made efficient use of the space in depth.

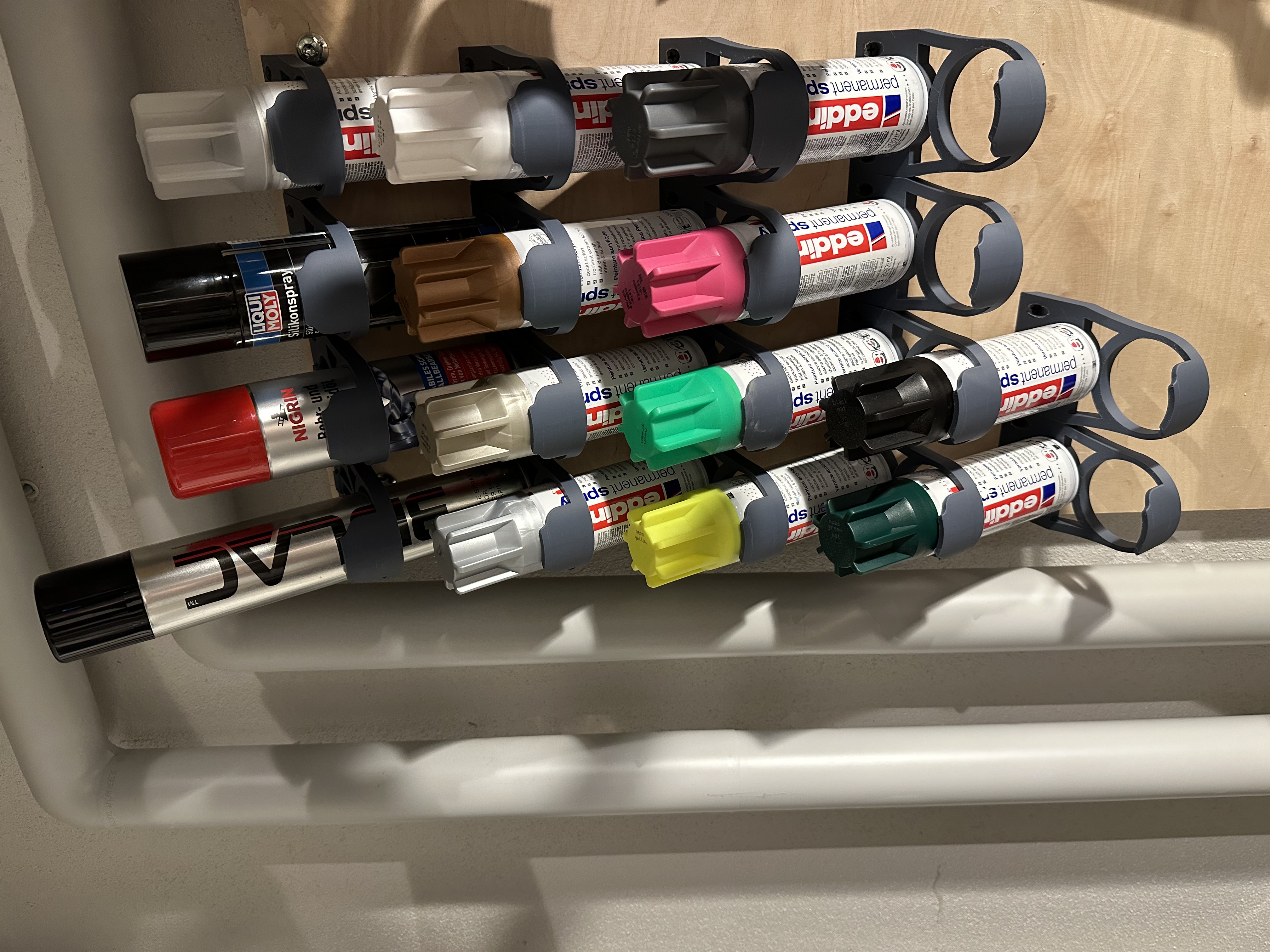

So I came up with the idea of mounting the spray cans on the wall at an angle so that the next row overlaps with the previous one. This way, twice as many spray cans fit on the wall as with purely vertical or horizontal mounting.
Features:
- Stable overlapping wall mount for spray cans up to 54mm of diameter

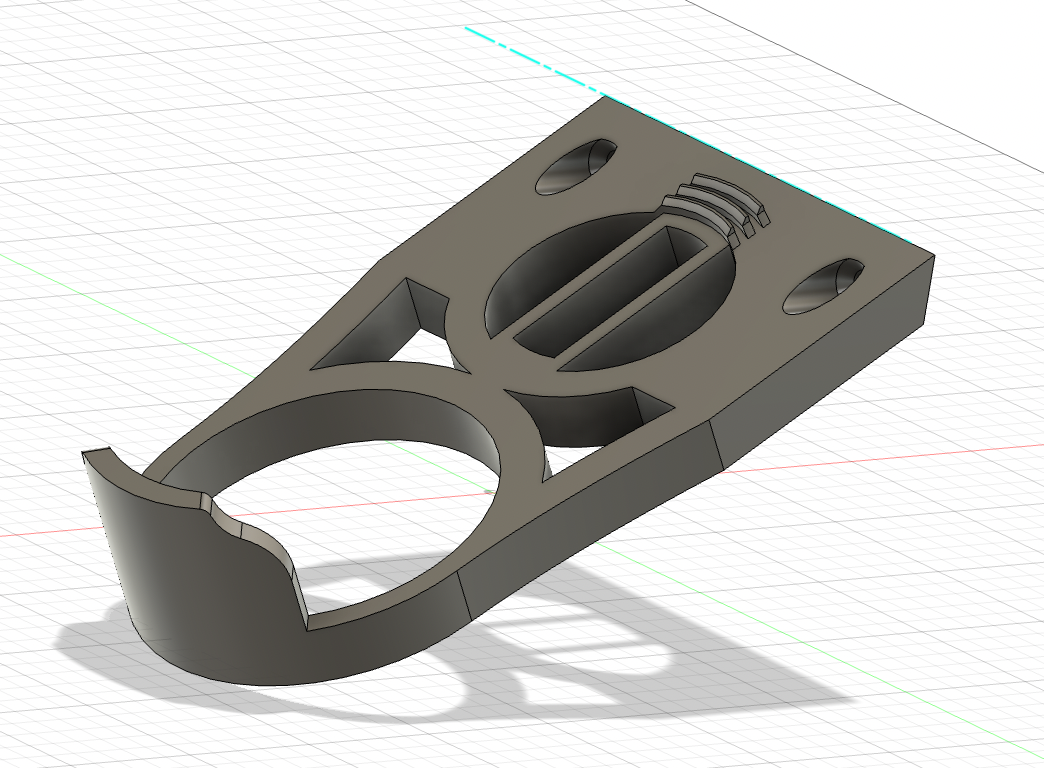

- The part of the holder that is closer to the wall has claws that secure the spray cans efficiently.
Requirements:
- Use any stiff material you like, I used ABS
- I printed with a 0,6 nozzle, 4 walls and a higher percentage of your favourite infill, stability is key, otherwise the screws will split the model.
- Other than that no special requirements, no supports. Print it flat with the bottom side to the print bed.
- Vertical distance between the mounts is 10,8cm ideally.
Enjoy, comments and critics are always appreciated :-)
