Touchscreen case for 10.1" Pi console
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Computers
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

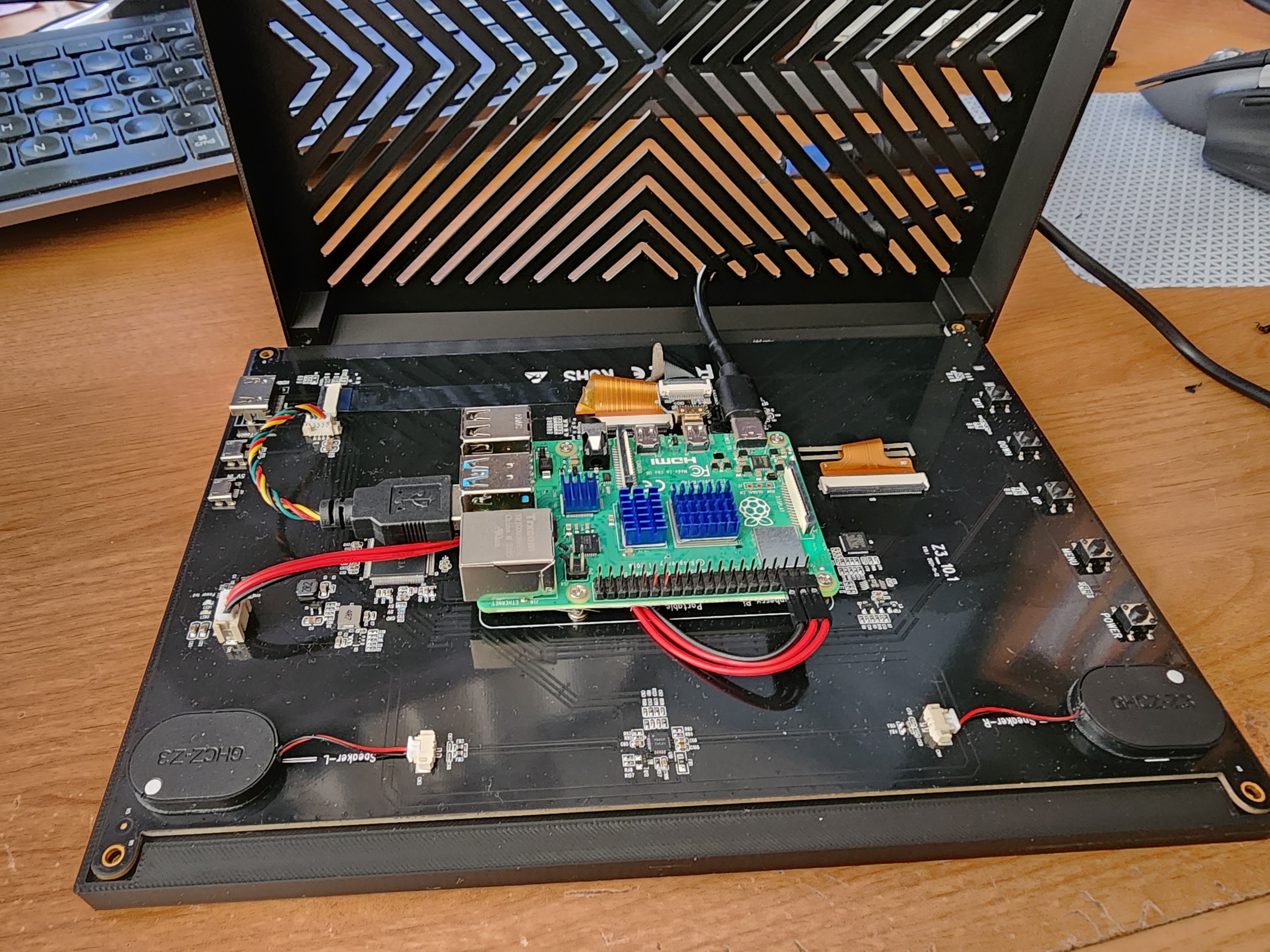

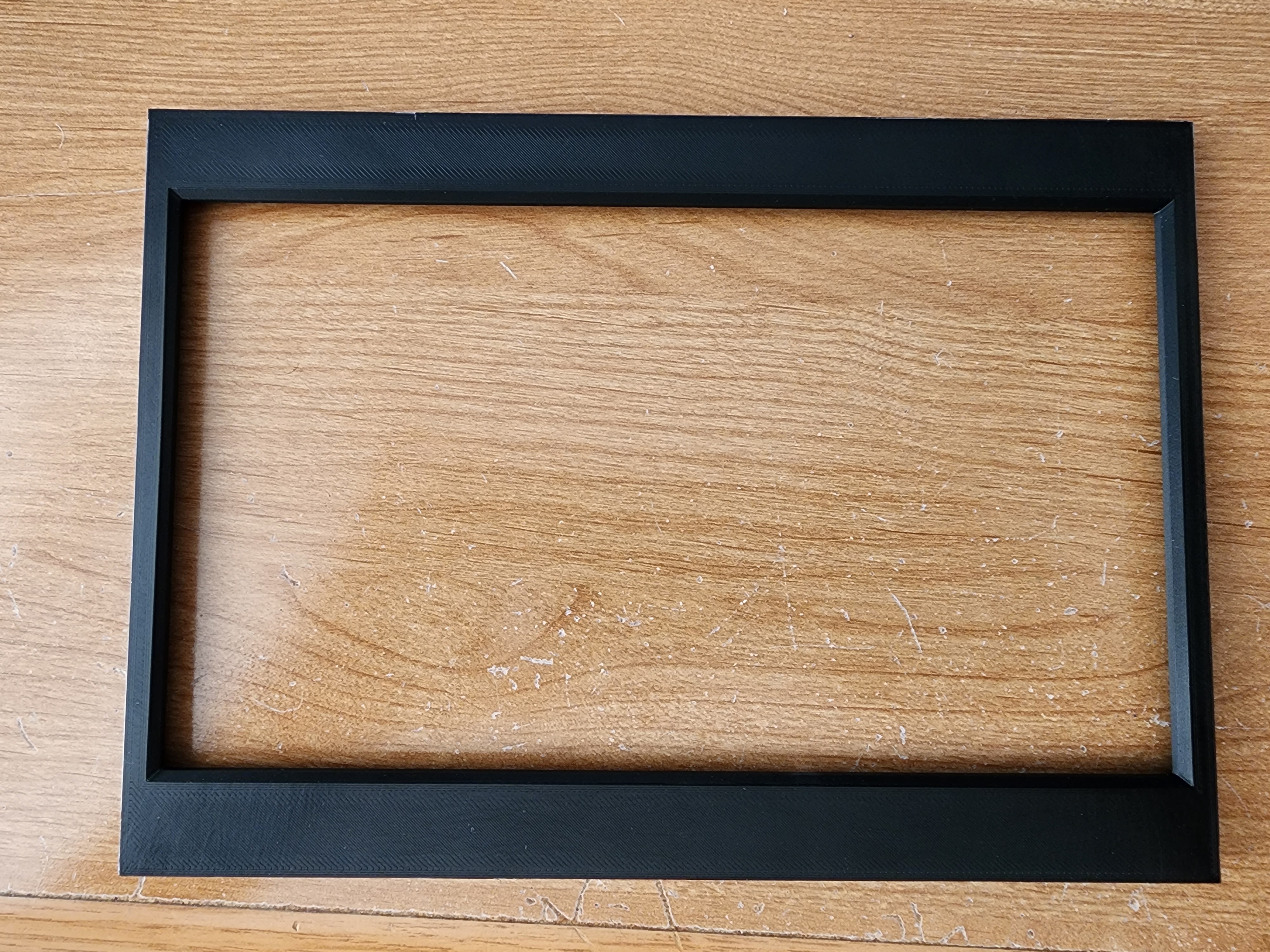

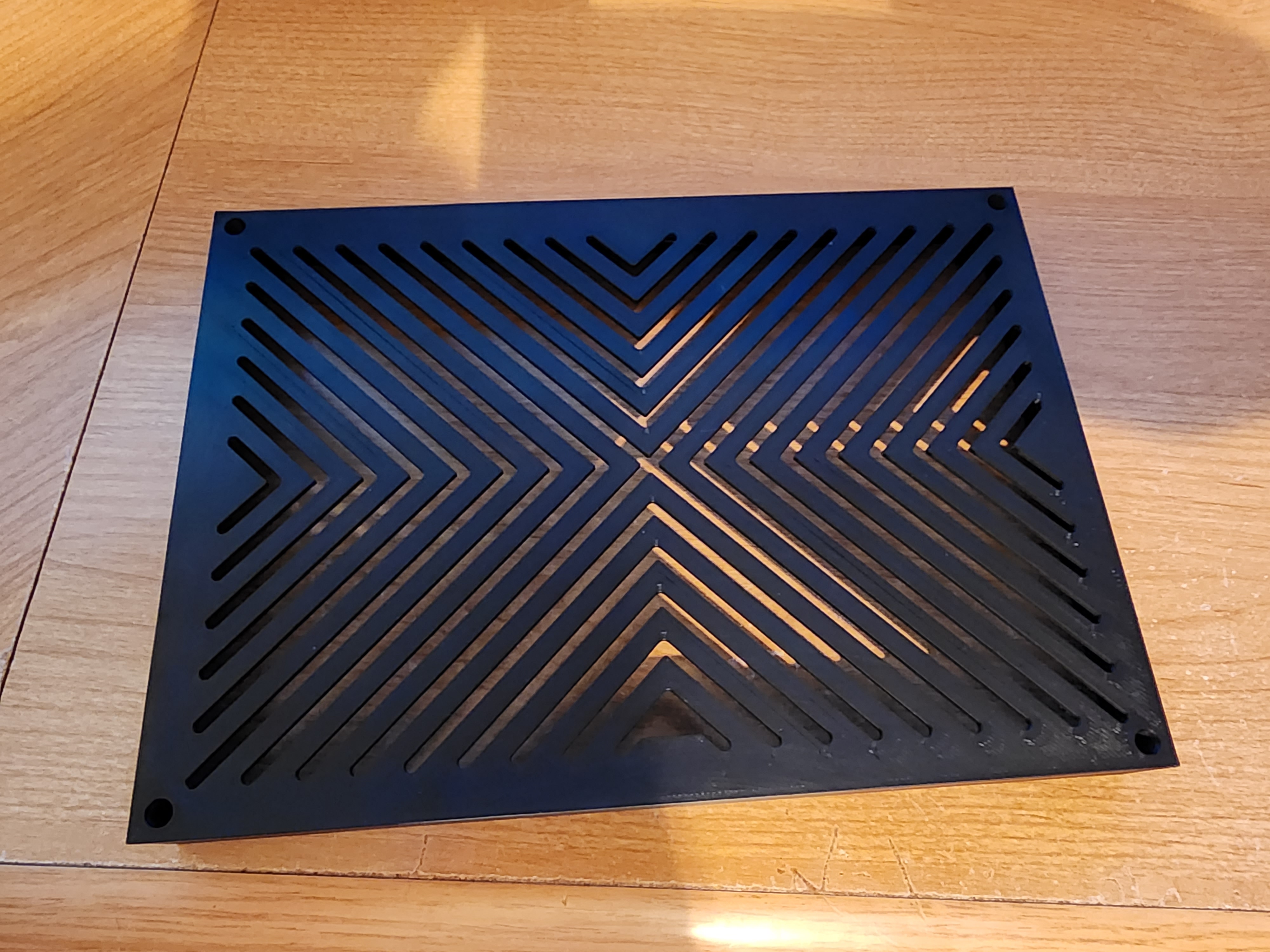

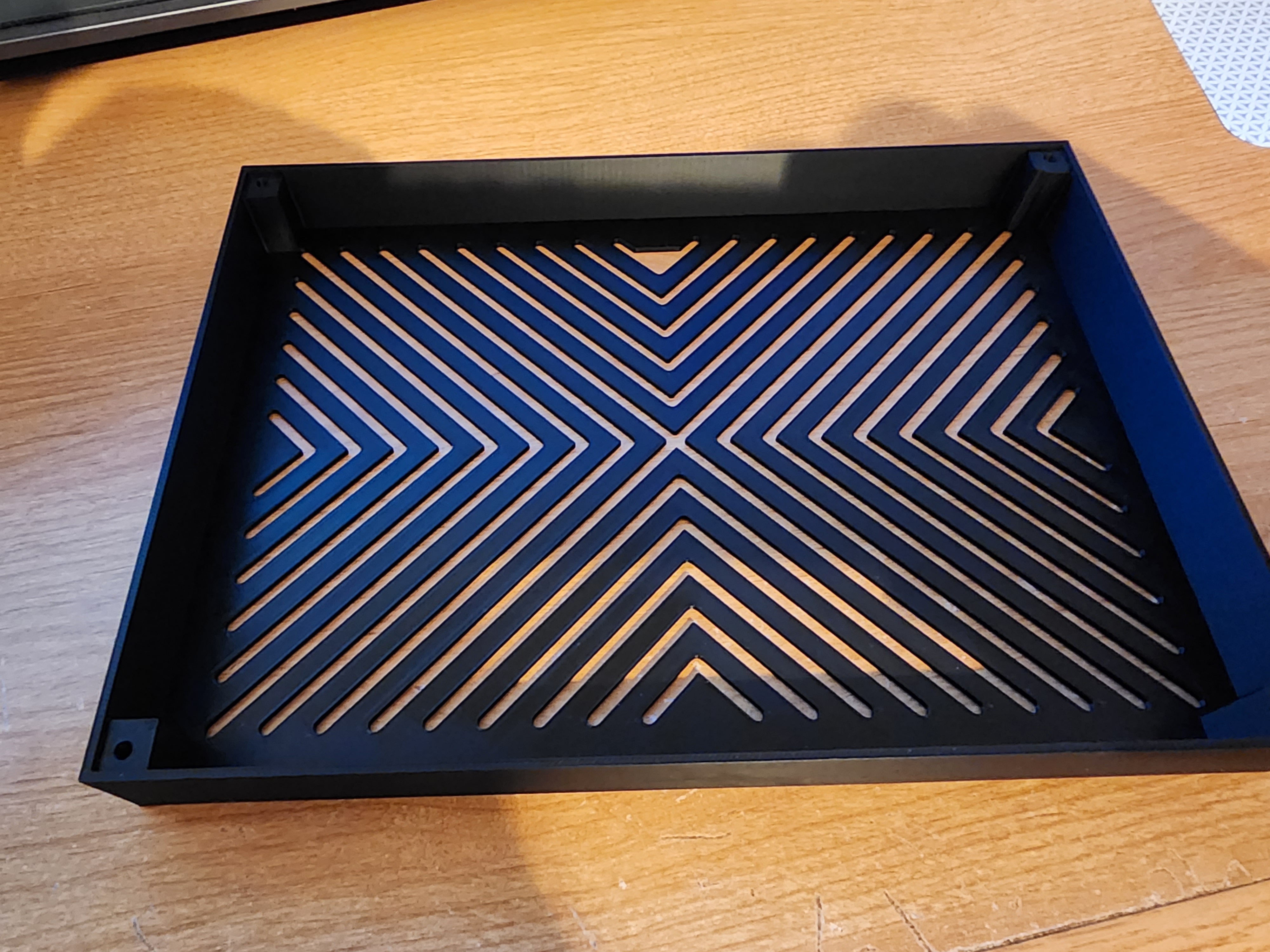

Front bezel and rear case for the 10.1" Raspberry Pi touchscreen sold by pidisplayconsole.com and other similar units. I have seen others that look identical but I don't know brand names.
I printed this using Hatchbox PLA on the Bambu X1C with a Wambam build plate. I used a 5mm brim on the outside. Without this I had a corner lift on an earlier iteration.

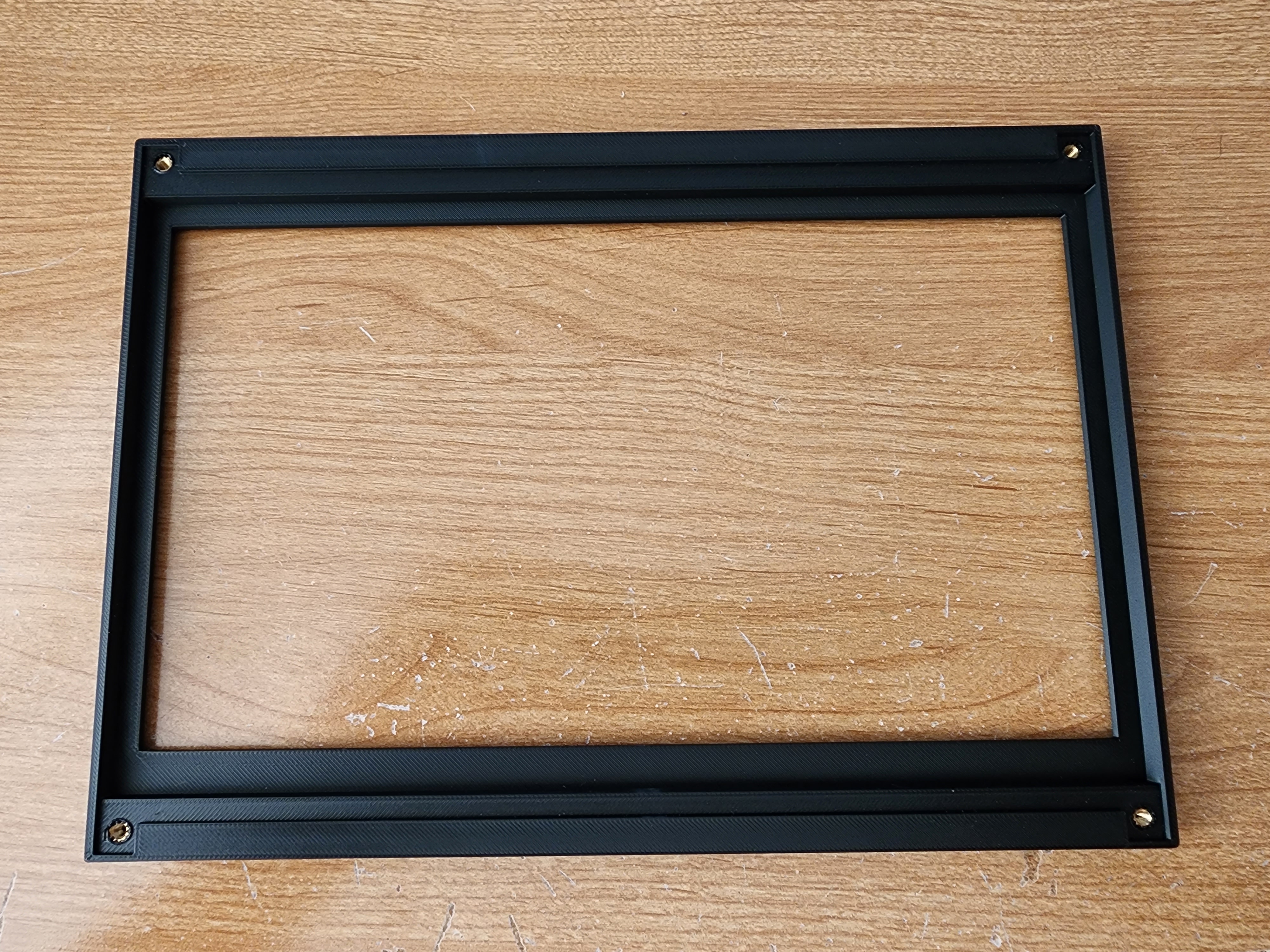

Front bezel has holes for brass M3 inserts. 240 x 171mm, it just fits on the X1C sitting square, you may be able to use a smaller bed if rotated. The inserts have to be very straight for the screws to line up.
Mine was assembled with M3 x 16 button head screws. STEP and STL files included.
