So you bought the 3, 4, 5 mm threaded inserts set, and T18 soldering iron adapters from CNC Kitchen and need a container? here you go.

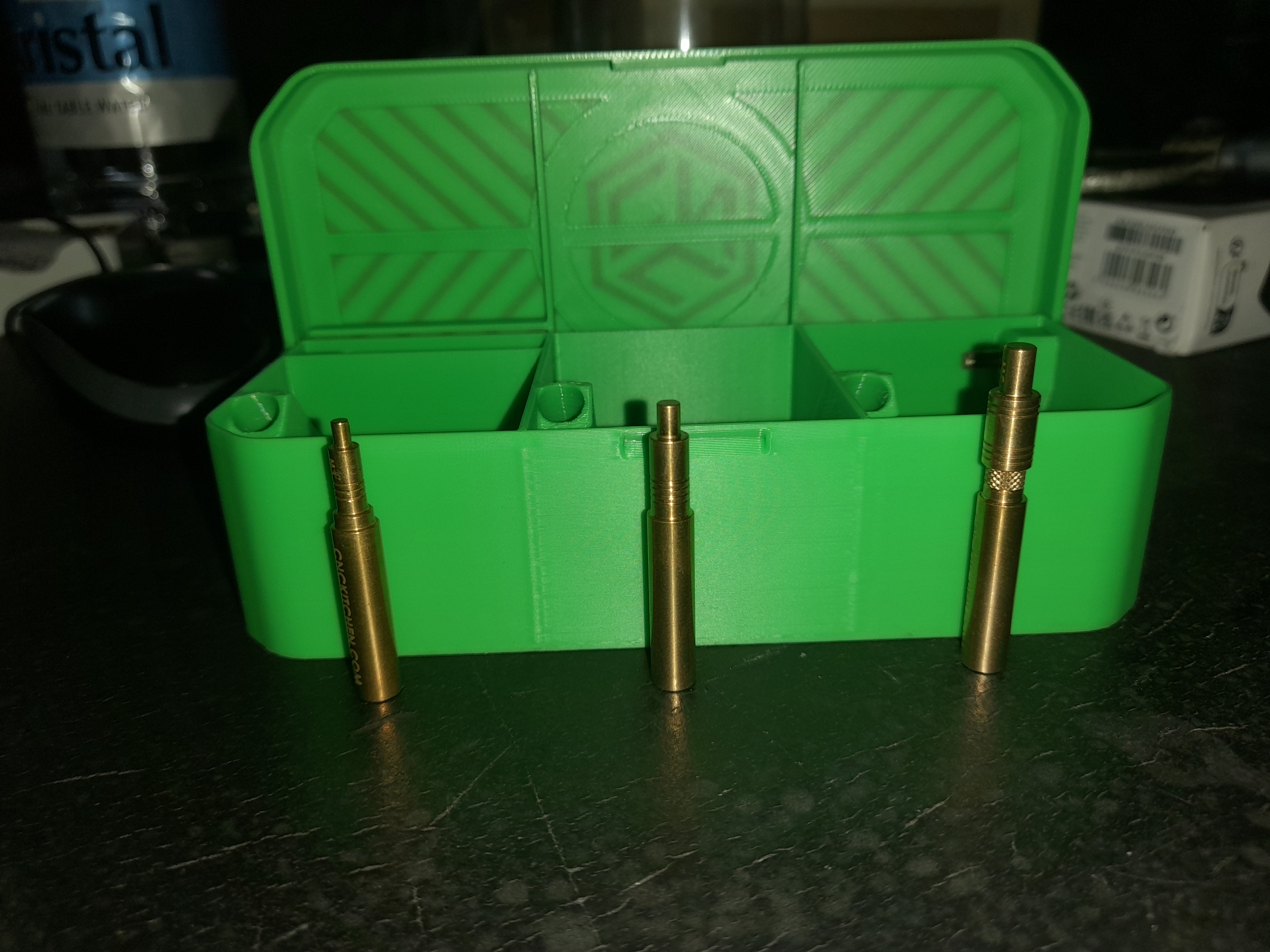

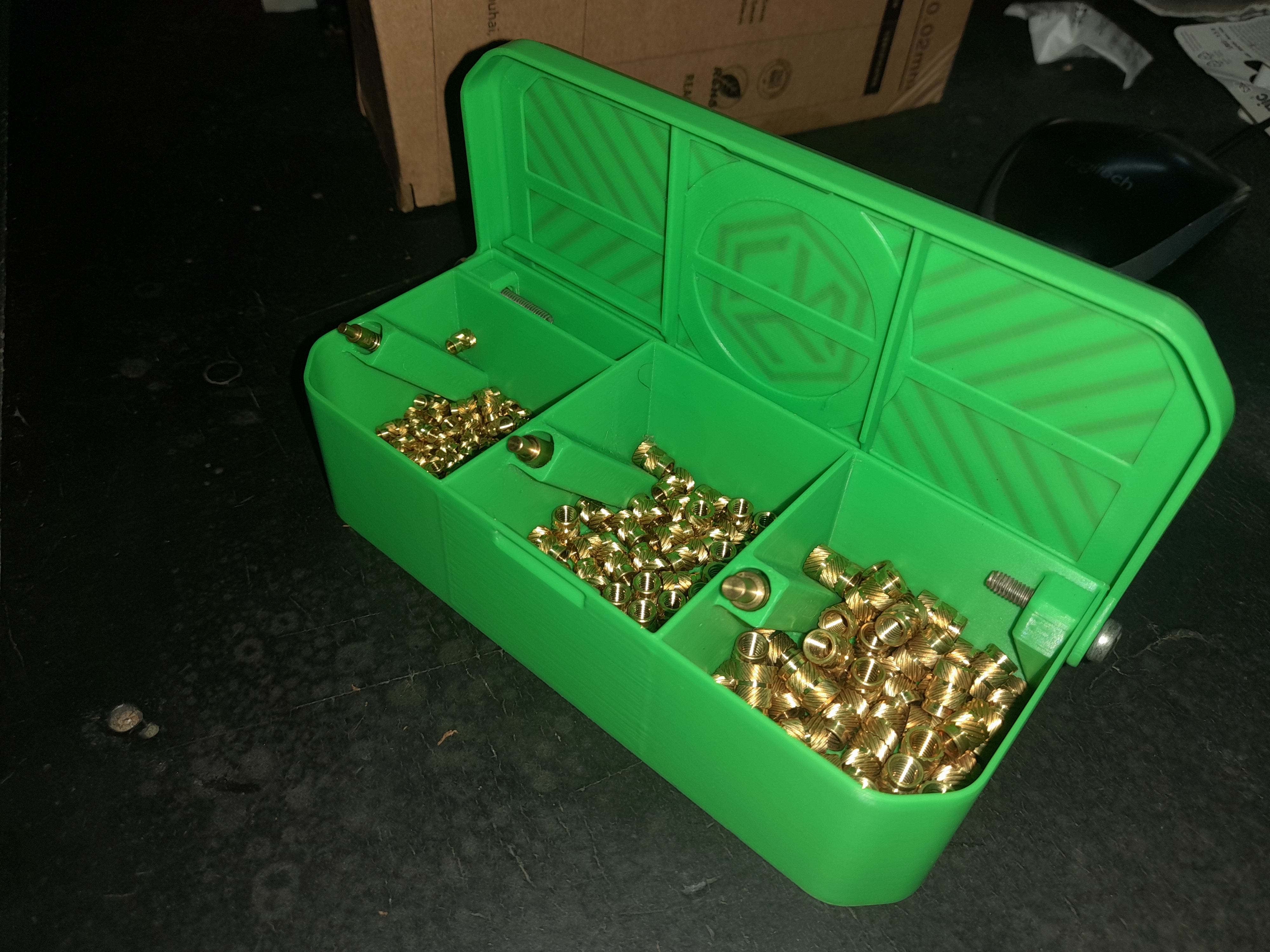

Just drop the inserts in their compartment, 3 to 5 left to right. Each compartment also has a pocket to store the right adapter for that size, as shown in the picture. The little compartment at the back left is for storing any unused adapters that you might have.
Install an m4 insert in each side of the box, and use 2 short m4 screws as hinges. Do not over tighten. Ideally use a little thread lock compound to stop it from unscrewing itself. As hinges these are totally over the top and unnecessary, but also a fun little project to get you going with threaded inserts.

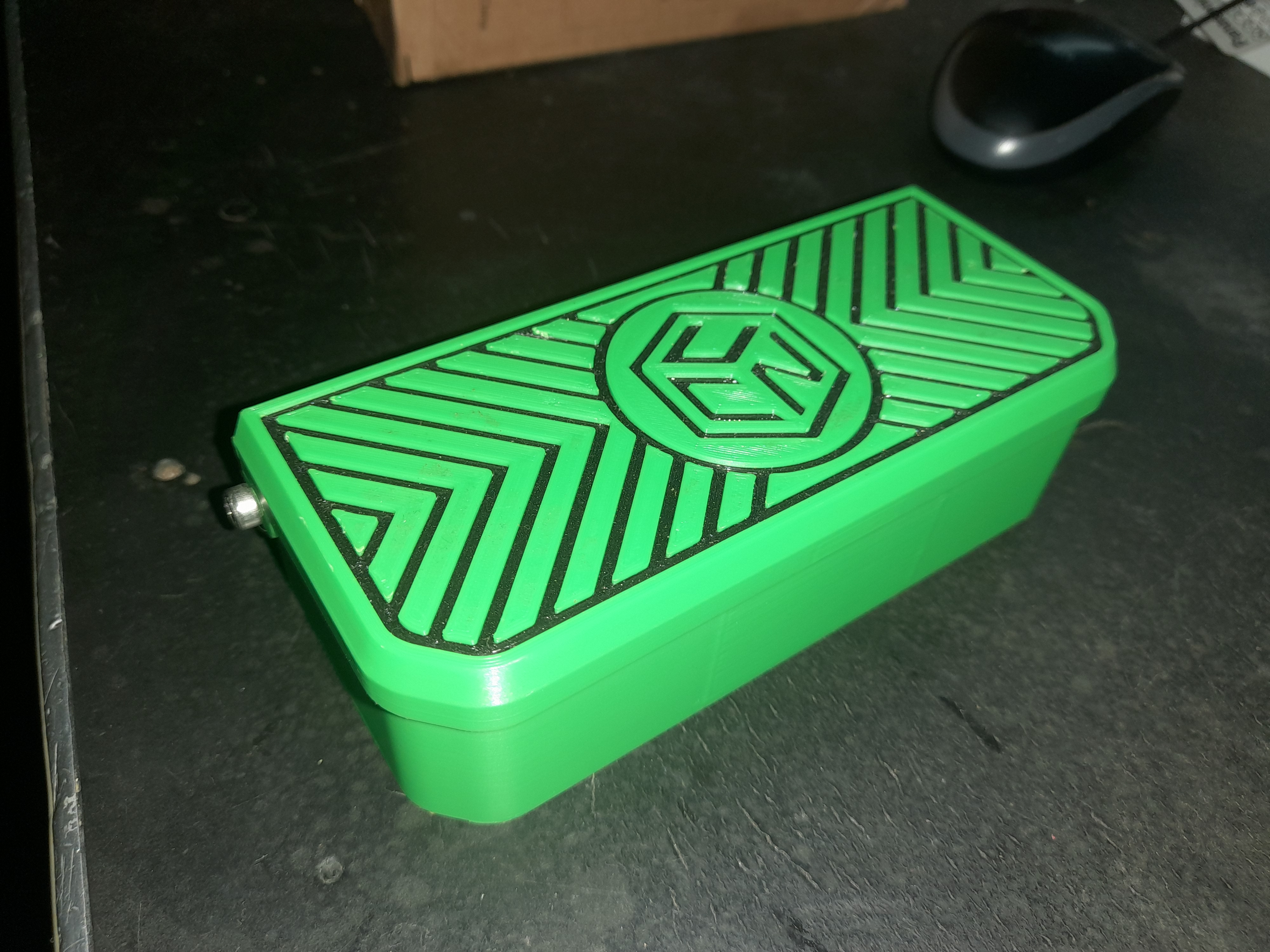

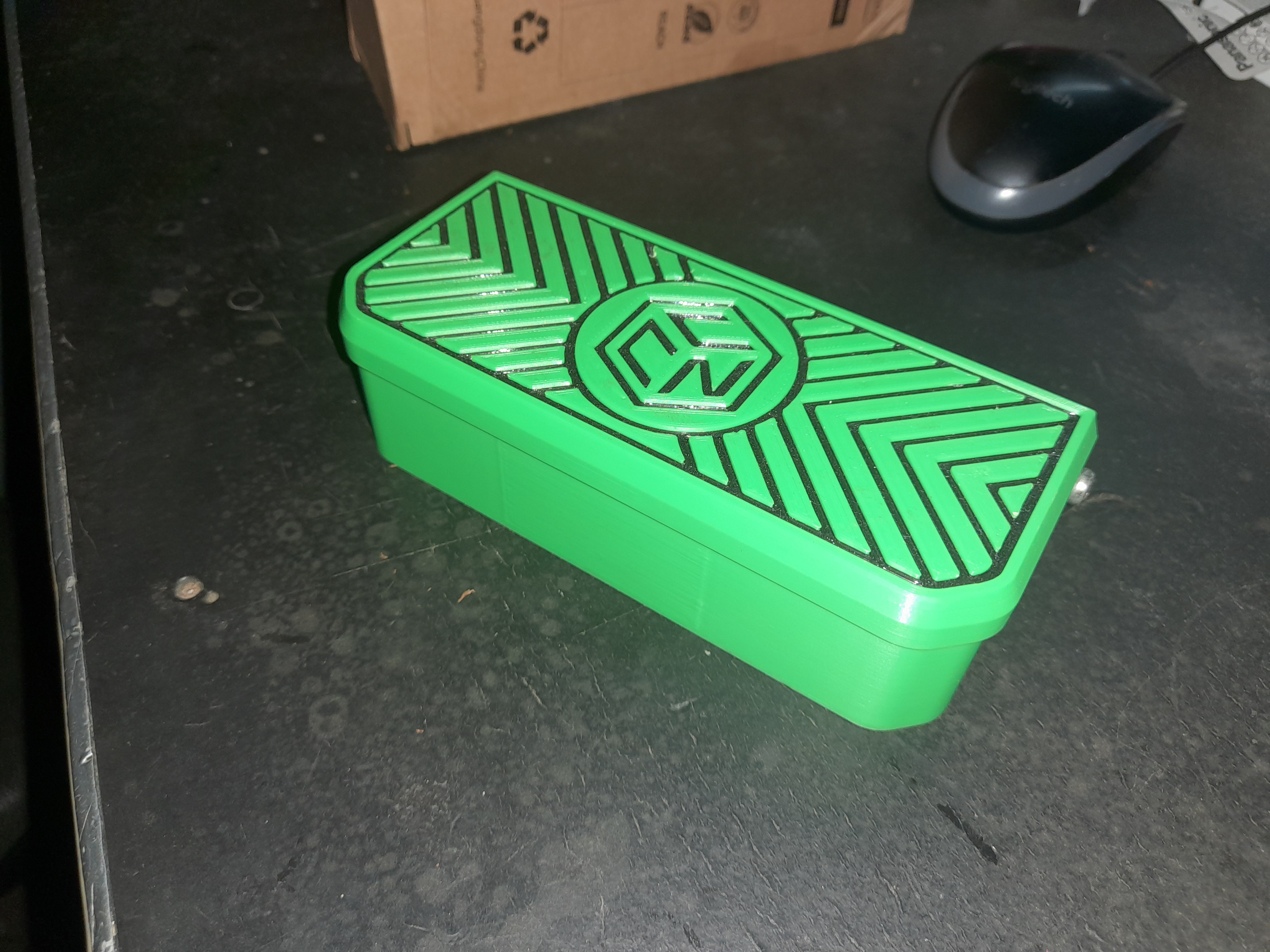

The base of the case is dimpled to help the little inserts spread out better, the compartments are totally isolated so the inserts can't get mixed up, and the lid just clicks securely shut with no need for magnets etc..
I printed these successfully both with an 0.4 and an 0.6 nozzle at 0.2 and 0.24 layer heights respectively, on my x1c.
