Adapter to connect Einhell 18V battery packs to Parkside tools.
- Ocena
- 4,6 / 5
- Polubienia
- 158
- Pobrania
- 1187
- Wydruki
- 6
- Wyświetlenia
- 7887
- Oceny
- 5
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
+++Update 09.03.2024+++
I got feedback that the adapter seems not to fit to everybodys parkside tools. To be honest, I designed the adapter without having an original parkside battery pack available! I just used my parside saw to do the reverse engineering of the intferace. So it seems like the interfaces of the tool side can vary a bit. Nevertheless, I shared the step file with Tom (@tomTTU) who did some changes. Please be free to use the modified adapter version (einhell-parkside-adapter_v2.stl).
Model:

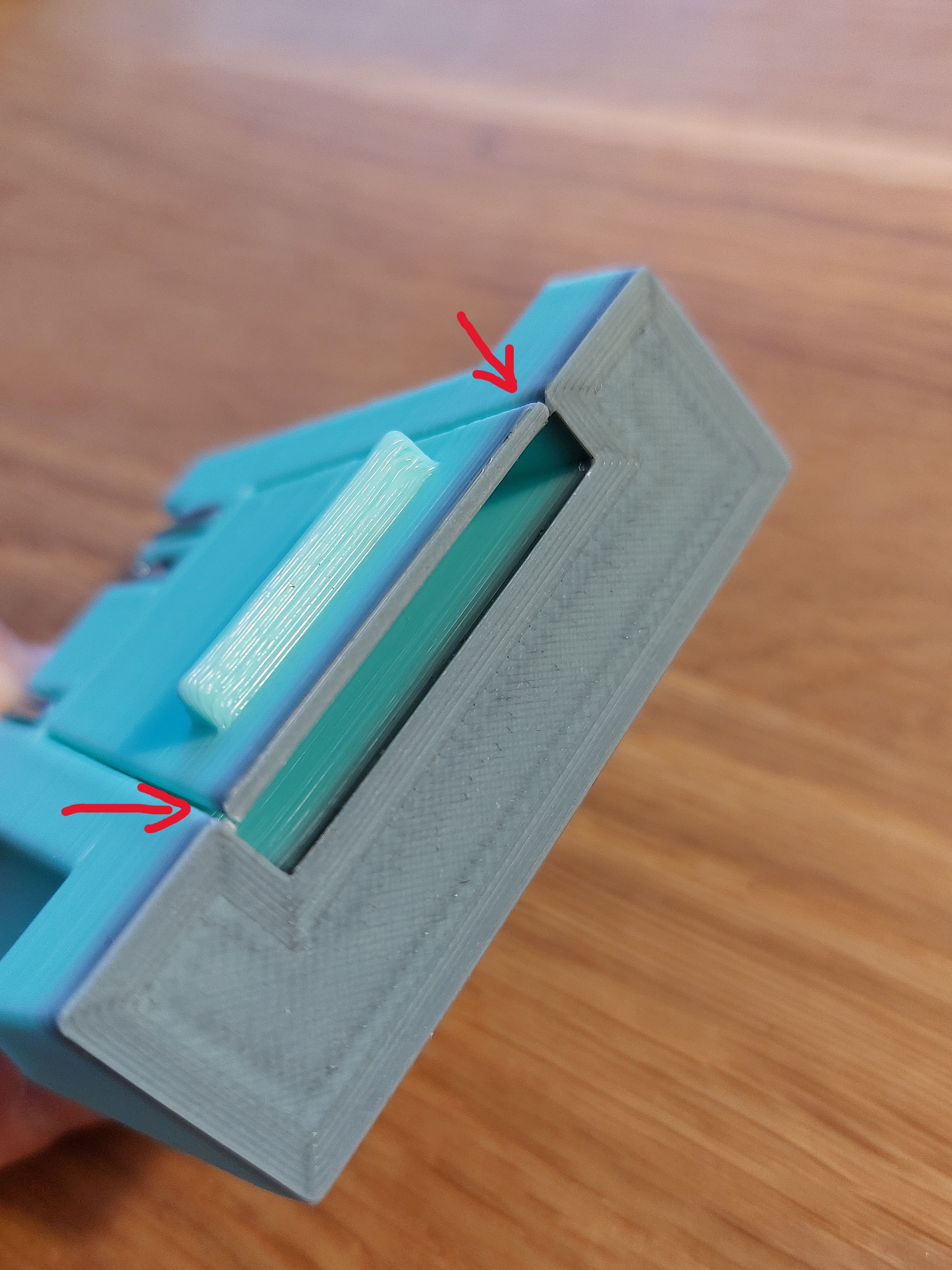

This model is an adapter to connect Einhell battery packs with Parkside tools. The design was made with a focus of a simple electrical contact design. It seems like the Parkside tools requires the NTC contact. For this reason, the NTC contact bay is implemented in my design. I recommend to print the adapter in vertical position which will lead to a smoother surface. After printing you need to cut the tiny bridges at the bottom (refer to the picture).
Contact Design:

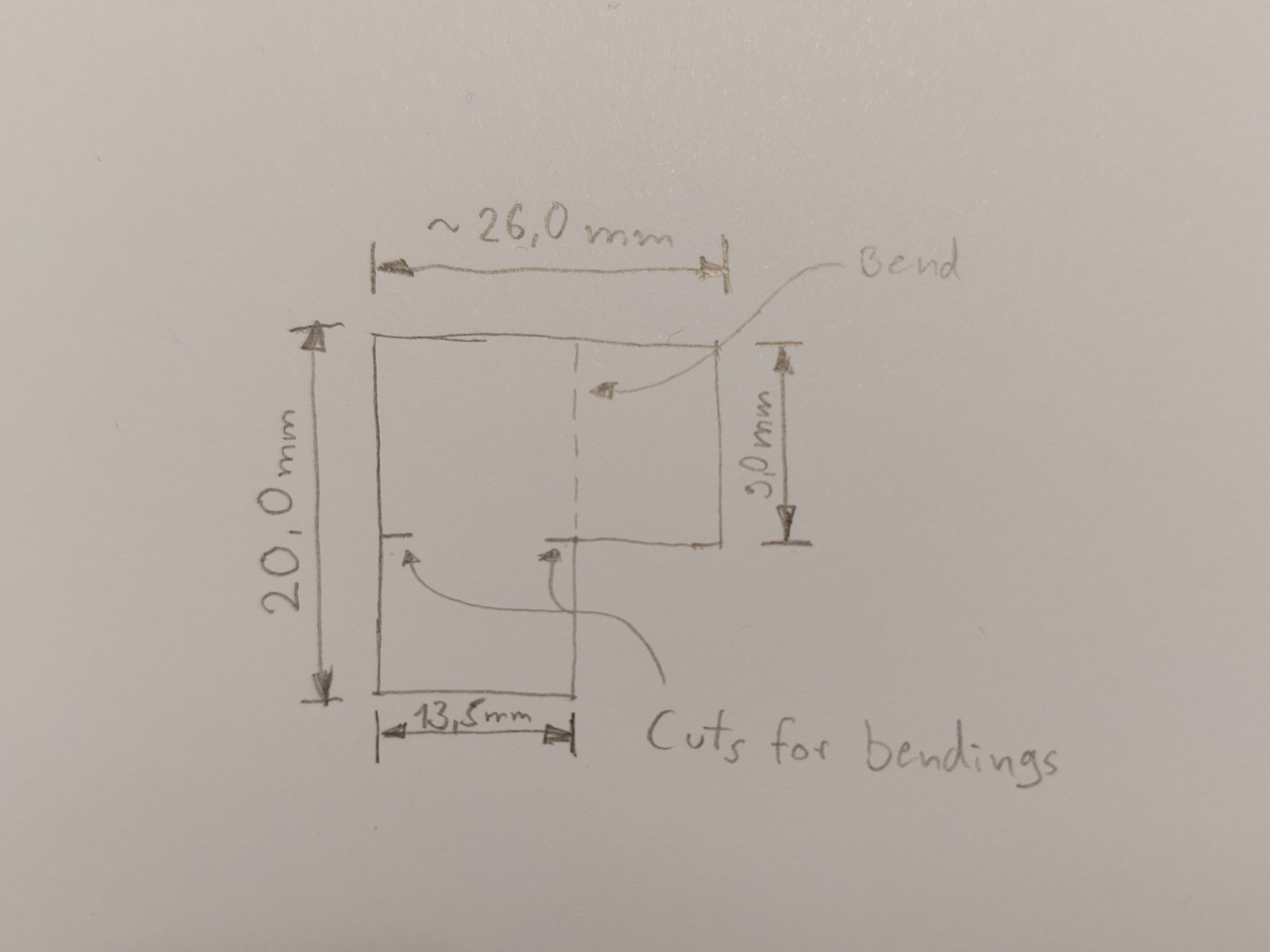

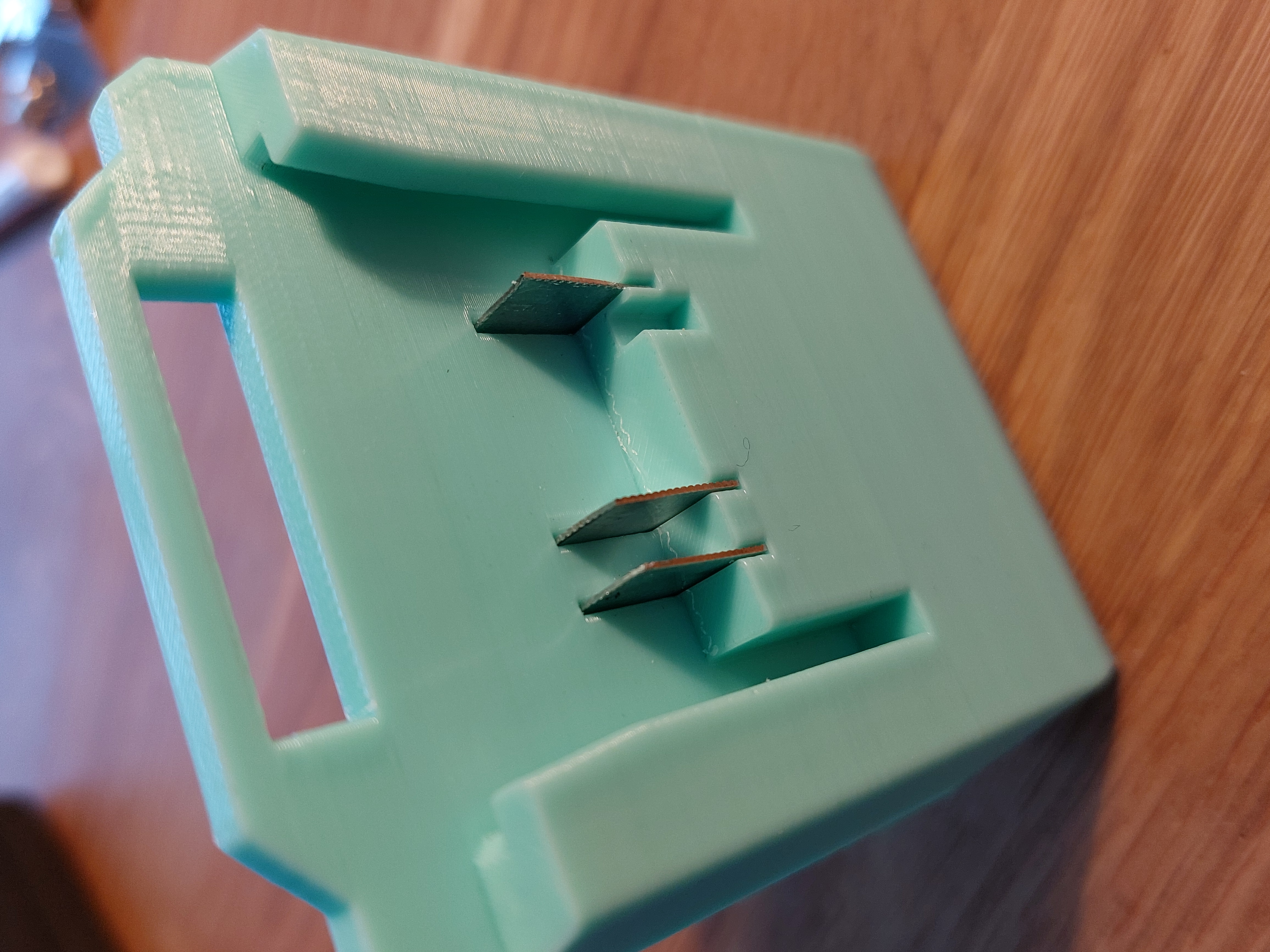

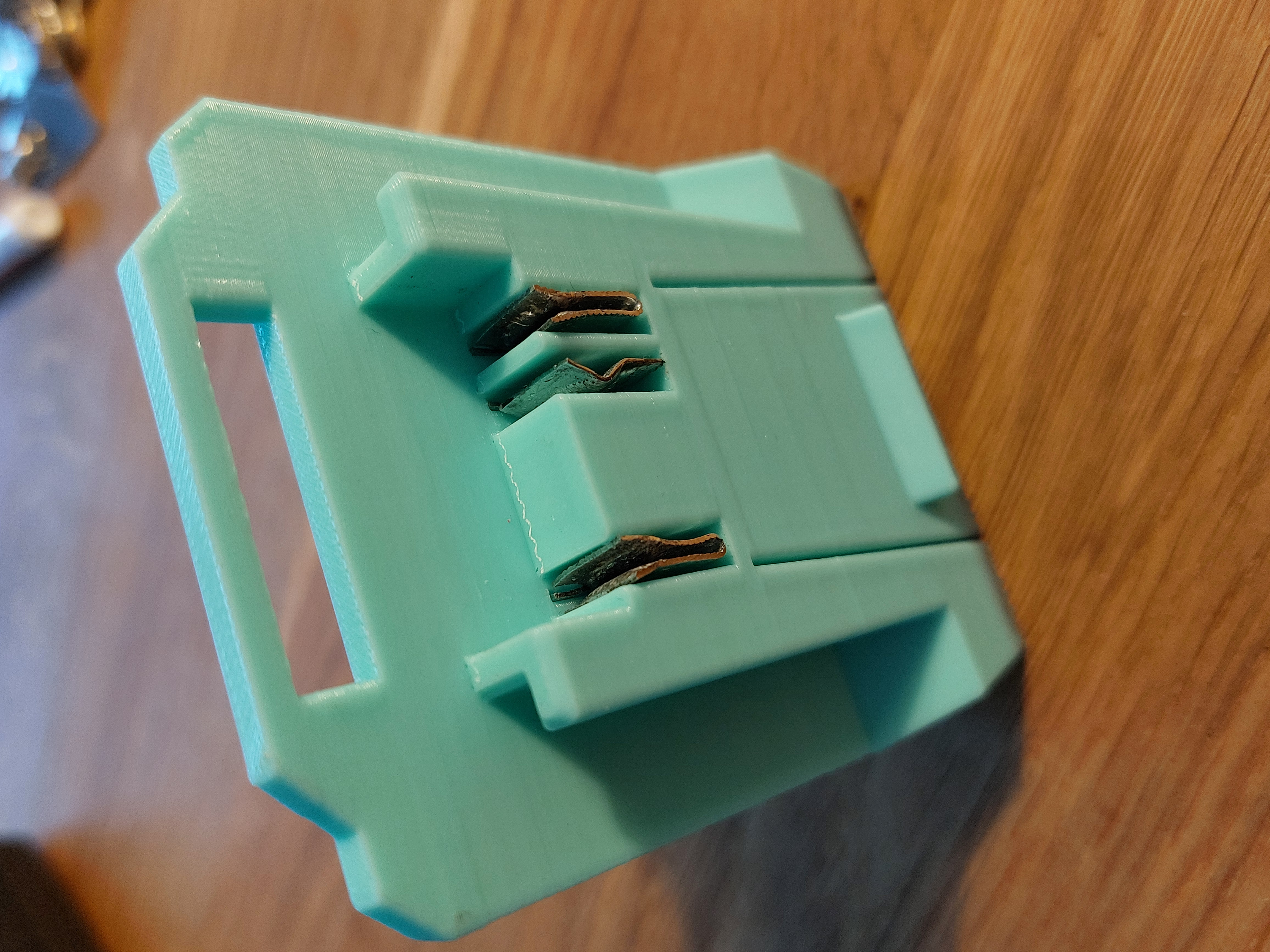

All you need to build the contact is some sheet metal (preferable copper) with a thickness of 0,6mm and if necessary a soldering iron to apply some tin for better contacting. I made a drawing with the dimensions of the material you need to prepare. Take a look at the pictures too, for a better understanding. It could be helpful if you apply some tin with a soldering iron onto the contacts.
Recommended printer settings:
Supports: yes
Material: PETG, ABS
Infill: 15-20%
