IGS PGM Cartridge Shell
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Video Games
- Licencja
- GNU General Public License v2.0

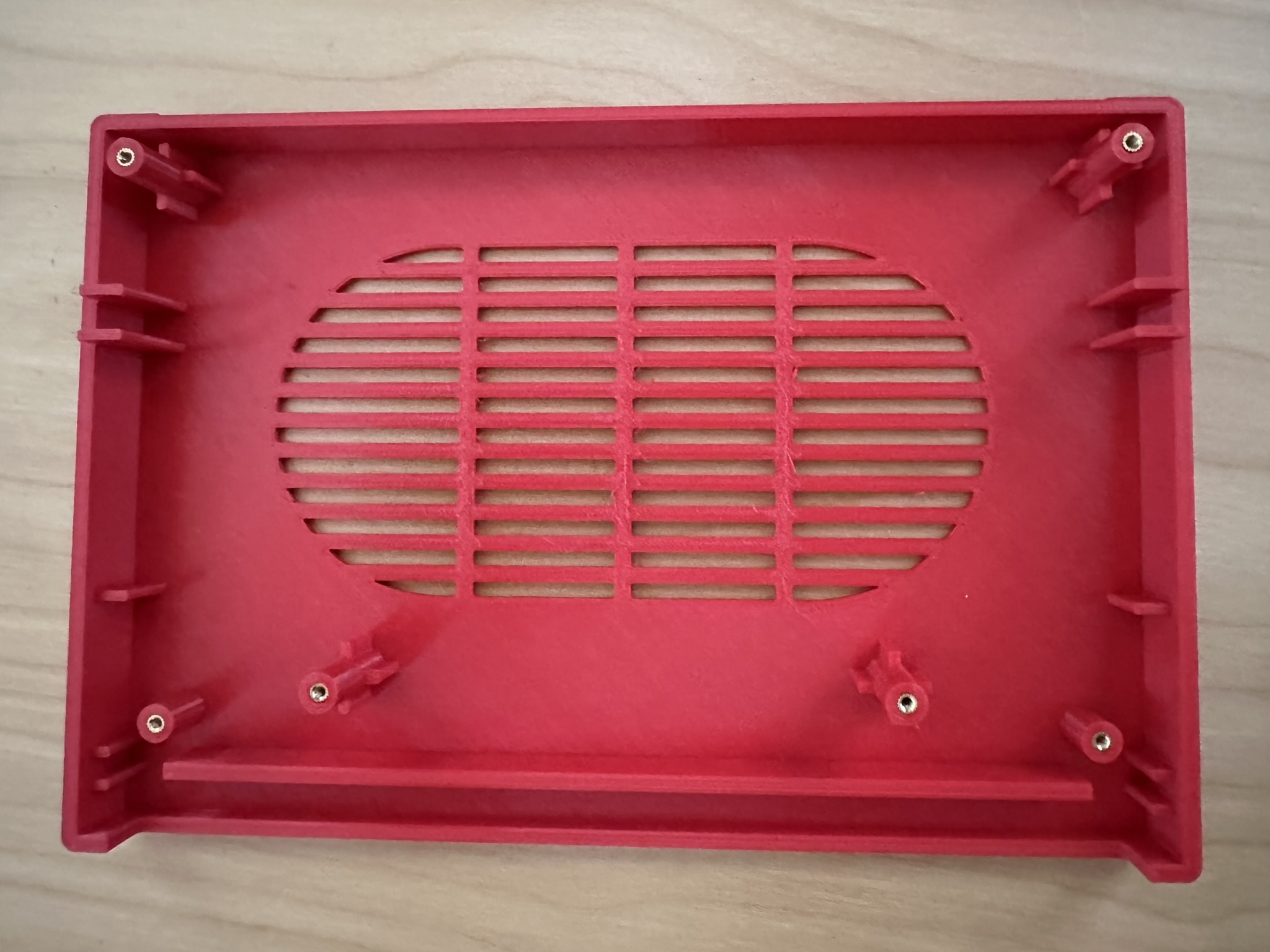

This is a replacement shell for IGS PGM Cartridges. Especially if you are looking for a case for your Fluffy boards.
Mine were printed in PETG at 0.2mm layer height. I had to add 2 additional screws to the edges where the cartridge slots into the motherboard as my prints were warping slightly in that area. You might get better results when using an enclosure.
The heat set inserts are M2 with a width of 3.5mm and a maximum length of 8mm.
Screws are 4 x M2 10mm and 2 x M2 20mm
