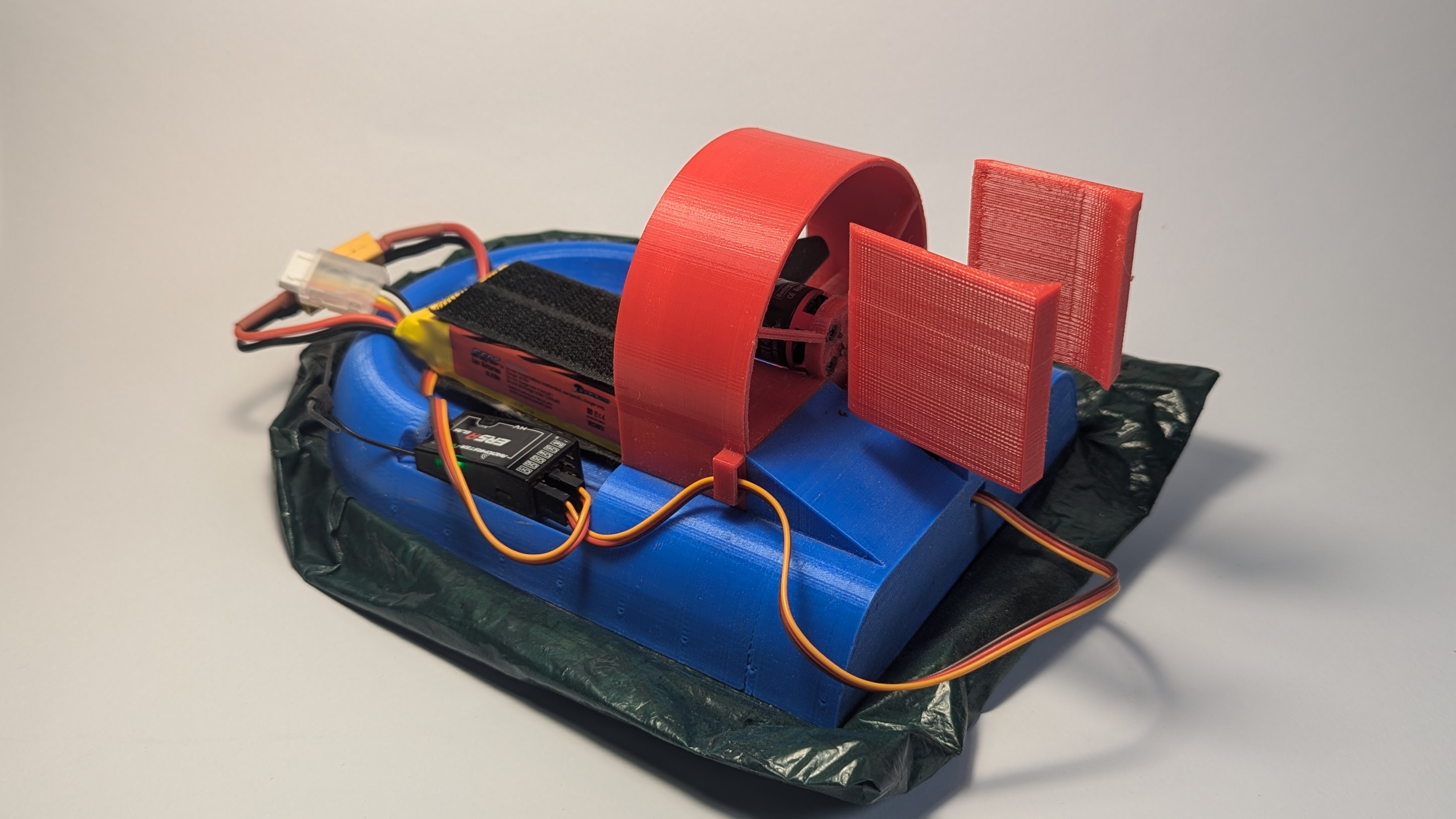

Rc hovercraft

This project creates a fully functional RC hovercraft that glides over various surfaces, powered by electric motors and controlled via a standard RC transmitter.
You can find the assembly guide in files.

more at my Github.

• 1 main_body: print with "Allow thin walls"

• 1 propeller_duct

• 1 rudder

• 1 outer_skirt_clamp

• 1 skid_plate

• 1 1407 bldc motor: around 3500kv

• 1 3 inch propeller: if ccw mirror the rudder

• 1 30a 3s ESC: with xt60 connector (20a might work too)

• 1 9g servo motor: with screws and arms

• 1 1000-1100 mah 3s lipo

• 1 PWM receiver

• 1 trash bag: thick or double layer

• 28-66 M3 8mm bolts: recommended 28

• optionally 3 male & 3 female 3mm bullet connectors
