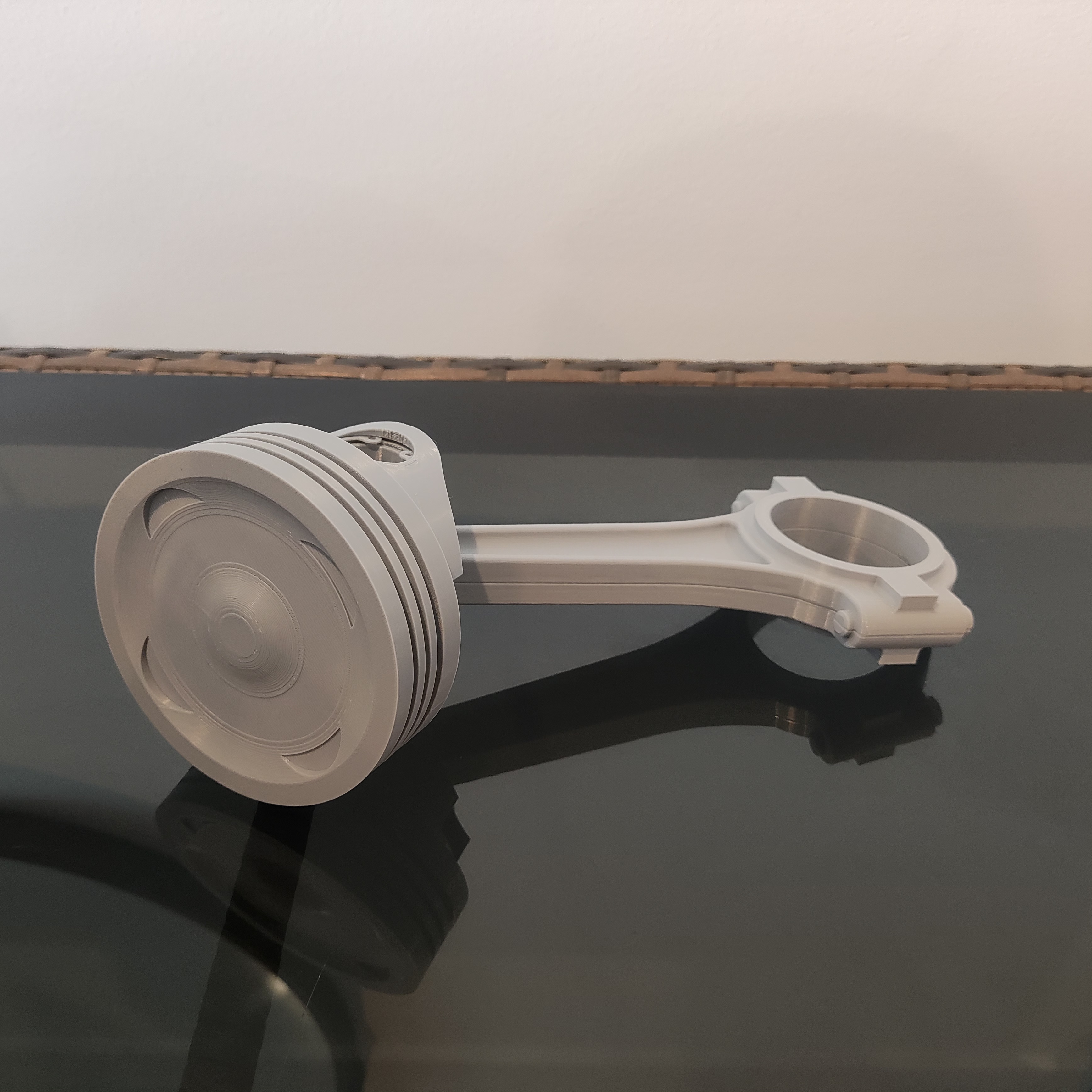

A rotating assembly of a piston and connecting rod, joined using a wrist pin and two circlips. Based off a Subaru EJ20.
- Rating
- 0 / 5
- Likes
- 20
- Downloads
- 182
- Makes
- 0
- Views
- 667
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Engineering
- License
- Creative Commons — Attribution — Noncommercial
Hi there, here is my design of a piston/connecting rod assembly based on a Subaru EJ20 STI motor. These parts were designed through the Onshape CAD software.
Printing Instructions:
- 0.12/0.2mm layer height depending on your desired detail.
- Supports only needed for the wrist pin holes on the lower piston part.
- Feel free to scale the parts as small as you want, although at 100% size it is roughly the same dimensions as an actual piston assembly.

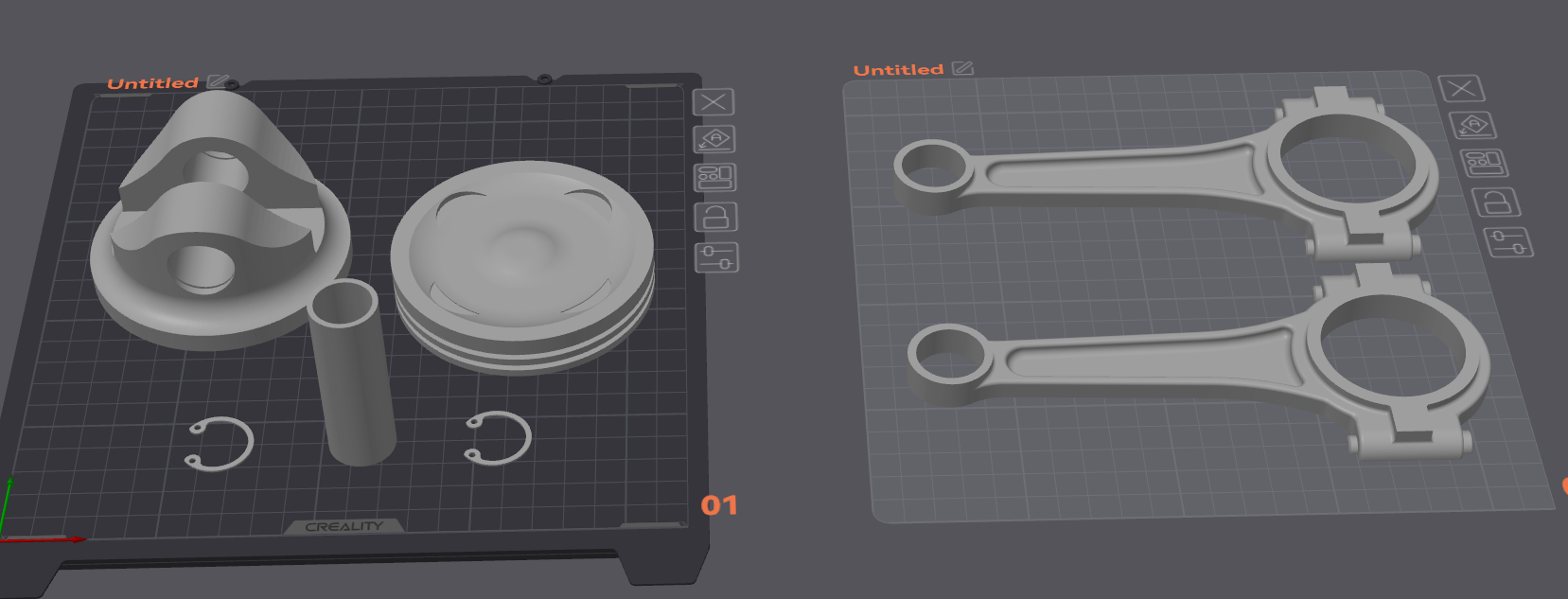

- Print orientation should be as shown in the photos.

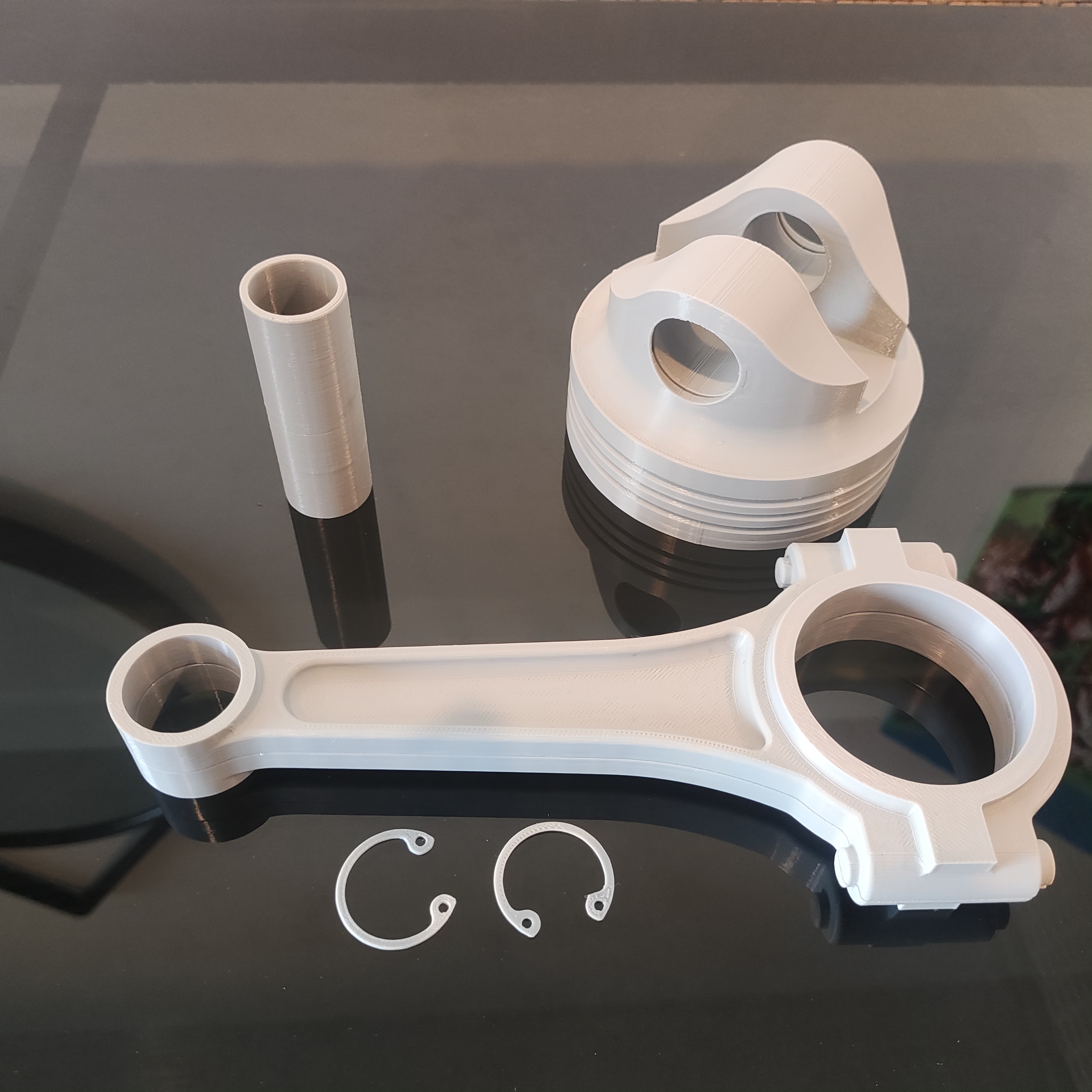

I would recommend printing the piston and connecting rod split as shown in the photos for the best possible details on both sides. I used superglue/CA glue to join the two parts together afterwards.
Assembly is as follows:
After joining the cut pieces with glue, place one circlip into one side of the piston itself. Then roughly align the holes of the piston/connecting rod and insert the wrist pin between them from the open side. Finally, insert the remaining circlip into the other side.
