For gauging radii in 0.5mm increments. Starts at 1mm and goes up to 16mm radius
Printing:
Print all parts in the given orientation with 0.2mm layer hight. No support needed. If you struggle with bed adhesion, you might need a brim for the frame though.
Assembly:

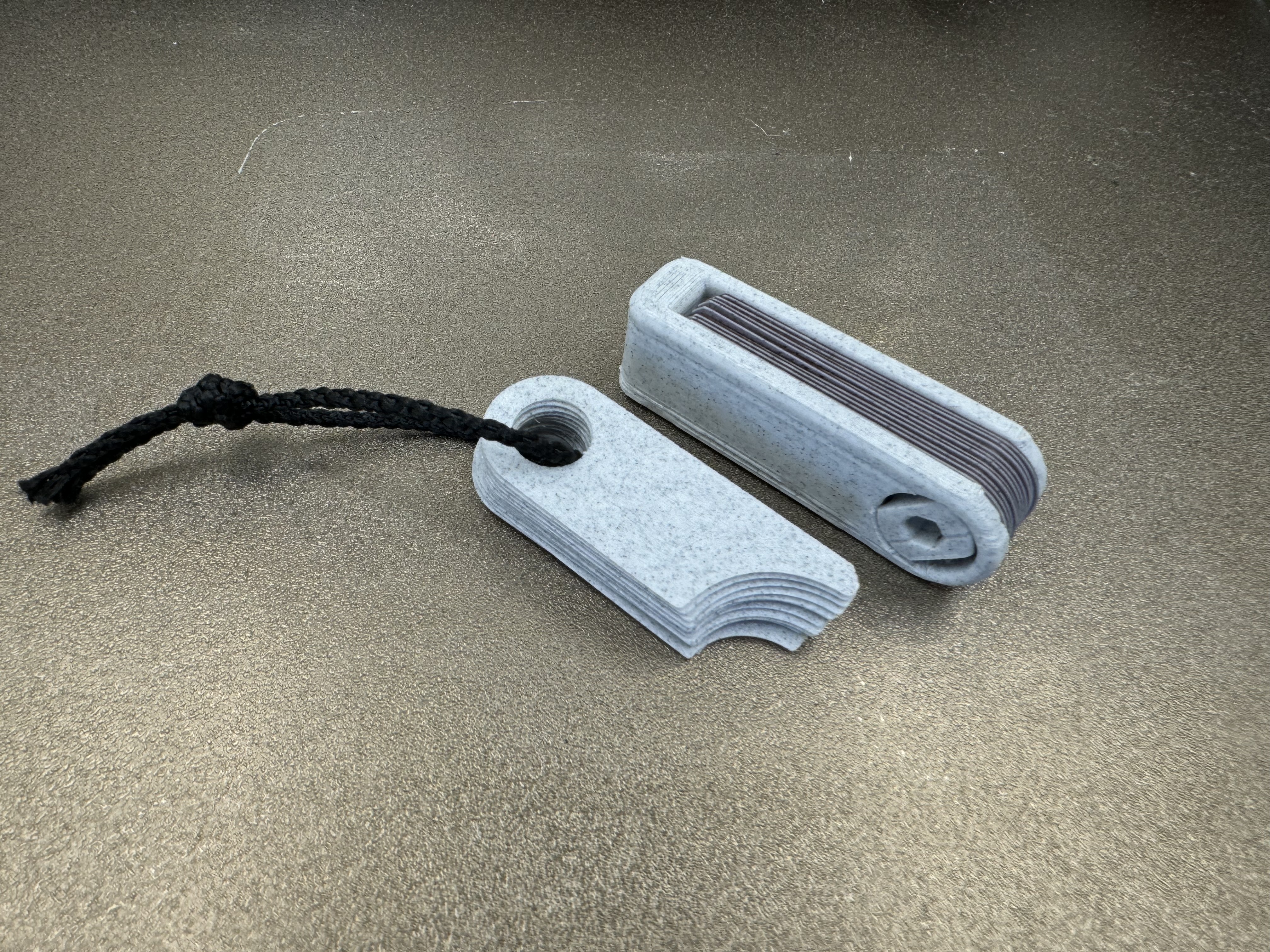

The frame holds 11 gauge blades. If you dont want to use it, the gauge blades also work great on a piece of string. Like for a key ring.
Note:
Radii below 5mm tend to have “bulges” on the corners (check preasure advance). This may make the smal sizes not suitable for measuring.
CHANGE LOG 03.04.2024
Added Radii from 1mm to 4.5mm.
Please note that everything smaler than 5mm seems to get rendered useless for measuring purposes, because some printers tend to “bulge” on corners (check preasure advance).
