UPDATE: Dec 2024: Fixed the messed up HotasX_ExtensionBaseStreamDeckHousing_v1 model!

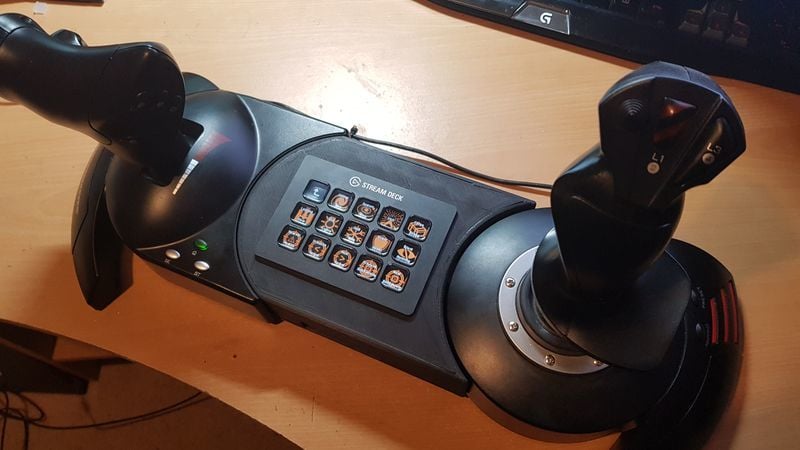

Original blurb from 2019: I have remixed the excellent "Thrustmaster HOTAS X T.FLIGHT extension with or without buttons" by superpotatofudge to accommodate a 15 button Elgato Stream Deck Classic and its USB-A cable.
NOTE: Unlikely to fit the 15 button Streak Deck Mk2 due to outer case design changes.
Used TinkerCad to remix
6 files:
1) HotasX_ExtensionStreamDeckPlate_v1SnugFit - remixed from the HotasX_ExtensionBlankPlate_v8 in the original to add a hole for the Stream Deck unit (listed as "Snug fit" as it is the exact dimensions of the Stream Deck Classic which has angled sides)
2) HotasX_ExtensionStreamDeckPlate_v1LooseFit - as above but the hole is slightly larger on both sides to accommodate the angled sides a bit better (added just to hopefully save you filing or sanding of edges)
3 & 4) as above but with screw holes for attaching to base.
5) HotasX_ExtensionCordHolePlug_v9 - included unchanged from original as still fits the modified cable hole
6) HotasX_ExtensionBaseStreamDeckHousing_v1 - remixed to add a slot to the cable hole for the Stream Deck Classic's USB-A connector to fit through (HotasX_ExtensionCordHolePlug_v9 from the original design included as it still fits once you've passed the USB cable through)
The M4x15 screws that join the 2 halves of the HOTAS together didn't seem long enough for attaching the extension to the throttle, so i used 2x M4x20's
If you want to see it in action, check out my Twitch stream at https://www.twitch.tv/slegnor when I'm playing Elite Dangerous.
Print Settings
Printer Brand: Creality
Printer: Ender 3 Pro
Rafts: No
Supports: Yes
Resolution: 0.2
Infill: 10%
Filament: TECHNOLOGYOUTLET PREMIUM 3D PRINTER FILAMENT PLA
Notes:
The M4x15 screws that join the 2 halves of the HOTAS together didn't seem long enough for attaching the extension to the throttle, so i used 2x M4x20's
