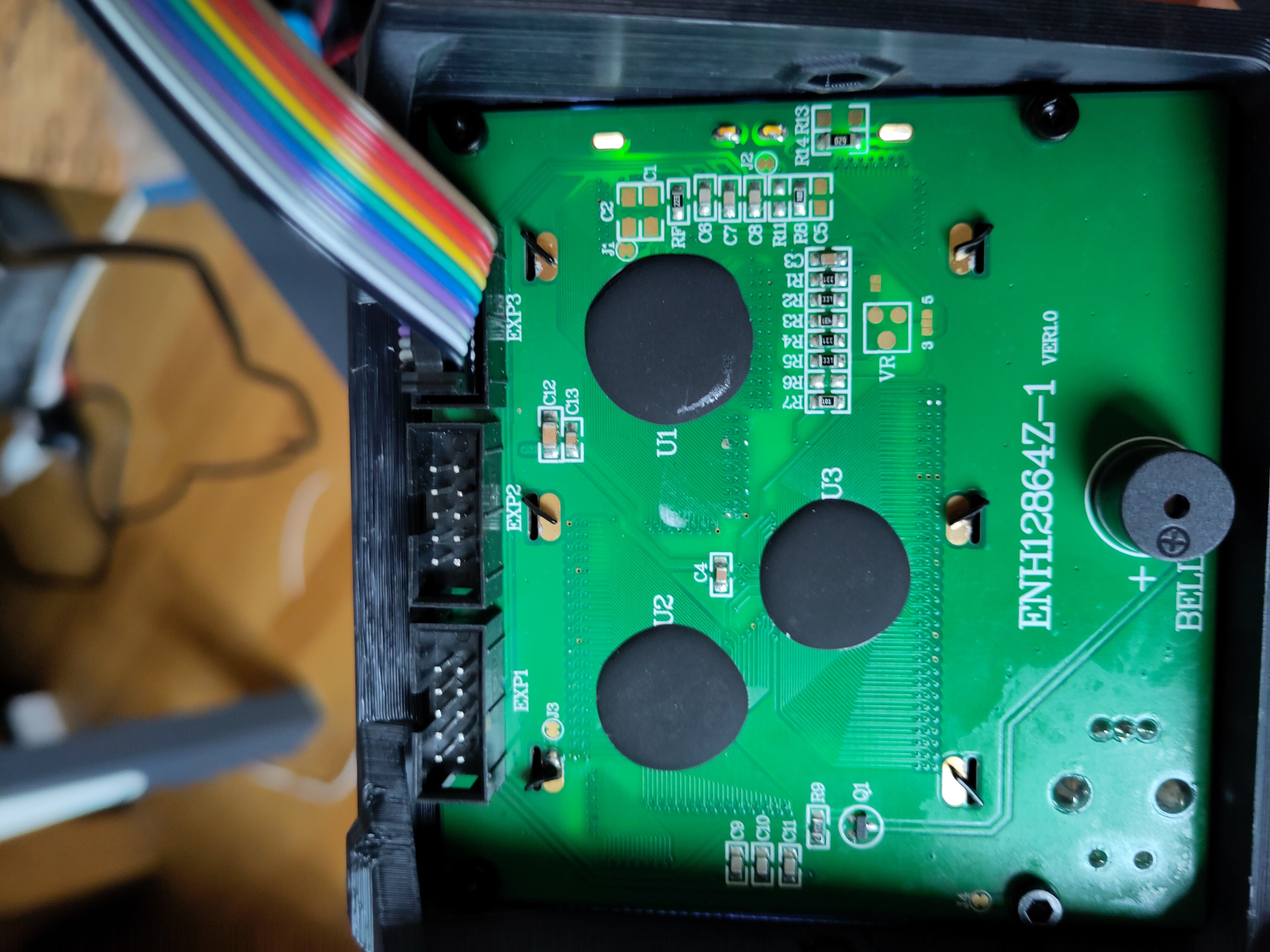

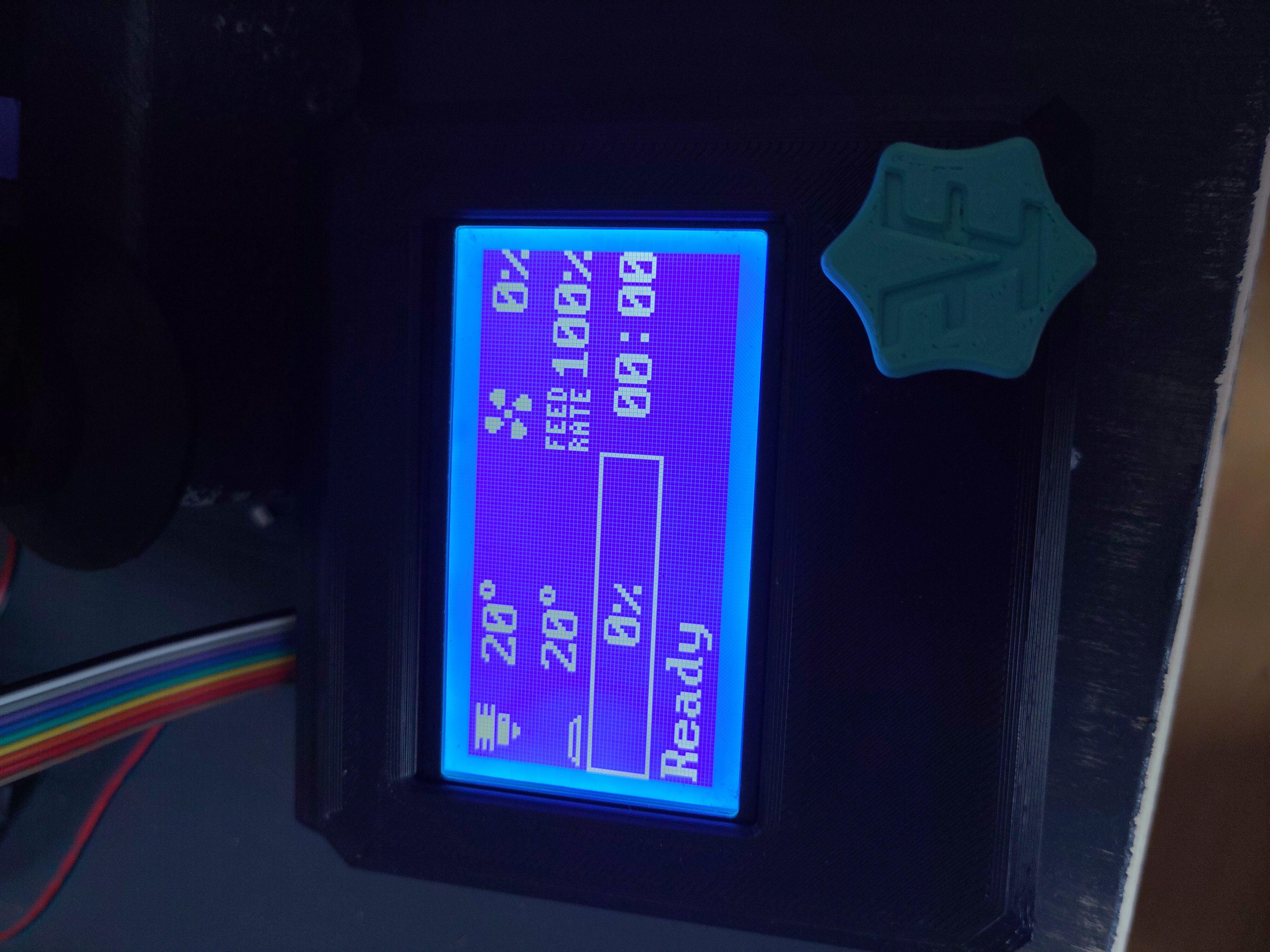

This can be used to mount the original Ender 3 Pro LCD to the E3NG (https://www.printables.com/model/922401-ender-3-ng-v12-corexy-conversion). I'm using the LCD with the Manta M5P board. The ribbon cable is plugged in EXP1. On the PCB of the display, make sure to use EXP3. I'm using this config:

[display]
lcd_type: st7920
cs_pin: EXP1_7
sclk_pin: EXP1_6
sid_pin: EXP1_8
encoder_pins: ^EXP1_5, ^EXP1_3
click_pin: ^!EXP1_2[output_pin beeper]
pin: EXP1_1
[board_pins]
aliases:
    # EXP1 header
    EXP1_1=PD5, EXP1_3=PB3, EXP1_5=PB5, EXP1_7=PB7, EXP1_9=<GND>,
    EXP1_2=PD4, EXP1_4=PD6, EXP1_6=PB4, EXP1_8=PB6, EXP1_10=<5V>,
    # EXP2 header
    EXP2_1=PB14, EXP2_3=PB8, EXP2_5=PC10, EXP2_7=PC12, EXP2_9=<GND>,
    EXP2_2=PB13, EXP2_4=PB9, EXP2_6=PB15, EXP2_8=PF2, EXP2_10=<NC>
