The lower section of the original doesnt allow for Klickly/KlickyNG bases to fit behind a mounted Dragonburner. I've extended that section to give more space whilst not going too far back so its still shorter at the bottom than the 20x20…
The original one was a bit short. Remixed it to make it have a bit of extra wiggle room. Cover images taken on iPhone 14 Made in Fusion 360
These X-Carriage pieces allow the Mini Stealth toolhead to be mounted on the E3NG printer. They work with the new Mini Stealth rigid core pieces and use a pair of M3x45 BHCS plus a pair of M3x12 BHCS to secure the core to the…
Advisory: This model has a tendency to snap. If it does snap, do not try to glue it together. That will only make it worse! Details: So I saw the A1 Nozzle Brush for the right on the RH3D Discord but it would not work for the right so I…
All parts need to be printed as the 2 main holes on top holding it together moved to make space for the K2 hot end. Wider cable routes for the 2 off 5015 fans and hot end fan. More support on the X carriage holder.
Fixed mount for cartographer (v3 and v4) probes for e3ng users that have the Goliath air hot end. Stock file is about 4mm too far off build plate for accurate reading. This Mod/Fix lowers it to the required distance… As well as moves the…
So I was using my old model "A1 Nozzle Brush mount for E3NG" but I wanted a cable chain so I could prevent the belt from getting hit as much. So like I usually do, I combined the two. The cable chain will allow for strain relief alongside…
Quick CPAP Backpack for E3NG users who are using CPAP. Made sure to include the .step file for anyone who would like to remix in any way. I attempted to make a silencer but all it really seems to do is restrict airflow.... Could be useful…
Remixed David Schallock's external spool roller for my E3NG after breaking the original while replacing a spool. I found the full spool to be a little heavy and got a lot of flex in the part. Beefed up the carriage so it has less flex,…
Two heat insert M5 and one M6 are used. The belt retainer of the micro swiss must be cut off that it can be mounted. The X-endstop was move more to the side. This leads to a smaller print area and need to be adjusted in the firmware.…
Thanks to Cronis, Seth, and a few other folks from Discord we have this slightly modified E3NG-NEXT design. Double shear on A/B with 30mm dowels for the A and B bearing stacks. For the double shear, you should have Nema17s with at least…
Mount to TZ-E3 2.0 hotend for stock toolhead. ( https://pl.aliexpress.com/item/1005005193902909.html?spm=a2g0o.order_list.order_list_main.131.65471c24FFkbQr&gatewayAdapt=glo2pol )
Update 11/29/24: Added silicon nozzle brush holder This is a purge bucket for the Ender 3 NG. This was designed around the beta files but should be compatible with v1.2. This is a relatively simple but efficient design. The nozzle brush…
Printable version of electronics cover for E3NG, https://www.printables.com/model/922401-ender-3-ng-v12-corexy-conversion that allows me to use different size of fans and also some keystone connectors. 14.05.25 Update: Added…
If you wish to upgrade your AB motor, you might encounter the same situation as I did. The original motor of the Ender 3 cannot be properly mounted on the Z-axis motor bracket. Therefore, I designed this new motor bracket to allow the…
NOT TESTED YET! Knomi v2 mount, which goes in front of the hummingbird extruder. For the front half, use arachne (in the slicer), with minimum wall width of 40%, and minimum feature size of 15%. Has wire management and place to put the…
Printable bottom panel for E3NG. Needs to be glued together. I used Tamiya cement for ABS with ASA printed parts. Orient parts with slicer as needed.
VK E3NG, a humble model that connect many things I wanted in my recent E3NG build. - X carriage from v1.2 - Dragon Burner compatible - Recycle Creality SPRITE extruder - CRTOUCH - Recycle of a spare VORON AFTERBURNER pcb ENJOY EXTRA INFO:…
Building RH3Ds Ender 3 NG based on an Geeetech A10 I needed an adapter for the electronics box to mount the GT2560 v3 on DIN rails. This is a quick an dirty model directly created in PrusaSlicer but fulfills the purpose.
Simple printable version of rear enclosure panel in style of electronics panel. Printed with ASA , glued with Tamiya cement for ABS
IMPORTANT IMPORTANT!!!: 12MM RODS CANNOT GO FURTHER DOWN. DOUBLR CHECK THE LENGTH TO BE EXACTLY CORRECT (SAND DOWN IF NOT) This modification requires the reprinting of 4 parts of the printer, and some new parts. This allows for the use of…
This is based on the Dragon Burner PCB mount (see github link). I tested it with the Orbiter 2.0 extruder, others with 36 mm Nema 14 pan cake motors might work as well as long as the motor has the same relative position to the…
KNOMI V2 TESTED! KNOMI V1 NOT TESTED Designed a mount for both knomi v1 and v2. See my profile for Wide Feet Mod, which raises the printer up, and is required for knomi mount.
A simple mount for the Nevermore V6 and the E3NG. It mounts using the 2020 mount on the Nevermore and the Klicky mount on the electrical panel on the E3NG. This mod is NOT compatible with the Klicky, as it uses the mount for the docking…
Build as described in the manual https://rh3d.xyz/build_guide.html
This is a spool holder designed to reuse the pom wheels from a stock ender 3, because more parts reused = more better. @MaxS on discord has fixed some of the problems it had, and improved the design (it now uses m5 screws as a shaft and…
I decided to make the Integrated Protoxtruder again, and kept in the theme of keeping it light Credit to nhchiu: ProtoXtruder Credit to RH3D: ENDER 3 NG v1.2 - coreXY conversion Weight of printed Integrated Extruders from ABS (no gears)…

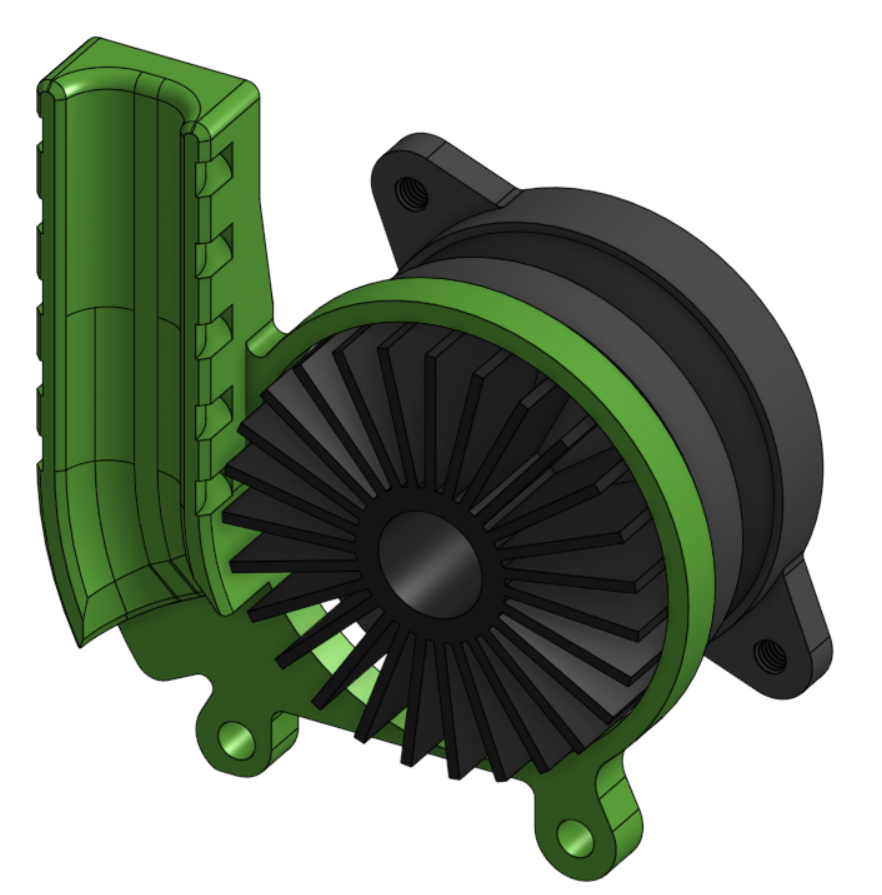

Not tested, yet again This simply allows for cable strain management on the toolhead, even with a round heatsink on it: Like this heatsink As with everything else I made: made in Onshape
This can be used to mount the original Ender 3 Pro LCD to the E3NG ( https://www.printables.com/model/922401-ender-3-ng-v12-corexy-conversion ). I'm using the LCD with the Manta M5P board. The ribbon cable is plugged in EXP1 . On the PCB…
I love the Stealth Skirts on my V0.2 and my E3NG likes to masquerade as a Trident. So I gave it the flair it deserves. Models can be split to parts in your slicer to easily color predefined sections. Front pieces don't have an extrusion…

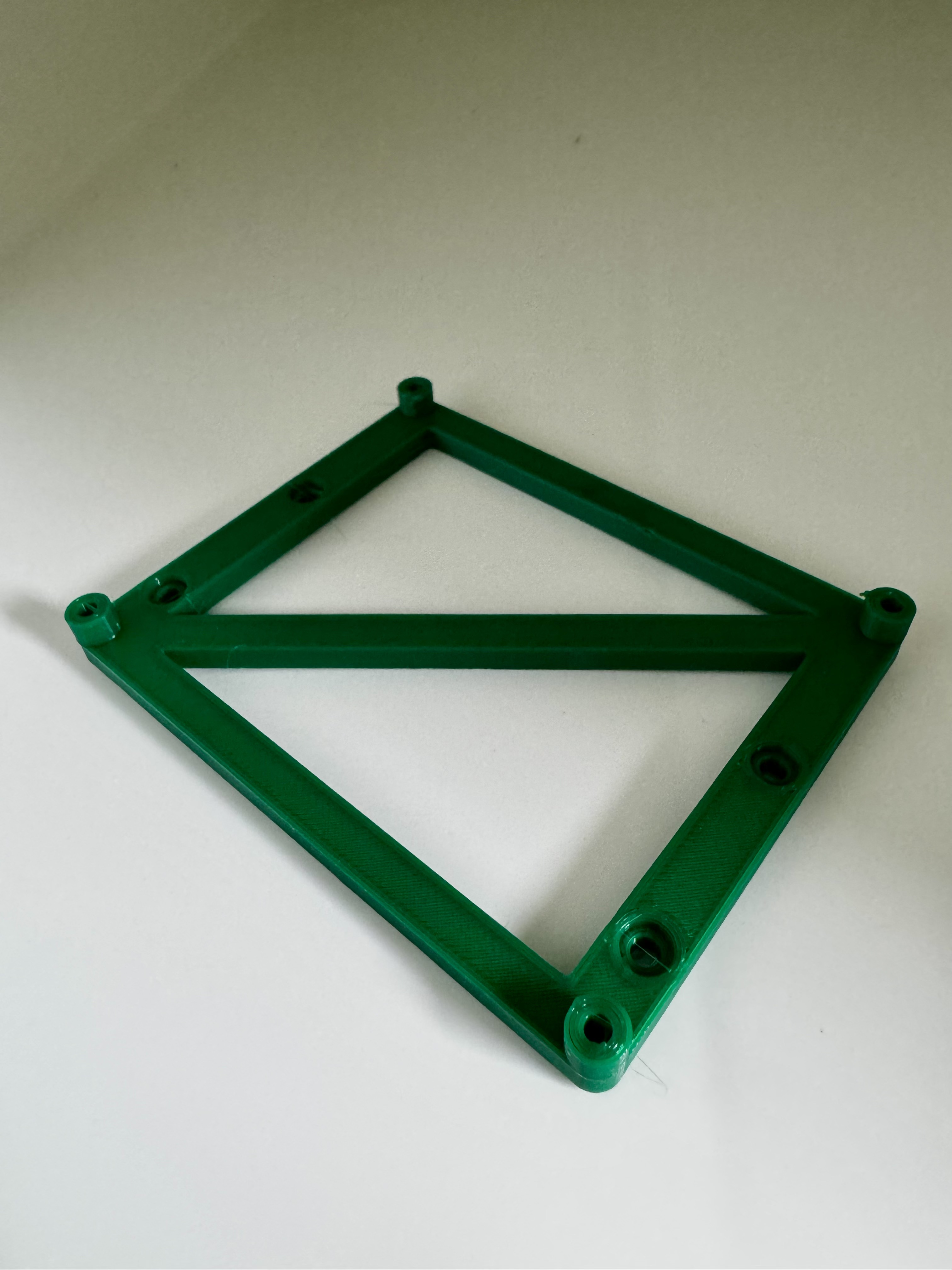

Not tested again… Beefed up the DIN rails (where possible), and cut the longer ones (to be printed on an Ender 3), while maintaining strength by adding glue-in cutouts.
Since I wanted to print the back panel in a single color anyway, I removed the pattern to reduce printing time.
ebb36 mount for protoXtruder (either 1 or 2) and e3ng v1.2 carriage. Although this is designed from scratch, it is based mostly on how most tool head board mounts are designed. Standoffs can be printed or the ones that are included in the…
The M2 screws for fastening the PCB can either be screwed into threaded inserts or directly into the printed part. You just need to print the corresponding version of the mount.
Just added a brace between the left and right sides between the belt slots. I've had several of these torn apart from the belts yanking on it and finally came up with a solution that works well. Best of all, makes putting in the belt…

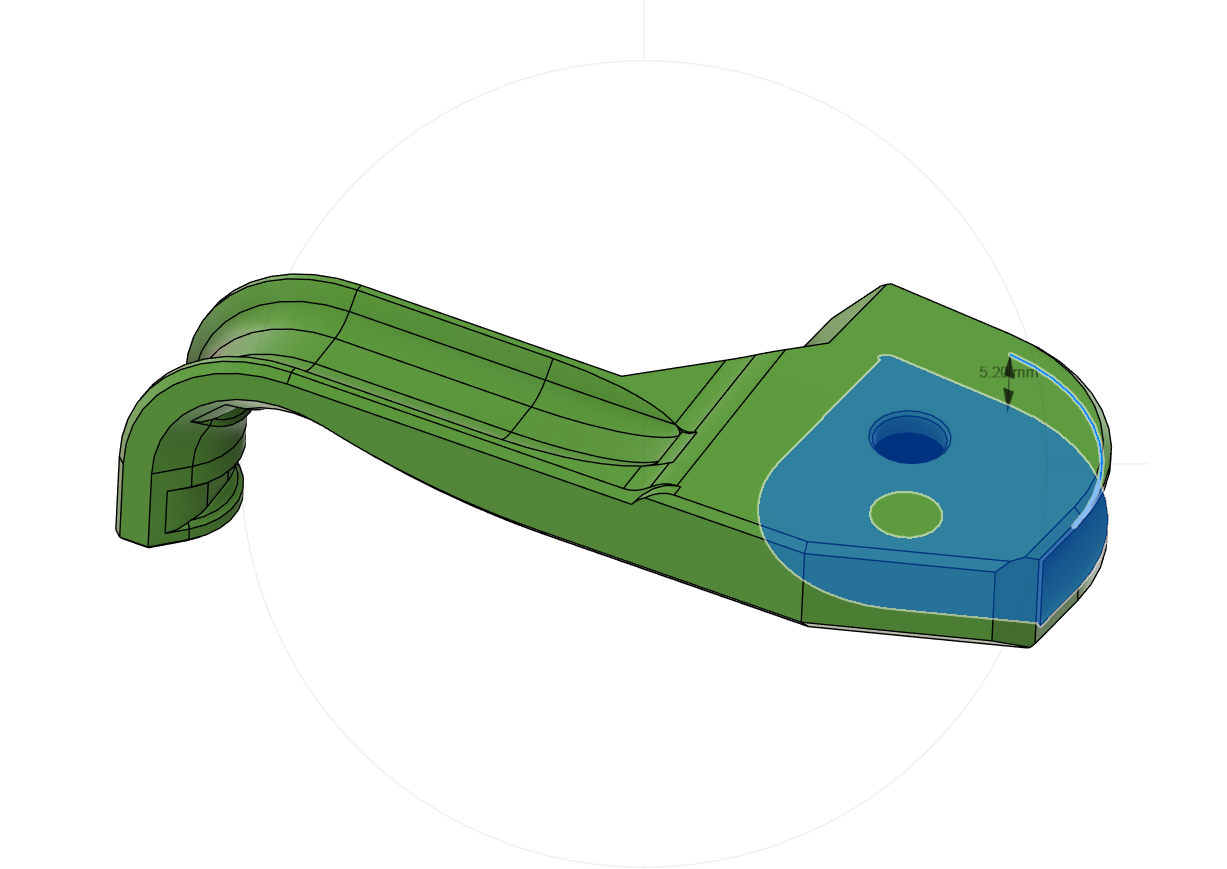

Cable strain relief for a 5mm thick metall bed carriage!
Extended cooler bodies for 48mm stepper motors.
NOT TESTED! READ THROUGH THIS FIRST! DO NOT RUN AT SUPER HIGH TENSIONS, AF TYPE PULLEYS MAY DAMAGE THE BELTS! This mod requires: 14x 695 bearings, not flanged 2x f695 bearings, not including ones from original e3ng 2x AF type 10mm…
Mounts for the Creality light bar to be used on the ENG v1.2. Utilizes the mounting holes on the back of the XY gantry that are usually used for the enclosure. Designed to work with the optional bracing. The cable for the light can be…
I made a laser cut floor plate for the single z stepper configuration. This helps to keep the z motion clean and cold. 3mm Acrylic plate is used.
HAS BEEN TESTED! Findings: belt clamps can skip teeth, toolhead_base may violently rip apart at very high belt tensions CAUTION: TENSIONING THE BELTS TOO TIGHT MAY LEAD TO PRINTED PARTS BREAKING. WHEN TENSIONING THE BELTS PAST THE…
I had an issue with the heater block colliding with the X carriage while building the E3NG so I made these spacers. Can be easily scaled to different thicknesses in the slicer. You will have to use 40mm screws instead of the 35mm used in…
This is a fully adjustable mount for the Cartographer probe on the front of the E3NG toolhead. It allows for up/down adjustment as well as rotational adjustment to help ensue it's level to the bed. Put 1 3mm heatset insert into…
Internal spool holder for the E3NG or other printers. One roller is used to guide the spool.77mm max wide spools. Parts: 4x 608 bearing or 4x V slot wheels 8x M3 heatinserts 8x M3x10 srews 2-4x M3 T Nut/M3x10 screws No supports needed

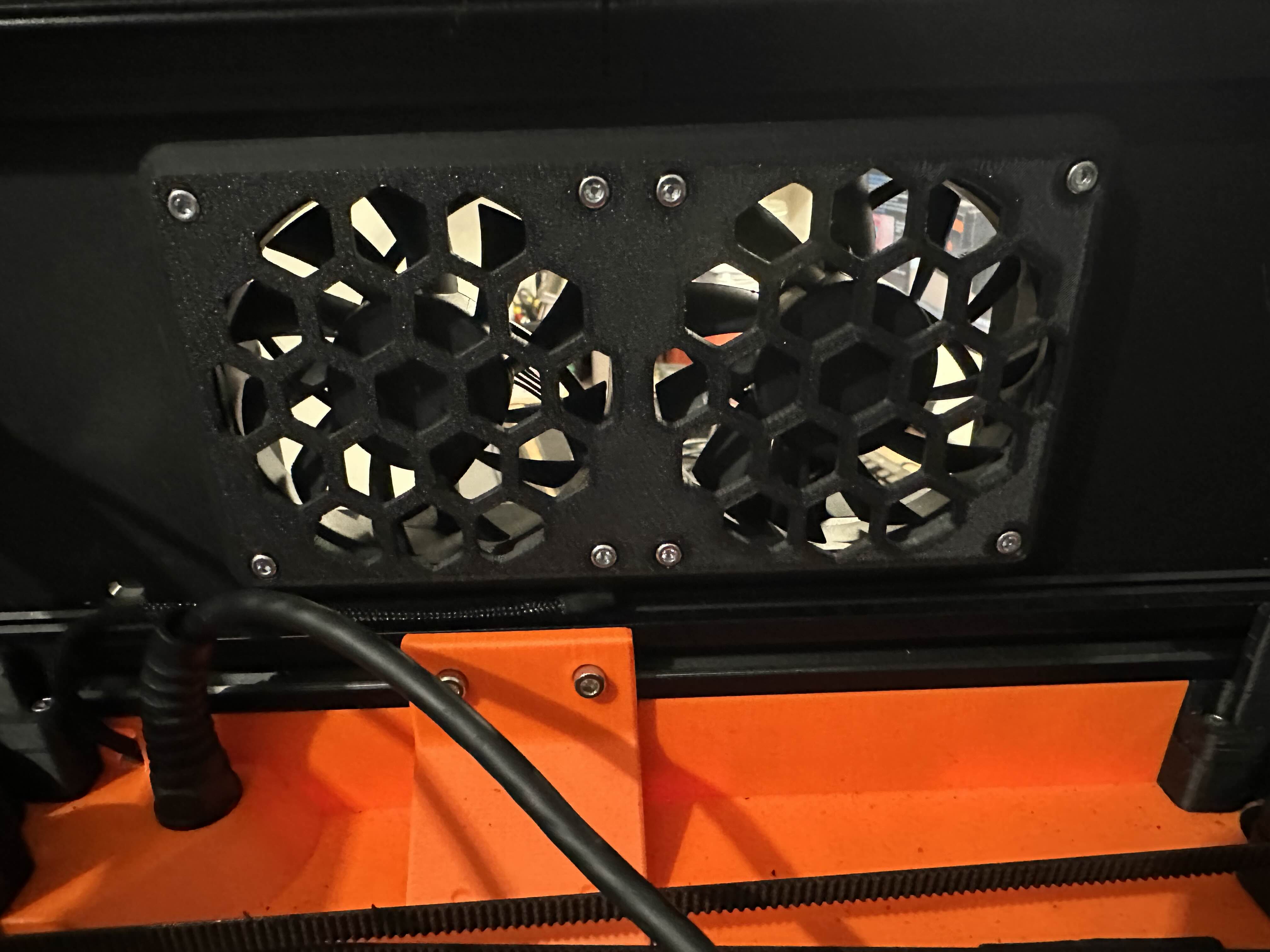

HEPA Exhaust system for the E3NG. The idea is to keep tempreture low in the enclosed chamber for PLA printing and for ABS printing building up a slight negative pressure, to keep the fumes escaping through gaps. Parts: 4x HEPA filter the…
Integrated Tsunami This is an adaptation of Tsunami to fit in the E3NG's mounting points. Notes See Tsunami for more details about the extruder Not tested yet
Mounting bracket compatible with flat mesh skirt for Ender 3 NG . Dedicated for BigTreeTech HDMI 5 v1.2 display. Requires 4x M3 heat set inserts to connect with the skirt and 4x M3x8 screws to secure the display. USB and HDMI cables…
E3NG dual Meanwell UHP-200 powersupply mount for E3NG dinrail (usually one 24v and one 48v). Also a DXF file is included for the backplate without the original fan hole.
The lower section of the original doesnt allow for Klickly/KlickyNG bases to fit behind a mounted Dragonburner. I've extended that section to give more space whilst not going too far back so its still shorter at the bottom than the 20x20…
Tested! However, the version here is beefed up a little to add strength. Uses three “ electronics_DIN_rail_generic_mount.stl”, as for screw lengths: use whatever reaches the heat set inserts! (Remember that the Kraken is upside down when…
Parts required (both sides, top and bottom): 20x M3 T nuts 20x M3 14mm Bolts
An external Spool holder based on this one here https://www.printables.com/model/624115-voron-24-roller-bearing-type-sp but without the need for bearings. Your printer will need to be reasonably tuned for it to print and roll well, but…
Use the PUG (Parametric umbilical gland) on your E3NG. Remove built-in support parts marked with “X”. Requires 2 M3 heat set inserts and 2 M3 10mm bolts. PUG can be found here:…
i don't need a ginormous screen for my ng but love the skirts & wanted to be able to use my tft35.
The case only supports rpi cameras with the flex-cable connector on the FRONT side! The arm should be mounted to the left 2040 extrusion of the ultimate frame. Required parts: Camera housing: 4x M2*3mm Heat insert 2x M3*4mm Heat insert 4x…
This is a plate to mount the Mellow Fly Gemini (tested with v1/1.2 but could probably work with the others) mcu/sbc combo motherboard to the DIN rails on the electronic backpack of the E3NG. Could also works with other projects, i guess.…
Y axis blocks for Ender 3 NG V1.2 These blocks use set/grub screws to retain the X axis rods instead of clamping them. This should reduce bowing/twisting of the X axis rods. There is also additional clearance to use toothed idlers if…
Replacement ducts of the ducts provided in the original. These ducts are the newer CFD tested ducts, and they have been made to be smoother and not be blocky to make it longer. (7mm longer than long ducts)
The original one was a bit short. Remixed it to make it have a bit of extra wiggle room. Cover images taken on iPhone 14 Made in Fusion 360

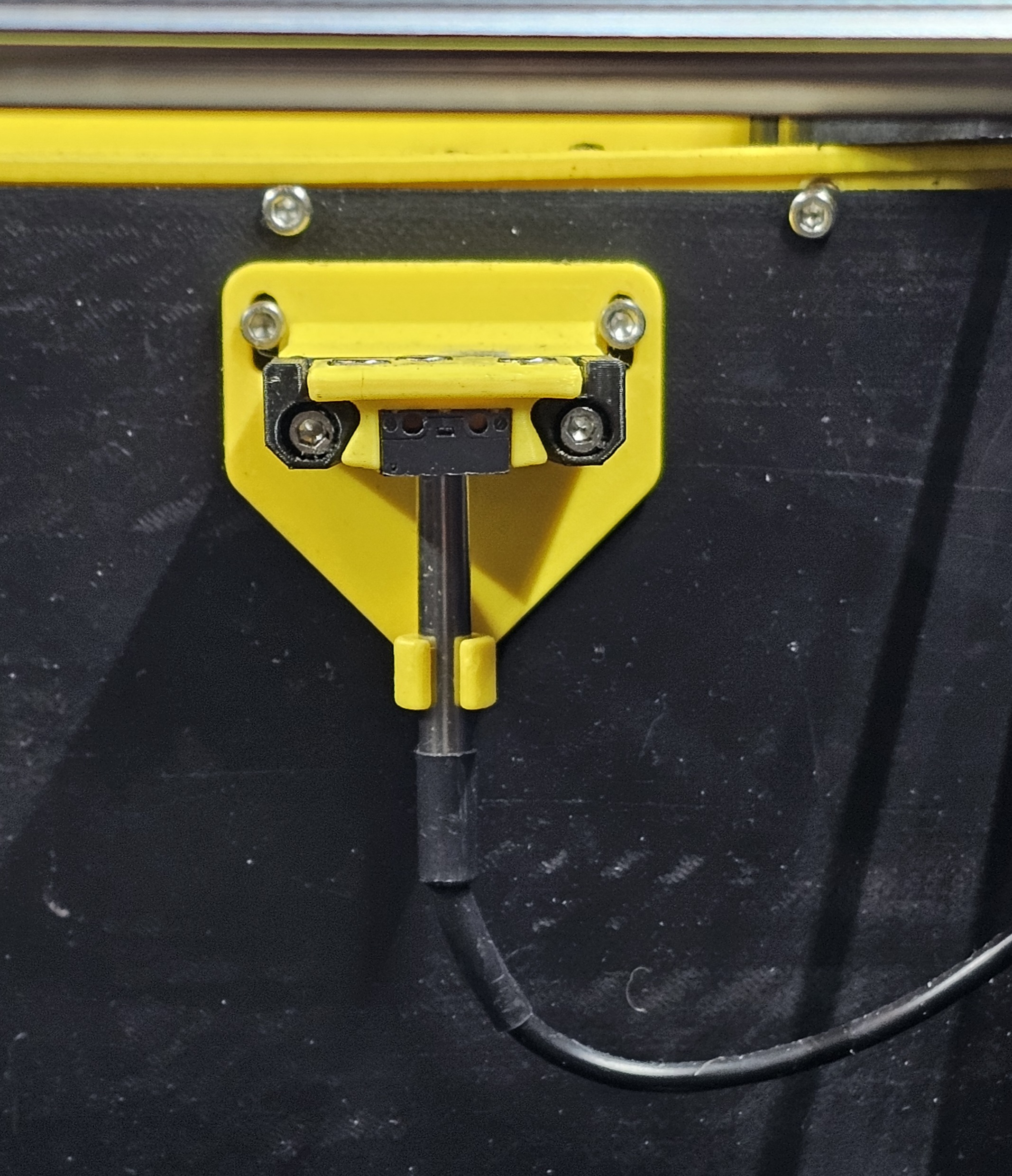

A Klicky Dock with integrated DS18B20 Mount for the Ender NG 1.2
Reuse your stock two-screw leadscrew nuts with the Ender NG. Features an additional bump to stop the nut flange binding on the spring part of the flexi
Modified breakout boards for the Ender NG 1.2 to mount 4 and 5 pin JST-XH connectors and XT30s on your toolhead
E3NG BETA/1.2 - Front Brace for 12mm Rod. Ideal Rod length is 385mm, but will work with 350mm.
Combined NG stock integrated ProtoXtruder 2 with ECAS collet variant
A whole raft of different X carriages for the Ender NG - See filenames for detail. +.2mm means that the centres of the bushings/bearings are an additional .2mm apart compared to stock - this can help when adjusting the gantry, using…
E3NG 1.2 - Elongated Stepper Cooling Shrouds - to fit 48mm and 60mm Steppers
Integrated filament sensor for use with internal spool holders. Replaces the integrated reverse bowden/filament guide on the rear right corner. Can be installed as an in-place upgrade without major disassembly. Internal geometry pinched…

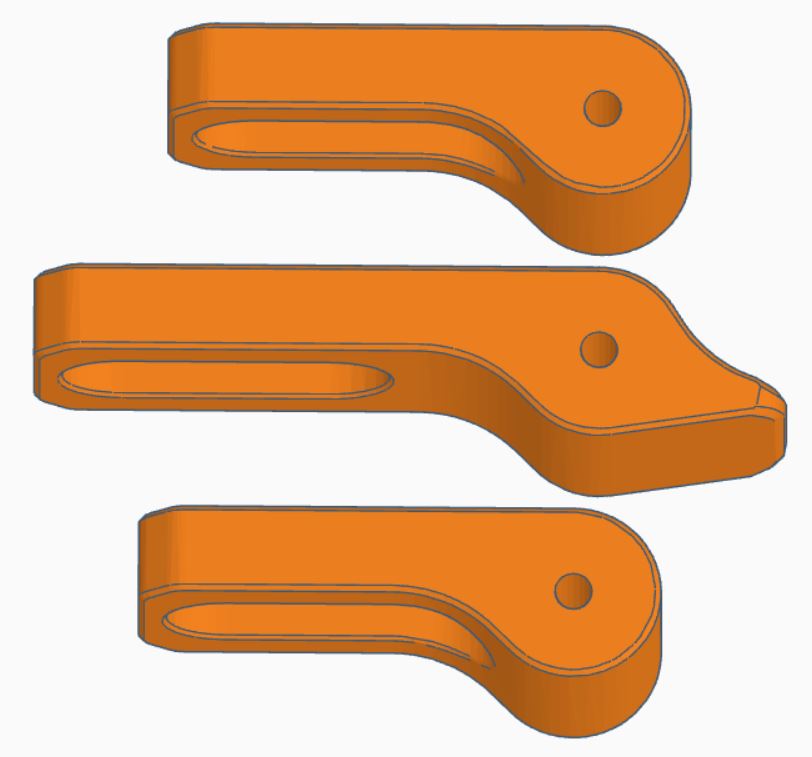

Replacement hinge parts for the v2 enclosure (used with the Ender NG 1.2) Removes the M5 inserts from the door hinges. Eliminates the issue of the hinge M5 bolts becoming loose and working their way out. Use an M5 to directly screw into…
Mount for a great big 24V → 12V automotive buck converter to mount inside an Ender NG electronics compartment using the generic DIN rail mounts
E3NG Direct Drive with stock ender extruder, untested, building printer this week
Added two V slots wedges. For easier adjustment also in the event of a crash, the limit switch cannot lose it's position.
DIN Rail mount for the Dollatek Stepper Expansion Board Requires 1x universal Din Rail Adapter from the E3NG Project 4x m3 Heat set Insert 2x M3x6 4 M3x10mm
A guide to make aligning a flex plate easier. Feel free to use the step files to make itterarations. -Beta version
Since I had an RS-25 laying around I figured I'd adapt the stock RS-15 DIN rail mount to accommodate the RS-25.
Printable base plate for the E3NG. It is printed and assembled in 4 parts, just like the back panel. There are options for single and triple motor configurations. To use this mod you will need to flip your motor so that they face down.…
The original Klicky dock has a slot for a magnet, to hold the Klicky probe in place. There is a 2.3mm hole underneath the magnet by default, which is too big to thread in an M2 screw, but too small for an M2 heat set insert. An M2.5 screw…
Disclaimer: right of the bat, this file is a little rough around the edges, but it works. The original bed fan duct caused an issue (in my setup) where the lack of airflow caused a vacuum in the duct, which caused the fan to blow air…
Fysetc portable input shaper board adapter for the E3NG V1.2 4010 and 4020 toolheads. BOM: - 2x M3x5 - 2x M3x25 Instructions: Screw down the Fysetc board to the bracket using the 2 M3x5 screws. Remove the original M3x20mm screws from the…
For MKS Pi with heat sink needs higher fan mount. Added 5 mm height.
These X-Carriage pieces allow the Mini Stealth toolhead to be mounted on the E3NG printer. They work with the new Mini Stealth rigid core pieces and use a pair of M3x45 BHCS plus a pair of M3x12 BHCS to secure the core to the…
This is a remix of the E3NG v1.2 Toolhead Cable Holder, modified to better accommodate longer cable runs. The part has been extended and features extra zip tie holes for improved strain relief and cable routing. Designed for those using…
This is a nozzle wiper in the style of Bambu, adapted specifically for the E3NG printer. It’s based on the great work by adrianoluis/nozzle-cleaner , with modifications for compatibility with the E3NG mounting system. The wiper helps…

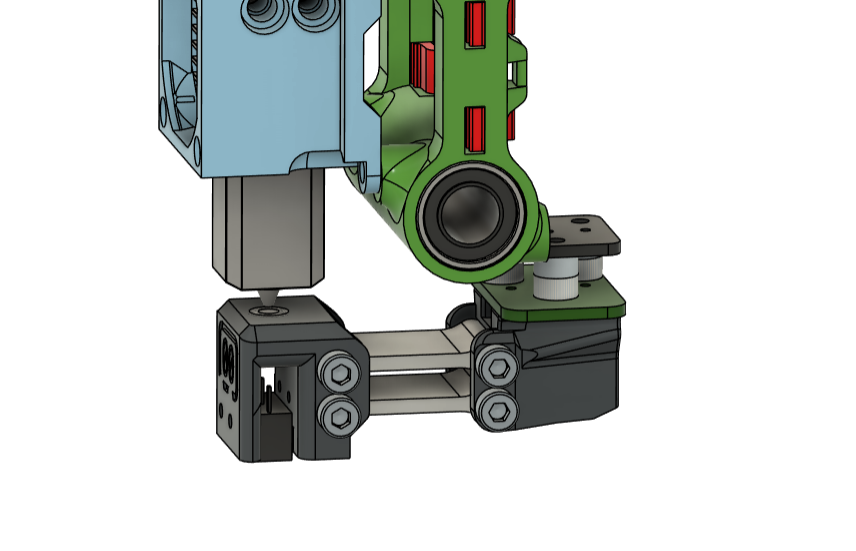

This is a Klicky probe mount made specifically for the E3NG toolhead ("Klicky 00" refers to a minimal, clean version without extra features). It attaches securely without interfering with cable routing or fans. The position is tuned for…
I adapted the original beta NG Y gantry blocks to fit on the NG 1.2 They are considerably heavier, but also considerably stronger. I included a shorter and an even shorter endstop switch mount. The shorter one should suffice in most…
Bracket compatible with flat mesh skirt for Ender 3 NG . Dedicated for MKS Pi-TS35 display case. Bracket requires 4x M3 heat set inserts to connect with the skirt and 4x M3x8 screws to secure the display. Case requires 4x M3x8 screws. For…
Advisory: This model has a tendency to snap. If it does snap, do not try to glue it together. That will only make it worse! Details: So I saw the A1 Nozzle Brush for the right on the RH3D Discord but it would not work for the right so I…
Modified base to fit in between the auxiliary fan and the back panel. Removed mounting loops and added internal mounting holes.
This is a heavily simplified version of my previous AWD mod, requiring only a couple additional screws over the base configuration. I believe that by continuing to strive for simplicity I can make this mod continuously more accessible.…
A DIN Rail mount for the Manta M8P v2.0, designed to optimize space in the back of the E3NG electronics backpack. Release notes v2: corrected placement of lower left hole, misread a dimension on the M8P v2.0 CAD file. Required materials…
