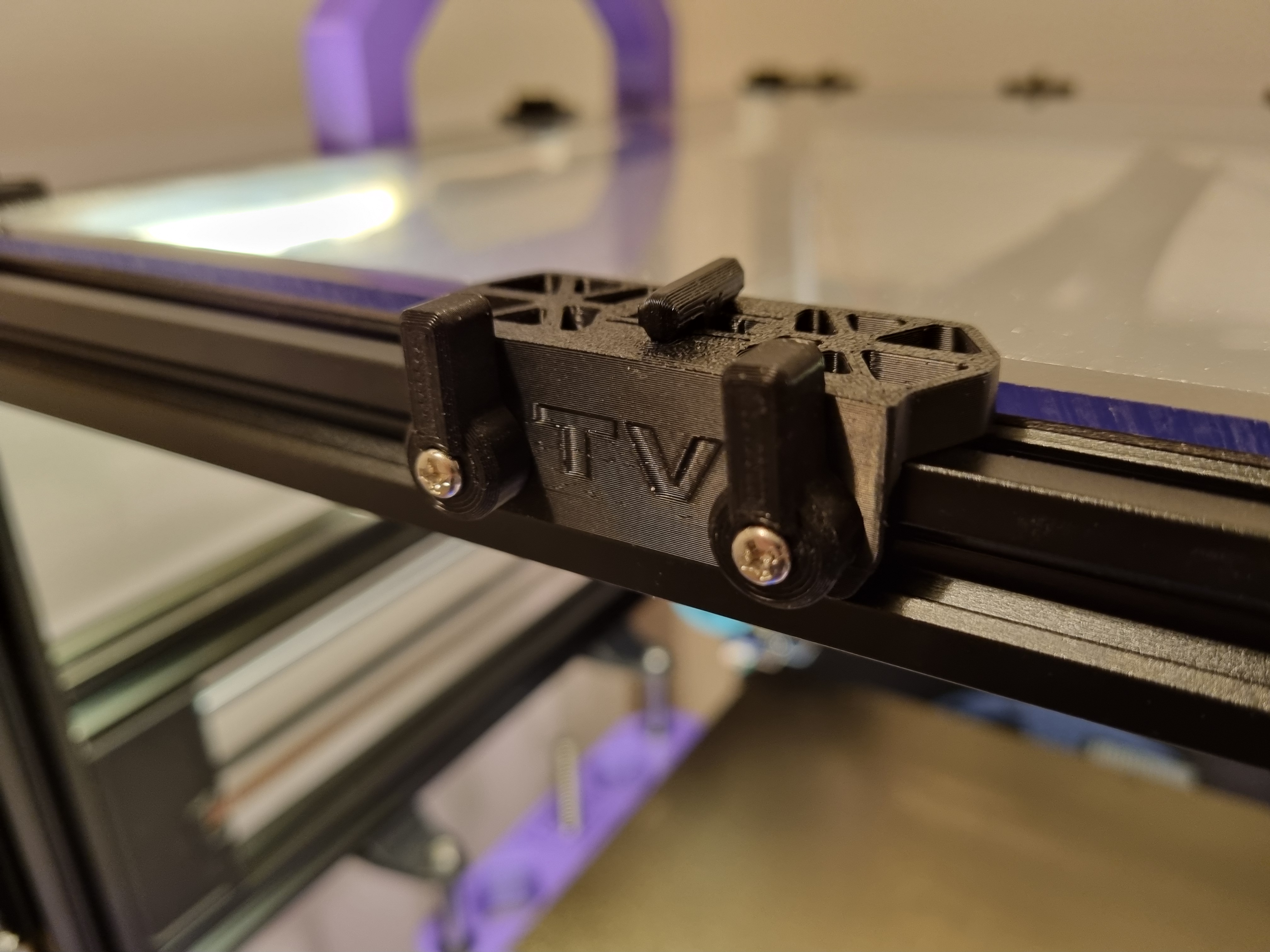

Annex 2020 Enclosure Clip with door latches
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Voron Parts & Upgrades
- License
- Creative Commons — Attribution
Printed using ABS, PETG could work too. Designed for 3mm enclosure panels on 2020 extrusions.
Print settings used:
3 walls at 0.42mm outer wall and 0.6mm inner wall

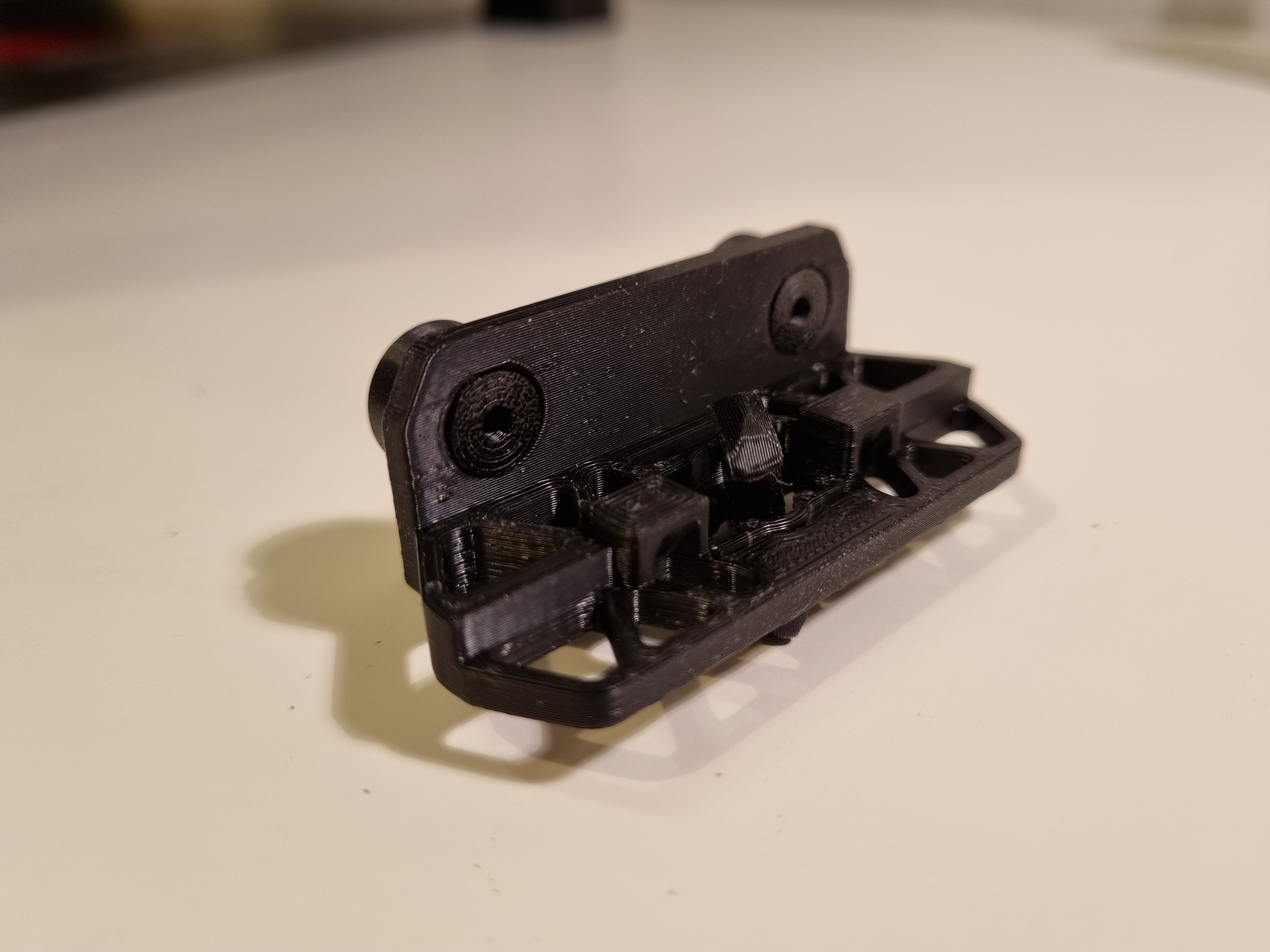

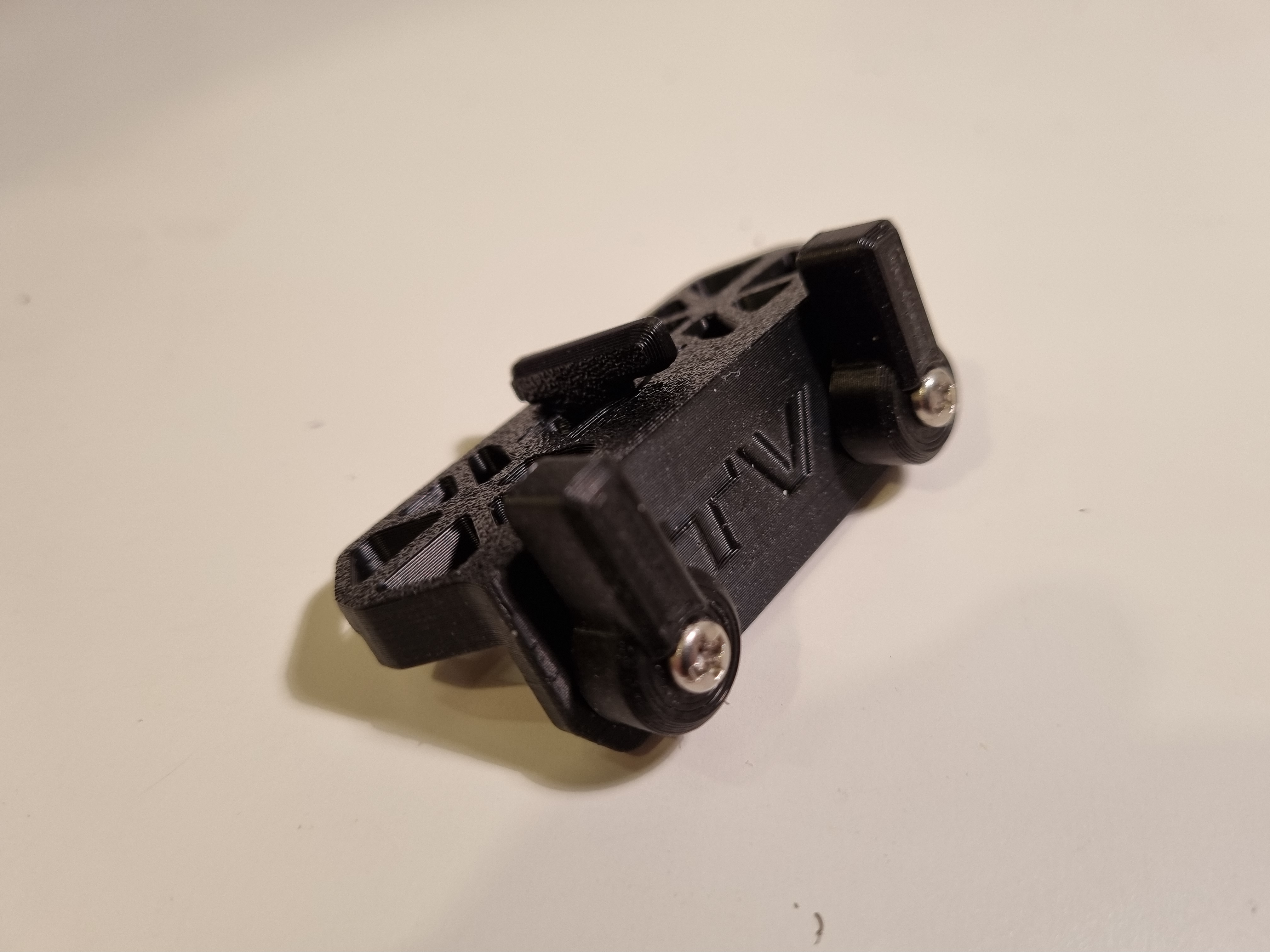

Print 2x of the latch handle and latch base. Requires 2x M3x6mm screws to attach latch handle and base together with the lock body sandwiched in between. I suggest screwing the M3 into the latch base first to pre-create the threads to allow for easier threading.
STEP files provided for modification purposes in case your printer isn't dialled in and you may need to make some of the holes larger.
