Ender 5 MicroSwiss Direct Drive Fan Duct (Step and Fusion360)

FOR IMPROVED PERFORMANCE USE THE NEW V3 INSTEAD: https://www.thingiverse.com/thing:4975346
.
.
.
This is a reworked version of the MicroSwiss DirectDrive Fan Duct for the Creality Ender 5. It's based on this remix i did: https://www.thingiverse.com/thing:4832331 and it uses my new combined BLTouch adapter: https://www.thingiverse.com/thing:4856597
.
In case you'd like to modify the design, it's available as a STEP and Fusion360 file. If you edit it, please post it as a remix!
.
The design is made for 1x Noctua A4x20 fan for Hotend cooling and either 1x or 2x Noctua A4x20 fans for Part cooling. For each fan 2-4x M3x8 screws should do.
.

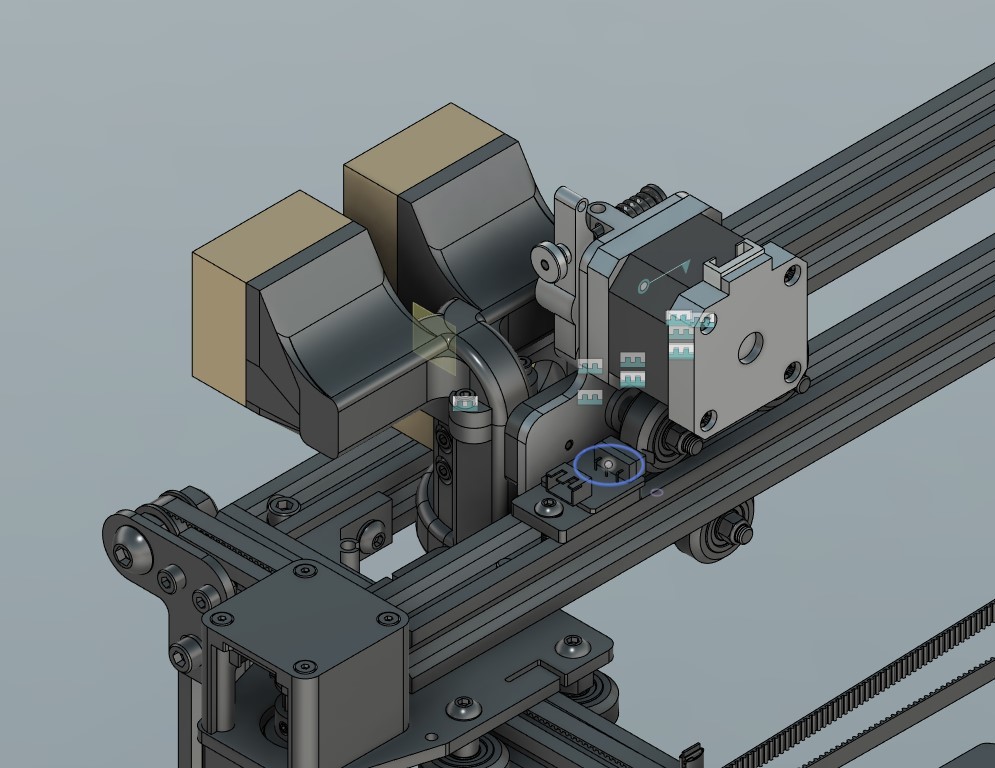

For collision avoidance checking I used a step model of the Creality Ender 5 pro from the user "barnabyQ" at https://www.grabcad.com/library/creality-ender-5-pro-1.
.
The XY-Offsets are as follows:
-BLTouch: define NOZZLE_TO_PROBE_OFFSET {-35, -13}
-Probe: define NOZZLE_TO_PROBE_OFFSET {-35, -31}
.
.
.
V1:
.
The fan duct consists of these parts (including the necessary installation hardware):
.

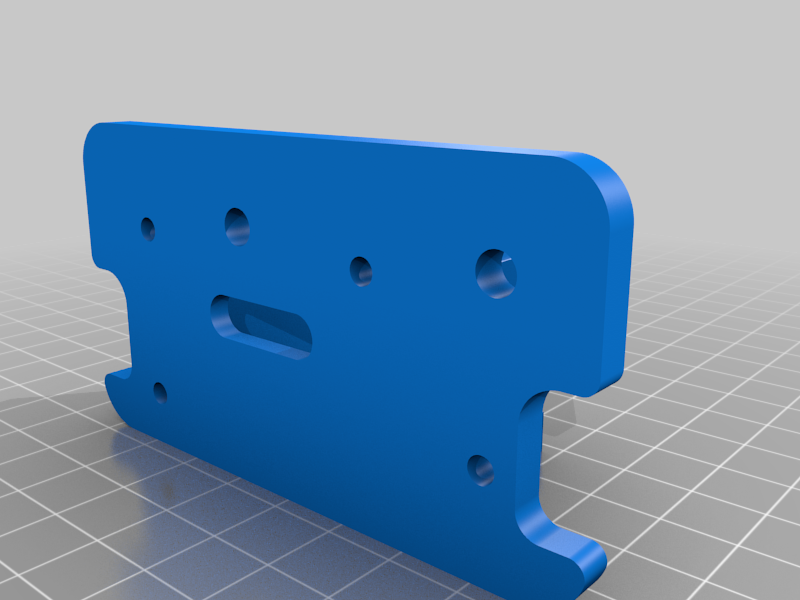

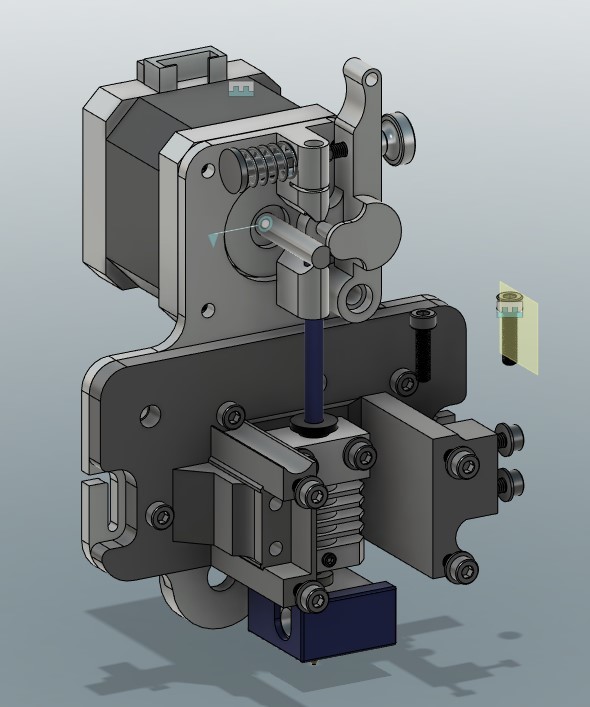

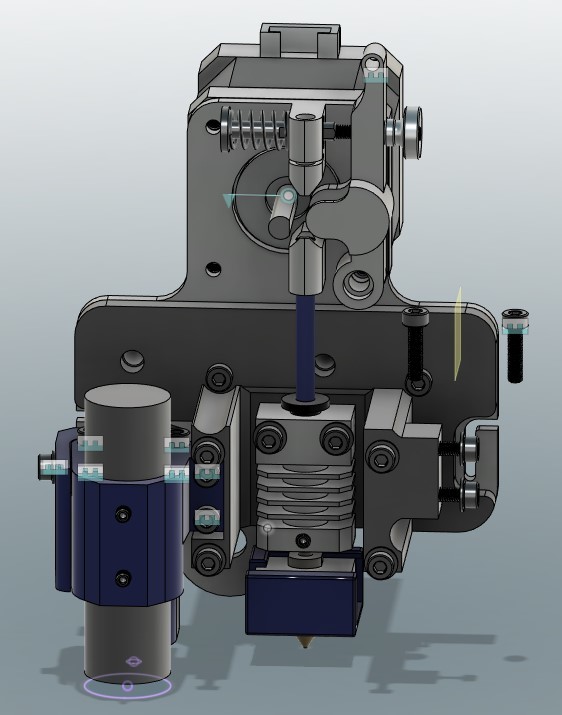

-Base_Fan_Duct - 4x M3x8 screws (M3 washers optional)

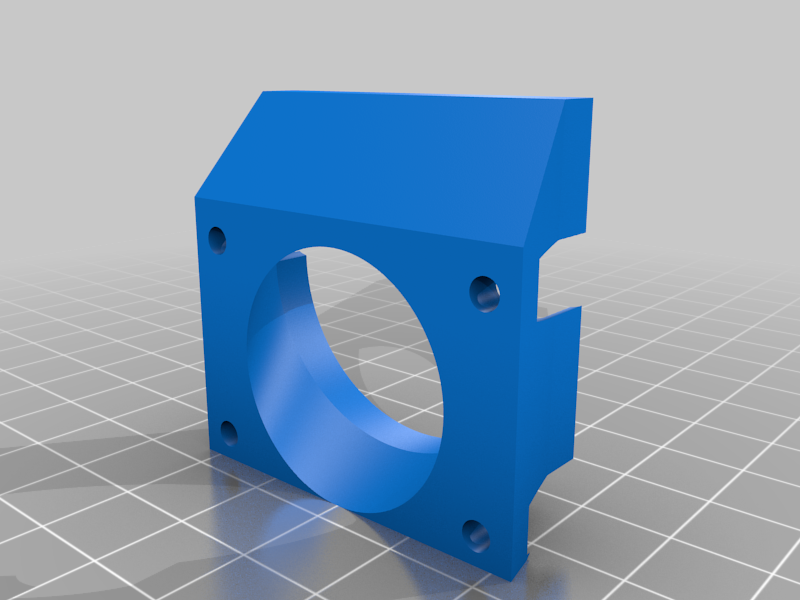

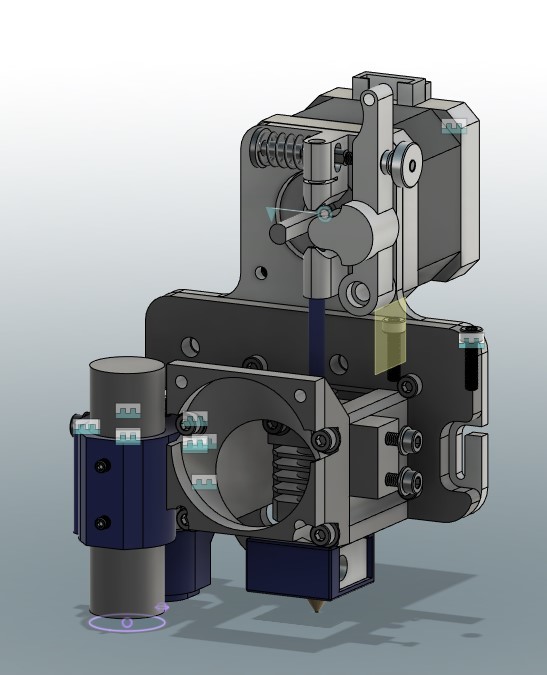

-Front_Fan_Adaptor - 4x M3x12 screws + 4x M3 washer

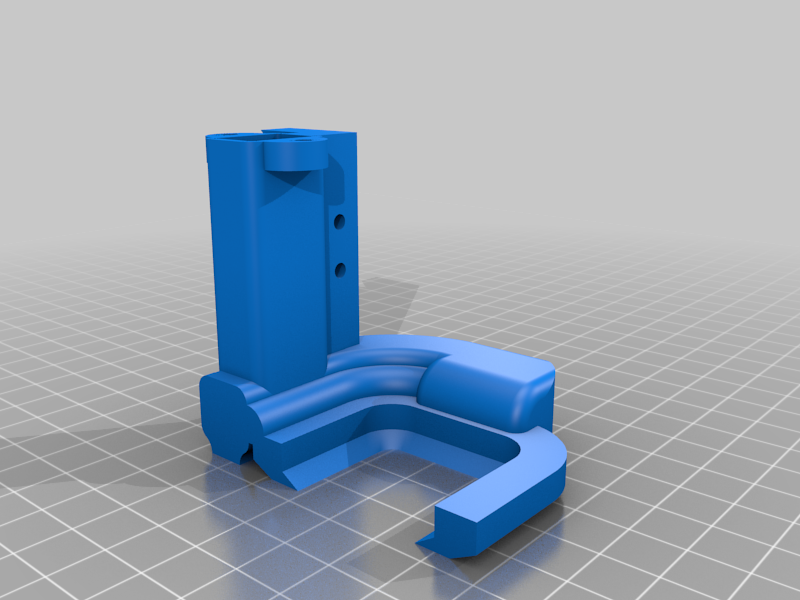

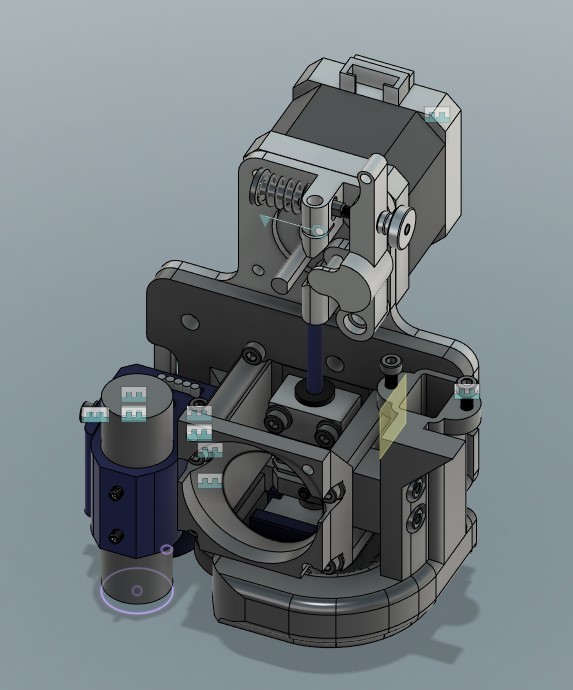

-Lower_Part_Cooling_Duct - 2x M3x8 screws + 2x M3 washers

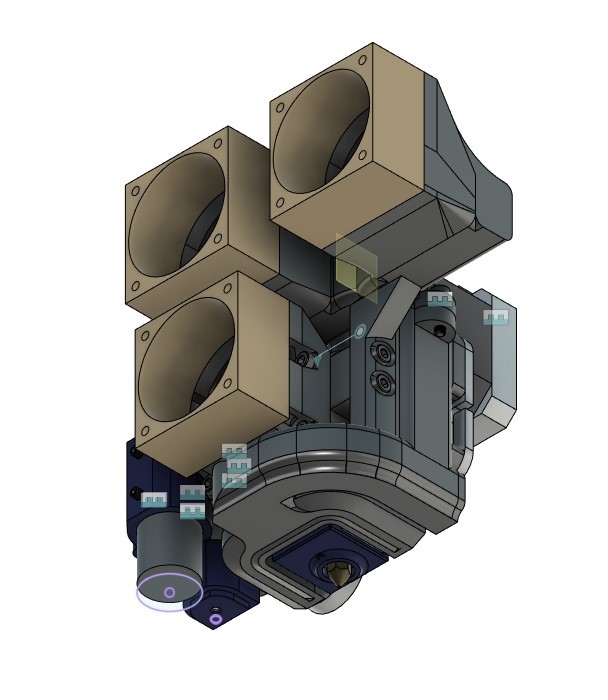

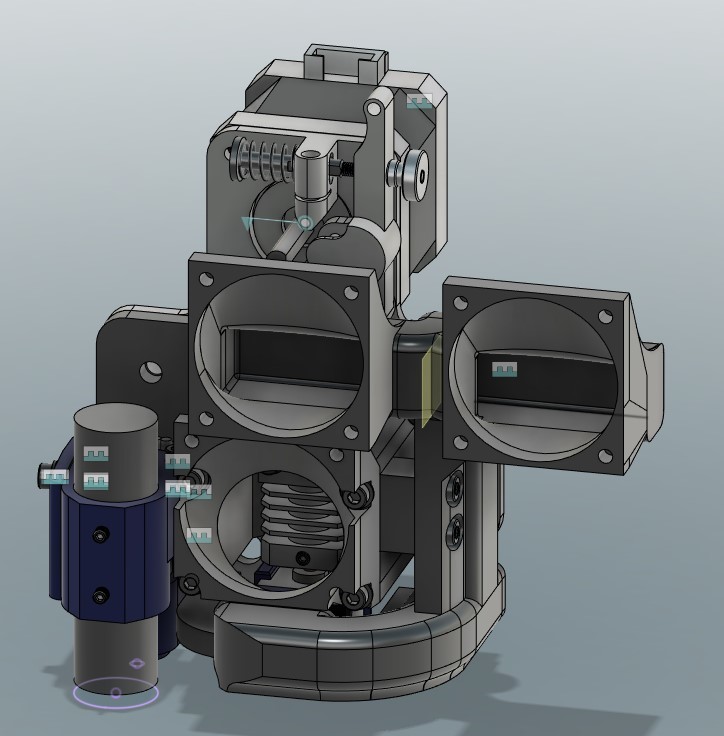

-Part_Cooling_Duct_For_One_Fan or Part_Cooling_Duct_For_Two_Fans - 2x M3x16 screws + 2x M3 washers + 2x M3 nuts
.
.
V1.1:
.
-Modified the design a bit to make it printable with less or even without supports
.
.
.
If you decide to print and mount it on your machine, please post it as a make!
.
.
.
DISCLAIMER: THIS IS A WORK IN PROGRESS,
the cooling potential and fitment have not yet been verified as I don't have an Ender5.
As the model relies on this original file to be accurate: https://www.thingiverse.com/thing:4563691
fitment errors are still possible!

Print Settings

Printer Brand:

Creality

Printer:

CR-10

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

20-25%

Category: 3D Printer Accessories
