They are finally here, CPU cases for your organization needs!
Versions Included:
17XX 1851 Holder V12
20XX Holder V5
115X 1200 holder V8
AM4 Holder V11
AM5 Holder V8
Tools required:
Hammer
Extra Materials:
2 x 2D finishing nail 1" (25mm), or other ~1.75mm Rod
Printing:
Orientation: Flat sides on the bed
Works well in PLA and PETg.
normally use: 0.2mm, 0.25mm or 0.28mm layer height
Assembly:

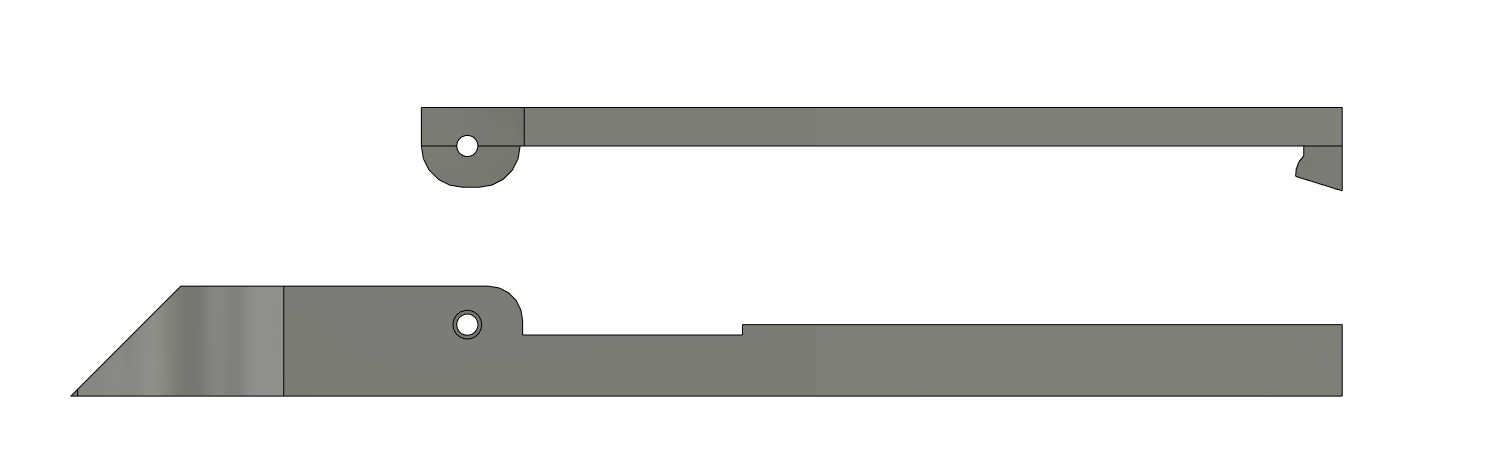

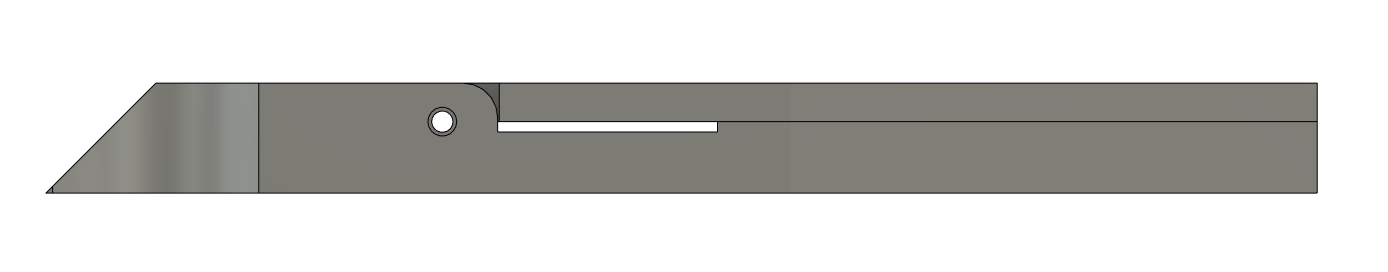

Place the upper case so that it nests into the lower case
the hinge holes should be aligned
Insert nail/rod (point bit first) into hole
Tap in nail/rod with hammer till nail is seated
trim excess if desired
Repeat till all you cases are assembled, then happy organizing!
.STEP and .STL files are provided.
Change Log:
V11 17xx 1851 CPU: Increased clearance for LGA 1851 CPUs
V12 17xx 1851 CPU: Increased clearance for LGA 1851 CPUs in any orientation, and separated the two objects to be one click printable, reoriented model
