UPDATE:
Three persons contacted me that the snap did not work for them, so I made another version. The files is called "Cable Clip Updated v1.stl". I still don't know why the old version works for some but does not for others, but the new version should work for everyone! Sorry for any inconvenience caused.
Hi,

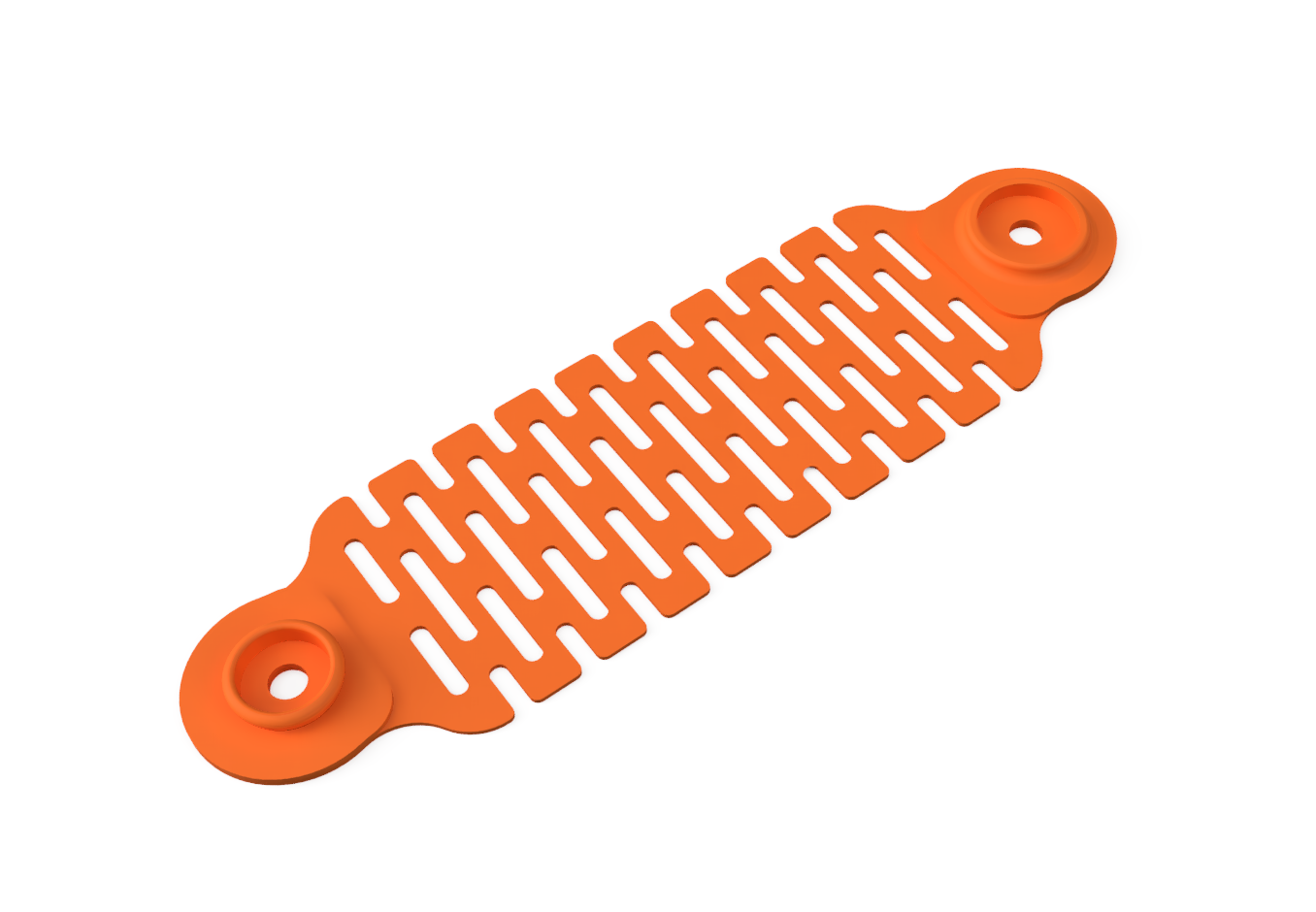

this is my living hinge cable organizer. It also has a 3 mm hole - you can use it to not only keep your cables together but also attach them to something else.
So far there are two versions with the following dimensions:
approx. 25 x 90 x 3 mm
approx. 25 x 120 x 3 mm
I hope you like it :-)
How do you print it?
It consists of only one part and can easily be printed in around 20-30 minutes with no supports. I recommend a 0.2 mm layer height and PLA. Also wait until it has room temperature before removing it from the bed of your printer, otherwise it could deform while removing it.
How do you use it?

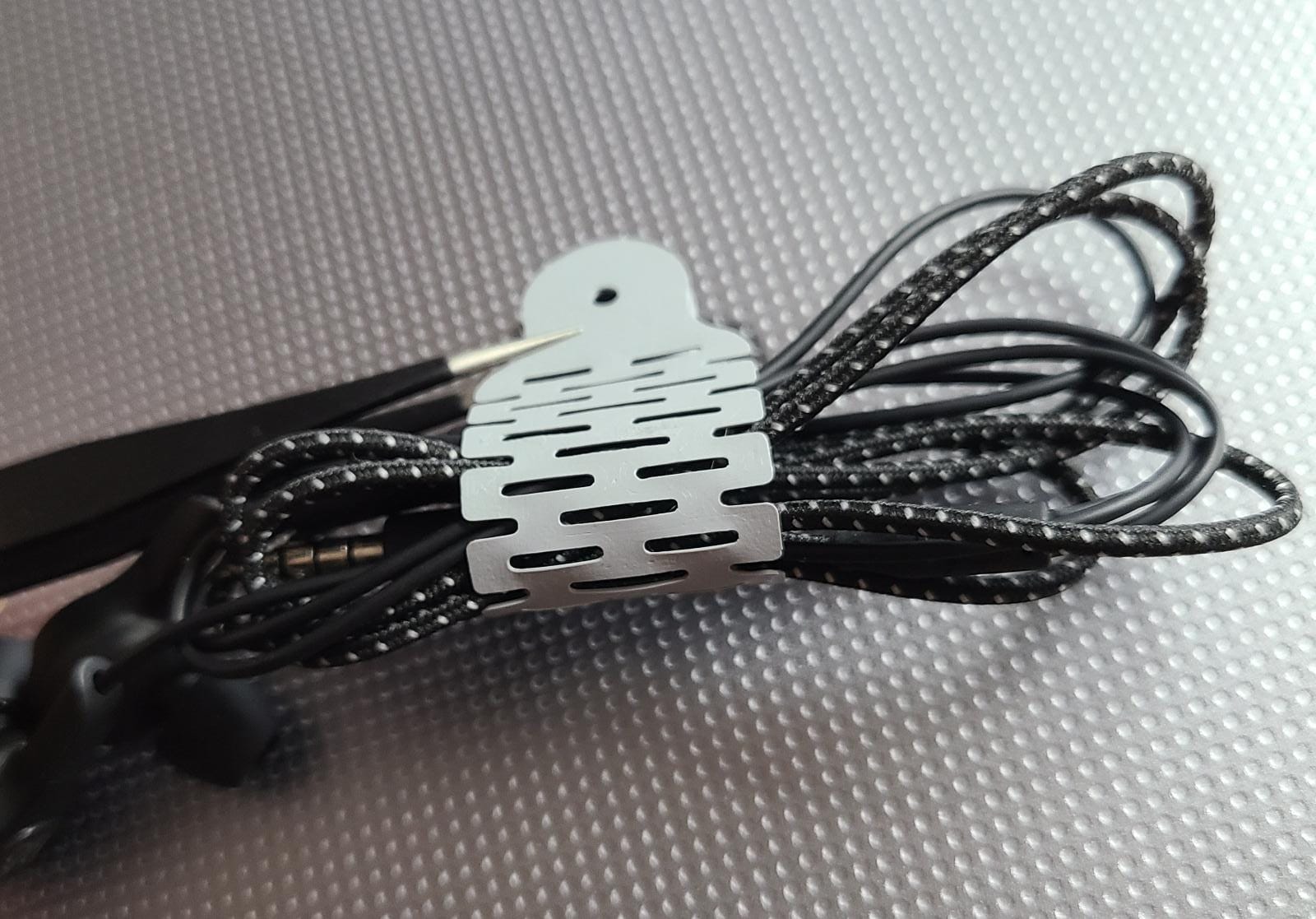

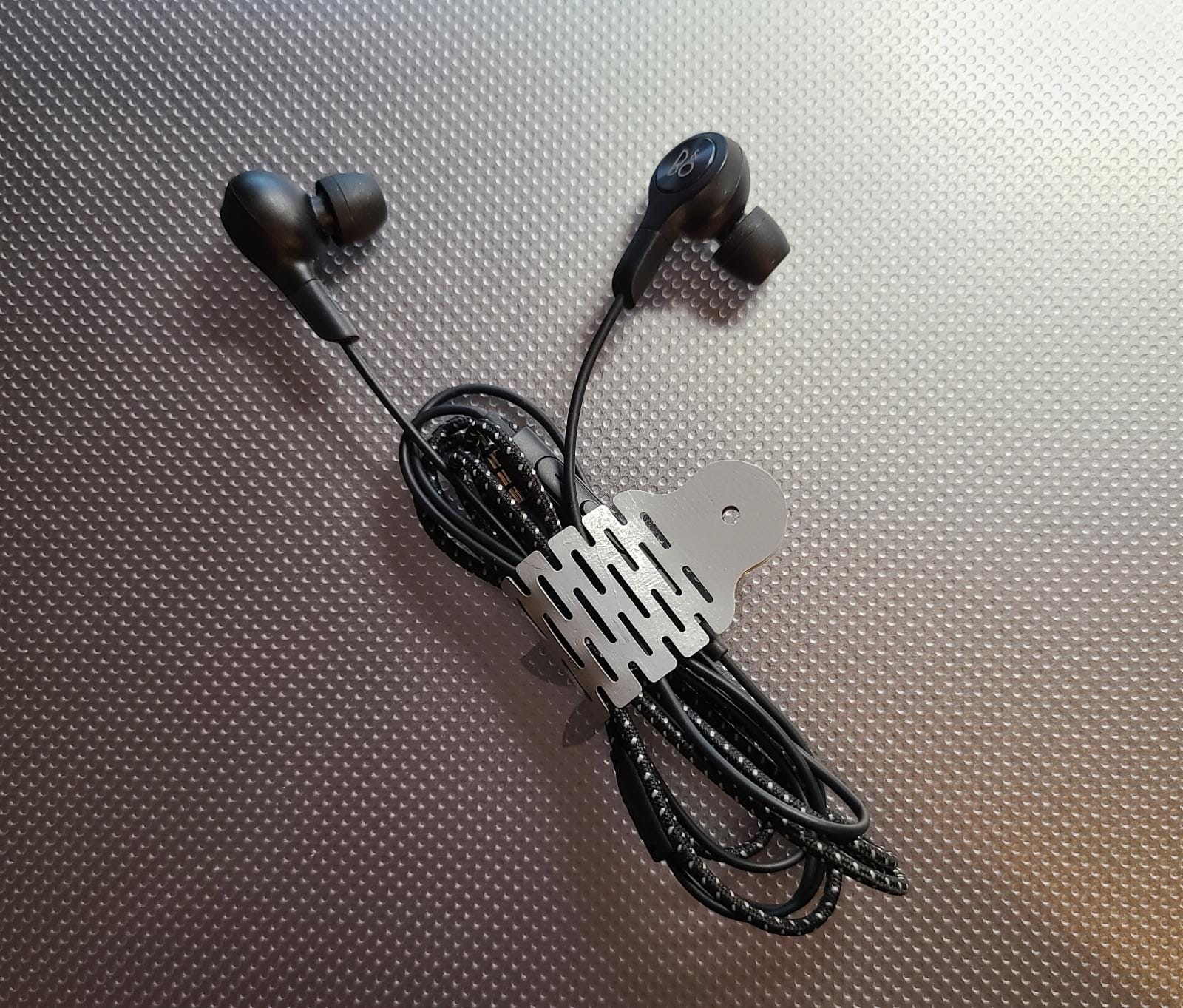

Simply roll up the cable and place it in the middle of the cable organiser. Then bend the two ends together until the holding mechanism clicks into place.
If it does not work for you please leave a comment or shoot me a message instead of just posting a 1 star review, I'm sure there is no problem that can't be solved.
