Wall thickness test designed for 0.4mm Nozzles
This model is specifically optimized for 0.4mm nozzles, ensuring accurate and reliable results. The wall thickness progression is based on the typical extrusion width of a 0.4mm nozzle, which prints a 0.45mm wide extrusion path.
Wall Thickness Variations

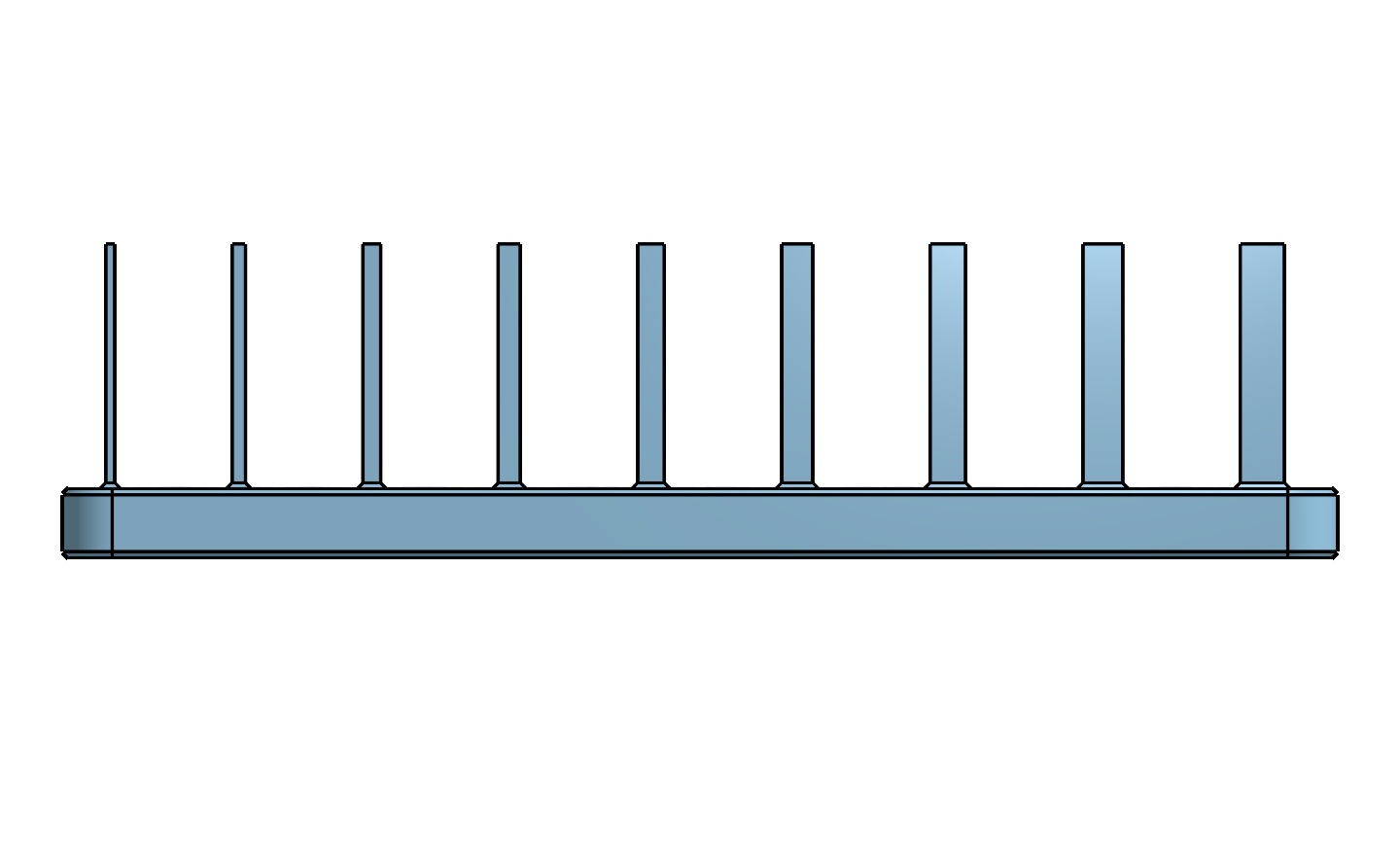

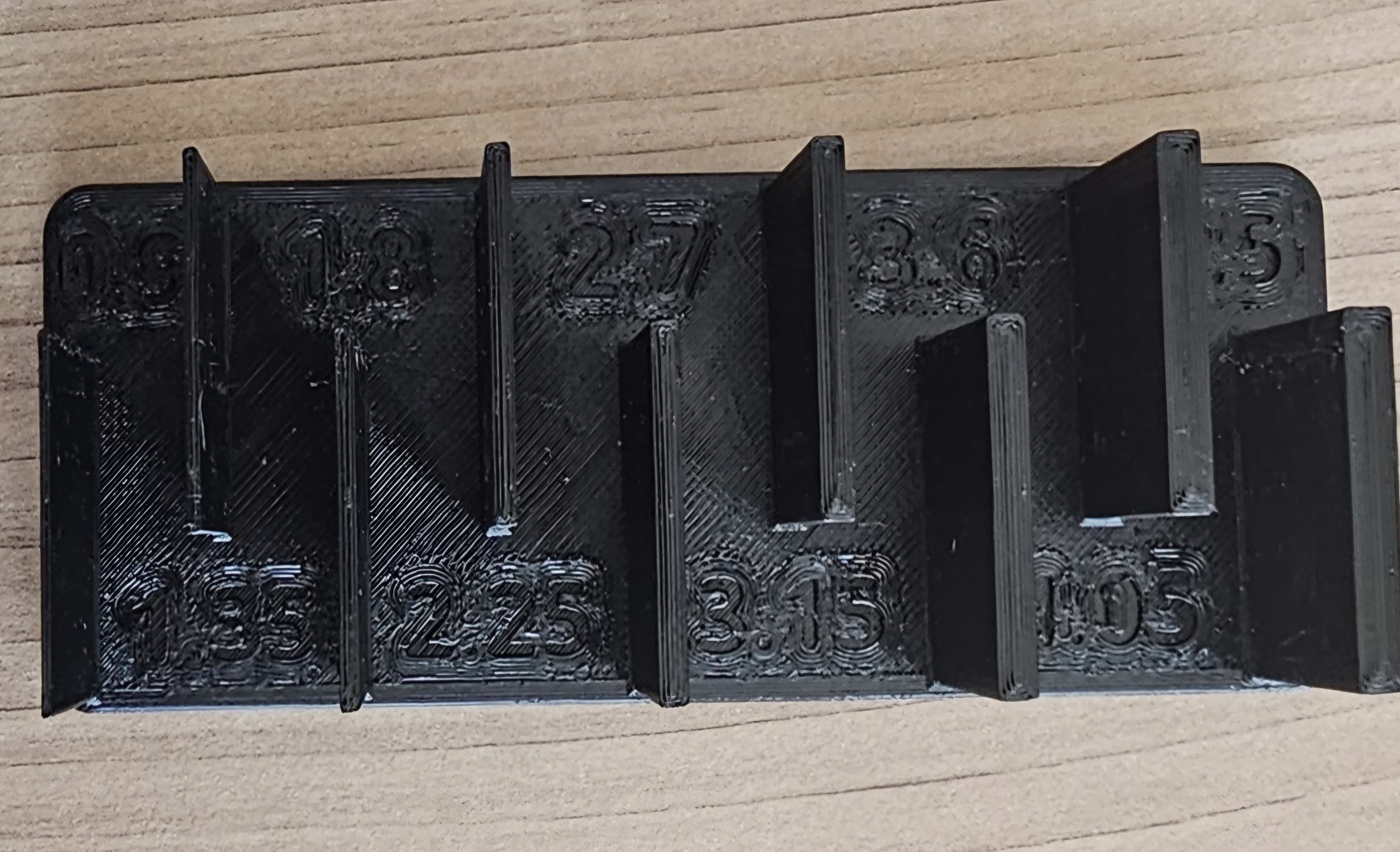

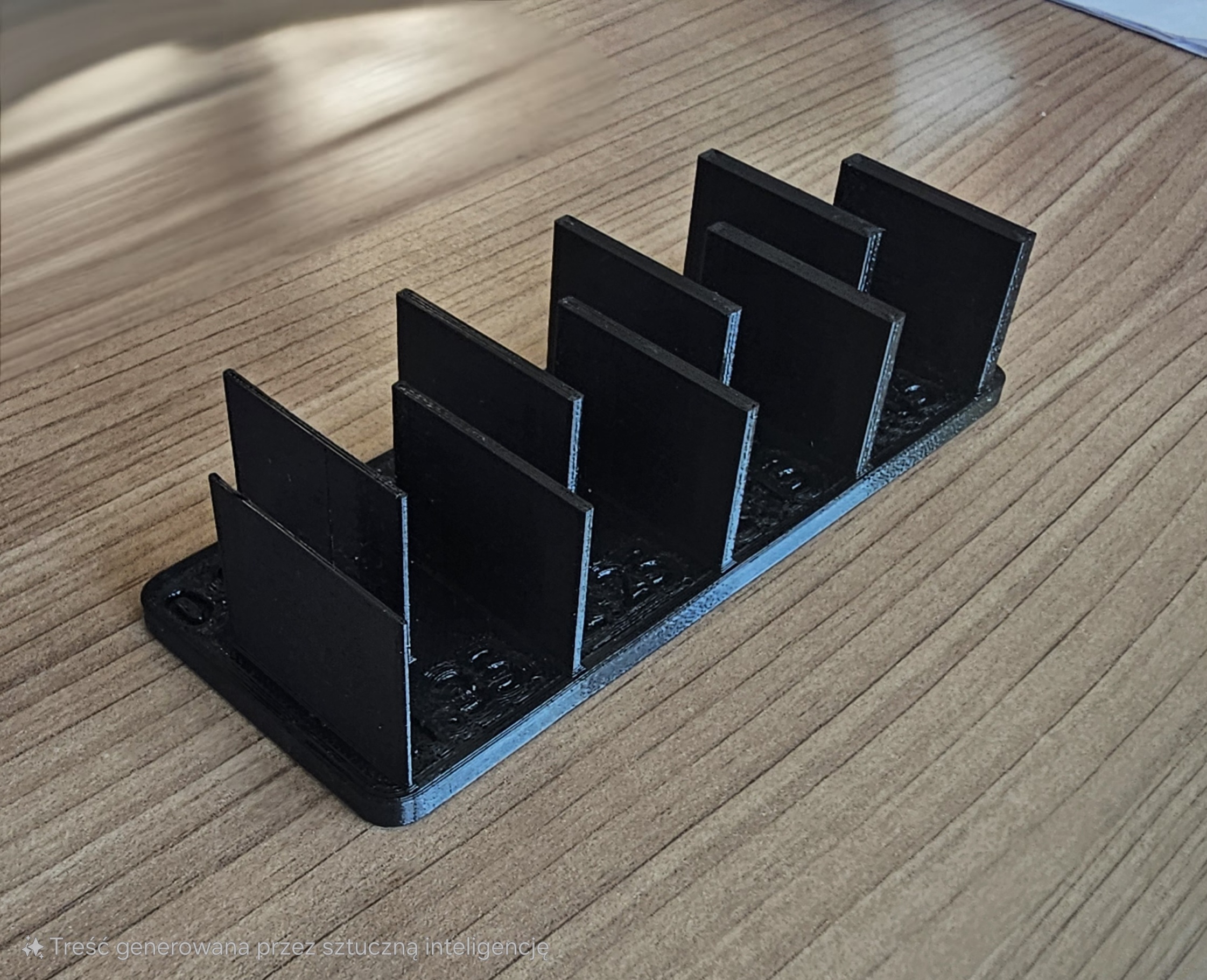

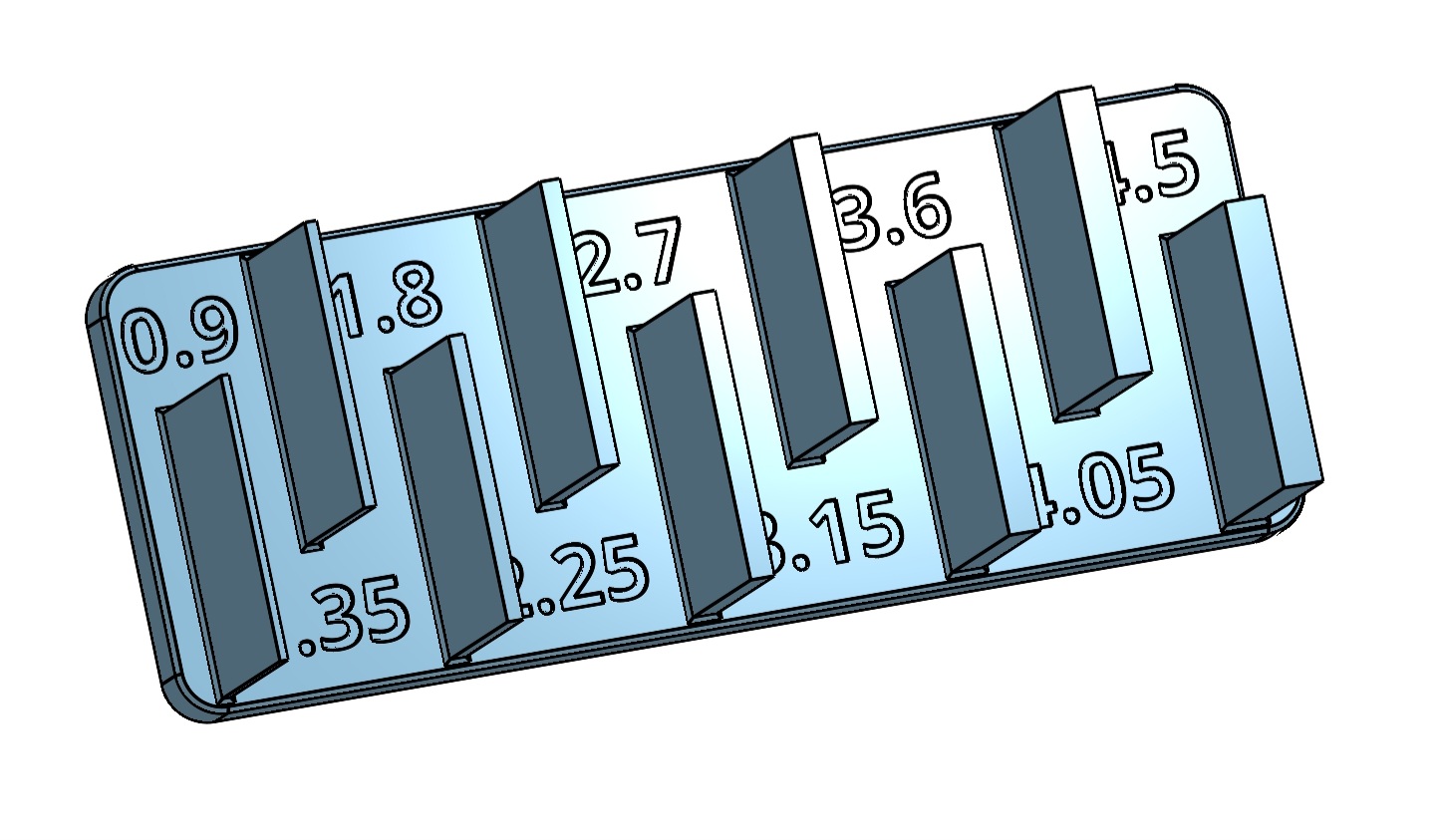

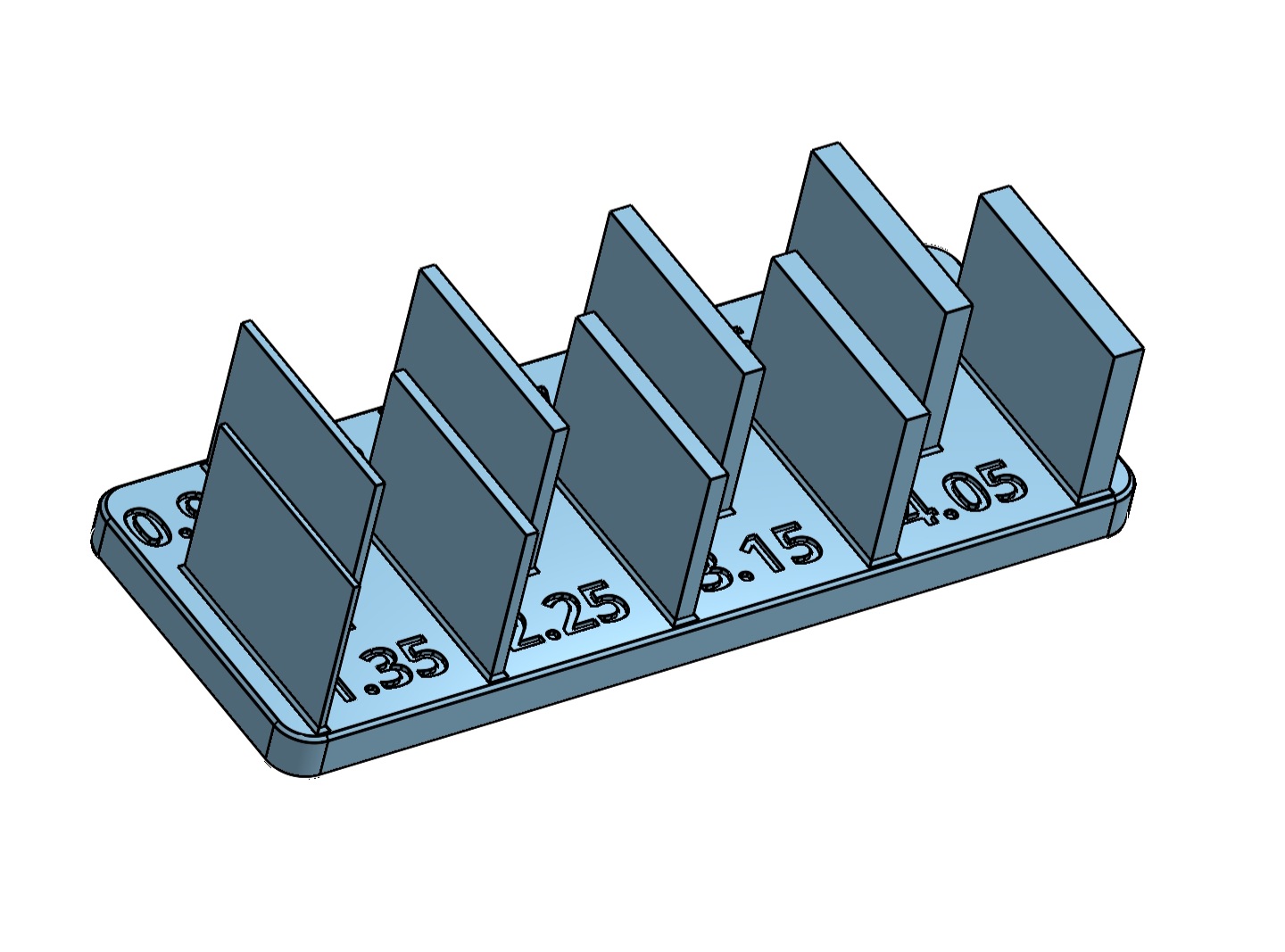

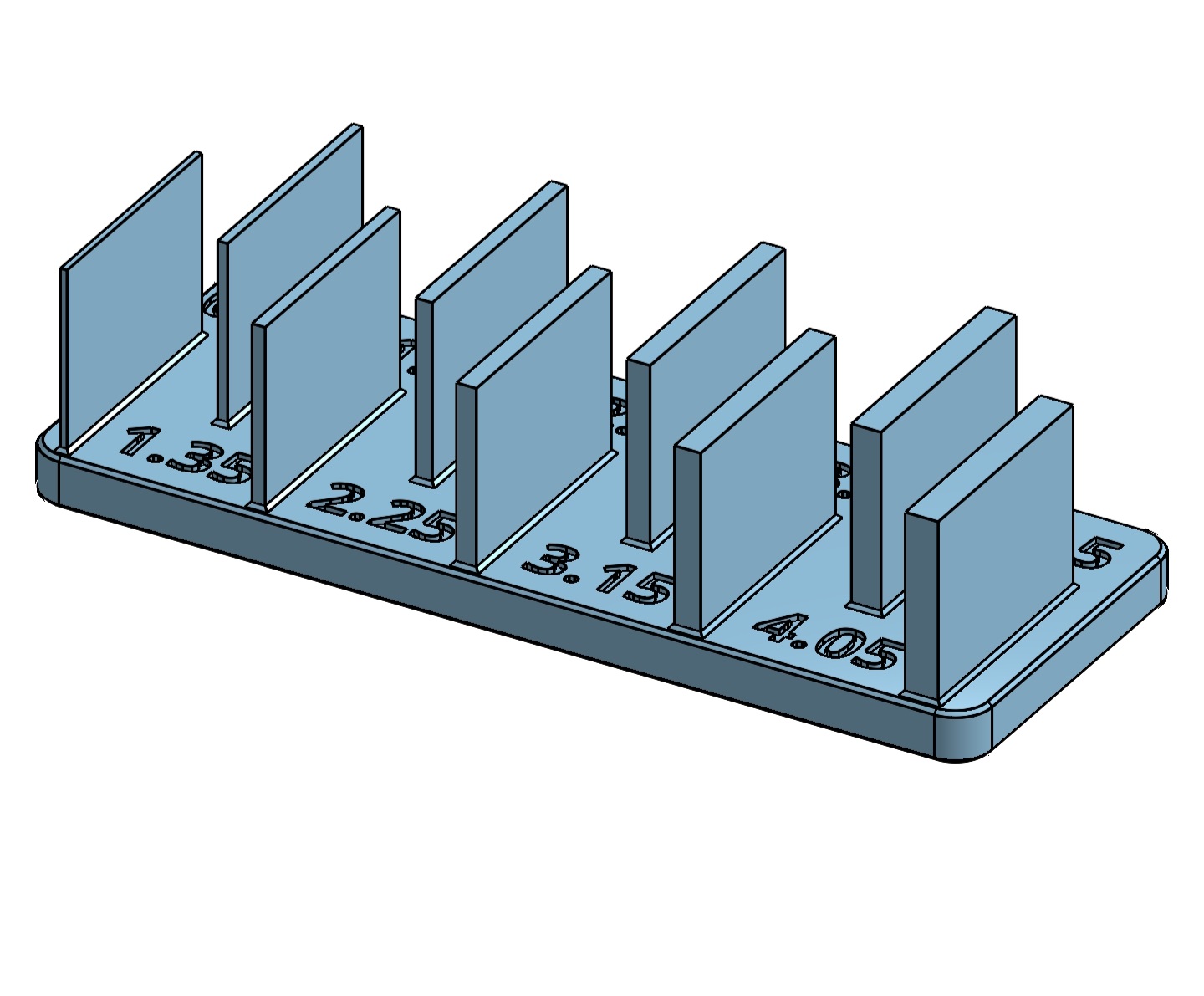

The test includes multiple wall thicknesses, ranging from 2 walls (0.9mm) up to 10 walls (4.5mm), allowing for a direct comparison of rigidity at different strengths:
0.9mm (2 walls) – Minimal thickness for lightweight prints.
1.35mm (3 walls)
1.8mm (4 walls)
2.25mm (5 walls)
2.7mm (6 walls)
3.15mm (7 walls)
3.6mm (8 walls)
4.05mm (9 walls)
4.5mm (10 walls) – Maximum strength in this test range.
Solid vs. Infill Wall Testing
By setting 5 perimeters, users can test the strength of fully solid walls.
Using fewer perimeters allows for testing walls with an internal infill, providing insight into how infill density and pattern impact overall rigidity.
Why Use This Test?
Determine the optimal wall thickness for your specific print application.
Identify flexing or weak points at different thicknesses.
Optimize material usage without sacrificing strength.
Evaluate layer adhesion and inter-wall bonding.
Compare solid walls vs. walls with infill to find the best balance between weight and strength.
Print Recommendations
Nozzle size: 0.4mm
Extrusion width: 0.45mm
Layer height: 0.2mm (recommended for consistency)
Peremiters 1-5(for solid walls)
Material: any filament
This test provides a clear, physical reference for choosing the best wall thickness for your prints, whether you're optimizing for strength, flexibility, or material efficiency.
