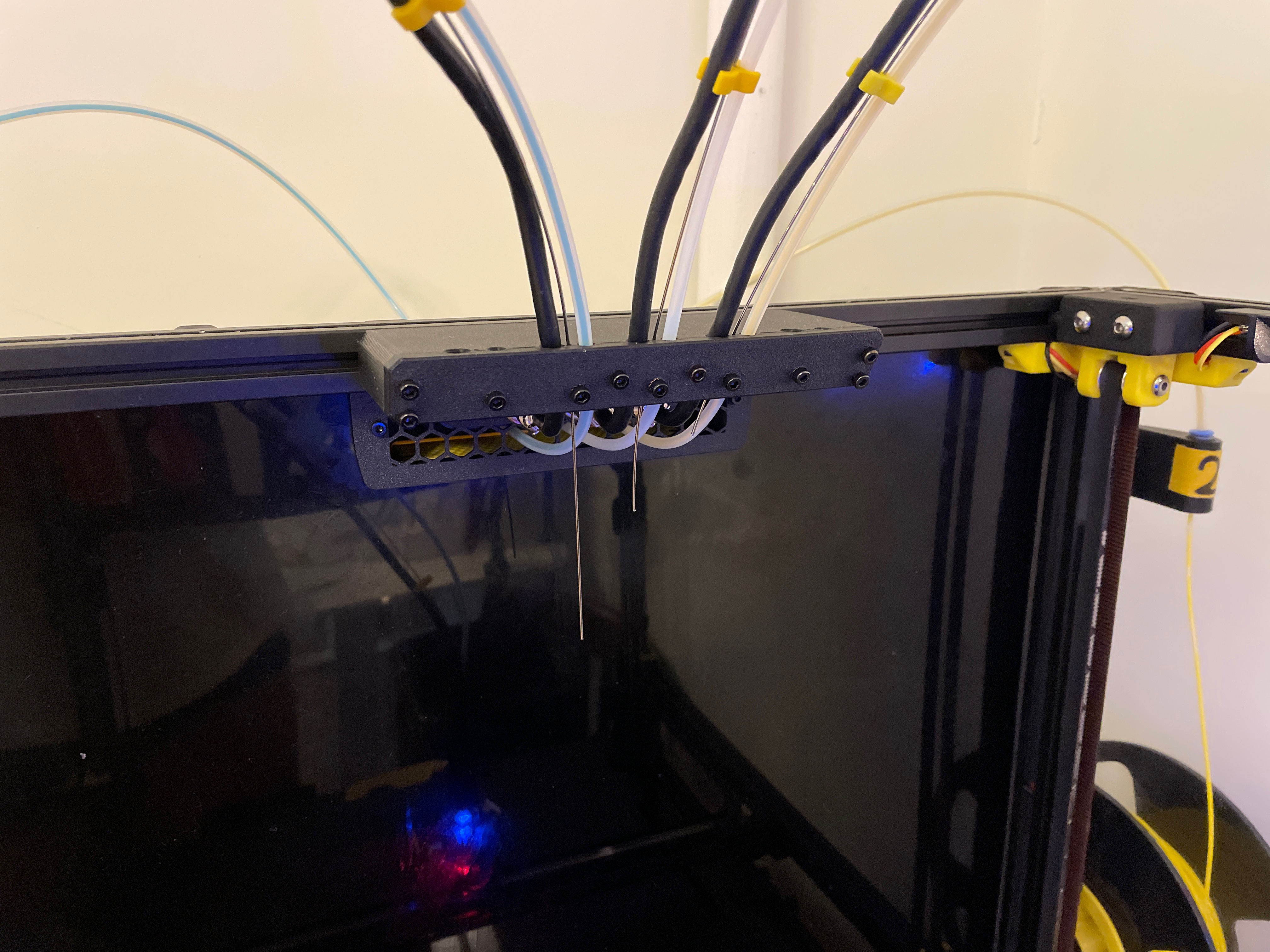

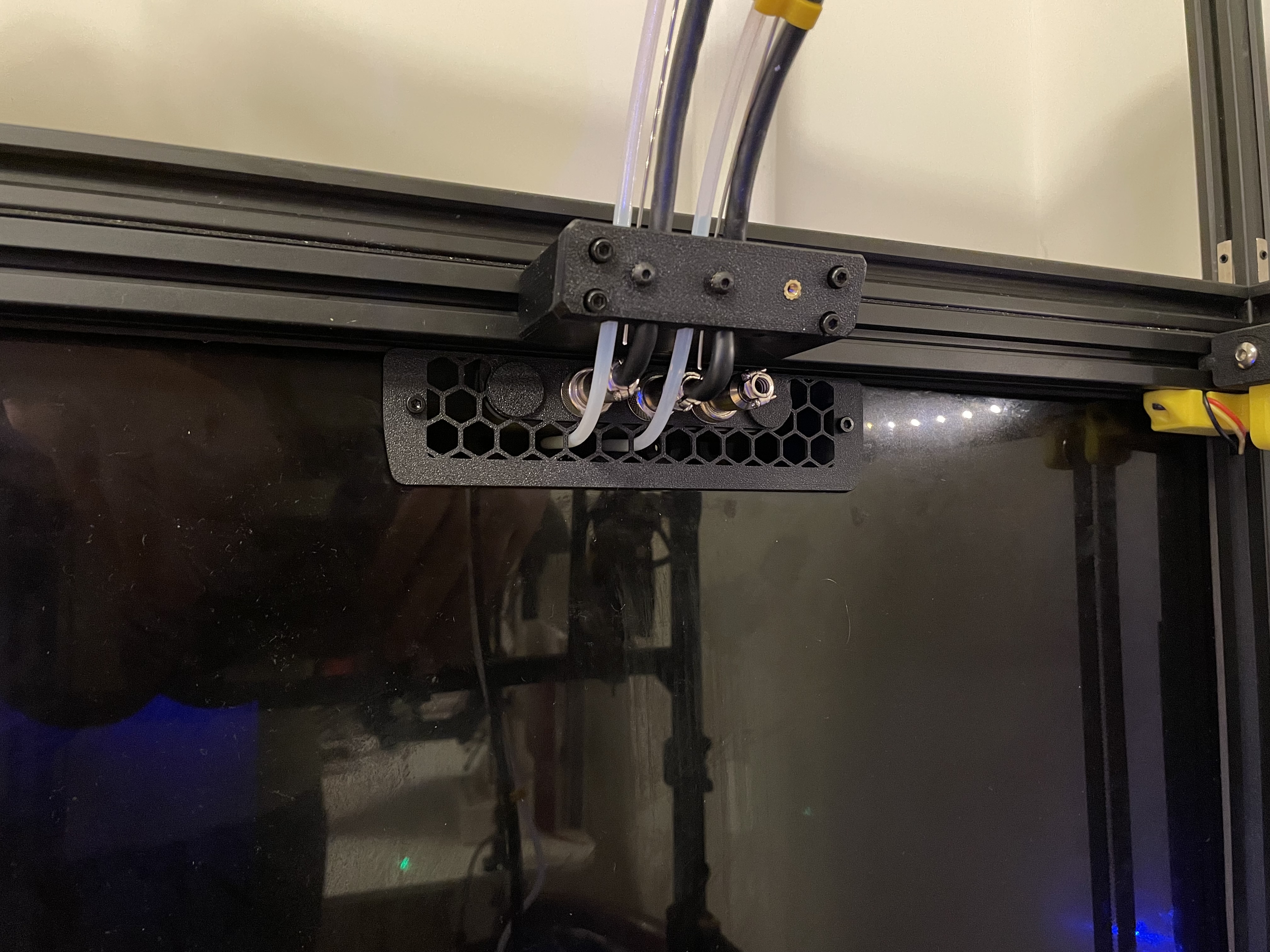

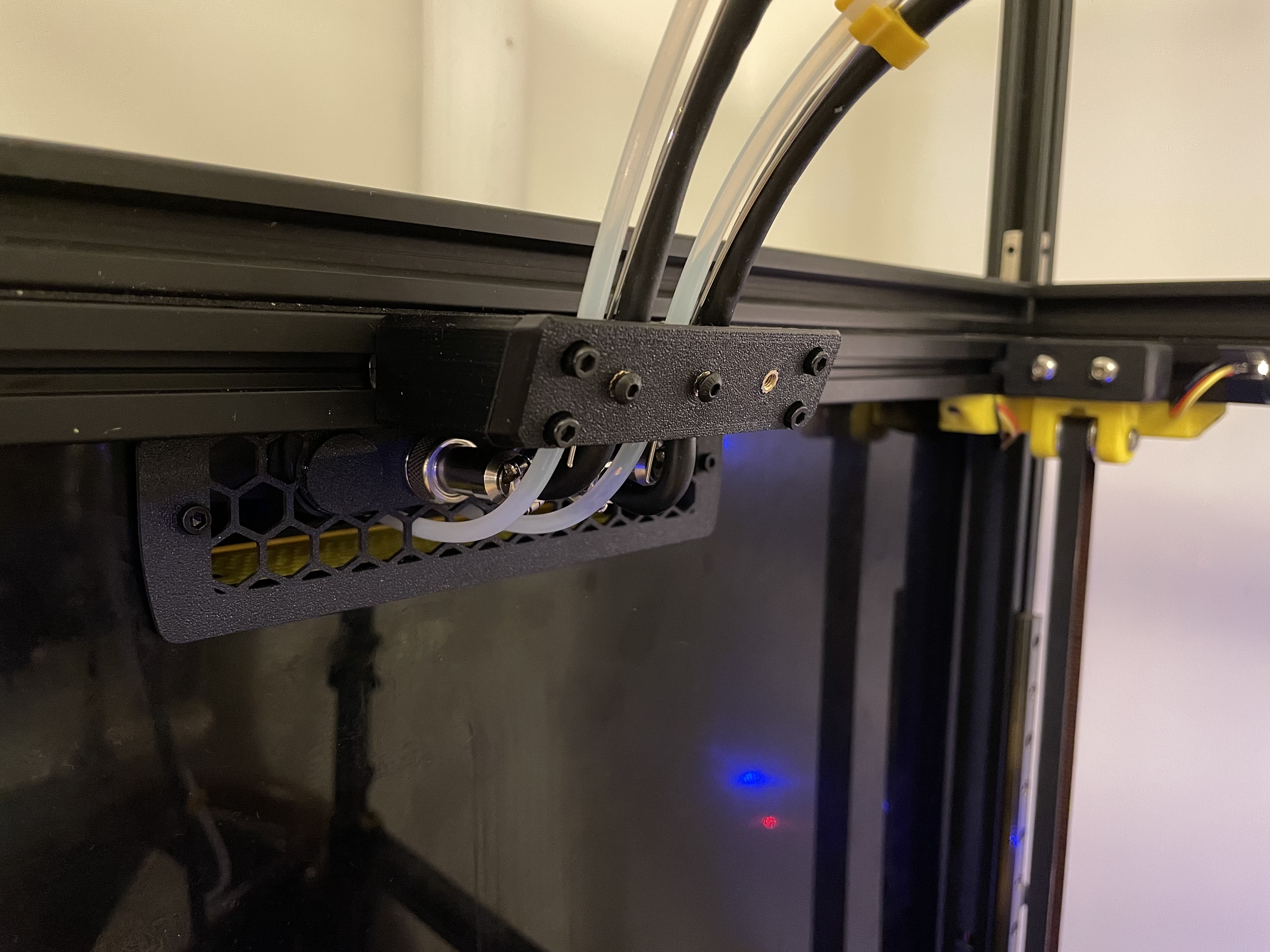

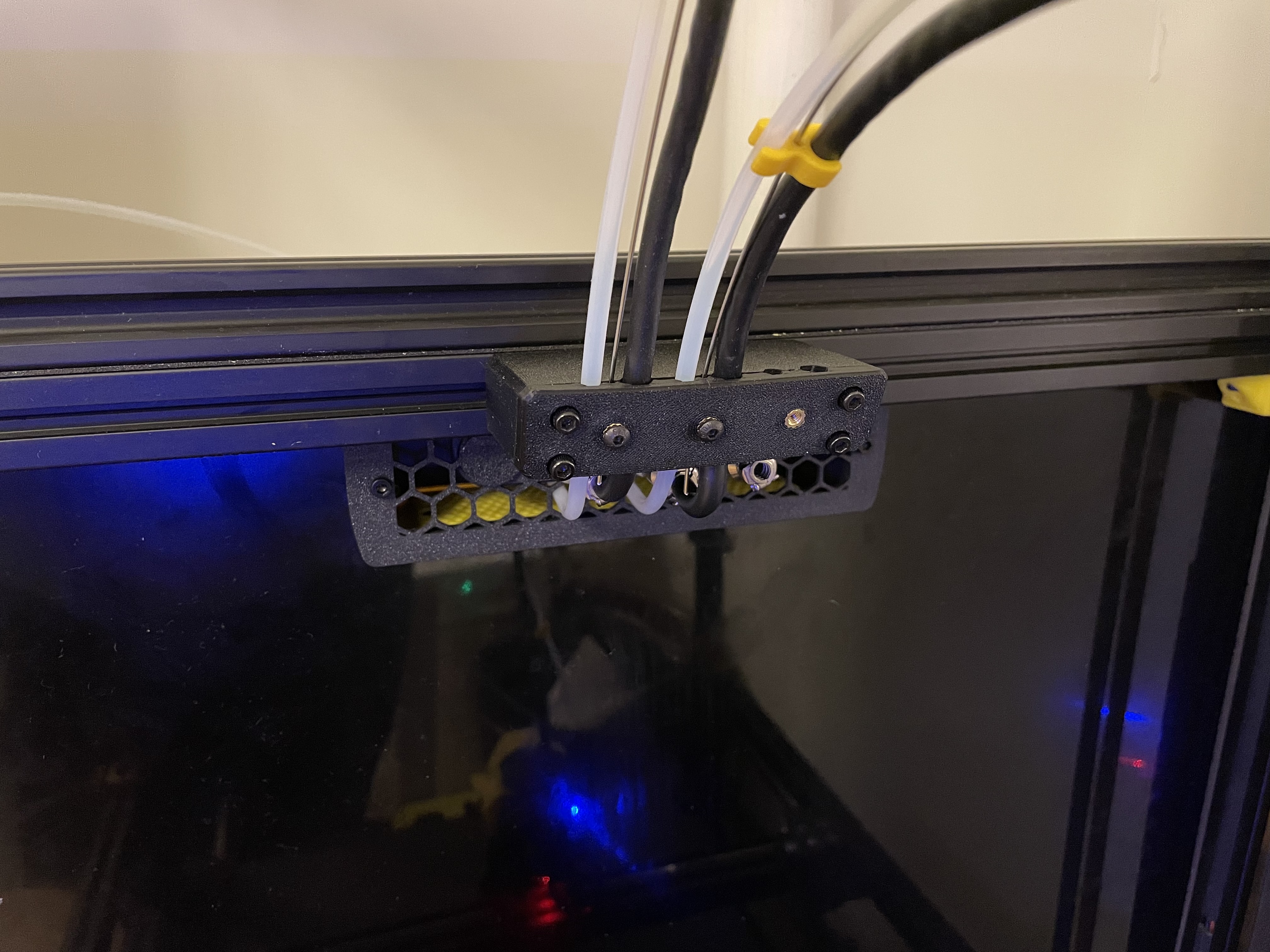

This simple mod helps you to make your toolchanger cables to point up.
This helps them to move freely without entangling with each other.
Each section have 3 holes:
- 4mm for PTFE tube
- 1.2mm for the metal wire, if you have one
- 6mm for the CANBus cable (that's what I have from Mellow)
BOM
- 2x M3x12 to mount the base to the extrusion
- 2x M3 t-nuts
5 tool version
- 6x M3x8 to attach the holder part to the base
- 5x M3x6 to fix the wires
- 11x heat set inserts (Voron Standard)
3 tool version
- 4x M3x8 to attach the holder part to the base
- 3x M3x6 to fix the wires
- 4x heat set inserts (Voron Standard)
Installation
Firstly install all heat set inserts, then attach the base to the extrusion, hold your wires inside their dedicated holes and cover it with the holder plate and screw in the bolts.
