3rd Party AD5M Nozzle Connector Puller
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
For easy pulling out the 4 pin XH connector for any 3rd party AD5M nozzle.
- Rating
- 4 / 5
- Likes
- 21
- Downloads
- 84
- Makes
- 0
- Views
- 583
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Accessories
- License
- Creative Commons — Public Domain
Those four wires on various 3rd party AD5M Nozzle's 4pin XH connectors are very flimsy especially those two heat sensor wires. There's no easy way to disconnect the 4-pin connector except by by pulling those wires and I already broke two sets of heat sensor wires.

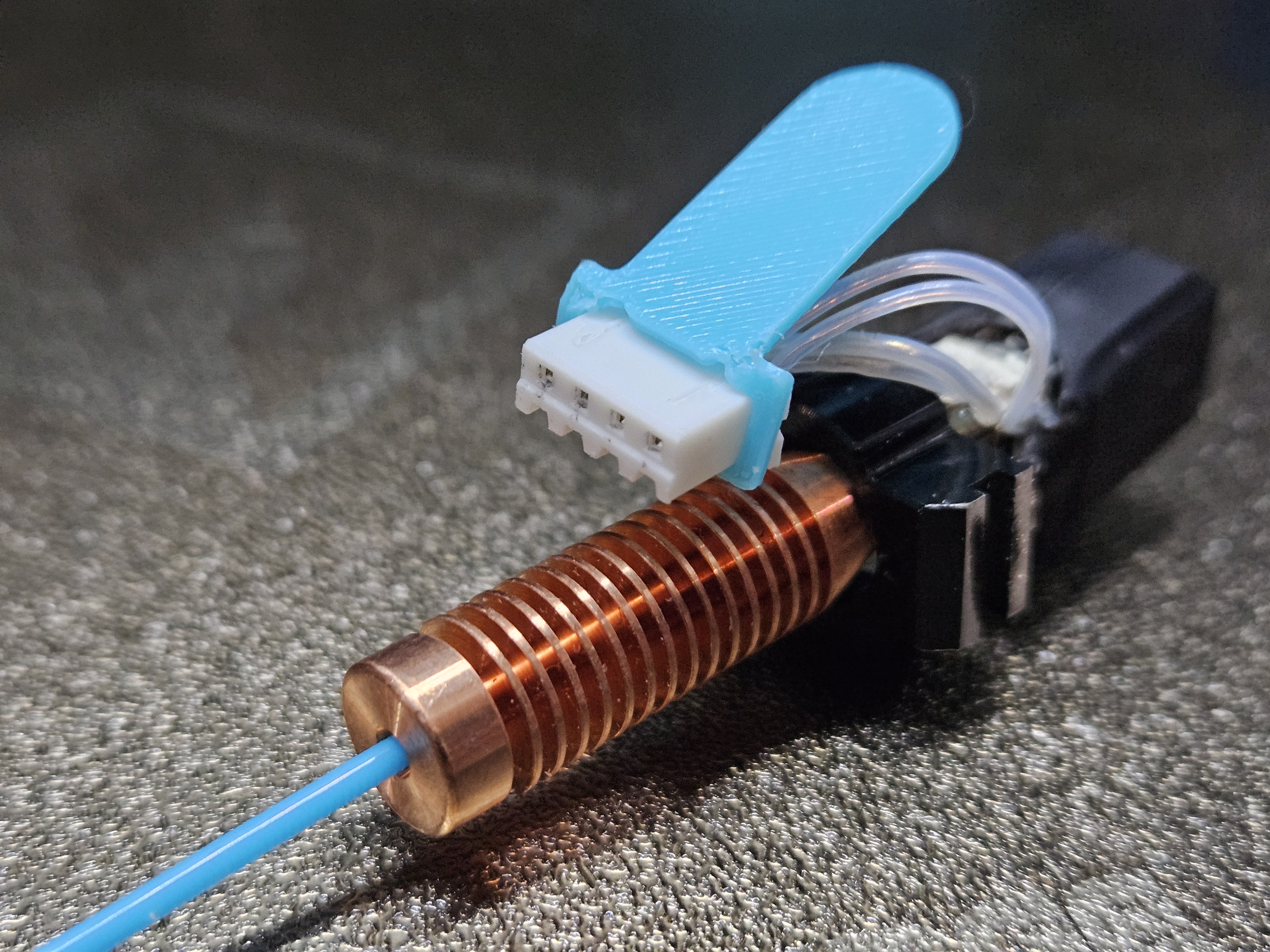

That's why I make this little puller to help removing the connector in a safe manner.
Use a ≤0.4mm nozzle to print the model out. PETG is a must because PLA will become brittle overtime because of the heat.
Print setting:
Arachne wall generator. One wall on top. No brim.
Instruction:
Pre-bend the stripe part a little for the first time. Always pull out the connector first before the nozzle.
Check if the XH connector still has the arrow shape latches intact. Remove them with a craft knife if the manufacturer forgot to remove them. The latches SHOULD NOT be there in the first place.
