Dynamic Extraocular Muscle Simulator

• 16-06-2026

  • Add V2 of the front and base pieces, to refine how the pegs fit together.

  • Add printable pull-tab labels that can be attached to the ends of the cords to label the muscles

• 16-05-2026

  • I turned this model into a full kit you can either assemble yourself or buy fully assembled. I made an Etsy store page for it, feel free to check it out!
    https://layolabs.etsy.com/ca/listing/4488604052/dynamic-extraocular-muscle-simulator

• 13-02-2026

  • Vers 2 - globe no longer need supports + build guide cord lengths updated.

What is it?

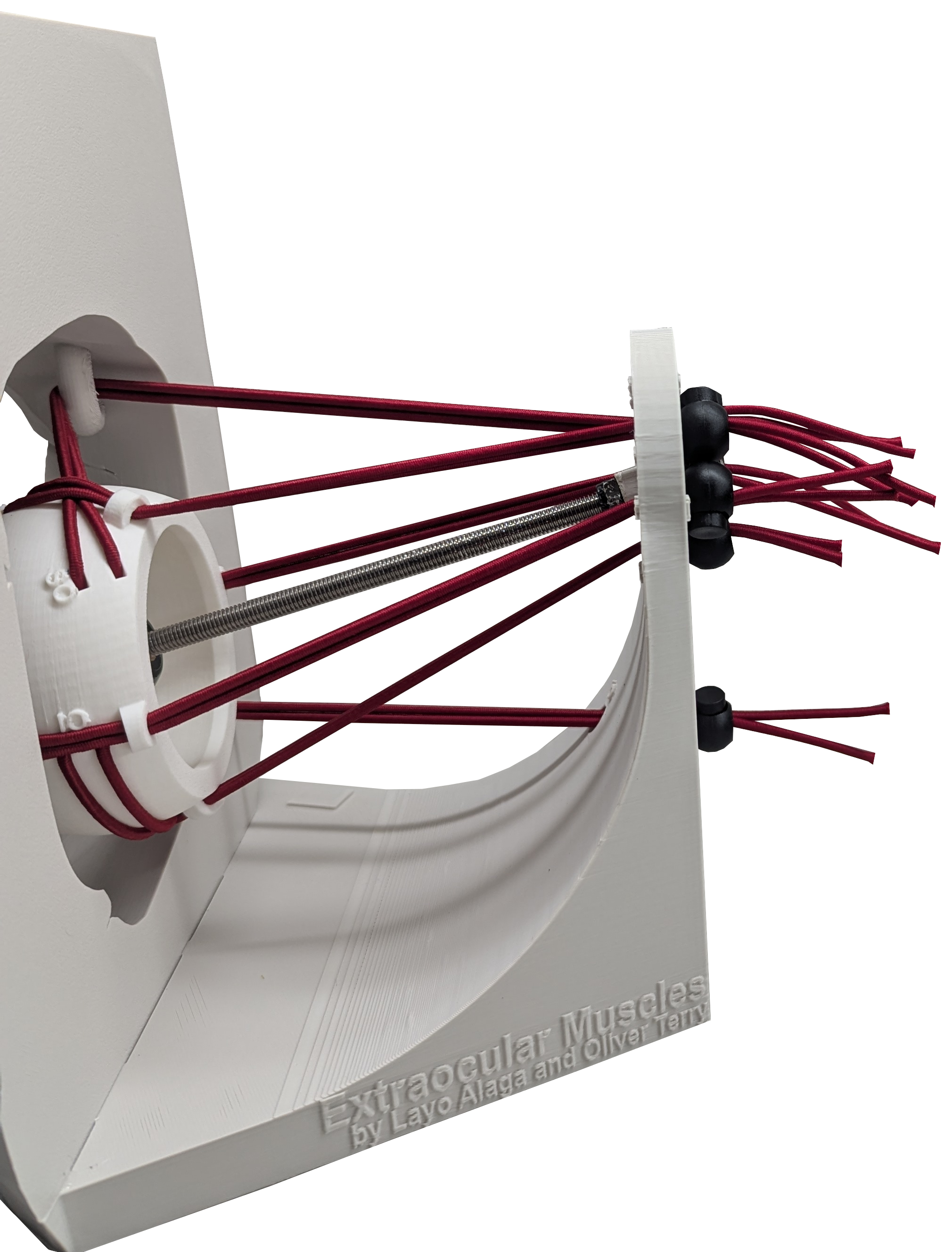

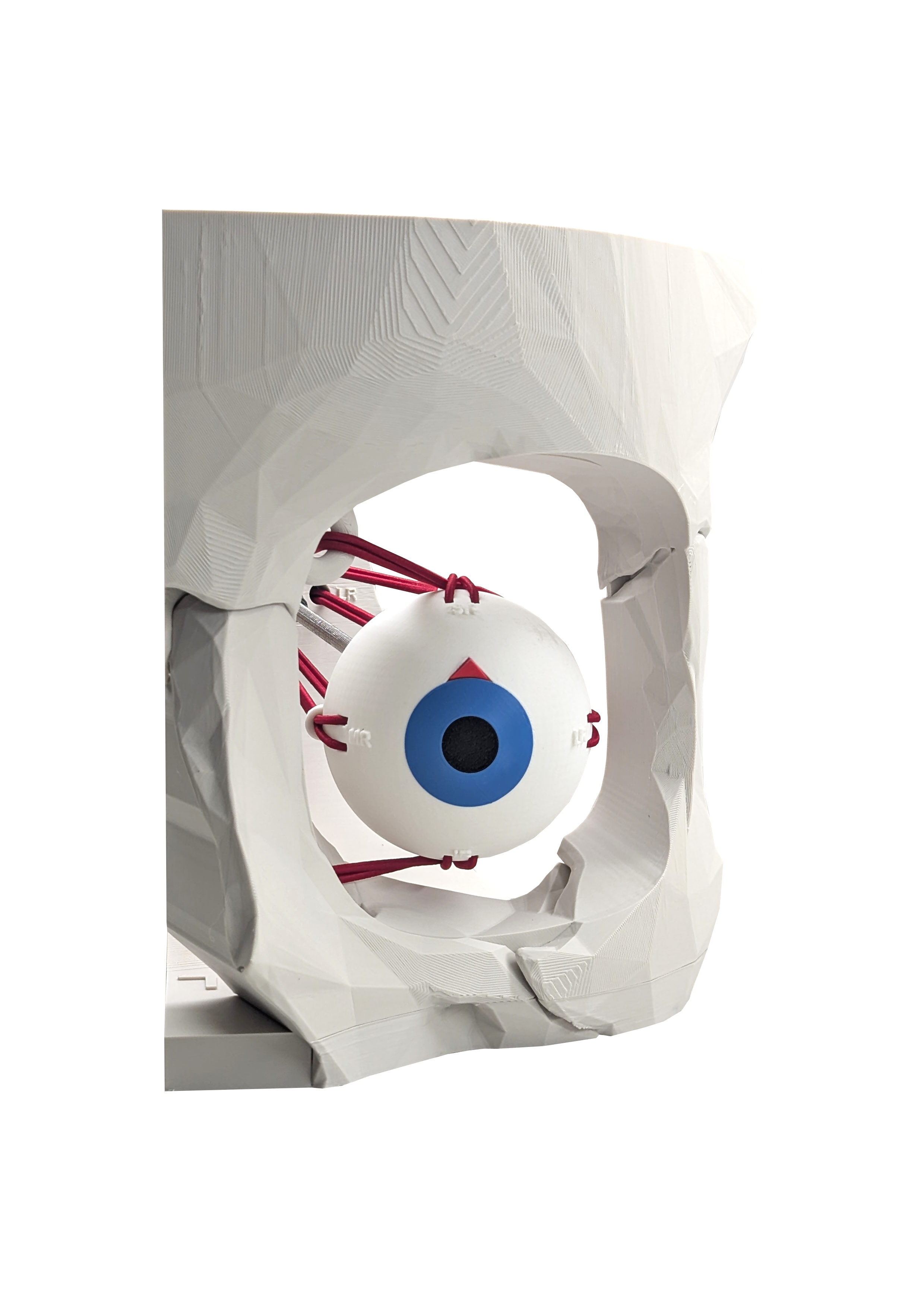

This 3D-printed model of the orbit and extraocular muscles is designed as a hands-on teaching and learning tool. It helps demonstrate the complex, multi-directional movements of the eyes in a way that static images or cadaveric dissection can’t.

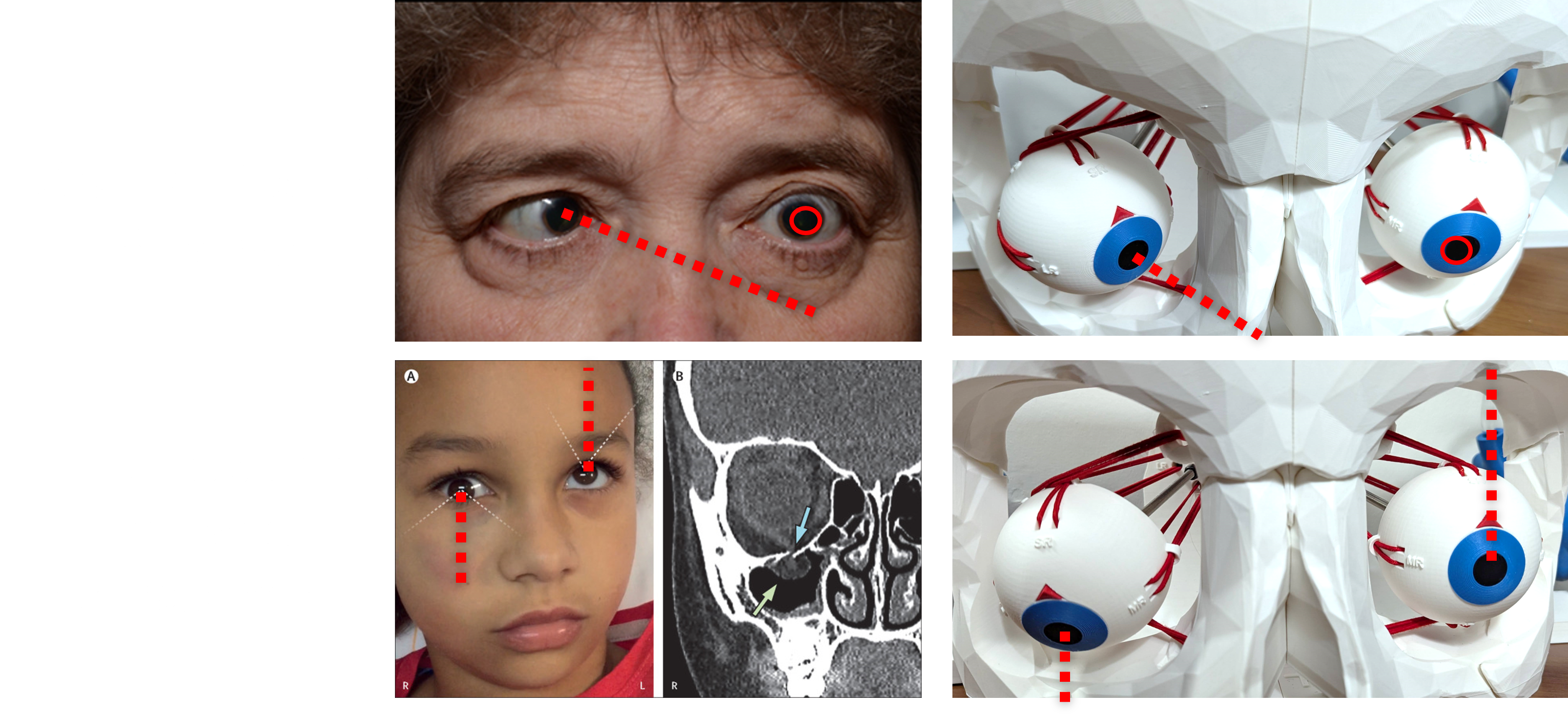

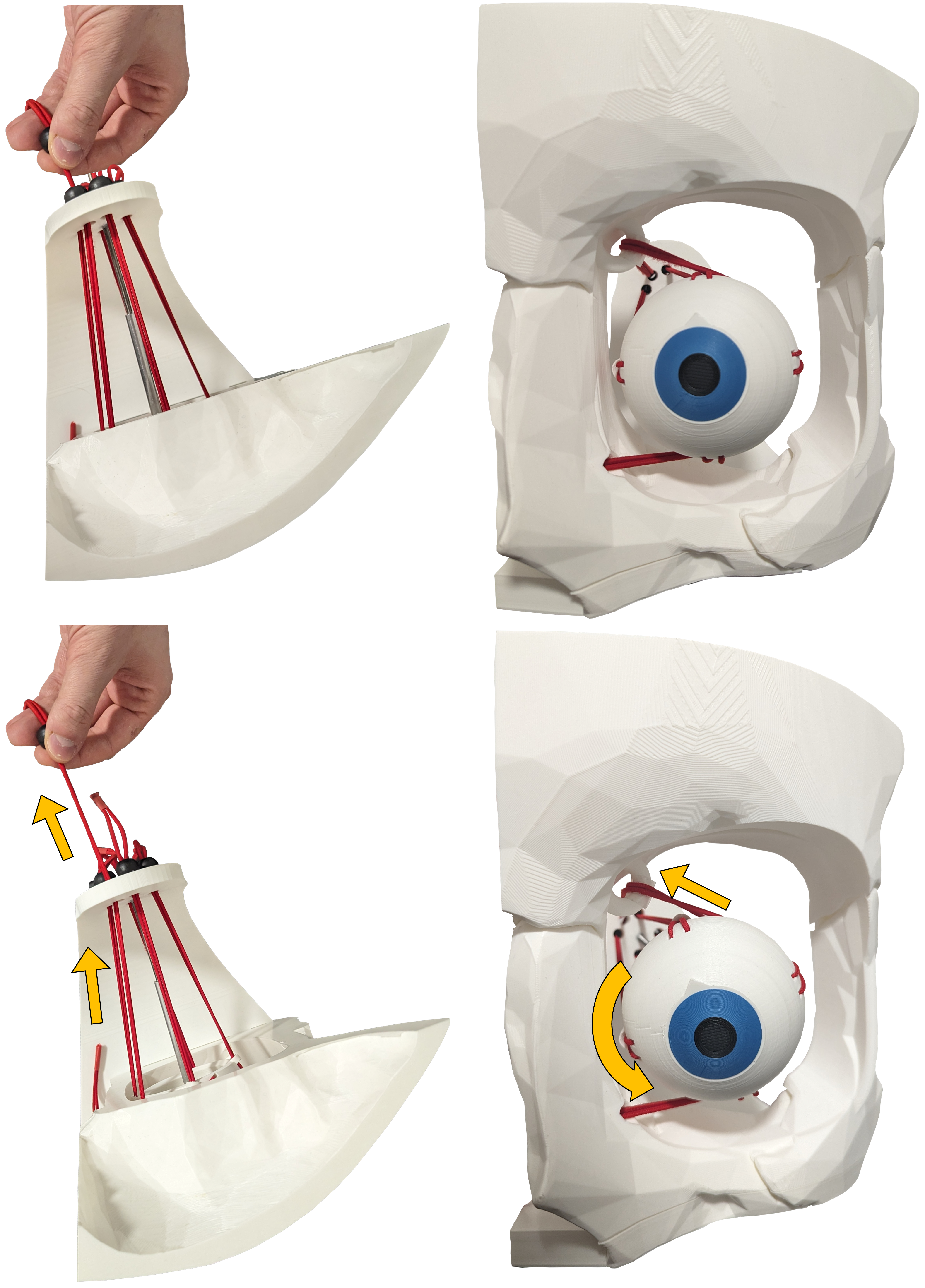

By pulling elastics representing the extraocular muscles, you can show both isolated and combined effects on gaze direction. Adjustable tension makes it possible to simulate pathological states like cranial nerve palsies or muscle entrapments. Integrated bony landmarks provide realistic anatomical context.

Features

• Interactive, dynamic model that demonstrates real eye movements

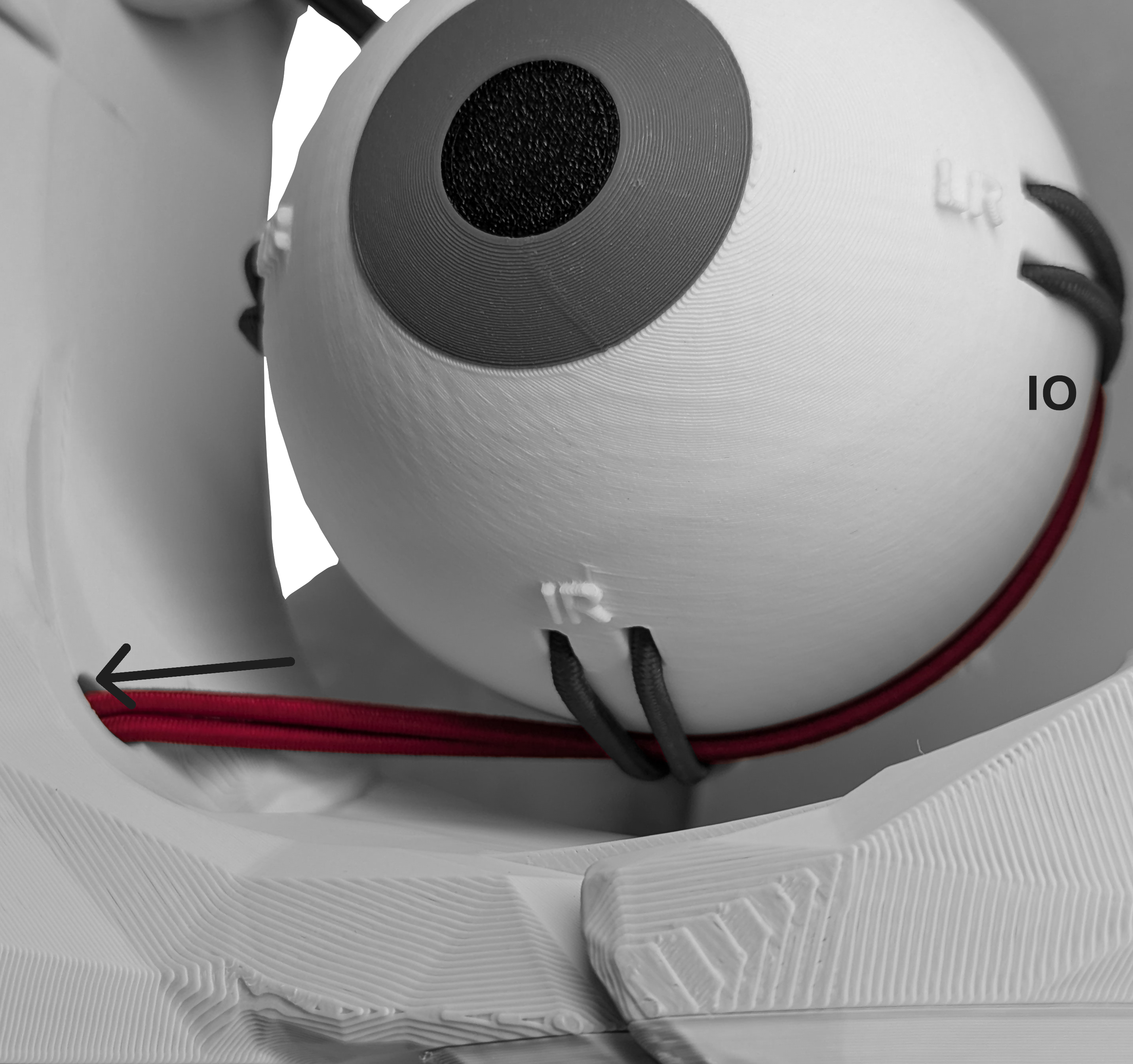

• Elastics simulate muscle actions with adjustable tension

• Can demonstrate cranial nerve palsies, entrapments, and paresis

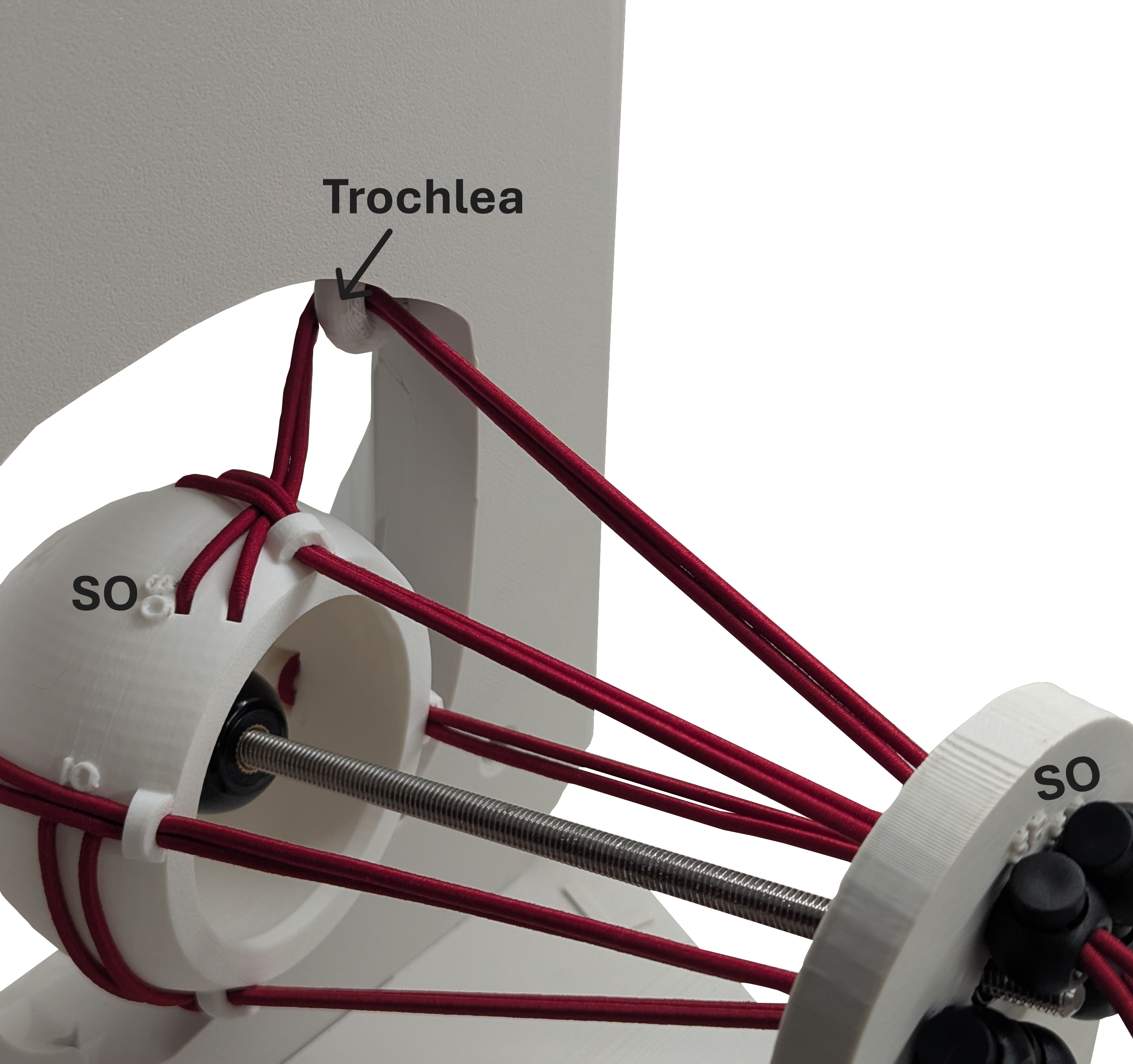

• Includes bony landmarks for orientation and context

• Designed to be low-cost (under $50 USD in materials) and printable/assembled in a day or two

Intended Use

• Classroom teaching and demonstrations

• Self-directed study for medical students or trainees

• Visualizing and understanding neuromuscular control of eye movements

• Simulating differential diagnosis of gaze abnormalities

How to build it

• See Build Guide in the files section for specific instructions

Materials Needed

• PLA 1.75 mm filament

  • White: 642 g (180 g for Base, 382 g for Front, 80 g for Globe)

  • Black: 1 g (Pupil)

  • Red: 1 g (Orientation Marker)

  • Blue: 2 g (Iris)

• 3 m x 2.5 mm red elastic cord

• 6 plastic rope cord locks

• M6 x 150 mm stainless steel threaded rod

• 2x M6 nut

• 1x M6 female threaded ball knob

• (Optional)

  • 1x ¼-20 nut (for mounting on a tripod)

  • 9x 3x10 mm round neodymium magnets (to hold left and right models together when in use)

See the last page of the Build Guide in the files section for links on where to buy the materials
