Technics SL-BD20 Keepalive

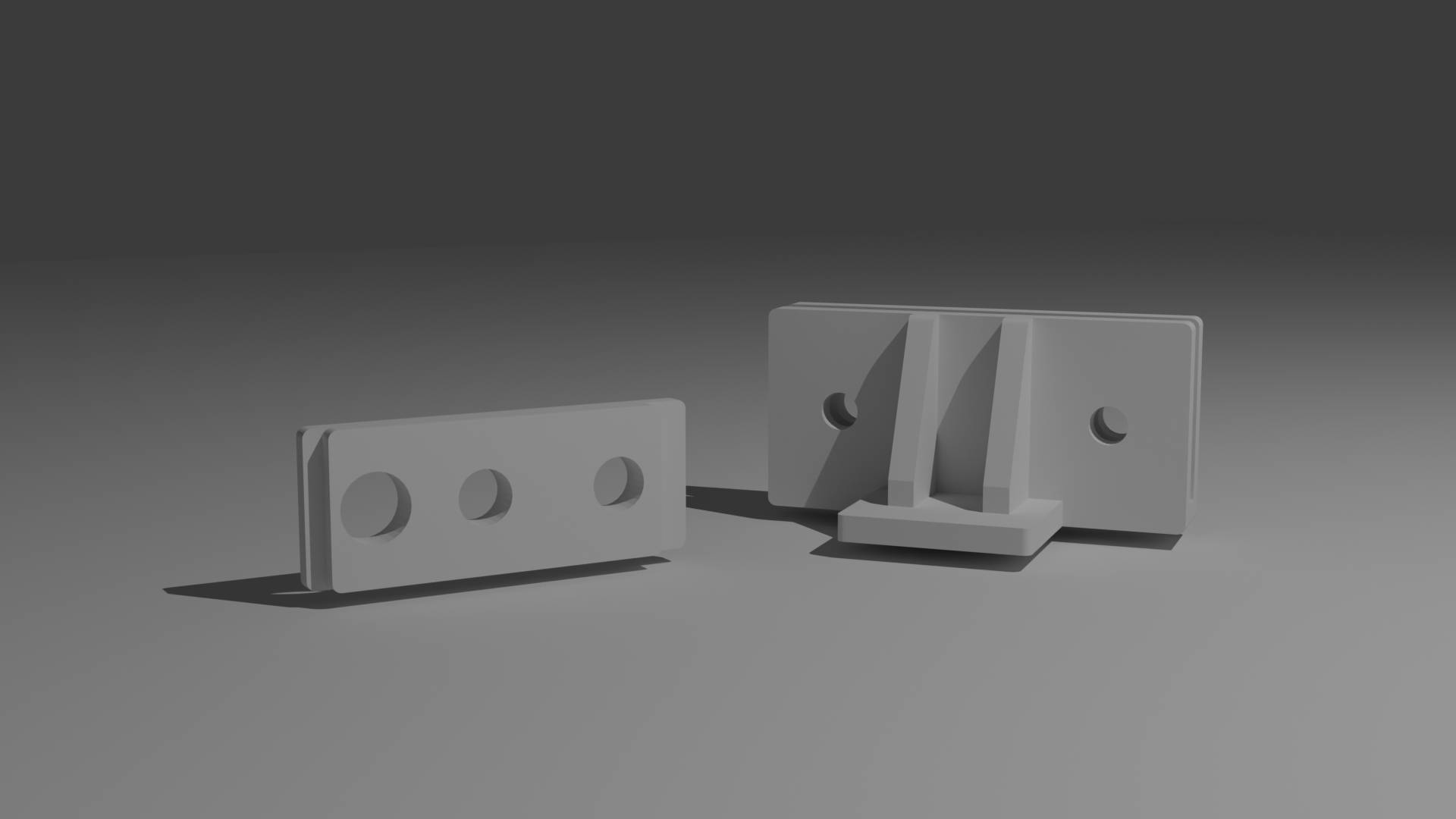

This repository is a collection of after market parts for Technics SL-BD20 that you can print and repair the turntable yourself.
Thus the "keepalive".

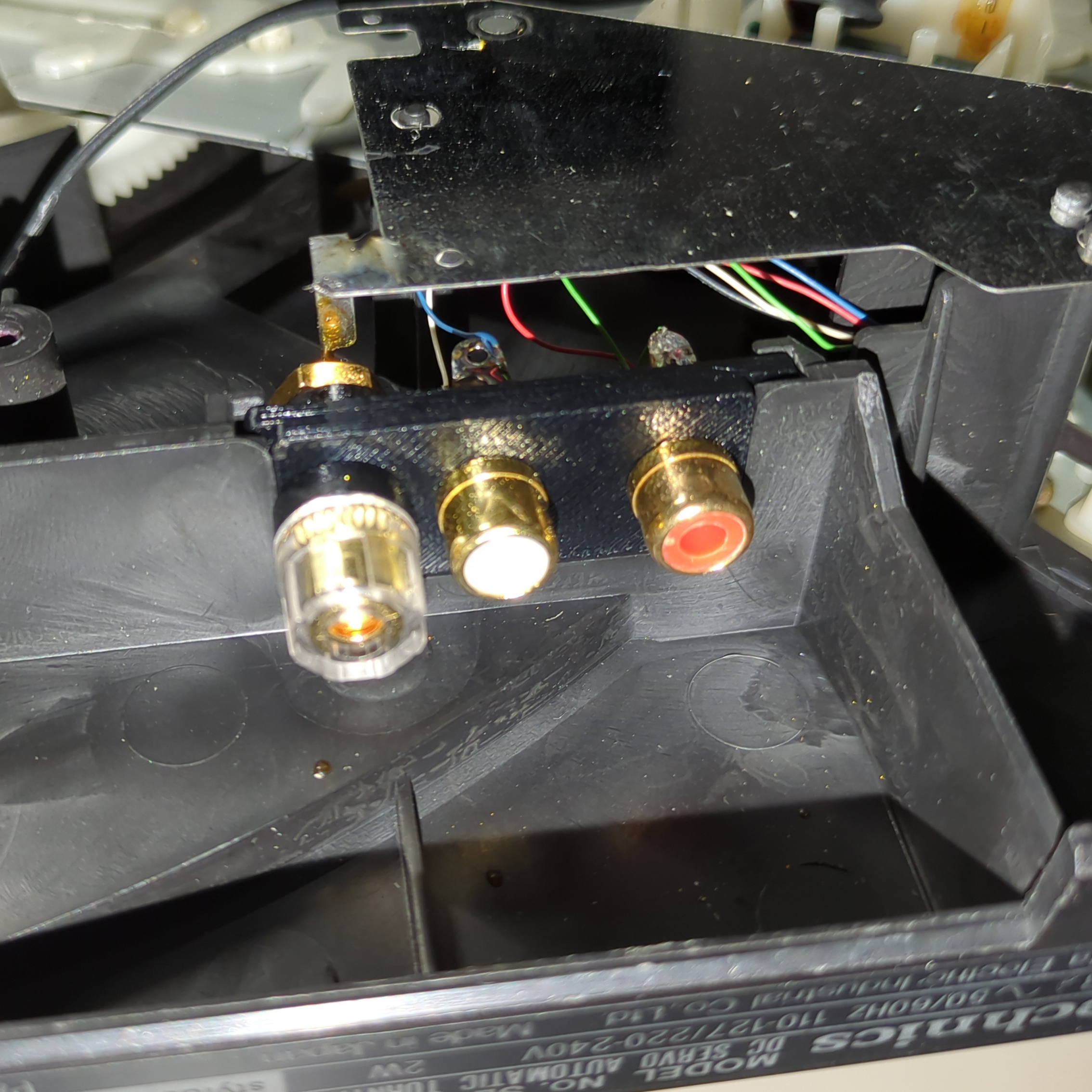

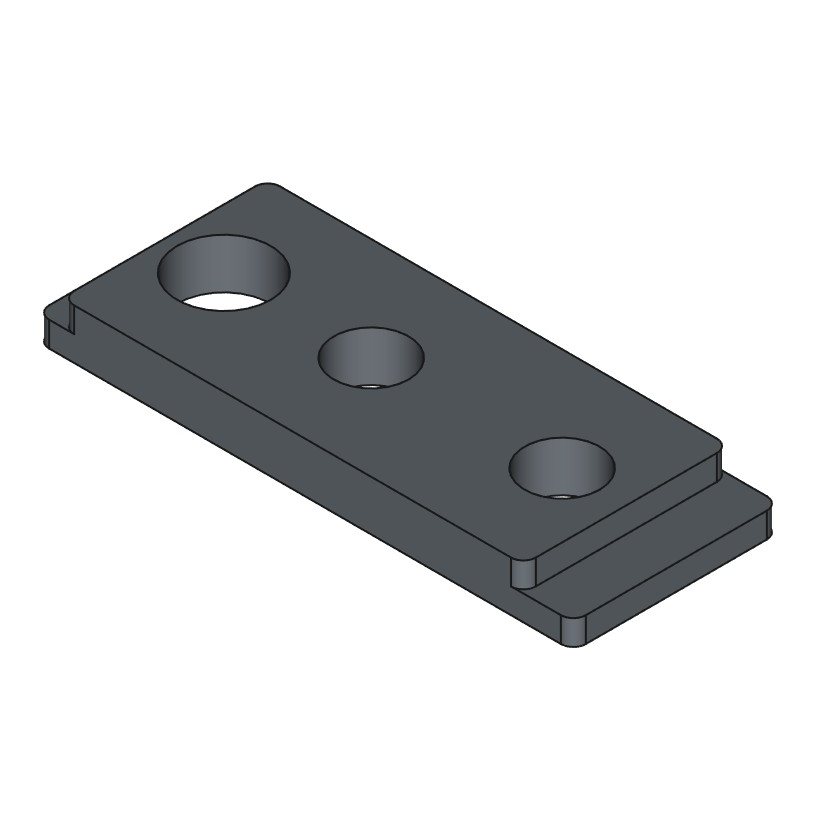

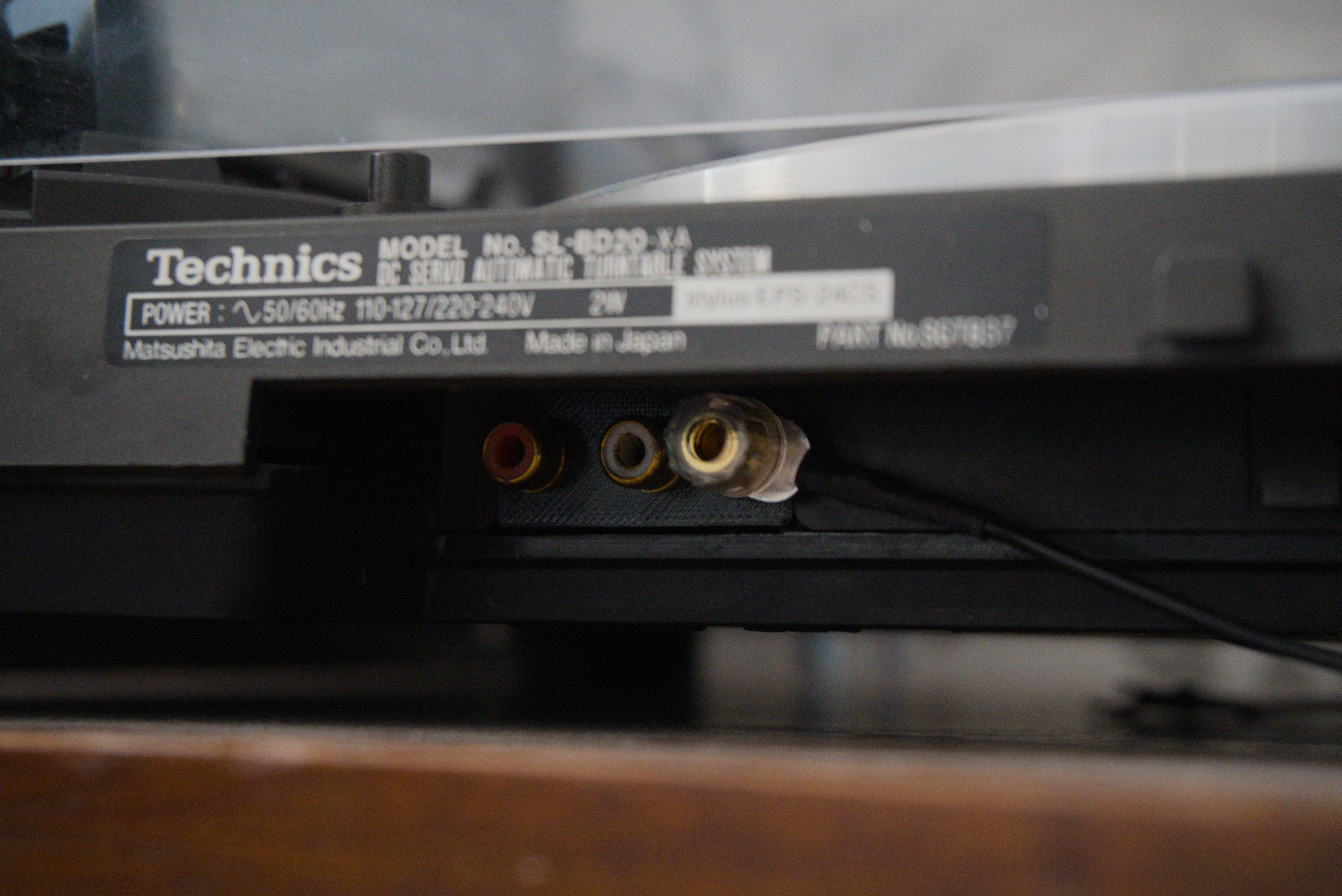

Cable Module

The SL-BD20 has a proprietary ground cable, which is hard to find in 2025.
Thankfully, the turntable's internal is pretty simple and fixable, so I made it my own according to the original demission.

Part List

• 4mm banana socket acting as ground connection
  This demission is suitable for most turntable ground cables.
  The socket is 10 mm wide, 30.8 mm long, m6 threads with 2 plastic gaskets between the holes (the hole demission is 7.5 mm).

• 2 RCA socket
  8.1mm wide, 23.4mm long, with 5.6mm threads.

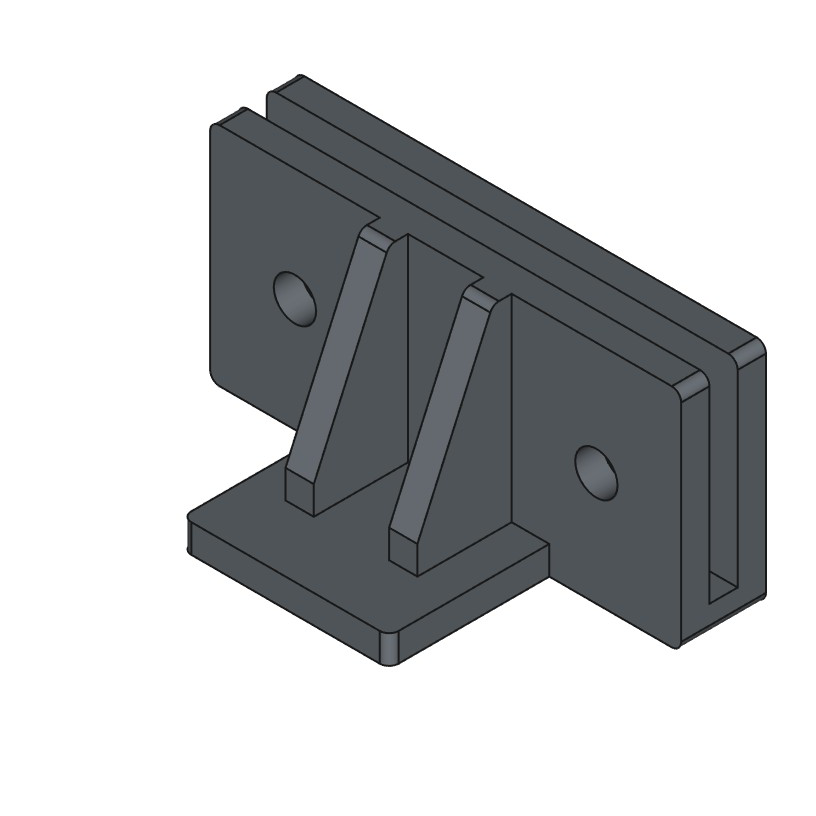

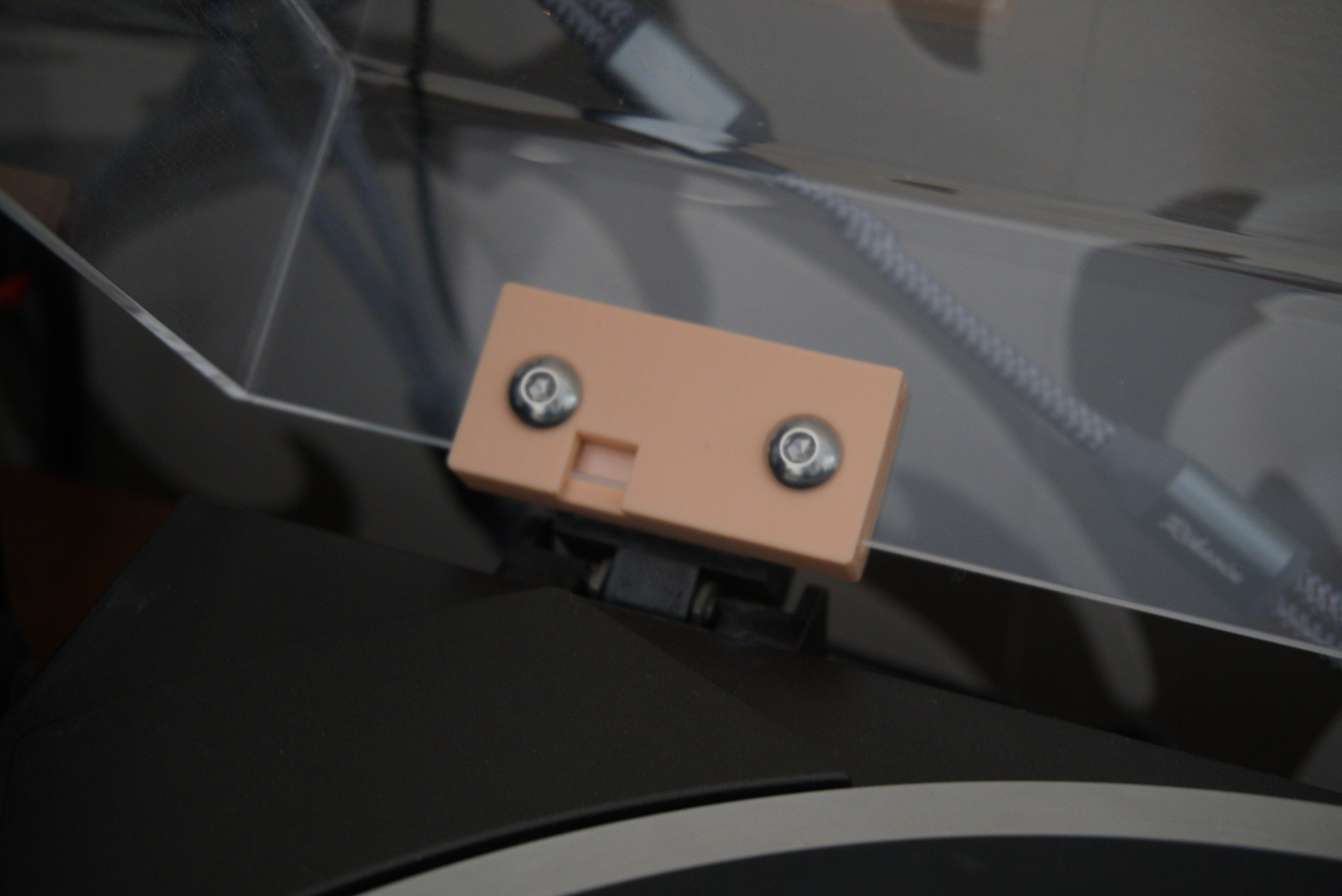

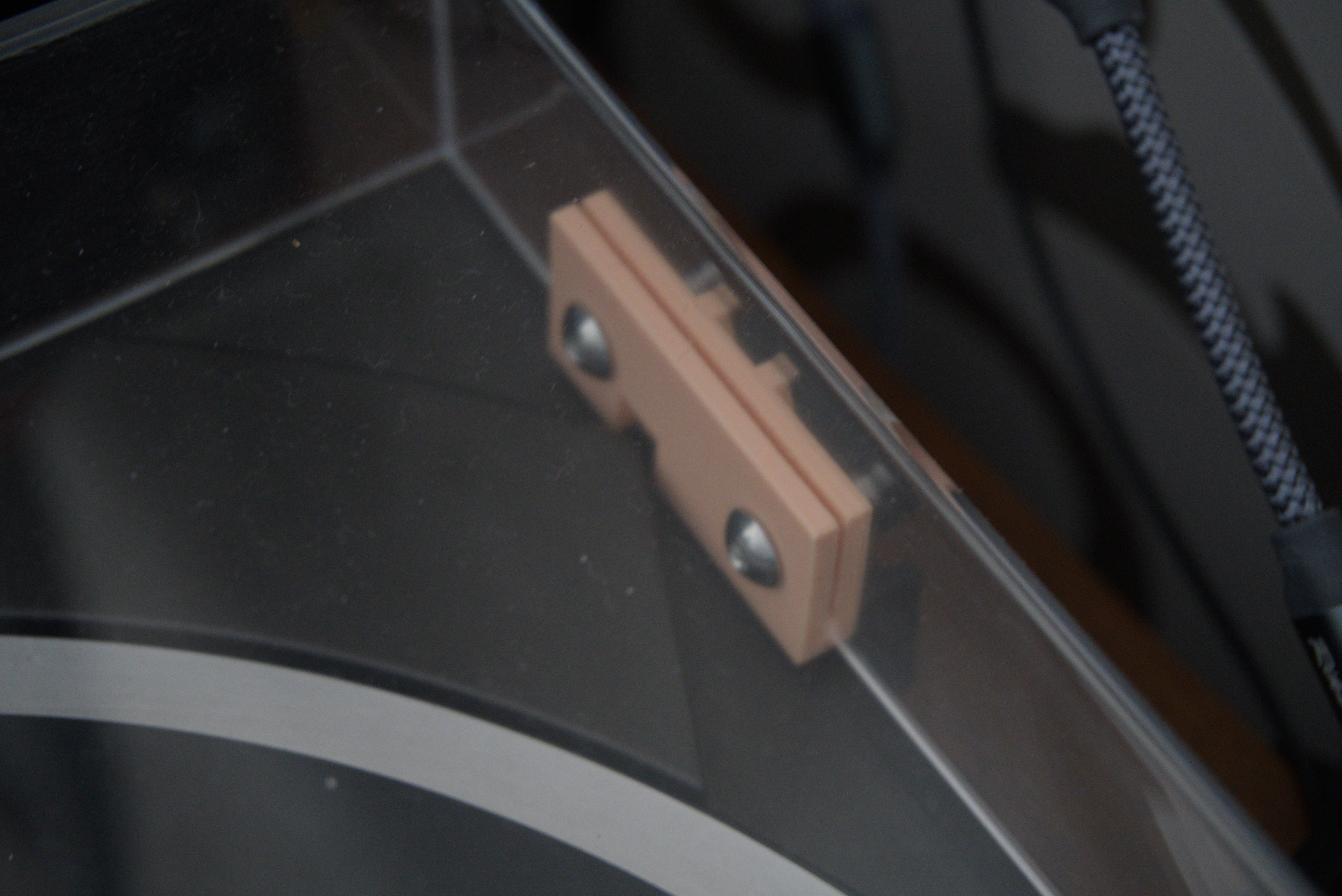

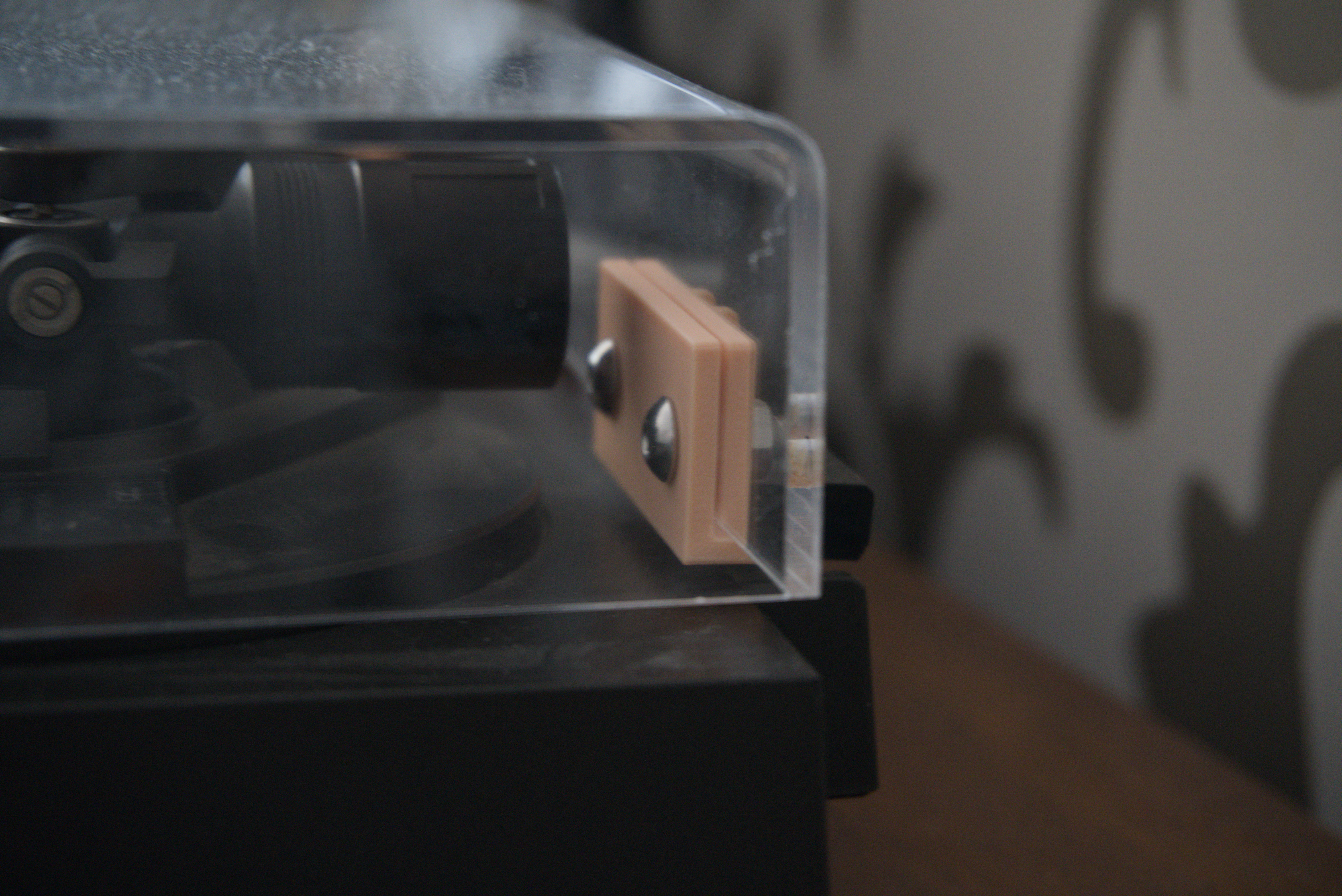

Cover Hinges

Hinges are designed with a combination of Hinge repair by ZoKtorR and eBay Repair Hinge Kits. With some small tweaks.

Highly recommend printed 90 degree sideways for stronger print.

Part List

• 2 * m5 screws/bolts

• 2 * m5 nuts

• 4 * m5 washers (optional)

Feet

The only other thing that I didn't design is the feet. The rubber can get soft and sticky. I got lazy and just found these made by Gizus.

• https://www.thingiverse.com/thing:4762746

License

technics-sl-bd20-keepalive © 2025 by Hanqi Xu is licensed under CC BY-SA 4.0

Changelog

Release v0.2.0

• Shorten the hinge for better fitment.

• Add hinge with cutout, for the left hinge on the turntable; resolve for the last release doesn't fit.

• Change hole size to M5, for better access for drill bits, screws and nuts.

• Update README.md, for M5 size change and print orientation.

• Add .gitignore

Release v0.1.1

• Redesign cover hinges with a combination of Hinge repair by ZoKtorR and eBay Repair Hinge Kits. With some small tweaks.

• Update README with hinges info.

Release v0.1.0

• Add FCStd and stl files for hinges.

Release v0.0.2

• Update RCA connector hole size from 5.6mm to 6mm.

• Change to through hole pocket.
