Tevo Tornado/CR10 Bed chain

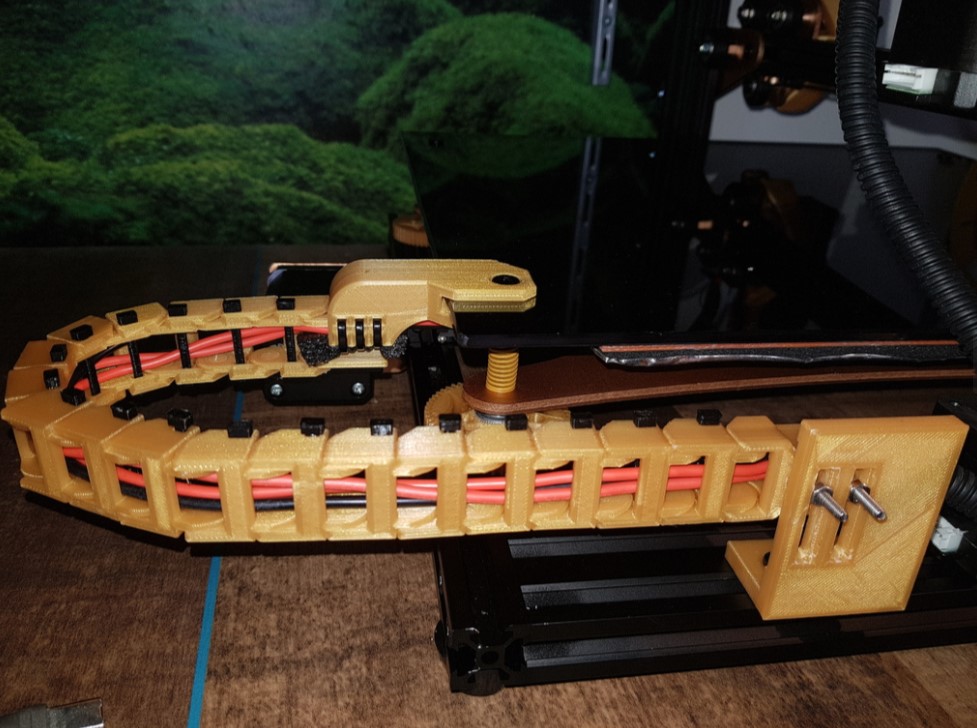

Cable chain for the heatbed of the Tevo Tornado, it might also work with the CR-10 but I did not test that.

I switched from my anet a8 to the tevo tornado and I missed the cable-chain for the bed. Especially because there is no strain-relief for this printer.

I used the frame-piece of "stevenfayers" and slightly modified it so you can equate the z-height of the bed and the mounting point.
I used the trusty old chain of "sukhoi27" and modified it slightly to fit the cables. Now you can just put in the cables and close the chain link off with a pin.
For the strain-relief and bed mount I used the design of "Pemic' and just pasted a chain link on it

Hardware:

• 3 zip ties for the strain-relief,
• 2x t-bolt nuts + 2 M4 bolts to connect to frame.
• 2x m3 bolts and nuts for the last chain

Print:
5x "chainlinks open 4x" (you need 18 chain links)
18x "cable holder pin"
18x "cable holder cap"
1x "edited frame mount"
1x "mount last chain"
1x "bed mount with strain-relief" or "Carriage mount with strain relief"
