WS2812B Lightstring Spool
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Gadgets
- License
- Creative Commons — Attribution

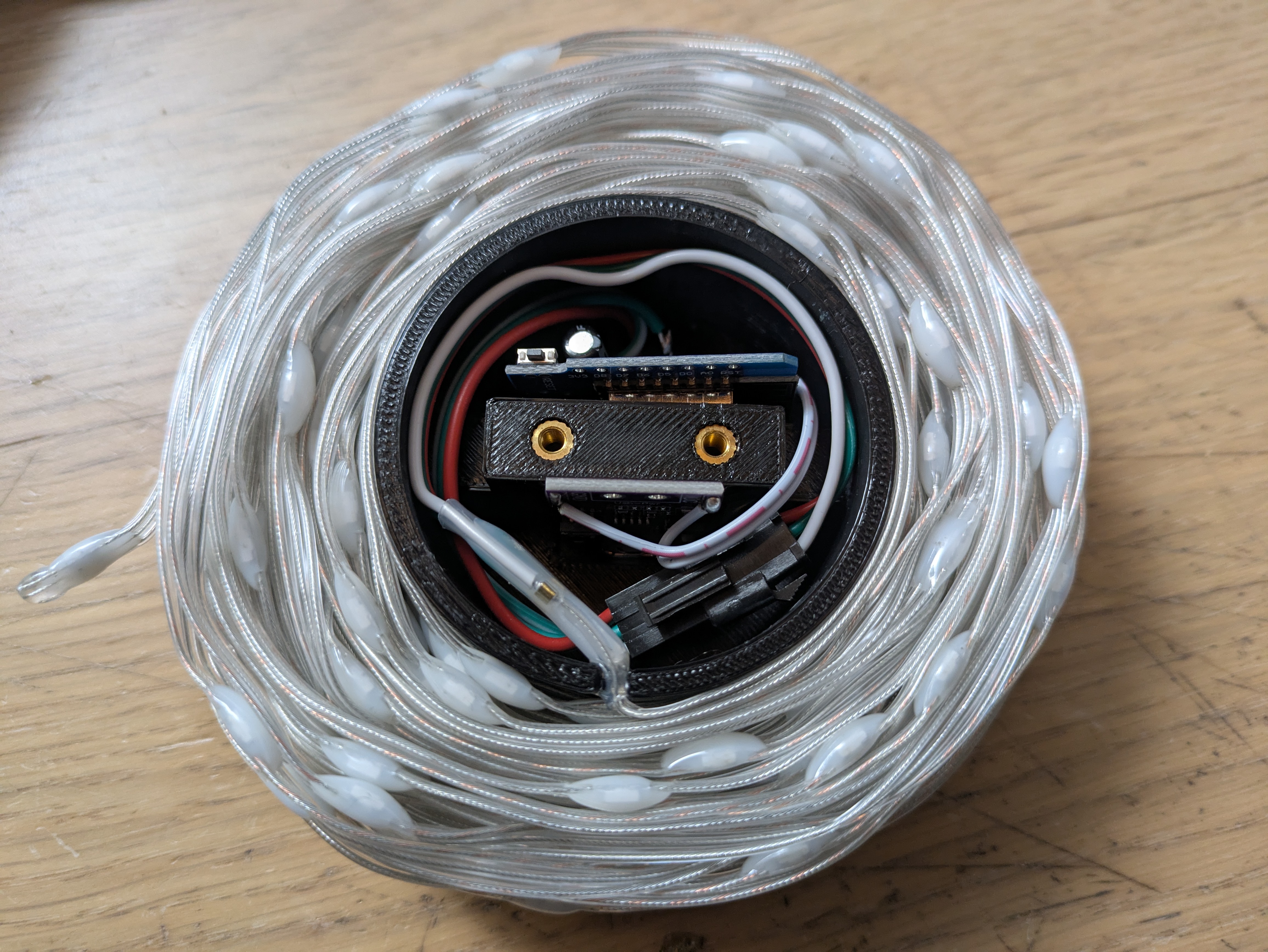

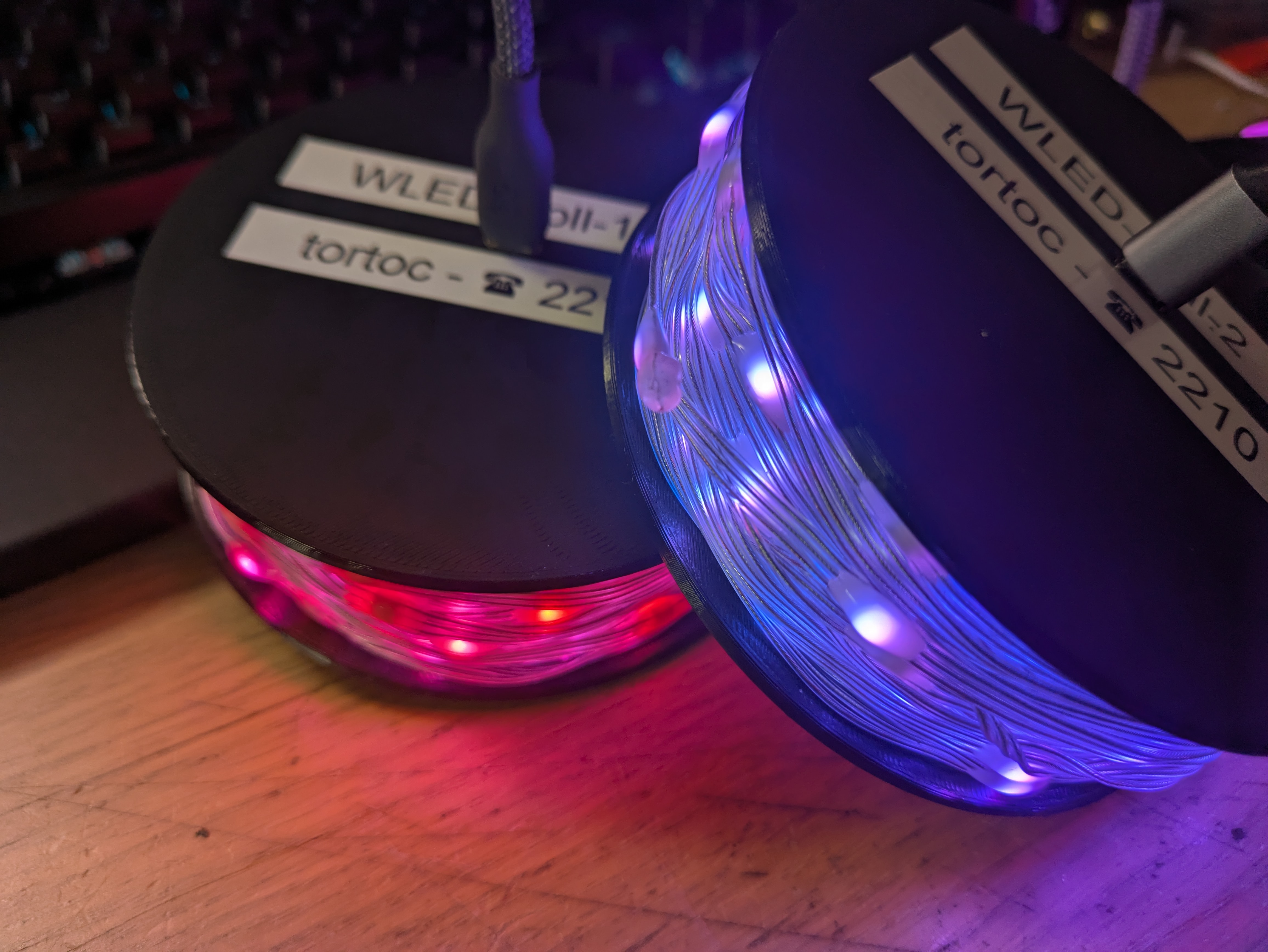

A simple Spool design to store and control 20m of cheap WS2812B LED LED Strings from Aliexpress:
Parts i used:
- LED-String: https://de.aliexpress.com/item/1005005806738119.html (choose “onlytransparent wire” and 20m)
- wemos d1 mini: https://www.amazon.de/AZDelivery-D1-Mini-Entwicklungsboard-kompatibel/dp/B0754W6Z2F/ref=sr_1_3_pp?th=1
- USB-PD-Trigger Board: https://www.amazon.de/dp/B0CH37FZ9N (configure for 5V!)
- 100µF 25V capacitor
- 470 Ohms resistor
- 2x Heatset Inserts
- 2x M3x12 Hex screws
Flash WLED on the wemos d1 mini (via https://install.wled.me/).

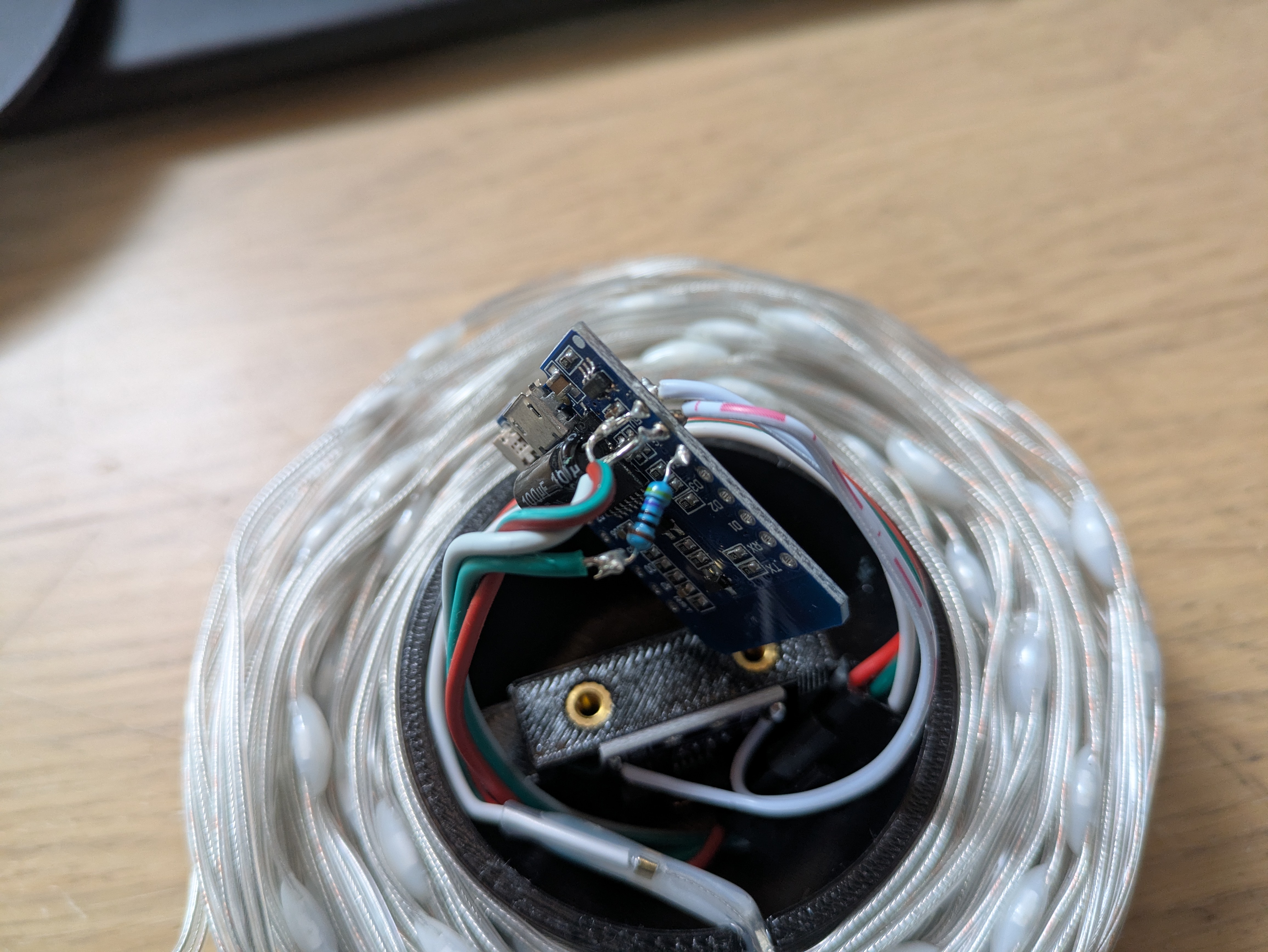

Solder the capacitor between ground and 5V of the wemos d1.
Solder the capacitor to Pin D4 of the wemos d1
Solder some Wire to the USB-C trigger board and solder it to ground and 5V of the d1 mini.
Now solder the connector piece of the LED strip to the d1 mini.
Connect the LED-String.
Power it on and configure the WLED software. You might need to change some color settings.
