THRUSTMASTER : T300RS Accessories

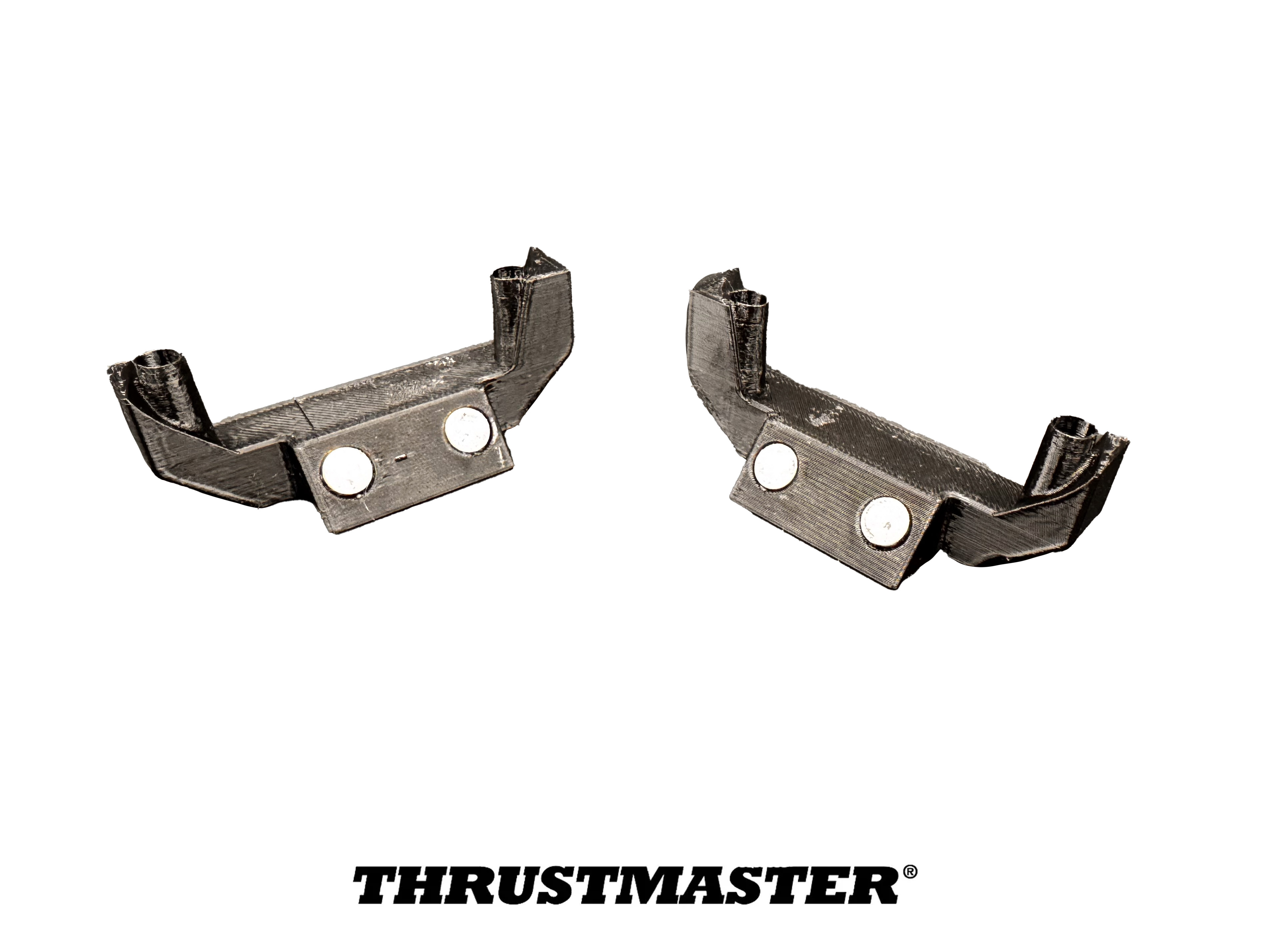

MAGNETIC PADDLES

Material needed :

• 4 magnets, dimensions 8*2.5mm, and for best feeling : N52

• Cyanoacrylate glue, or any liquid superglue

• 2 pieces of double-sided 3M, or double-sided tape, 2*1cm

Magnet properties and instructions :

• Add one drop of cyanoacrylate glue (super glue) into one of the two holes of the printed part.

• Insert one magnet into the glued hole. Make sure the magnet is fully seated and allow the glue to cure completely before proceeding. Wait at least 5 minutes.

• Once the first magnet is secure, repeat the process with the second magnet and the other hole.

• After both magnets are glued and fully set, take one of the double-sided 3M adhesive pads and stick it to the back of the 3D printed part.

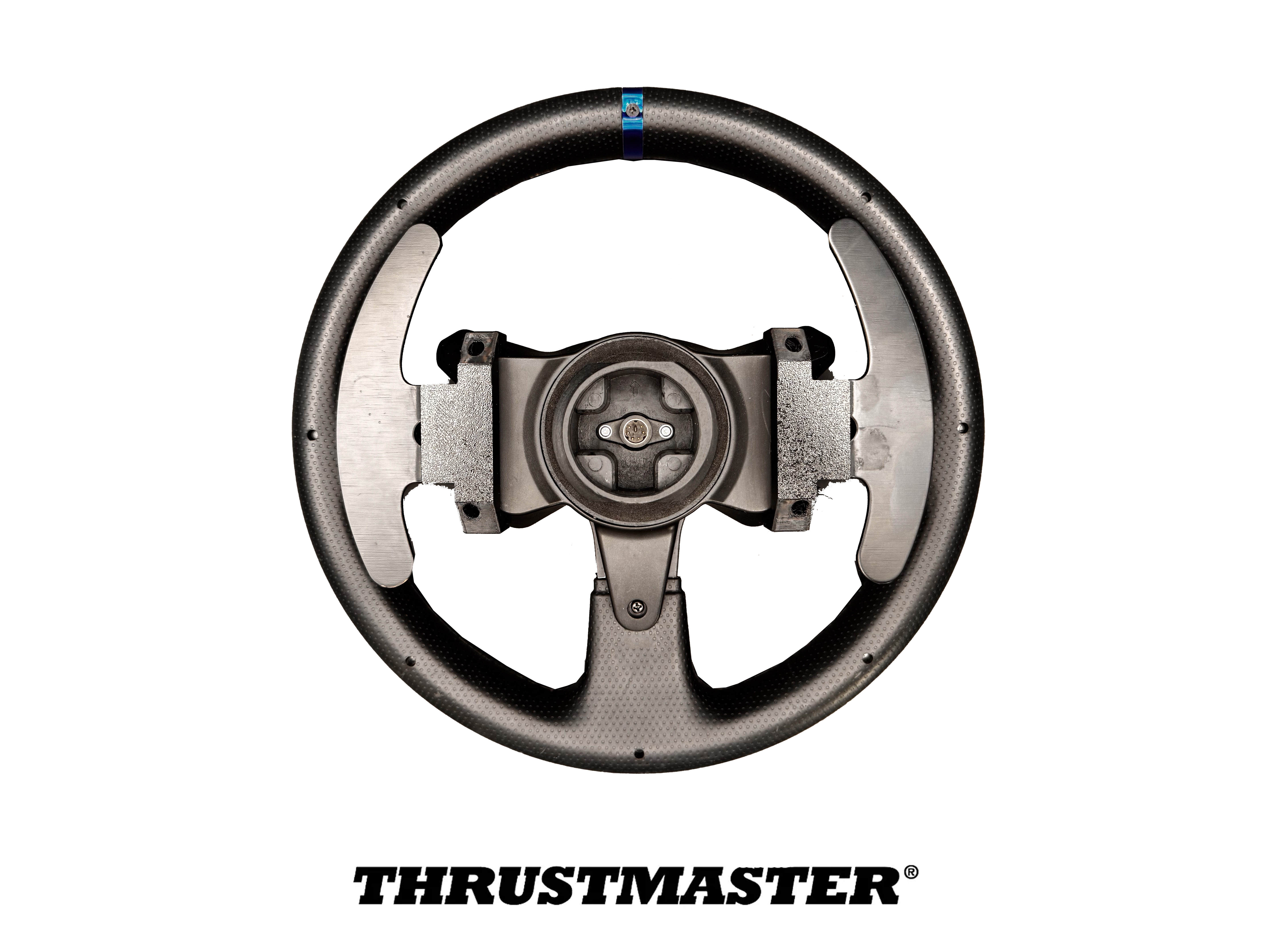

• Important: Determine which side of the T300RS wheel is compatible with the printed part before continuing.

• Once you've identified the correct side, firmly tape the 3D printed piece to the T300RS wheel.

• Repeat the same steps for the second printed piece.

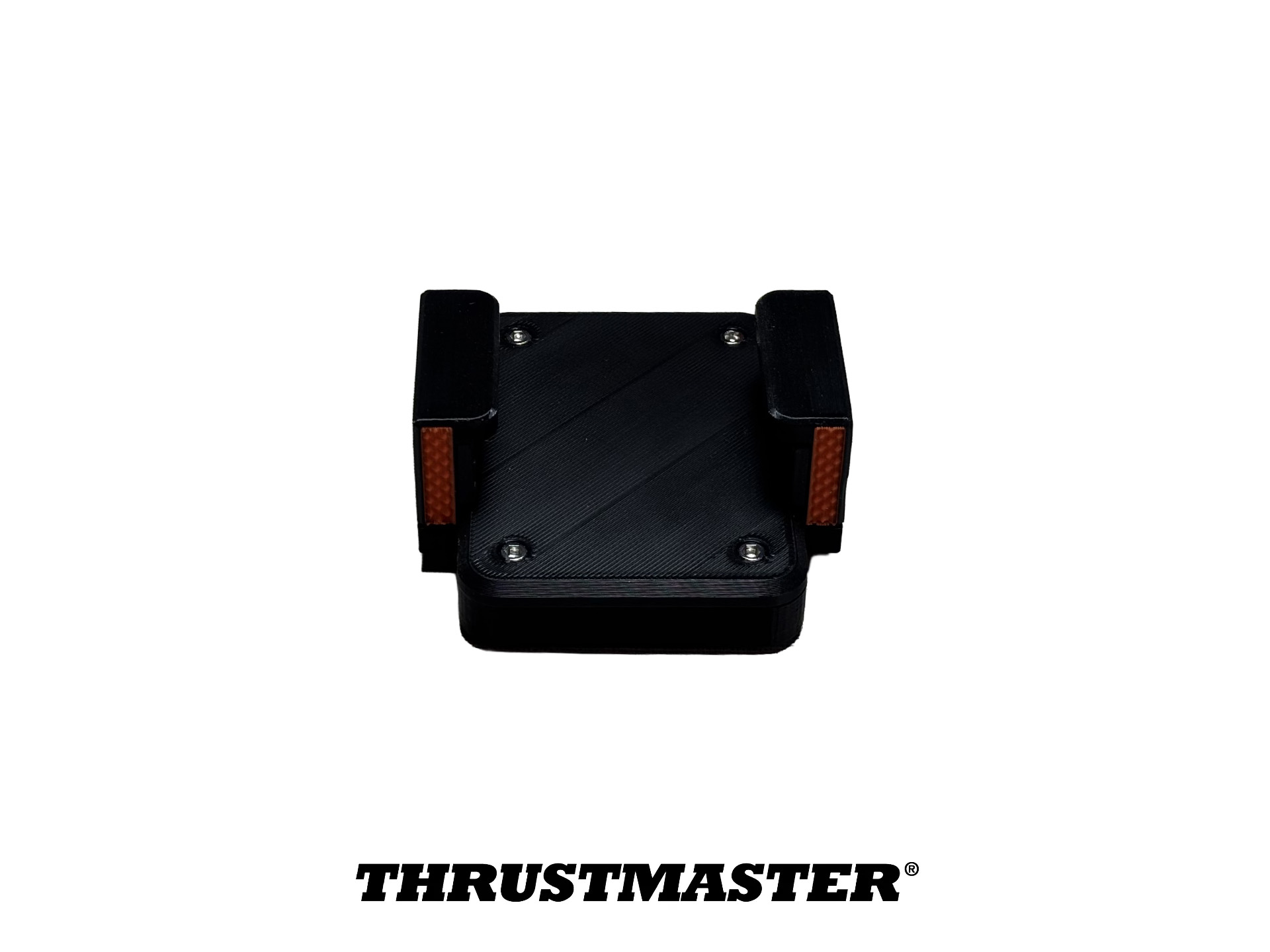

SMARTPHONE STAND

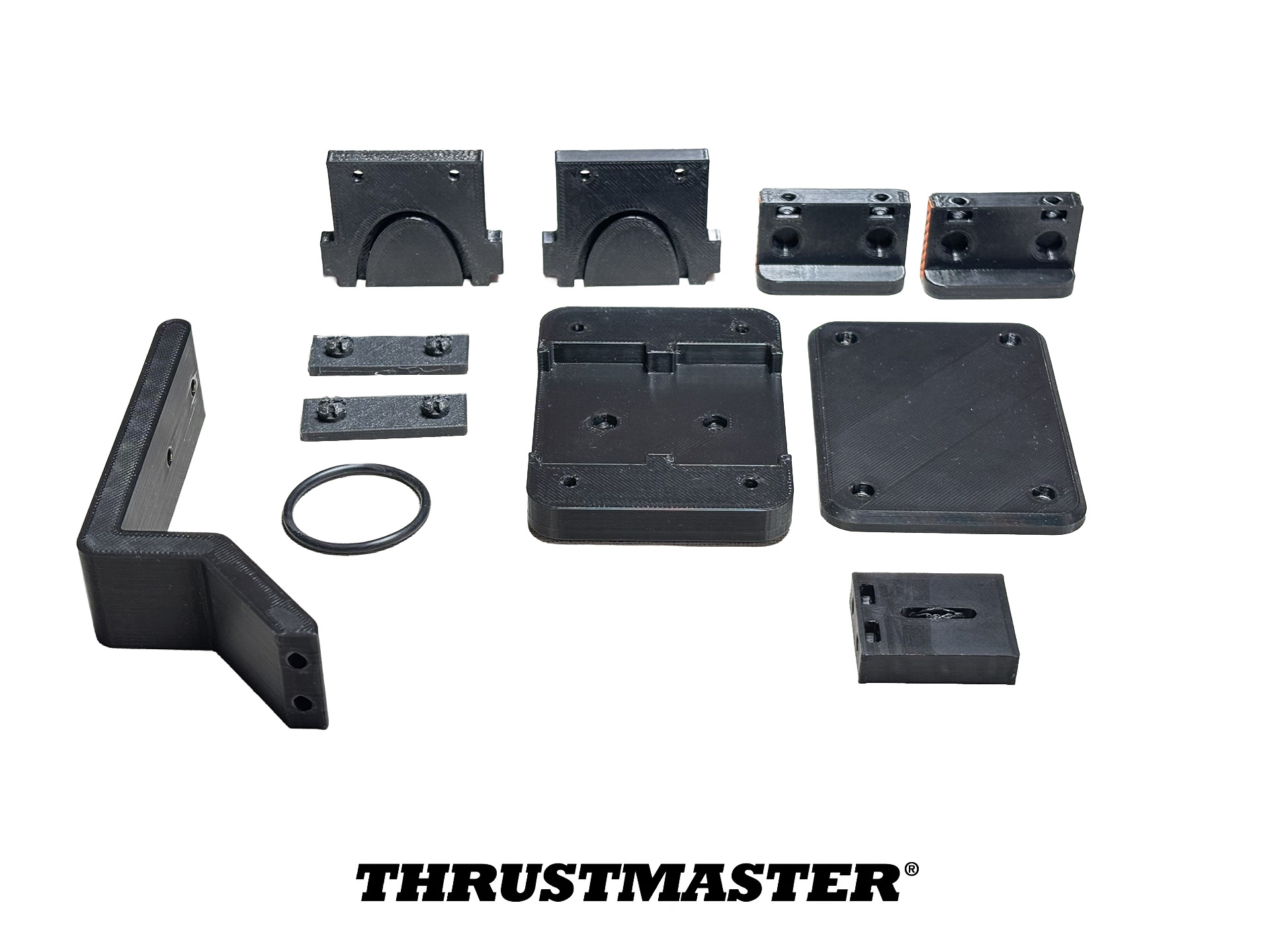

List of items to print :

• 1 Front

• 1 Back

• 2 Clamps

• 2 Rubbers (optionnal)

• 2 O Ring Parts

• 1 Ring Fixation

• 1 Top Cover

• 1 Arm

• 1 Connector

List of tools needed :

• 1 Screwdriver Philips PH2 M3*5mm

• 1 2.5mm hex key

• 3 Screws M3*5mm

• 6 Screws M3*8mm

• 4 Screws M3*12mm

• 13 Nuts M3

• 1 O-ring : 2mm CS * 3 cm ID

Technical information for all model files :

• Nozzle size: 0.4 mm

• Layer height: 0.2 mm (Quality)

• For more durability, add :

  • Infill : 15%

  • 4 perimeter layers

• No support needed

• Materials recommended: PLA

• Printer used for prototyping: Prusa MK4/Prusa Core One

• Type of bed used for prototyping: textured

Notes:

• The smartphone stand model files are compatible with the following bases : T300RS, T-GT II, TS-PC Racer, TS-XW SERVO BASE

• All printers have different tolerances, we aimed to make a set of files that works on the maximum number of printers but your mileage may vary

• Customize at your own risks !
