CoreOne Side Cover
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Prusa Parts & Upgrades
- License
- Creative Commons — Attribution — Share Alike

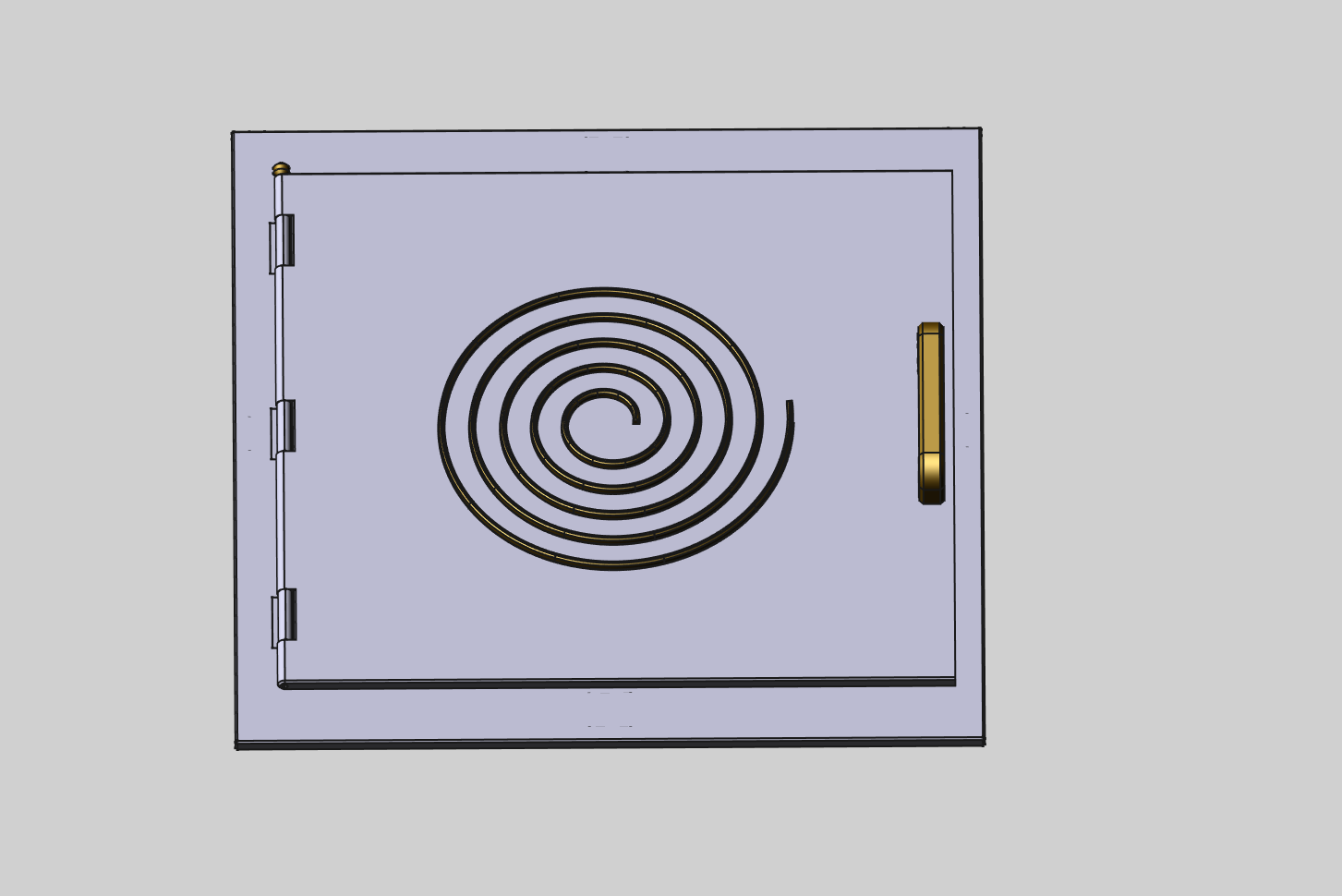

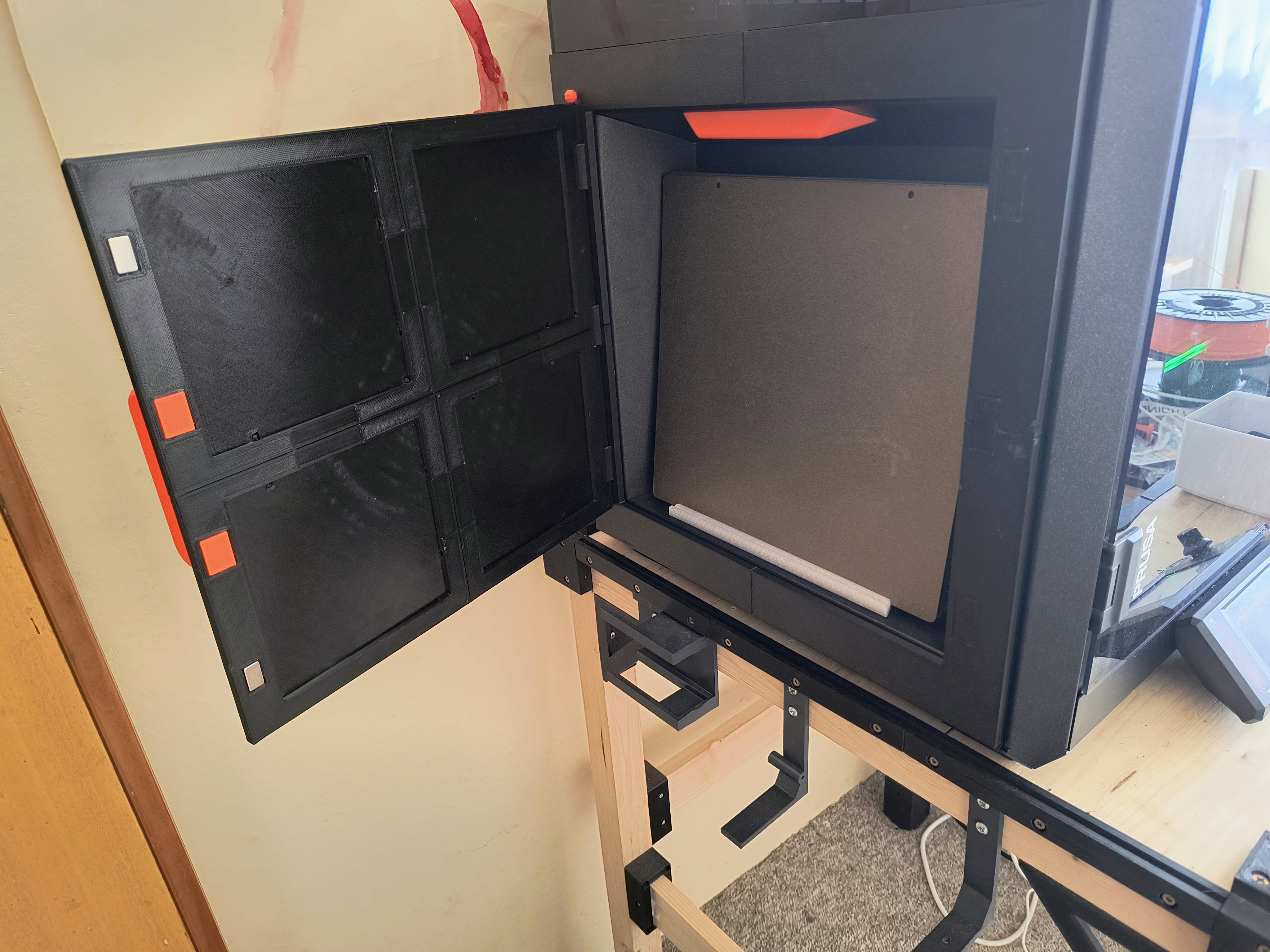

The cover can be used on both sides of the printer.
Hinges can be placed on the left or right, allowing you to choose the direction the door opens.
All parts are very tight, be careful when assembling.
Extra material needed:
Neodym magnets 15x9x4mm - 16 pcs
(You can adjust the dimensions of the magnet holes in the attached STEP file)
Some glue to fix the magnets, connectors, axis head and spiral
Print settings:
layer height - 0,2 mm
Perimeters - 3
Infill - 10% gyroid
supports - yes (for some parts)
Printed with PETG (2 colors):
Spiral, Axis, AxisHead, Handle and HandleHolder - orange
Other part - graphite black
