Flashforge Adventurer 5M Pro – Toolholder

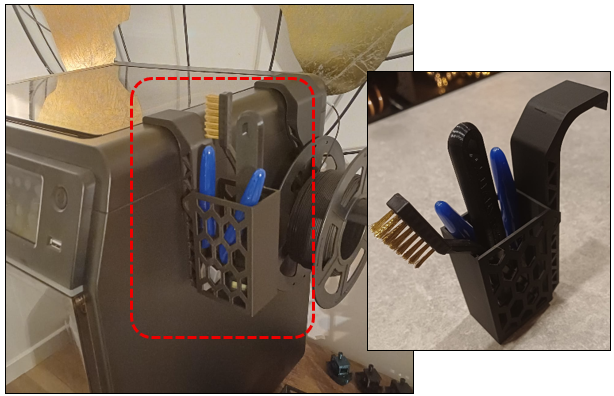

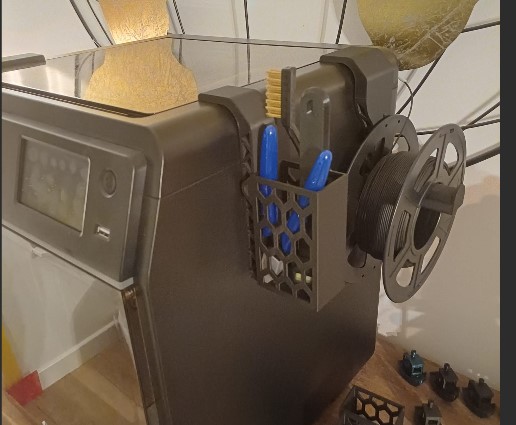

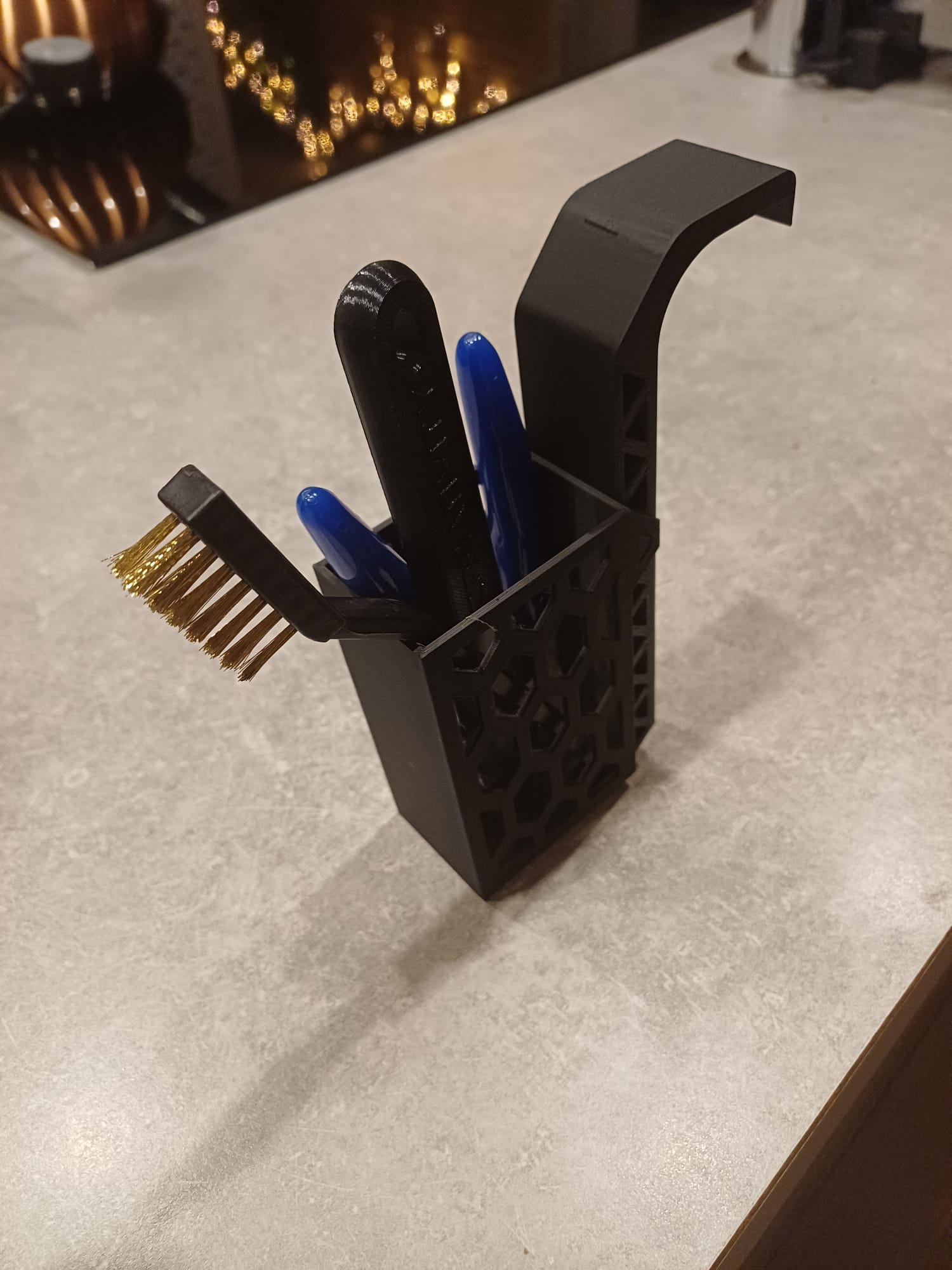

This print in place toolholder allows you to store your standard tools neatly on the side of your Flashforge Adventurer 5M Pro. No glue is needed: everything just clicks together permanently. Fits my plier, wire brush and scraper easily.
Printed it with standard PLA settings on my Flashforge Adventurer 5M Pro. Set the extruder temp to 230⁰C and the bedtemp to 60⁰C. Since there are some small parts and tight bends printed it with a 2mm brim and it came out great.

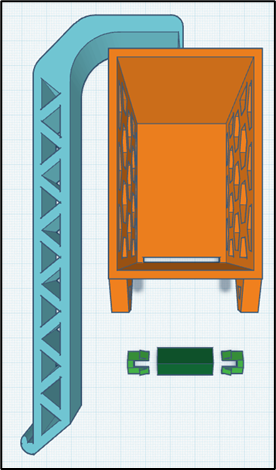

Package contains
Arm (light blue in instructions)
Basket (orange in instructions)
size (LxWxH) 60mm x 40mm x 100mm
2 pcs Locking pins (light green in instructions)
Locking bar (dark green in instructions)
Instructions

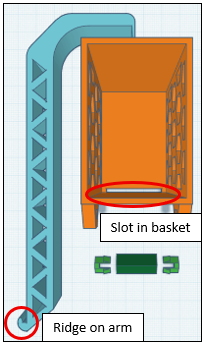

The bottom of the arm has a ridge on it. The slot in the bottom of the basket slides on here.

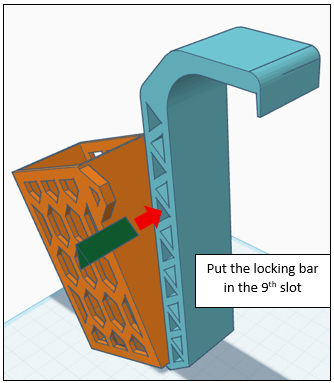

Before pushing the back of the basket flat against the arm: put the locking bar into the 9th slot of the arm (counted bottom up).

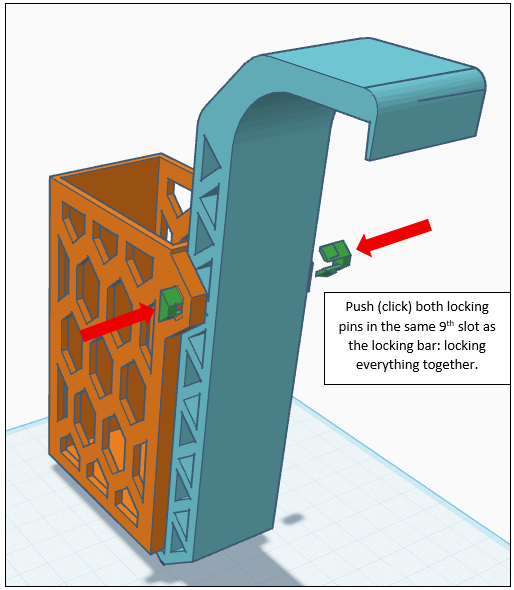

Push back the basket and push both locking pins in the same 9th slot of the arm. One locking pin on the right and one locking pin on the left. The pins should click in place and together with the locking bar they form a solid locking mechanism.
